Sensor de oxígeno disuelto
Dissolved oxygen (DO) comes from two main sources: the atmosphere and photosynthesis. Most aquatic organisms require DO to survive and it is important for chemical processes in aquatic environments.
Dissolved oxygen probes work by measuring the amount of oxygen that diffuses across a permeable (or semi-permeable) membrane into a probe (sensor). Once oxygen is inside the sensor, a chemical reduction reaction occurs, producing an electrical signal. This signal is read by the DO probe and is displayed on a meter. Pokcenser provide two categories of dissolved oxygen sensors: optical and polarographic. DO sensor for fish farming is so important.
Contacto comercial
Pokcenser Automation Technology Co., Ltd
Móvil: +86 181 7515 5326
Correo electrónico info@pokcenser.com
Tel: +86-731-8229 9492

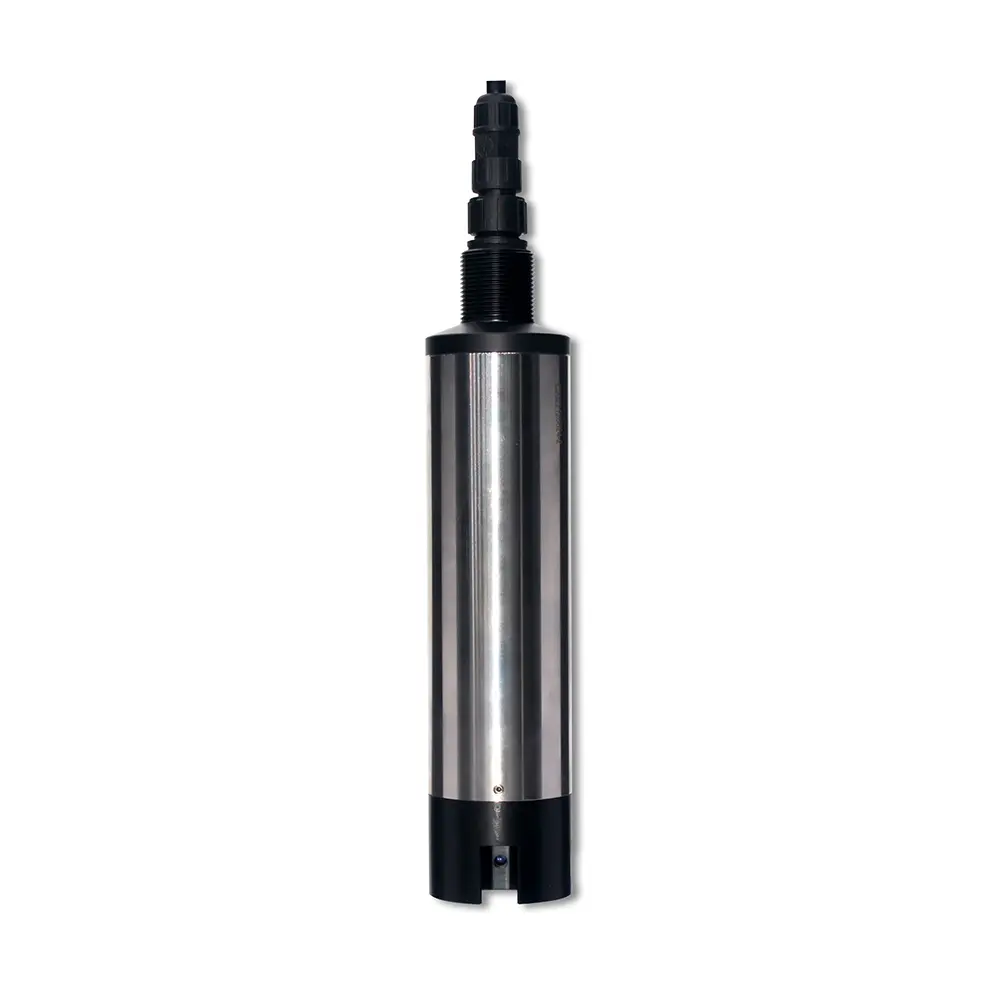

PCS7820D Sensor digital de turbidez
Características
- Measuring method 90° infrared
- 0.01—400 NTU measuring range
- Installation immersed or threaded
- Shell material: POM + 316 stainless steel
Aplicaciones
- General application
- Drinking water
- Environmental sewage
- River and lake water quality
- Food, tap water
- Electroplating
- Fabricación de papel
Ventajas
- High accuracy ±5%F.S.
- IP68 water proof
- Digital sensor, strong anti-interference ability, high stability, long transmission distance.
The digital turbidity sensor with modbus protocol is a waterproof turbidity sensor for field use, it can be either submerged or flow-through installed. We provide turbidity meter with multiple ranges 0-400NTU, 0-2000NTU, 0-4000NTU.
Recursos
Ficha de datos
Nombre del archivo | Tiempo | Tipo | Descargar |
---|---|---|---|
PCS7820D Sensor digital de turbidez | 28 de septiembre de 2025 |
Parámetros técnicos
Modelo | PCS7820D |
Alimentación | 9~36VDC |
Output | RS485 MODBUS RTU |
Measuring method | 90° infrared |
Shell material | POM + 316 stainless steel |
Dimension | Φ50*235mm |
Waterproof grade | IP68 |
Measurement range | 0.01—400 NTU |
Measuring Minimum value | 0.5NTU |
Measurement accuracy | ±5%F.S |
Pressure range | ≤0.2Mpa |
Temperature range | 0-45℃ |
Calibration | Sample calibration, standard solution calibration |
Connection method | 4-core cable |
Cable length | 10m cable as standard (Customizable max 100m) |
Installation thread | G3/4'' rear thread |
Scope of application | General application,river and lake water quality |
