PWP350-X Intrinsically Safe Pressure Transmitters with ATEX

Características

  • Imported chip, 0.25%F.S.
  • IP68 waterproof protection
  • Ex ia IICT6, ATEX approved
  • High EMC/EMI protection
  • 316L stainless diaphragm, full welded SUS316L body construction

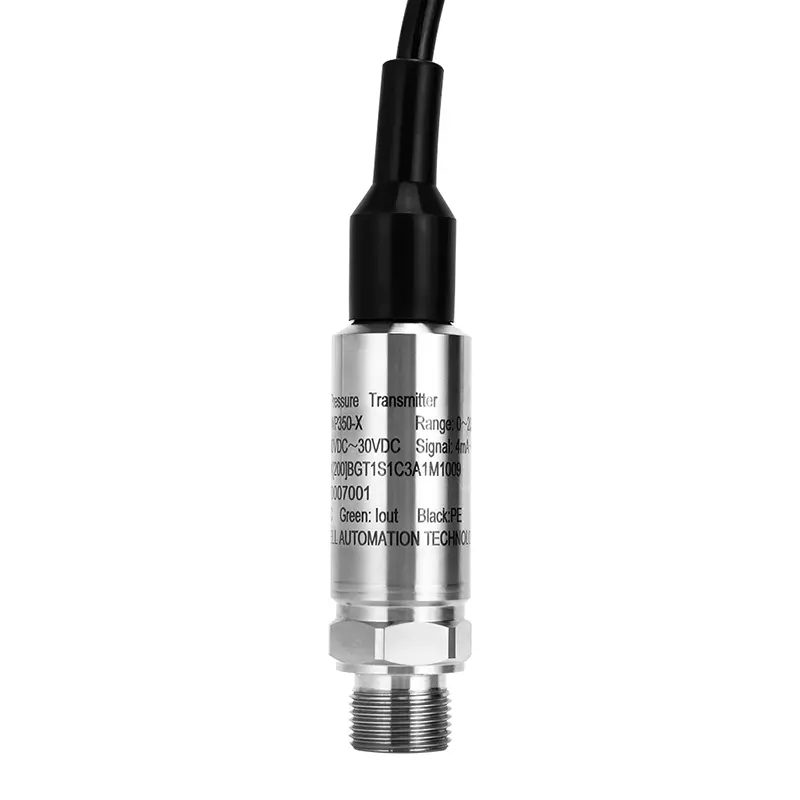

PWP350-X Intrinsically Safe Pressure Transmitters with ATEX

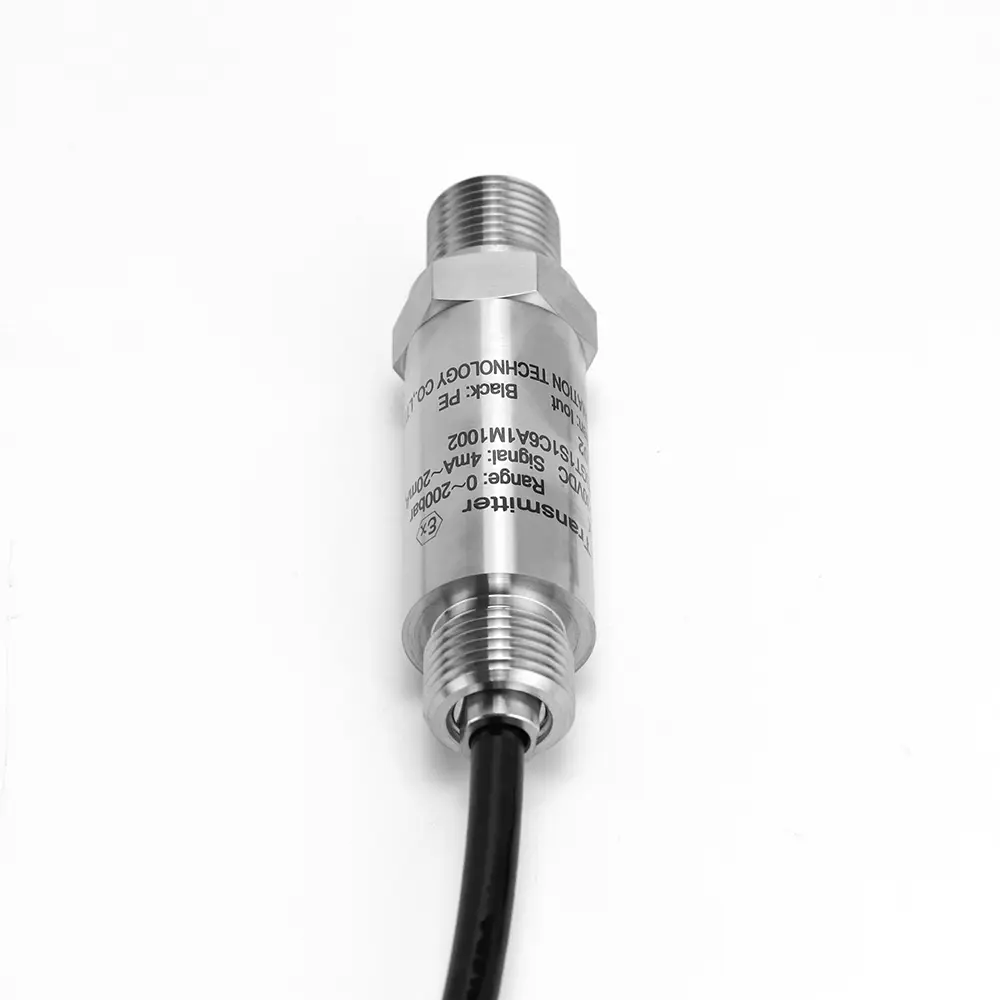

PWP350-X Intrinsically Safe Pressure Transmitters with ATEX

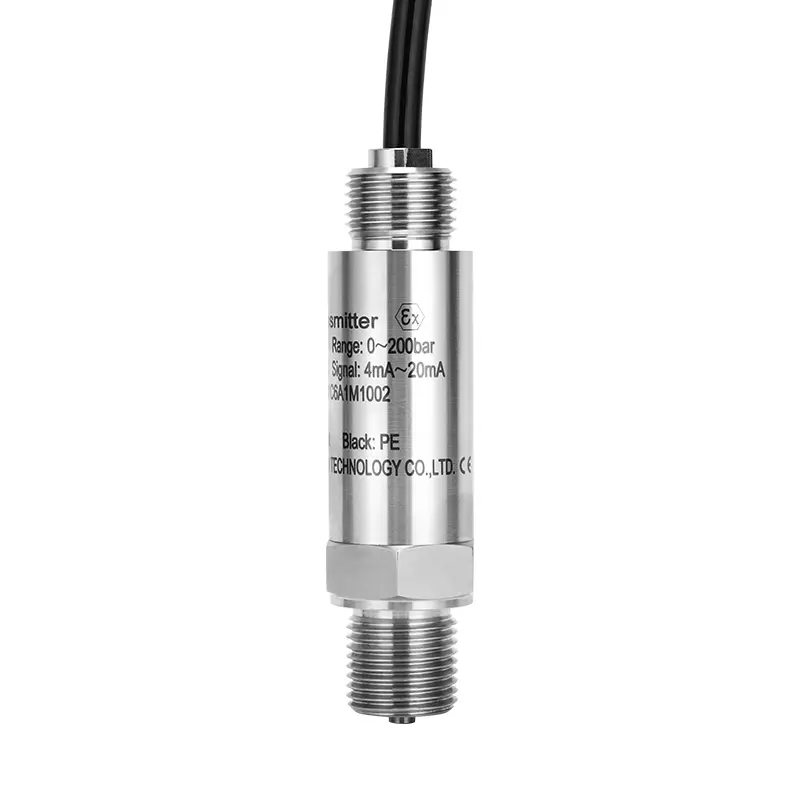

PWP350-X Intrinsically Safe Pressure Transmitters with ATEX

Aplicaciones

  • Petróleo y gas
  • Refineries and petrochemical industry
  • Natural gas compressors
  • Drilling platforms and pipeline
  • Marine and vessel approved
  • Diesel tank level monitoring
  • Harsh and hazardous application
Solicitar precio Descargar PDF

Ventajas

  • Strong shock and erosion resistance
  • Safe, applicable in explosive gases and liquids. Zero leakage and permanent seal, complying with international explosion-proof standards
  • Top thread for easy installation of cable casing pipe
  • Reliable and long term stability in harsh application
  • Surge protection, lightning protection, reverse connection protection

The intrinsically safe pressure transmitter with high accuracy is a diffused silicon pressure sensor with ATEX approval, designed for use in hazardous environments. The IP68 waterproof rated and fully sealed structure makes it ideal for high standard requirements of industrial oil and gas sections applications.

Recursos

Ficha de datos

Nombre del archivoTiempoTipoDescargar
PWP350-X Intrinsically Safe Pressure Transmitters with ATEX25 de septiembre de 2025PDF

Parámetros técnicos

ModeloPWP350-X
Pressure TypeRelative (gauge) /Absolute pressure/Sealed gauge pressure
Pressure Range-0.1MPa ... 0kPa~10kPa …100MPa
Safe Overload≤200%FS(<10MPa); ≤150%FS(≥10MPa)
Burst Pressure≤300%FS
Electrical ConnectionDirectly outlet cable
WaterproofIP68
Precisión±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Salida de señal4-20mA/0.5-4.5V/0-5V/0-10V/I2C/RS485
Fuente de alimentación3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC
Response Time≤3ms
Long-term Stability (%FS/year)≤0.5 for 0.5%FS accuracy
Compensation Temp.0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa)
Temp. de trabajo-40℃~+85℃
Storage Temp.-40℃~+85℃
Body MaterialSUS304 stainless steel, optional 316L
Service Life>10 million load cycles (within measurement range)
A prueba de explosionesExia II CT6
Pressure Connect PortG1/4” male, 1/4”NPT male, G1/2”male, 1/2” NPT male, M20x1.5 male
