PWF-UOC3000/3003 Caudalímetro ultrasónico de canal abierto

Características

  • LED display with backlight: Display level, instantaneous and cumulative flow
  • IP68 water-proof sensor, IP65 transmitter
  • Output: 4-20mA, RS485, RS232
  • Sensor probes available with ABS and PTFE type(Anti-corrosion)

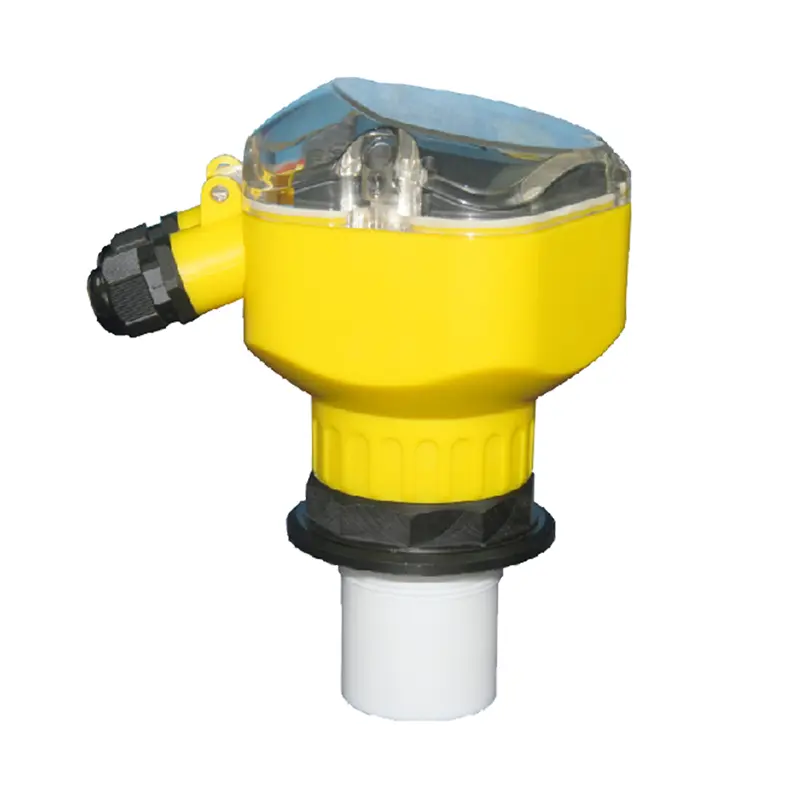

PWF-UOC3000/3003 Caudalímetro ultrasónico de canal abierto

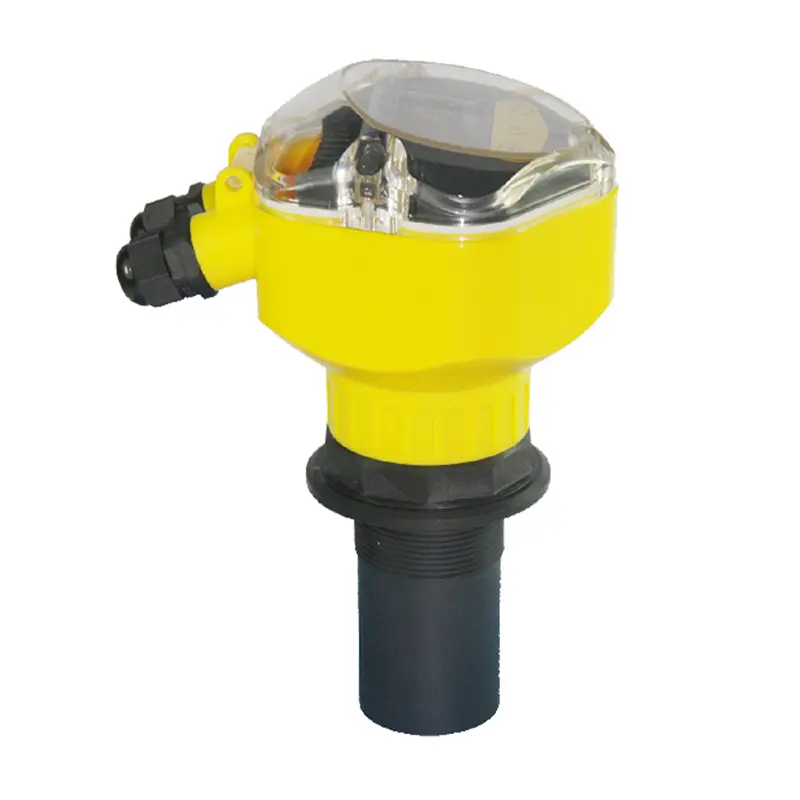

PWF-UOC3000/3003 Caudalímetro ultrasónico de canal abierto

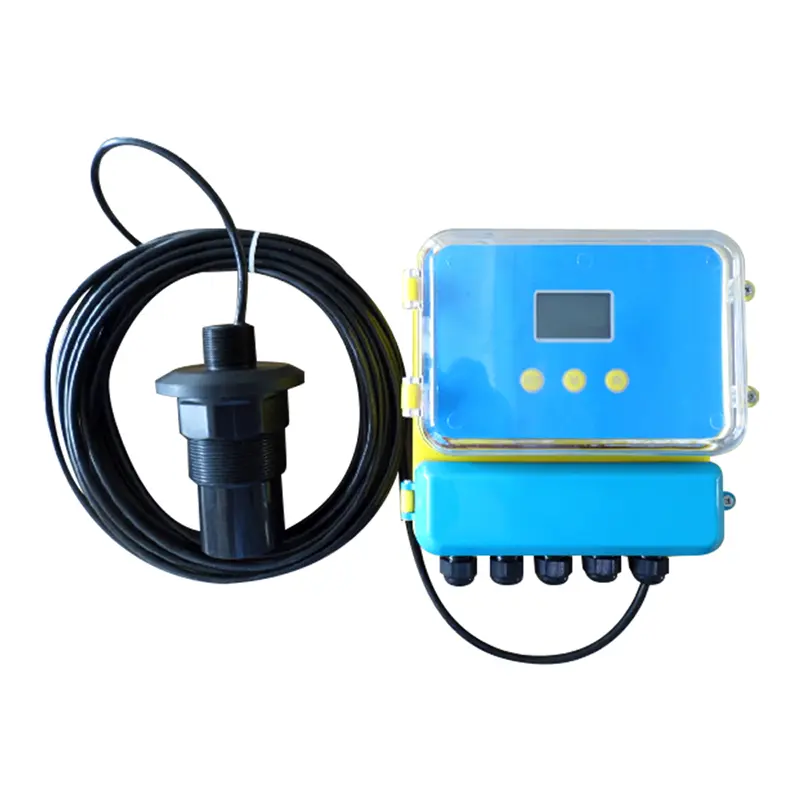

PWF-UOC3000/3003 Caudalímetro ultrasónico de canal abierto

Aplicaciones

  • Tuberías de alcantarillado
  • Canales abiertos de riego
  • Tuberías parcialmente llenas
  • Parshall flume
  • Triangular/Rectangular/Trapezoidal weir
Solicitar precio Descargar PDF

Ventajas

  • Easy to setup
  • Cost-effective for flow measurement
  • Split type and Integrated type available
  • Split type can be used for channels without flume.

Ultrasonic open channel flow meter is a device to calculate flow with proper equations via measured level of weir or flume in the channels. This open channel flow meter ultrasonic is applied with non-contact method ultrasonic waves through the air. Compare with the contact instrument, it has higher reliability and durability in the condition of dirt and corrosive liquid.

Recursos

Ficha de datos

Nombre del archivoTiempoTipoDescargar
PWF-UOC3000/3003 Caudalímetro ultrasónico de canal abierto23 de septiembre de 2025PDF

Parámetros técnicos

ModeloPWF-UOC3000/3003
Measuring Flow Range0.1l/s～99999.99 m3/h
Cumulative FlowMax: 4290000000.00 m³
Level Range3m
Medios mediblesWater, seawater, sewage water
Accuracy of Level±0.5%FS
Accuracy of FlowStandard weir: 1～5%
Non-standard weir: 10～30%
Salida de señal4-20mA/RS485/Relay/RS232
Fuente de alimentación24VDC/12VDC/220VAC
MostrarLED
Temp. de trabajoDisplay: -20～+60℃          Probe: -20～+80℃
Presión de trabajoAtmospheric pressure
Nivel de protecciónDisplay IP65/IP67, sensor IP68
Material de la carcasaABS
Probe MaterialABS(Teflon for corrosive environment)
Resolution3mm or 0.1%(which is bigger)
Sensor Installation MethodM48x2mm thread + matching nuts
Cable Length10m for split type, max 100 meters
