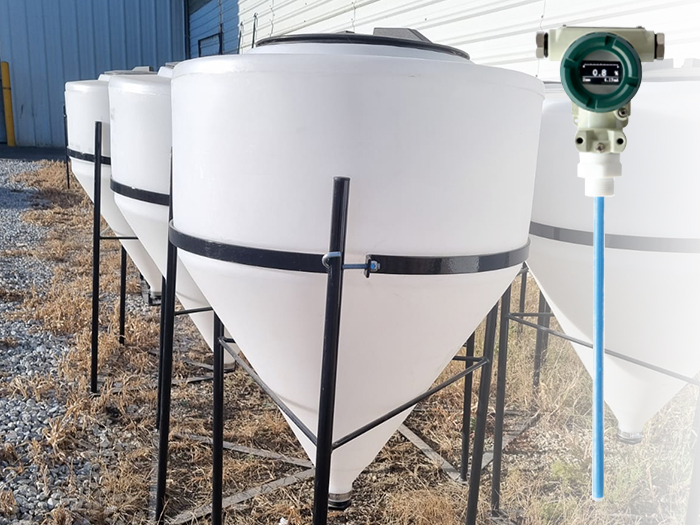

Capacitive Level Sensors for Corrosive Liquids: A Comprehensive Guide

Accurately measuring liquid levels in corrosive environments presents significant challenges. This guide provides essential information on selecting, implementing, and maintaining capacitive level sensors for such demanding applications. You will learn how these specialized sensors operate and how to ensure their longevity and accuracy in harsh industrial settings.

Understanding Capacitive Level Sensing Technology

Capacitive level sensors offer a reliable method for continuous level measurement. They are particularly effective in environments where traditional sensors might fail due to the aggressive nature of the media. Understanding their operational principles and inherent advantages is crucial for proper application.

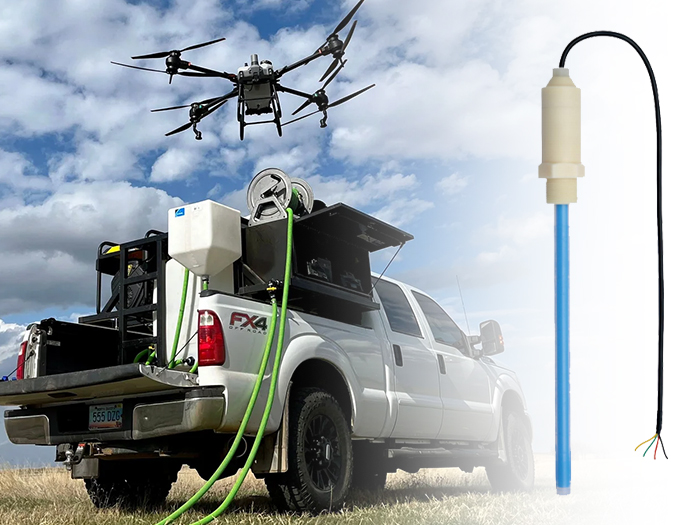

Principles of Capacitance-Based Measurement

Capacitance-based measurement relies on detecting changes in electrical capacitance. A capacitive sensor typically consists of two conductive plates, or an electrode and the tank wall, forming a capacitor. When a liquid fills the space between these plates, the dielectric constant of the medium changes the overall capacitance. This change is directly proportional to the liquid level. The sensor then converts this capacitance variation into an electrical signal, providing a precise measurement of the liquid height. This method is non-contact when used with non-conductive tank walls, preventing direct exposure of the sensing element to corrosive substances.

Advantages of Capacitive Sensors

Capacitive sensors offer several distinct advantages, especially when dealing with corrosive liquids. They provide high accuracy and repeatability, ensuring consistent measurements over time. Their design often allows for non-intrusive measurement, which minimizes sensor exposure to aggressive chemicals. Furthermore, these sensors typically have no moving parts, reducing wear and tear and lowering maintenance requirements. They can also be customized for various tank geometries and liquid types, making them highly versatile.
If you need more details on how these sensors operate, consider reading our article 《Capacitive Level Sensors: Principles & Best Use Cases》.

Challenges of Corrosive Liquids in Level Measurement

Corrosive liquids pose unique challenges for level measurement systems. The chemical aggression can degrade sensor materials, leading to premature failure, inaccurate readings, and potential safety hazards. Careful consideration of material compatibility is paramount.

Common Corrosive Substances and Their Effects

Industrial processes frequently involve highly corrosive substances. These include strong acids like hydrochloric acid, sulfuric acid, and nitric acid, as well as strong bases such as sodium hydroxide. Halogens like chlorine and bromine, and various organic solvents, also exhibit corrosive properties. Exposure to these chemicals can cause:

• Material Degradation: Sensors made from incompatible materials may corrode, dissolve, or embrittle.
• Measurement Drift: Changes in sensor material properties due to corrosion can lead to inaccurate readings over time.
• Safety Risks: Sensor failure in corrosive environments can result in leaks, spills, and exposure to hazardous materials, endangering personnel and the environment.

Material Compatibility for Sensor Components

Selecting materials that can withstand specific corrosive liquids is critical for sensor longevity and reliability. Common materials used in corrosive applications include:

• Plastics: Polypropylene (PP), Polyvinylidene Fluoride (PVDF), and Polytetrafluoroethylene (PTFE) are frequently chosen for their excellent chemical resistance. For instance, our PCS1753CD plastic pH sensor utilizes PP for its robust body, ensuring durability in various chemical solutions. Similarly, the PCS2701C plastic ORP electrode also features a PP body, providing reliable performance in aggressive media.
• Ceramics: These materials offer high resistance to many acids and bases, as well as high temperatures.
• Exotic Alloys: Hastelloy, Titanium, and Monel are used for extremely aggressive chemicals or high-temperature applications.
• Coatings: Specialized coatings, such as PFA (perfluoroalkoxy) or ECTFE (ethylene chlorotrifluoroethylene), can provide an additional layer of protection to sensor probes.

Our experience shows that PP is a highly effective material for many corrosive liquid applications. For instance, the PCS2700CD digital ORP sensor uses a PP body, ensuring its resilience in harsh conditions. Similarly, the PCS3740PCD digital conductivity TDS salinity sensor incorporates PP+ABS in its body, alongside graphite or 316L stainless steel wetted parts, to enhance its resistance to corrosive elements.

Designing and Selecting Capacitive Sensors for Corrosive Environments

Effective design and selection of capacitive sensors for corrosive environments require a thorough understanding of both the liquid properties and sensor capabilities. This ensures optimal performance and extended lifespan.

Key Considerations for Sensor Material Selection

When choosing a capacitive sensor for corrosive liquids, material selection is the most critical factor. The sensor’s wetted parts, which come into direct contact with the liquid, must be chemically inert to prevent degradation. We carefully evaluate the chemical compatibility of materials like PTFE, PVDF, and ceramics against the specific corrosive agents present in your application. For example, PTFE offers exceptional resistance to almost all chemicals, while PVDF provides good mechanical strength and chemical resistance to many acids and bases. Understanding the concentration, temperature, and pressure of the corrosive liquid helps us recommend the most suitable material.

Advanced Coatings and Protection Strategies

Beyond inherent material resistance, advanced coatings and protection strategies significantly enhance sensor durability. Coatings such as PFA or ECTFE provide an additional barrier against chemical attack, extending the operational life of the sensor. For applications involving highly aggressive media, specialized sensor designs might incorporate protective sleeves or non-contact measurement methods. These strategies minimize direct exposure of sensitive electronic components to corrosive fumes or splashes. Regular inspection of these coatings is essential to ensure their integrity.

Installation and Calibration Best Practices

Proper installation and calibration are crucial for accurate and reliable measurements.

• Installation: Ensure the sensor is installed according to manufacturer guidelines, paying close attention to mounting orientation and immersion depth. For corrosive liquids, minimize any potential points of leakage. Use appropriate sealing materials that are also chemically resistant.
• Wiring: Protect wiring from corrosive fumes or spills using suitable conduits and junction boxes.
• Calibration: Calibrate the sensor with the actual process liquid or a liquid with similar dielectric properties. Regular calibration checks are necessary to compensate for any long-term drift or changes in liquid composition.
• Safety: Always follow safety protocols when installing or maintaining sensors in corrosive environments. This includes wearing appropriate personal protective equipment (PPE) and ensuring proper ventilation.

Applications of Capacitive Level Sensors in Corrosive Liquid Industries

Capacitive level sensors are indispensable in various industries that handle corrosive liquids. Their ability to deliver accurate and reliable measurements in challenging conditions makes them a preferred choice.

Chemical Processing and Manufacturing

In the chemical sector, precise level control is vital for safety, process efficiency, and product quality. Capacitive sensors are widely used for monitoring acids, bases, solvents, and other reactive chemicals in storage tanks, reactors, and mixing vessels. Their non-contact or highly resistant material construction prevents sensor degradation, ensuring continuous operation and minimizing downtime. For example, in a chemical processing plant, these sensors can monitor the level of concentrated sulfuric acid, providing critical data for automated dosing systems.

Wastewater Treatment and Environmental Monitoring

Wastewater treatment plants often deal with a range of corrosive and abrasive substances. Capacitive sensors are employed to monitor levels in equalization tanks, chemical dosing systems, and sludge holding tanks. Their robust design withstands the harsh chemical environments and prevents fouling, which is common in wastewater treatment applications. Additionally, these sensors contribute to Environmental Monitoring by ensuring compliance with discharge regulations and preventing environmental contamination.
Recommended reading: 《Submersible Level Transmitters: Key Specs to Check First》.

Oil and Gas Exploration and Refining

The oil and gas industry involves handling various corrosive fluids, including crude oil, refined products, and chemicals used in drilling and processing. Capacitive level sensors are utilized in separators, storage tanks, and pipelines to monitor fluid levels, ensuring operational safety and efficiency. Their ability to function reliably under extreme temperatures and pressures, combined with resistance to hydrocarbons and corrosive additives, makes them ideal for these demanding applications. They are also used in applications requiring hazardous area sensors.

Maintenance and Troubleshooting for Long-Term Reliability

Ensuring the long-term reliability of capacitive level sensors in corrosive environments requires proactive maintenance and effective troubleshooting strategies.

Routine Inspection and Cleaning Procedures

Regular inspection is crucial to detect early signs of wear or corrosion.

1. Visual Checks: Periodically inspect the sensor probe and housing for any physical damage, discoloration, or build-up.
2. Connection Integrity: Verify that all electrical connections are secure and free from corrosion.
3. Seal Inspection: Check seals and gaskets for signs of degradation or leakage, replacing them as needed.
4. Cleaning: For sensors exposed to process media, follow a scheduled cleaning regimen using compatible cleaning agents. This prevents sensor fouling and ensures accurate readings.

Identifying and Addressing Common Issues

Even with proper maintenance, issues can arise. Common problems include:

• Drifting Readings: This may indicate sensor fouling, material degradation, or calibration issues. Recalibrate the sensor or clean the probe as necessary.
• No Output: Check power supply, wiring, and sensor integrity. Ensure the sensor is correctly positioned within the measurement range.
• Erratic Readings: This could be due to electrical interference, air bubbles in the liquid, or changes in the liquid’s dielectric constant. Investigate potential sources of interference and ensure proper liquid conditions.

Extending Sensor Lifespan in Harsh Conditions

To maximize sensor lifespan, consider these practices:

• Material Upgrades: If current materials are failing, explore sensors made from more resistant materials like PTFE or specialized alloys.
• Protective Barriers: Implement additional physical or chemical barriers to shield sensors from direct exposure.
• Redundant Systems: For critical applications, consider installing redundant sensors to ensure continuous monitoring even if one fails.
• Environmental Controls: Where possible, optimize process conditions such as temperature and concentration to reduce the corrosivity of the medium.

Optimizing Your Operations with Reliable Capacitive Level Sensors

Accurate and reliable level measurement in corrosive environments is essential for operational efficiency and safety. By choosing the right capacitive level sensors and implementing robust maintenance practices, you can ensure long-term performance and minimize risks. Our expertise in industrial process control automation allows us to provide solutions tailored to your specific needs, focusing on durability and precision. We are committed to helping you enhance your processes with high-quality, resilient instrumentation.

Ready to enhance your industrial processes with advanced level sensing technology? Contact our specialists today to discuss your specific application requirements and discover how our solutions can benefit your operations.

FAQs

What makes a liquid ‘corrosive’ for level sensors?

A liquid is considered corrosive if it chemically reacts with and degrades the materials of the sensor over time. This reaction can involve oxidation, dissolution, or other chemical attacks, leading to structural damage or changes in the sensor’s performance. Factors like pH, temperature, and chemical concentration significantly influence a liquid’s corrosivity.

How do capacitive sensors differ from other level measurement technologies for corrosive liquids?

Capacitive sensors measure liquid levels by detecting changes in electrical capacitance caused by the liquid’s dielectric properties. Unlike some other technologies, they can often operate non-invasively or with highly resistant materials, minimizing direct contact with corrosive media. This reduces wear and extends sensor life compared to mechanical or ultrasonic sensors that might be more susceptible to chemical attack.

What materials are commonly used in capacitive sensors designed for corrosive applications?

For corrosive applications, common materials include plastics like PP, PVDF, and PTFE, which offer excellent chemical inertness. Ceramics and exotic alloys such as Hastelloy or Titanium are also used for extremely aggressive chemicals or high-temperature conditions. These materials are chosen to withstand chemical degradation and ensure long-term reliability.

Can capacitive sensors be used in highly acidic or alkaline solutions?

Yes, capacitive sensors can be effectively used in highly acidic or alkaline solutions, provided the sensor’s wetted materials are specifically chosen for compatibility. Materials like PTFE or PVDF are highly resistant to a broad range of acids and bases, making them suitable for such challenging environments. Proper material selection is key to successful deployment.

What maintenance is required for capacitive level sensors in corrosive environments?

Maintenance for capacitive level sensors in corrosive environments typically involves routine visual inspections for damage, checking electrical connections, and inspecting seals. Regular cleaning of the sensor probe is essential to prevent fouling and ensure accurate readings. Periodic calibration also helps maintain measurement precision over time.
