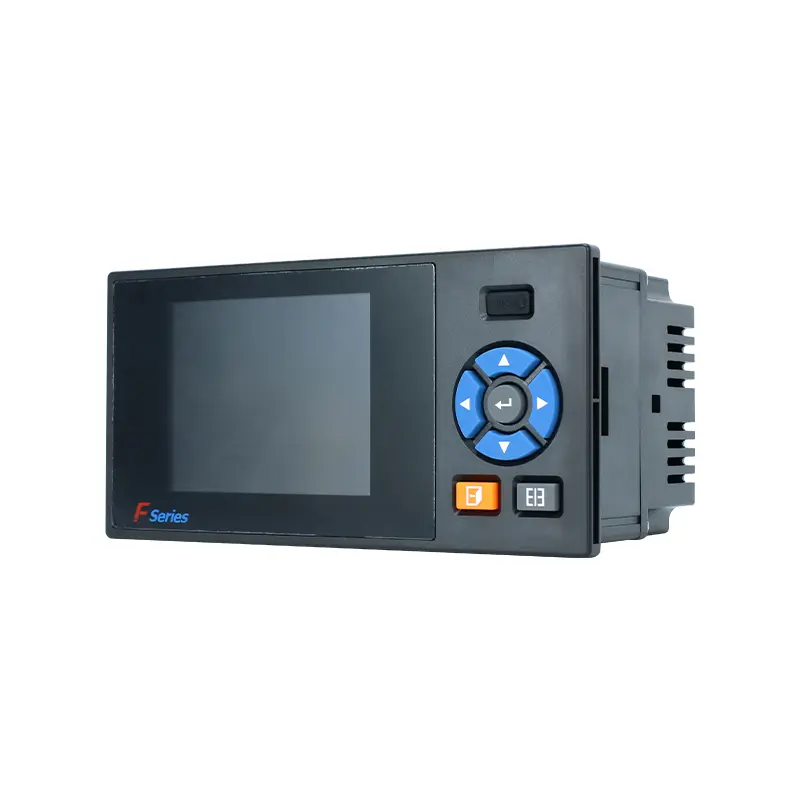

F3002X LCD Volumetric Display Controller

Features

Data Logger and Module
±0.2%FS accuracy
Display percentage%
Storage Capacity 32MB

F3002X LCD Volumetric Display Controller

Applications

Water tanks
Fuel tanks
Oil tanks
Liquid tanks
Bulk solids silo
Signal from all kinds of level sensors

Request Price PDF Download

Advantages

Simple and easy to operate
Volume calibration in the factory
Data recorder function

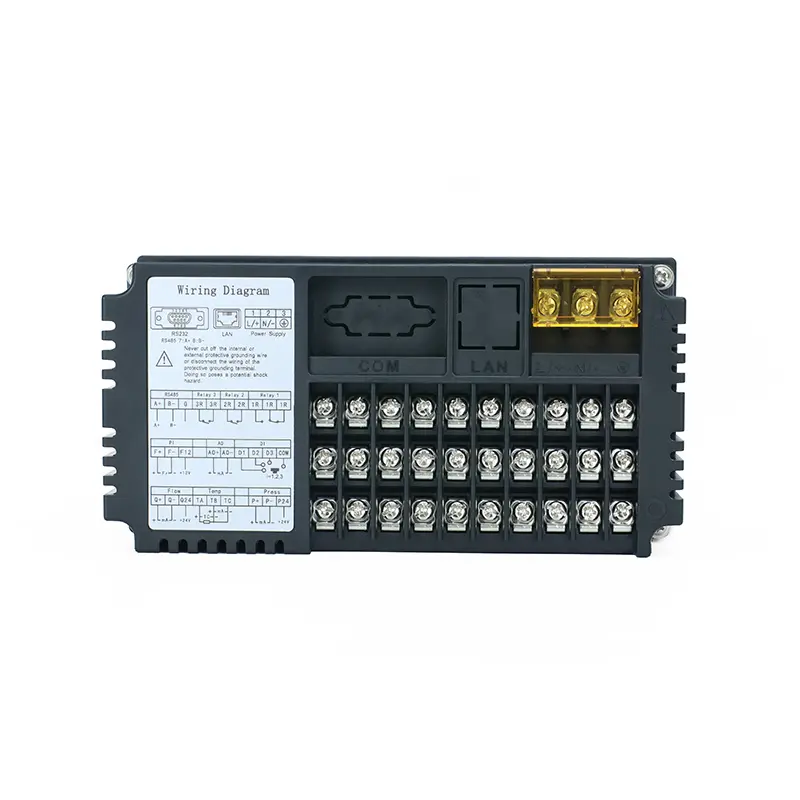

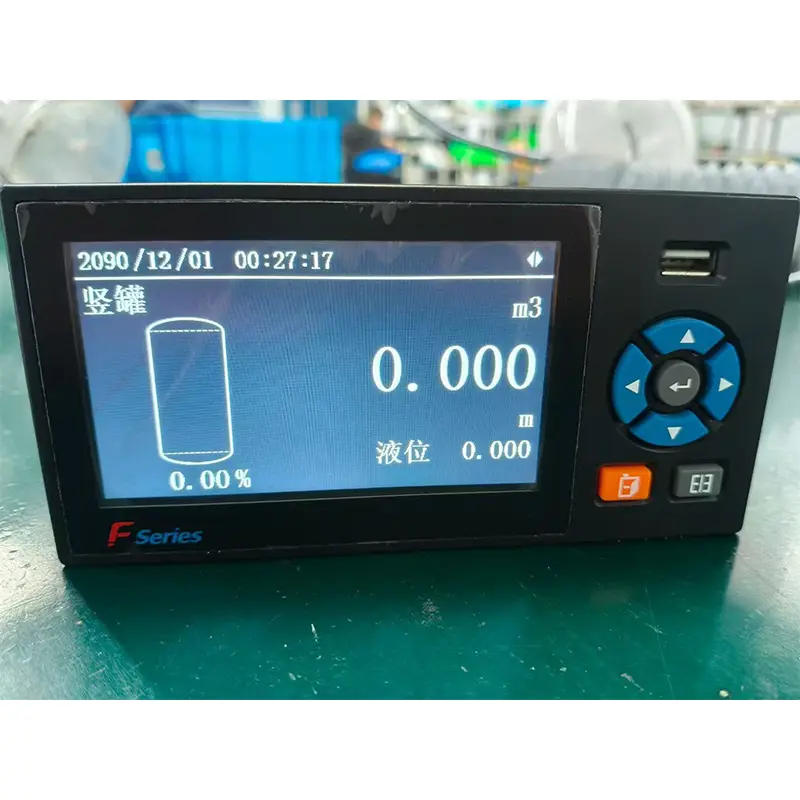

This LCD volumetric display controller can clearly display both level and volume on the screen, with graphics and percentage %. It features 4-20mA input and output 4-20mA, relay, RS485, RS232C. The volume display controller with 32MB storage capacity and access with USB, can record the data from the time to time. The volume display screen will be calibrated before delivery.

Resources

Datasheet

File Name	Time	Type	Download
F3002X LCD Volumetric Display Controller	Nov 20, 2025	PDF

Technical Parameters

Model	F3002X
Screen	480 * 272 dot matrix color LCD display (LCD)
Accuracy	± 0.2% F.S

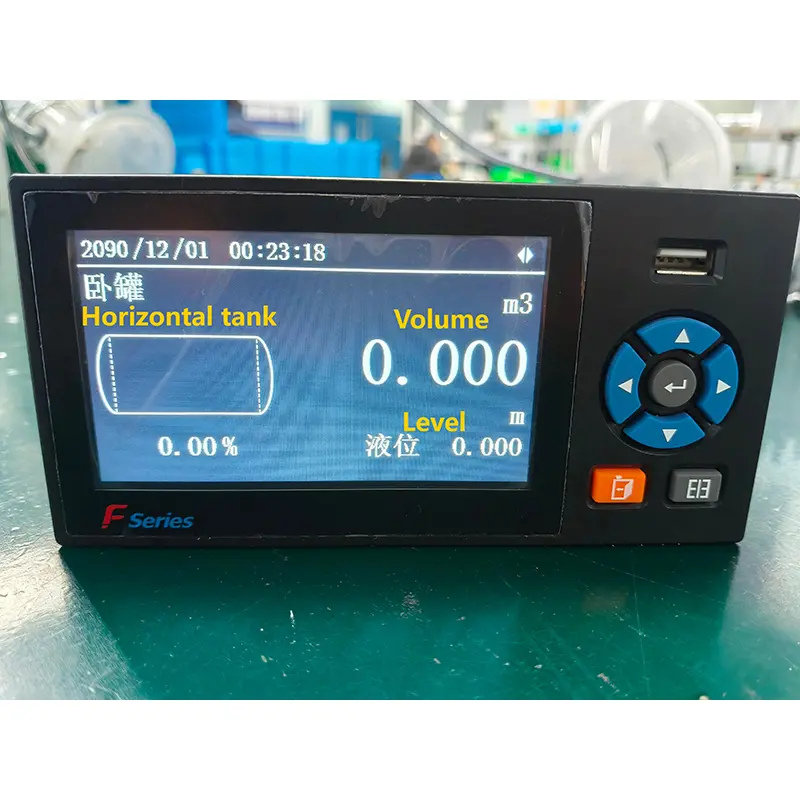

Tank Types	Horizontal tank, vertical tank, spherical tank, square tank
Display	Level and volume with units mm and liters for example
Input	Level: 0-10mA, 4-20mA, RS485(customization) Temperature: : 0-10mA, 4-20mA, Pt100, N, E, J, K and other signals
Output	4-20mA, Relay output
Communication	RS232C, RS485 Modbus
Report Backup	Support USB 1.1 and 2.0 protocols, 1GB-32GB USB drives
Storage Capacity	32MB
Record Interval	1 to 60 minutes(11 levels)
Power Supply	220VAC/50HZ or 9-36VDC
Power Feed	1 set of 24VDC sensor power supply
Working Temp.	0-50℃ (avoid direct sunlight)
Working Humidity	0-85% R.H (no condensation)
Net Weight	≤1.0 KG
Mounting Bracket	With
Dimension	1608075mm Horizontal
