Rotameter Flow Meter

Rotameters also known as Variable Area Flow Meters are used to measure the volumtric flow rate of liquids or gases in a closed tube. They provide a constant flow rate measurement and can also offer optional switching capabilities to control the flow in a system or process. Most rotameter flow bodies are made of glass or plastic, some are metal. Acrylic and polyamide are common plastic types used in rotameter construction. Metal rotameters are generally made in stainless steel or brass bodies. Some is specifically designed for the measurement of low flows of liquid and gases.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

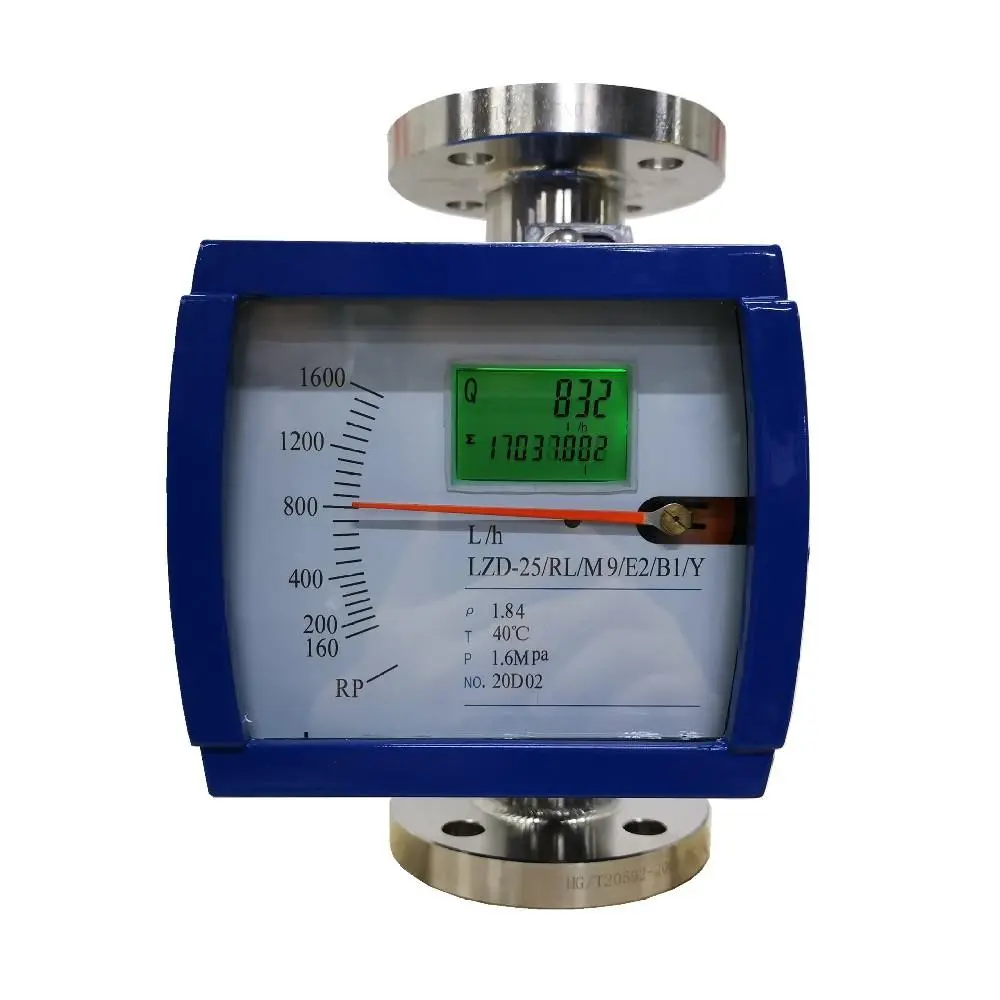

LZ Metal Tube Flow Meter

Features

  • All metal construction
  • A wide range of design varieties and sizes
  • LCD display optional
  • Thermal insulation or tracing heat jacket is optional.
LZ Metal Tube Flow Meter

Applications

  • Petrochemical
  • Iron and steel
  • Power Industry
  • Metallurgical
  • Light and food
  • Pharmacy
  • Water treatment
Request Price PDF Download

Advantages

  • Compact structure, short stroke
  • Low pressure loss
  • Good resistance for high temperature,high pressure and strong corrosive medium.
  • With data recovery,data backup and power fail protection functions.

LZ series metal tube rotameter are comprised by a measuring tube and an on-site indicator, which are suitable for liquid and gas measurement. The all-metal construction, makes it suitable for high temperature, high pressure and strong corrosive medium, is an ideal metal tube flow meter and variable area flow meter in rugged environment for gas and liquids.

Resources

Datasheet

File NameTimeTypeDownload
LZ Metal Tube Flow MeterSep 28, 2025PDF

Technical Parameters

Meter TypeLZ series metal tube rotameters
Meter diameterDN15~DN100 or 1/2″~4″
Measuring Range (100% point value)Water: 25~100.000 L/h
Air: 0.7~1000 m ³/h
Range ratio1:10
Accuracy1.5; 2.5
Measuring tubeTaper measuring tube
Graduated disc distributionDivided according to flow unit
Test pressure1.5 times of rated pressure
LCD displayOptional for instantaneous flow and cumulative flow
Alarm outputOptional
Cable interfaceM16×1.5; M20×1.5;1/2NPT internal thread( Explosion-proof)
ConnectionFlange in GB/T9119, ANSI or sanitary type;
Thermal isolation jacket flange(only for DN15)
Protection gradeIP65
Explosion-proofExibⅡCT5; ExdⅡBT6(only for M8 indicator)
Medium TemperatureOn-site indicator: -40℃~＋400℃
Remote indicator: -40℃~＋80℃, -80℃~＋300℃
Ambient temperature-25℃~＋55℃
Medium ViscosityDN15: ≤5mPa.s;
DN25~DN100: ≤250mPa.s
Power supply24VDC, or 3.6V 7.5AH lithium battery
