Rotameter Flow Meter

Rotameters also known as Variable Area Flow Meters are used to measure the volumtric flow rate of liquids or gases in a closed tube. They provide a constant flow rate measurement and can also offer optional switching capabilities to control the flow in a system or process. Most rotameter flow bodies are made of glass or plastic, some are metal. Acrylic and polyamide are common plastic types used in rotameter construction. Metal rotameters are generally made in stainless steel or brass bodies. Some is specifically designed for the measurement of low flows of liquid and gases.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

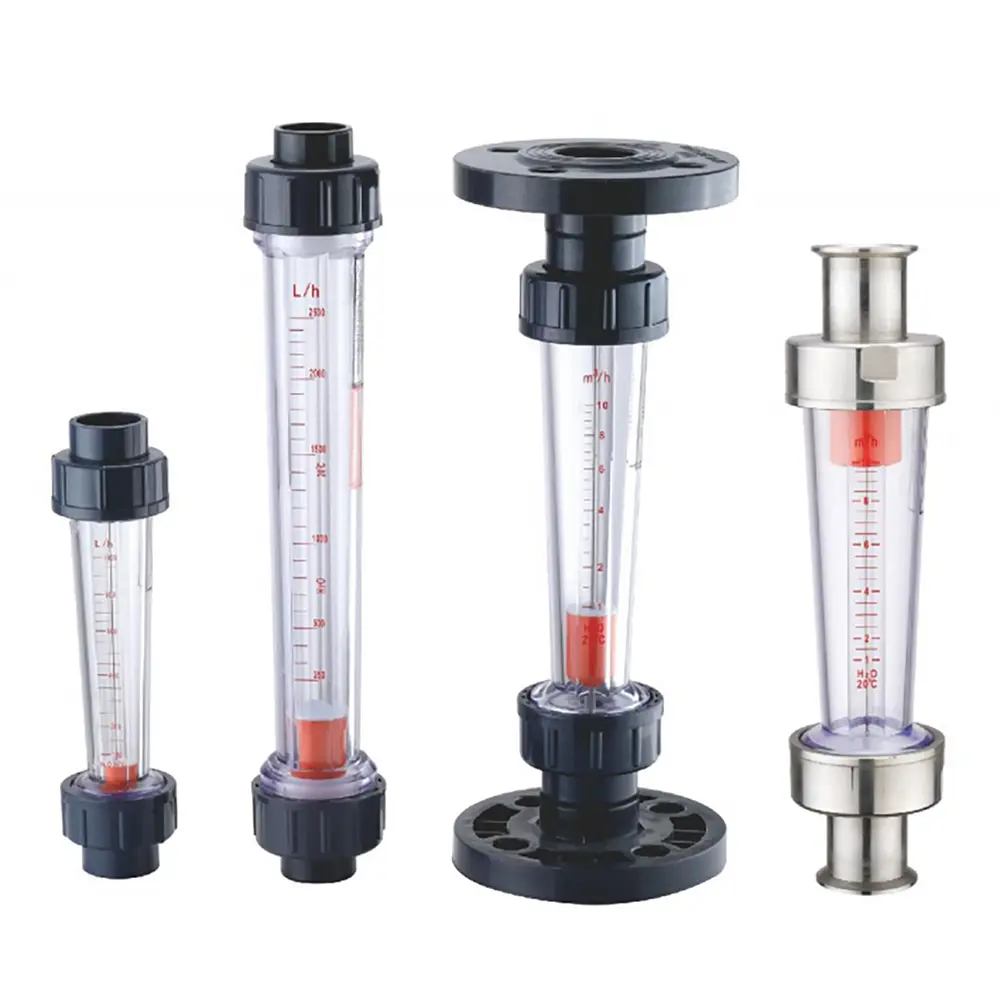

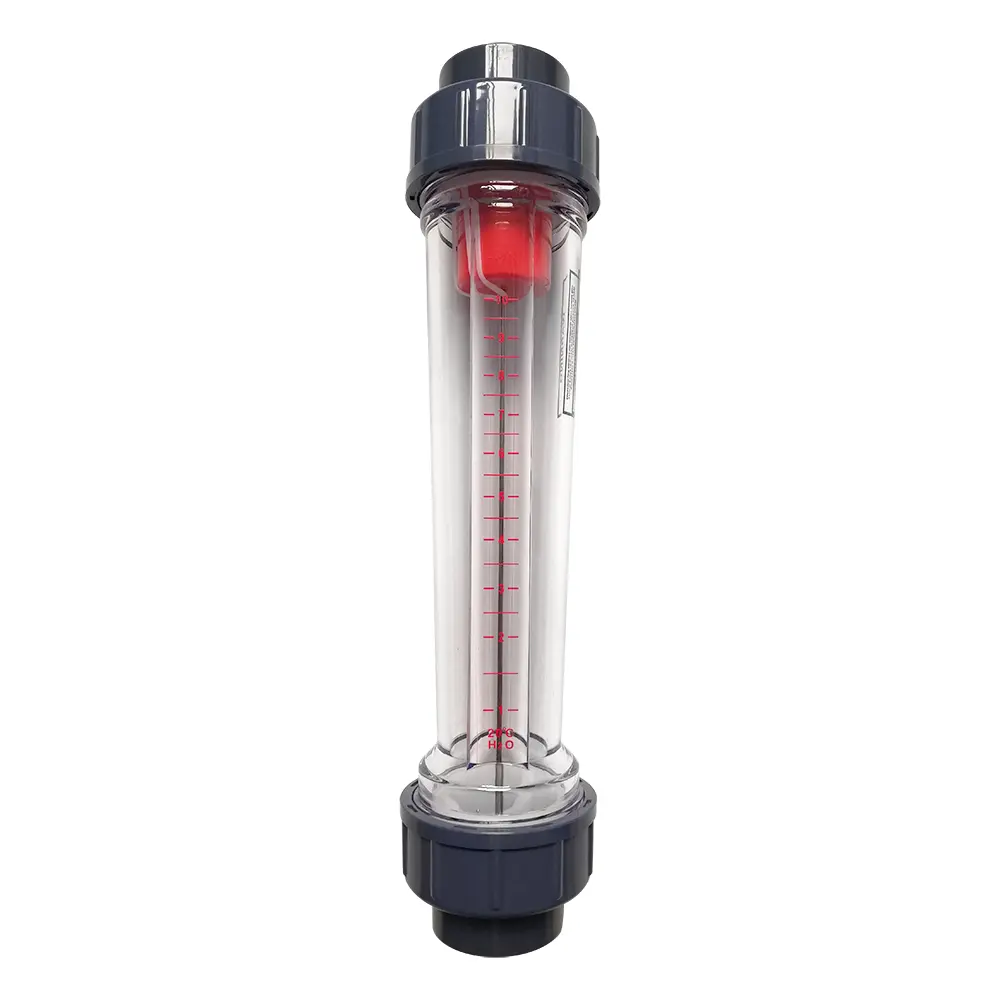

LZS Series Plastic Tube Flowmeter

Features

  • Tube material AS or PC
  • Max working pressure: 6 bar
  • Permanent reading scale

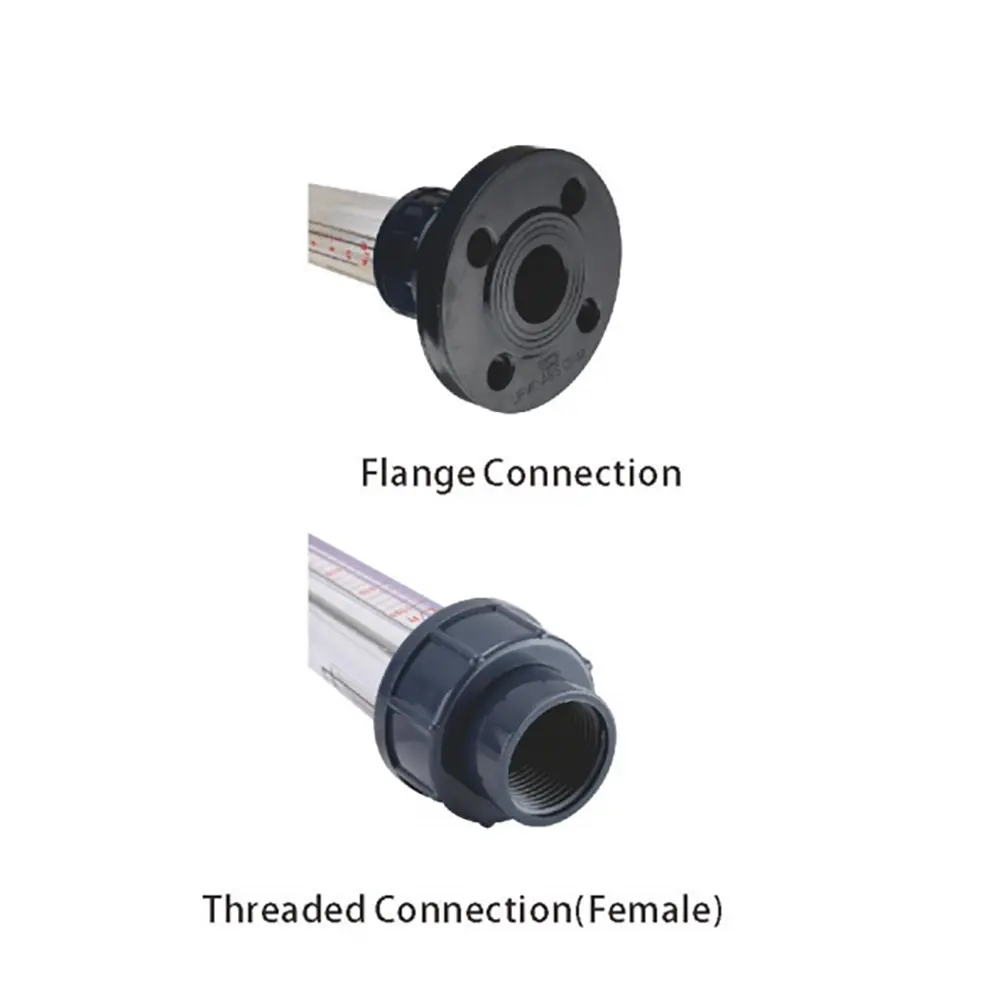

  • Flange or thread connection optional
LZS Series Plastic Tube Flowmeter
LZS Series Plastic Tube Flowmeter
LZS Series Plastic Tube Flowmeter

Applications

  • Chemical Industry
  • Light Industry
  • Pharmaceuticals
  • Food
  • Environmental Protection
Request Price PDF Download

Advantages

  • Simple structure, easy operation
  • Low weight, unbreakable and long life span
  • Transparent design, convenient to monitor and read
  • Corrosion resistant

LZS plastic tube flowmeter is featured with light weight, corrosion resistant, unbreakable, innoxious, tasteless and convenient. The float of this series Plastic LZS Flow Indicator all adopts the plastic shell, so it has excellent performance of acid resistant, alkali resistant and corrosion resistant. Except AS taper tube, the plastic tube rotameter uses SS304 leader and ABS material for other parts.

Resources

Datasheet

File NameTimeTypeDownload
LZS Series Plastic Tube FlowmeterSep 28, 2025PDF

Technical Parameters

LZS-15 (L/h)6~60, 10~100, 16~160, 25~250, 40~400, 60~600, 80~800, 100~1000
LZS-20 (L/h)40~400, 60~600, 100~1000
LZS-25 (L/h)60~600, 100~1000, 160~1600, 250~2500, 300~3000
LZS-32 (m³/h)0.4~4, 0.6~6, 1~10
LZS-40 (m³/h)0.4~4, 0.6~6, 1~10, 1.2~12
LZS-50 (m³/h) 0.4~4, 0.6~6, 1~10, 1.6~16
LZS-65 (m³/h) 1~10, 1.6~16, 5~25, 8~40, 12~60
LZS-80 (m³/h)5~25, 8~40, 12~60, 12~80
LZS-100 (m³/h) 8~40, 8~50, 12~60, 14~90, 18~120
LZS-125 (m³/h)15~150, 22~180, 25~200, 22~220
LZS-150 (m³/h)15~150, 22~180, 25~200, 22~220
Accuracy±4%
Temperature0-60℃
Pressure≤0.6MPa
