pH Sensor and Meter

ph meter with temperature compensation is an instrument used to measure acidity or alkalinity of a solution – also know as pH. pH is the unit of measure that describes the degree of acidity or alkalinity. It is measured on a scale of 0 to 14. Ph Sensor and Meter as a critical tool in water quality monitoring, widely used in drinking water, wastewater treatment and in the fields including mining and smelting, papermaking, paper pulp, textiles, fisheries, petrochemical industry, process of semiconductor electronic industry, and downstream engineering of biotechnology.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

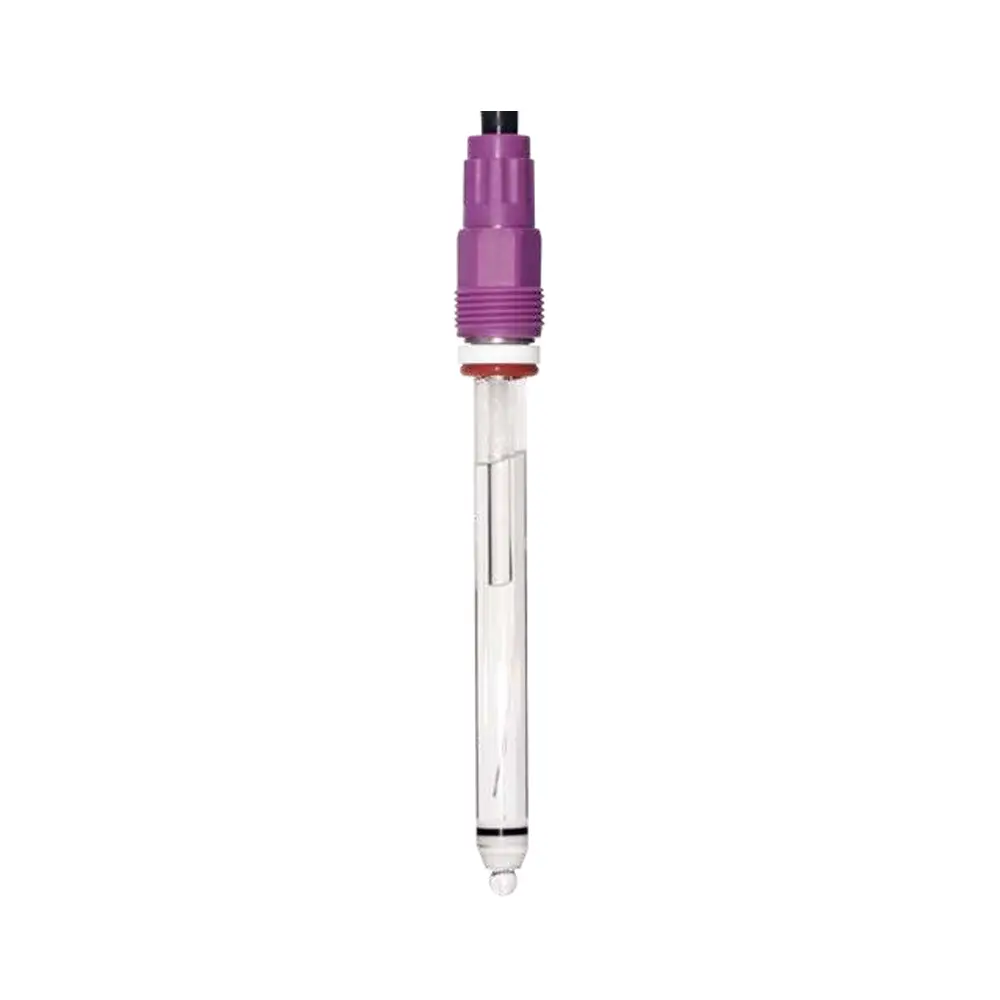

PCS1501C Glass pH Electrode

Features

  • Glass housing material
  • Measuring range 2-12pH
  • Wetted material PTFE
  • Temperature compensation: NTC10K/NTC2.2K/PT100/PT1000

Applications

  • Power Plants
  • Domestic water
  • Agricultural water
  • Industrial water
  • Laboratory water

Advantages

  • High accuracy
  • Fast response
  • Cost-effective

The glass pH electrode is equipped with glass body, to to with a pH meter realize real time online monitoring for general purpose and other environments of acid, seawater, pure water applications.

Resources

Datasheet

File NameTimeTypeDownload
PCS1501C Glass pH ElectrodeSep 26, 2025PDF

Technical Parameters

ModelPCS1501C
Measurement range2-12pH
Measurement accuracy±0.05pH
pH zero point7.00±0.25
Shell materialGlass
Wetted materialPTFE
Pressure range0-0.3Mpa
Temperature compensationNTC10K/NTC2.2K/PT100/PT1000
Temperature range0-80℃
Reference systemAg/AgCL
CalibrationSample calibration, standard solution calibration
Membrane resistance<300MΩ
Cable length5m cable as standard (Customizable)
Installation threadPG13.5
Scope of applicationGeneral water
