pH Sensor and Meter

ph meter with temperature compensation is an instrument used to measure acidity or alkalinity of a solution – also know as pH. pH is the unit of measure that describes the degree of acidity or alkalinity. It is measured on a scale of 0 to 14. Ph Sensor and Meter as a critical tool in water quality monitoring, widely used in drinking water, wastewater treatment and in the fields including mining and smelting, papermaking, paper pulp, textiles, fisheries, petrochemical industry, process of semiconductor electronic industry, and downstream engineering of biotechnology.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

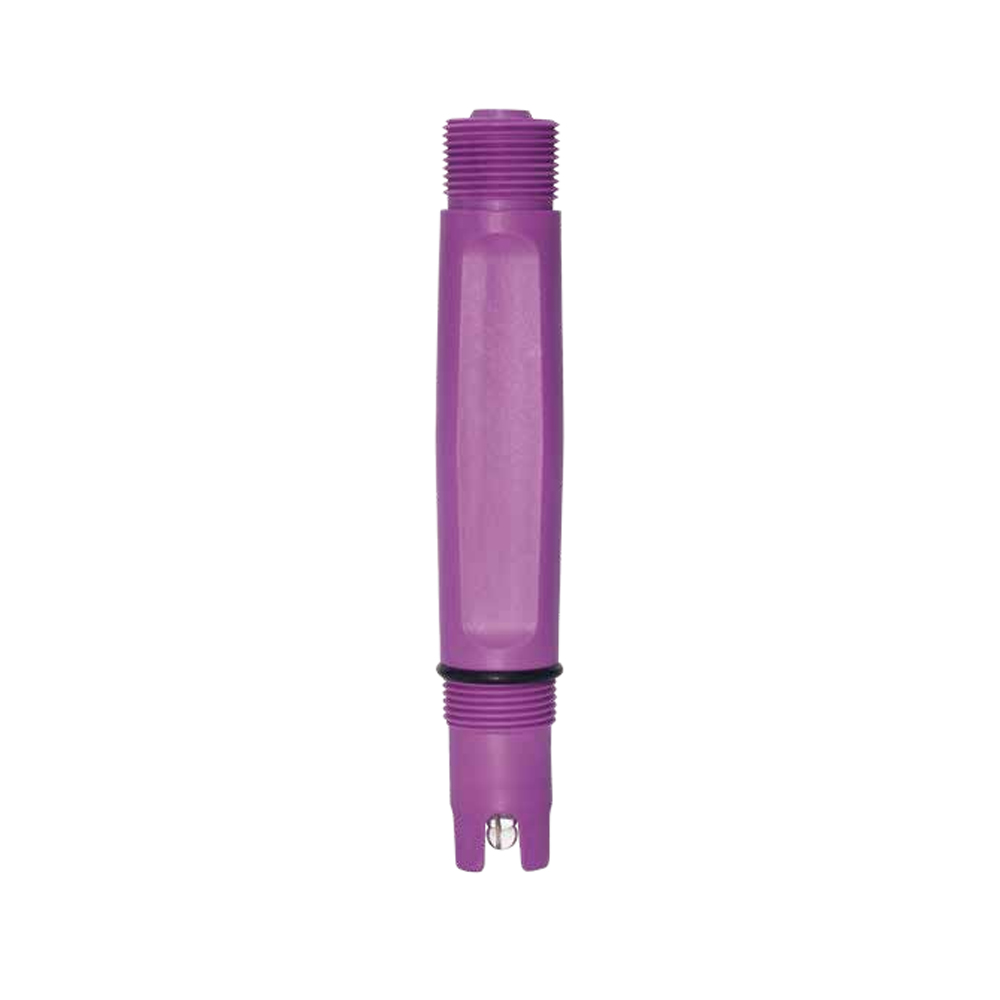

PCS1729C Plastic pH Electrode

Features

  • PP Body material
  • Measuring range 0-14pH
  • Wetted material PTFE
  • Temperature compensation: NTC10K/NTC2.2K/PT100/PT1000

Applications

  • Sea water
  • Desulfurization conditions
  • Power Plants
  • Industrial water
  • Laboratory water

Advantages

  • High accuracy
  • Fast response
  • Corrosive resistance

A plastic-body, reliable pH electrode with integrated temperature sensors is recommended for pH measurement, such as sea water, and desulfurization conditions. This plastic pH electrode is robust and can be customized according to different applications like strong acid, alkaline and ultra-pure water.

Resources

Datasheet

File NameTimeTypeDownload
PCS1729C Plastic pH ElectrodeSep 26, 2025PDF

Technical Parameters

ModelPCS1729C
Measurement range0-14pH
Measurement accuracy±0.05pH
pH zero point7.00±0.25
Shell materialPP
Wetted materialPTFE
Pressure range0-0.6Mpa
Temperature compensationNTC10K/NTC2.2K/PT100/PT1000
Temperature range0-80℃
Reference systemAg/AgCL
CalibrationSample calibration, standard solution calibration
Membrane resistance<800MΩ
Cable length10m cable as standard (Customizable)
Installation threadNPT3/4''
Scope of applicationSea water
