pH Sensor and Meter

ph meter with temperature compensation is an instrument used to measure acidity or alkalinity of a solution – also know as pH. pH is the unit of measure that describes the degree of acidity or alkalinity. It is measured on a scale of 0 to 14. Ph Sensor and Meter as a critical tool in water quality monitoring, widely used in drinking water, wastewater treatment and in the fields including mining and smelting, papermaking, paper pulp, textiles, fisheries, petrochemical industry, process of semiconductor electronic industry, and downstream engineering of biotechnology.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

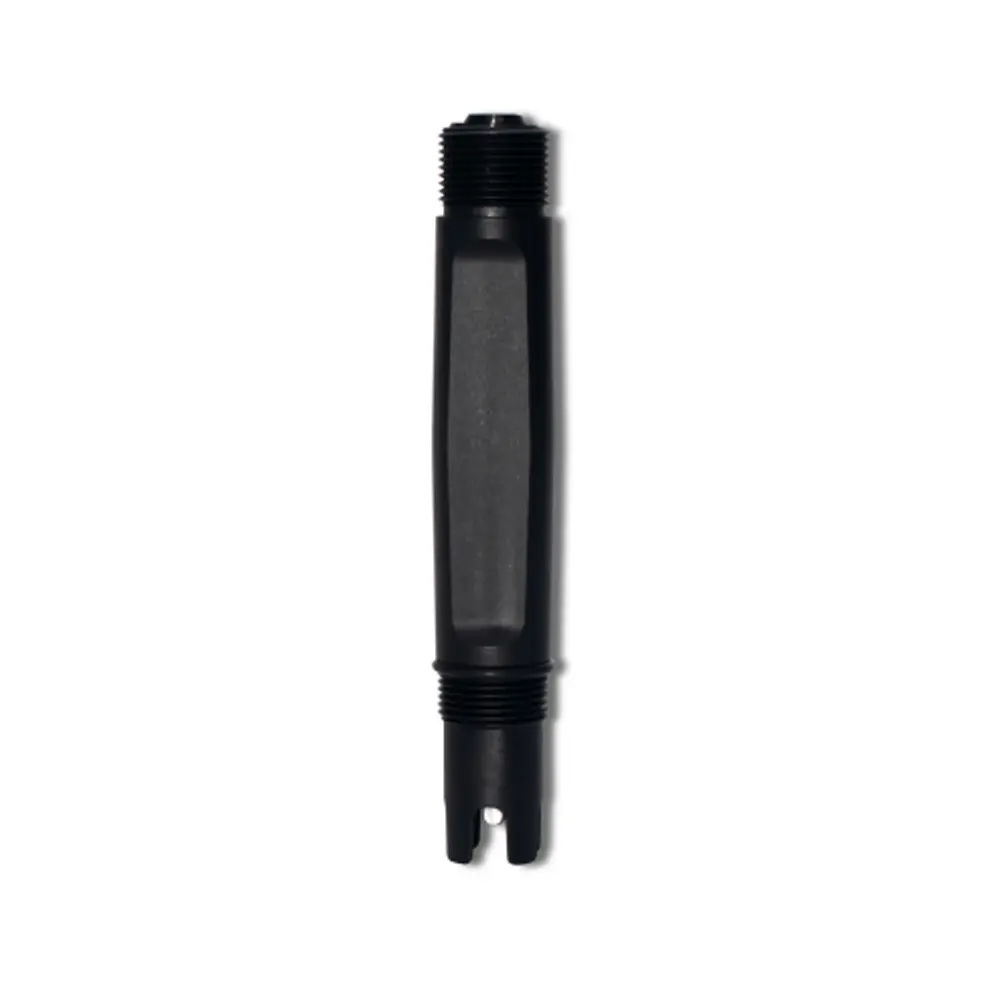

PCS1753CD Plastic pH Sensor

Features

  • PP body material
  • Measuring range 0-14pH
  • RS485 Modbus RTU output
  • Temperature compensation: NTC10K 0-50℃
  • Installation NPT3/4''

Applications

  • Industrial water
  • Environmental sewage
  • River and lake water quality
  • Surface water
  • Sewage plant
  • General application

Advantages

  • High accuracy
  • Fast response
  • Water-proof IP68
  • Robust high reliable plastic body

A variety range of ph sensor with modbus communication is provided for general water, general industrial water, hydrofluoric acid environment, seawater, desulfurization, organic matter liquids and other liquids. Via RS485 communication to realize ph transmitter with remote monitoring.

Resources

Datasheet

File NameTimeTypeDownload
PCS1753CD Plastic pH SensorSep 26, 2025PDF

Technical Parameters

ModelPCS1753CD
Power supply9~36VDC
OutputRS485 MODBUS RTU
Electrode materialGlass/silver+silver chloride
Shell materialPP
Waterproof gradeIP68
Measurement range0-14pH
Measurement accuracy±0.05pH
Pressure range≤0.3Mpa
Temperature compensationNTC10K
Temperature range0-60℃
CalibrationSample calibration, standard solution calibration
Connection method4-core cable
Cable length10m cable as standard (Customizable)
Installation threadNPT3/4''
Scope of applicationGeneral application, industrial water, environmental sewage, river and lake water quality
