pH Sensor and Meter

ph meter with temperature compensation is an instrument used to measure acidity or alkalinity of a solution – also know as pH. pH is the unit of measure that describes the degree of acidity or alkalinity. It is measured on a scale of 0 to 14. Ph Sensor and Meter as a critical tool in water quality monitoring, widely used in drinking water, wastewater treatment and in the fields including mining and smelting, papermaking, paper pulp, textiles, fisheries, petrochemical industry, process of semiconductor electronic industry, and downstream engineering of biotechnology.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

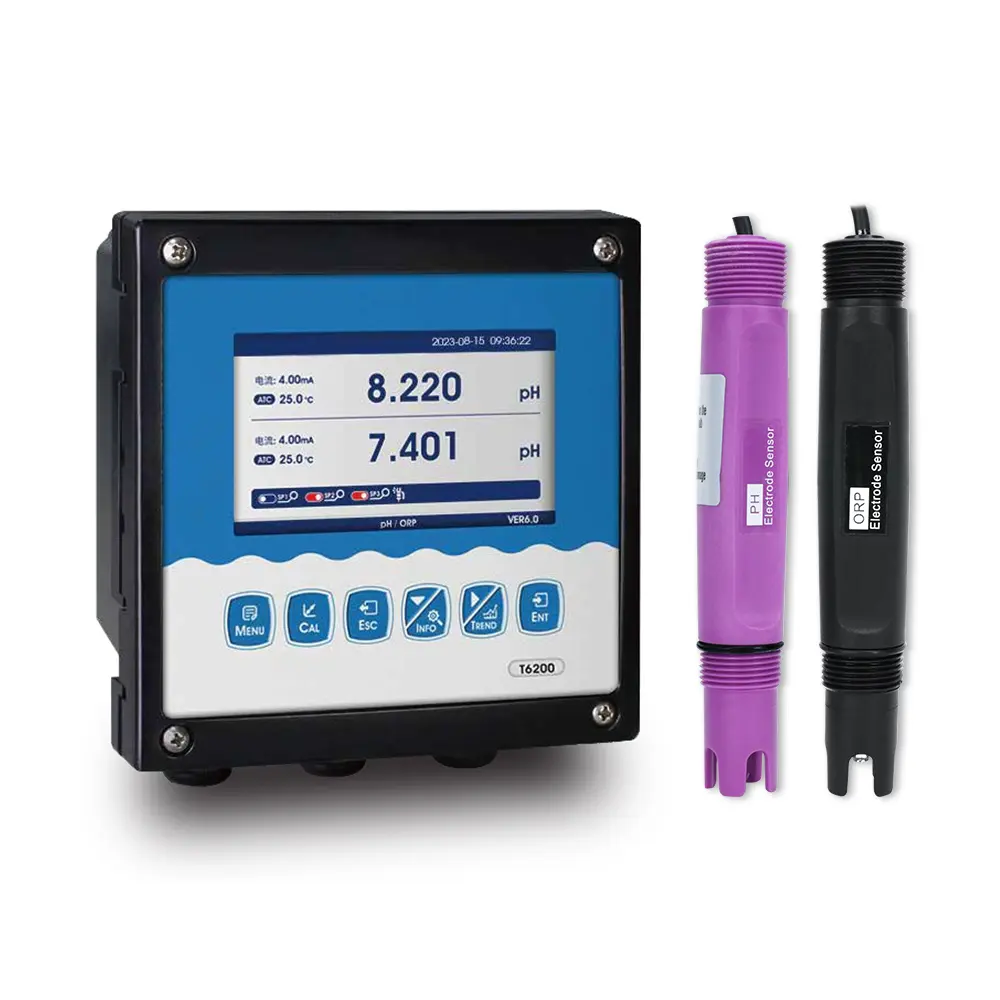

PT6200 Dual pH&OPR Meter

Features

  • Large color LCD display
  • Intelligent menu operation
  • 4-20mA&RS485 output
  • Three relay control switches
  • High & Low alarm and hysteresis control
PT6200 Dual pH&OPR Meter

Applications

  • Power Plants
  • Petrochemicals
  • Metallurgy and Electronics
  • Mining
  • Papermaking
  • Biological Fermentation Engineering
  • Medicine
  • Food And Beverage
  • Environmental Water Treatment
  • Aquaculture
  • Modern Agricultural Planting
Request Price PDF Download

Advantages

  • Data recording / Curve display / Data upload function
  • Multiple automatic calibration to ensure the accuracy
  • Differential signal model, stable and reliable
  • Password protection to prevent non-staff from misoperation

The dual pH & ORP smart water analysis monitoring device is a microprocessor-based water analysis instrument with data logging, it can display pH and ORP value in the same time. Continuously monitor and control pH and ORP of aqueous solution.

Resources

Datasheet

File NameTimeTypeDownload
PT6200 Dual pH&OPR MeterSep 26, 2025PDF

Technical Parameters

ModelPT6200
Measuring rangepH: -2~16pH
ORP: -2000~+2000mV
UnitpH, mV
ResolutionpH: 0.001pH
ORP: 1mV
Basic errorpH: ±0.01pH
ORP: ±1mV
Temperature-10~150℃
Resolution±0.3℃
Temperature compensationAutomatic or manual
Current output2 Rd 4~20mA, 20~4mA, 0~20mA
Communication outputRS 485 Modbus RTU
Other functionData recording, curve display
Relay control contact3 Groups: 5A 240VAC, 5A 28VDC or 120VAC
Optional power supply85~265VAC, 9~36VDC, Power: ≤3W
The work environmentIn addition to the earth's magnetic field around no strong magnetic field interference
Environmental temperature-10~60℃
Relative humidityNo more than 90%
Protection gradeIP65
Instrument dimensions144*144*118
Mounting hole dimensions138*138mm
Installation methodEmbedded, wall - mounted, pipe type
