Capacitive Level Sensor

The high accuracy capacitive level meter adopts a fully digital capacitance measurement method and uses multi-parameter compensation technology. It can automatically adapt to various media without re-calibration. It has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and can work under harsh conditions such as high temperature, strong corrosion, severe toxicity, explosion and strong vibration. It is not affected by factors such as dielectric constant changes, temperature changes, steam interference and hanging materials. It is a great option for truck tank fuel level sensor.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWL-C Capacitive Level Sensor

Features

  • Support local ZERO and SPAN calibration
  • Customize max 250℃ high Temp liquid
  • IP68 protection grade
  • Algorithm can handle various extreme situations and never drift

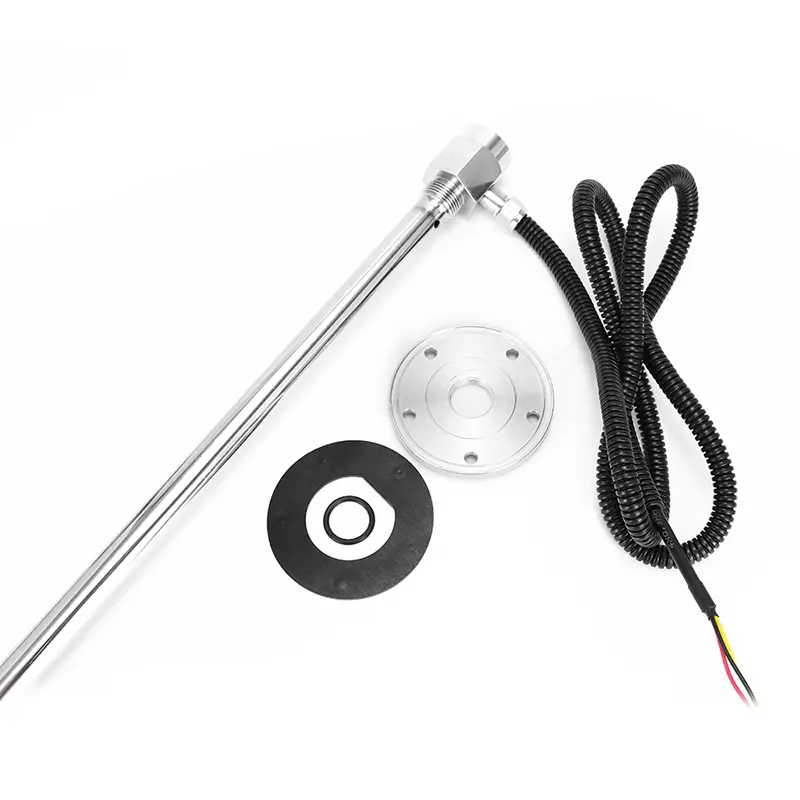

PWL-C Capacitive Level Sensor

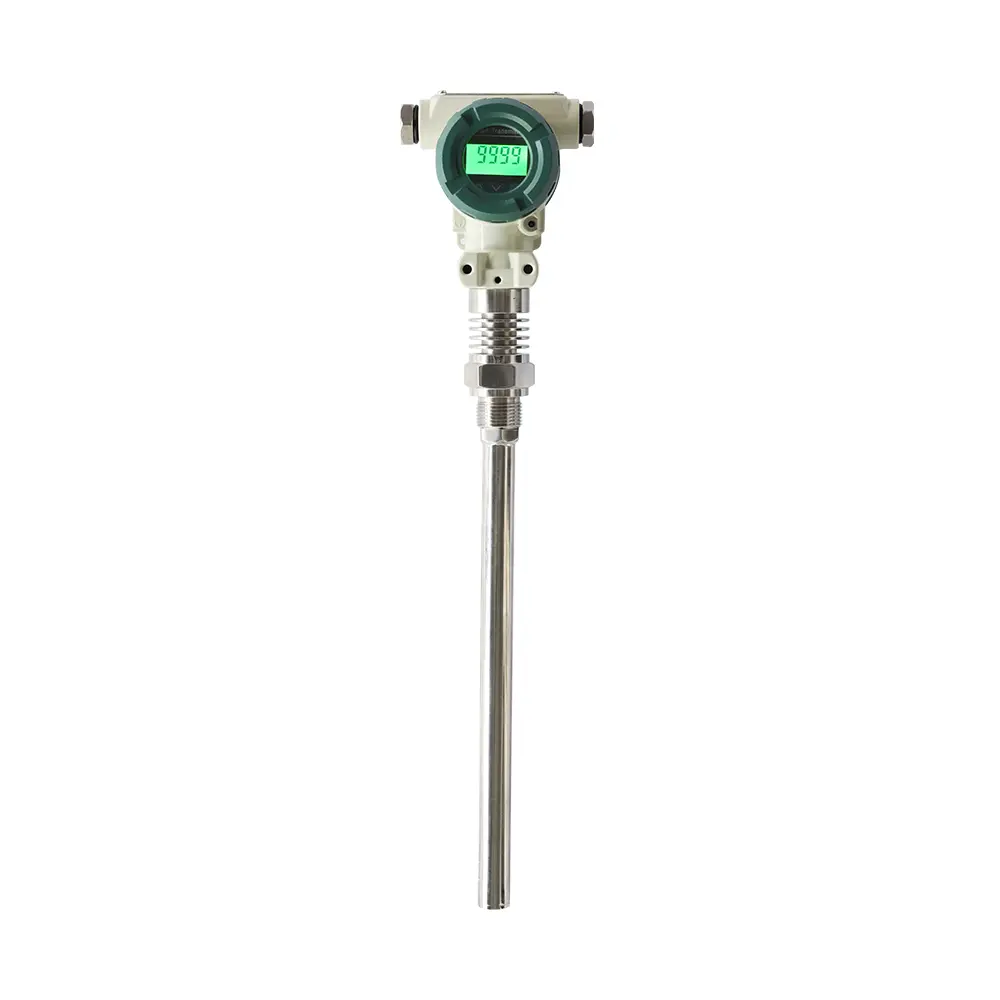

PWL-C Capacitive Level Sensor

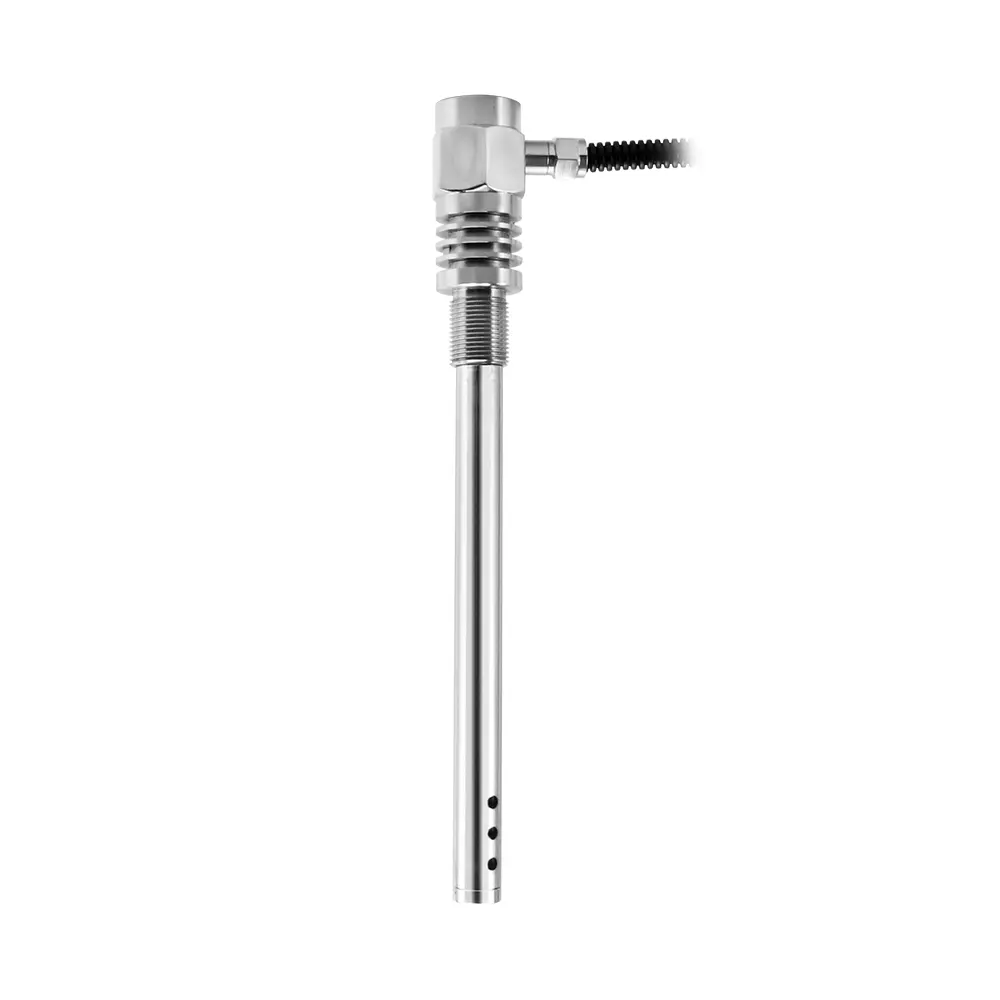

PWL-C Capacitive Level Sensor

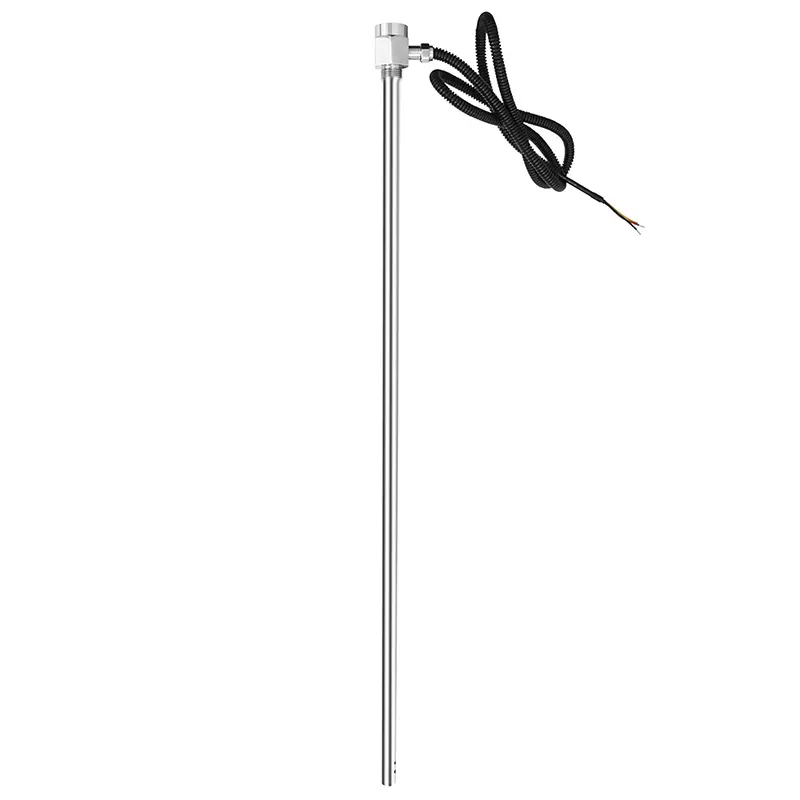

PWL-C Capacitive Level Sensor

Applications

  • Sanitation vehicles, septic tanks, reactors, sewage treatment
  • Tank trucks, oil depots
  • Liquid tanks in construction trucks
  • Water, wastewater level measurement
  • Chemical liquid tanks, pesticide tanks
  • Diesel tanks of generators in Telecom base station
  • Sealed pressure tanks and vessels
Request Price PDF Download

Advantages

  • Excellent in vibration environment
  • Easy to install no need any settings
  • No elastic or movable parts, impact- resistant
  • No effect from different medias, temps
  • Anti-adhesion, anti-hanging, anti-foam
  • Suitable for acid and alkaline corrosive liquids

The digital capacitive level sensor is capable for accurate and stable level measurement in vibration application as well as extreme harsh process conditions of high temperature, high pressure and corrosive. It is widely used as truck tank fuel level sensor as well as GPS tracking oil level sensor.

Resources

Datasheet

File NameTimeTypeDownload
PWL-C Capacitive Level SensorSep 25, 2025PDF

Technical Parameters

ModelPWL-C
Pressure TypeRelative (gauge)
Level Range50-3000mm
Working Pressure-0.1MPa~0.1MPa (Typical), can customize for high pressure max 32Mpa
Accuracy±3mm (L ≤ 300mm)
1.0%FS (300 < L ≤ 700mm)
0.5%FS (700 < L ≤ 3000mm)
0.2%FS by customization high cost
Electrical ConnectionDirectly cable outlet
Probe DiameterΦ16mm, Φ19mm, Φ22mm, Φ25mm
Signal Output4-20mA/0-3.3V/0-5V/0-10V/RS485/RS232
Power Supply4.5-36VDC/12-28VDC
Pressure ConnectionM20*1.5, M27*2, flanged
Long-term Stability (%FS/year)≤0.1
Temp Drift ( %FS/℃ )≤0.02
Probe MaterialSUS304 (Can customize for 316L)
Electrode MaterialFEP
Working Temp.40℃~+85℃(250℃ by customized)
Storage Temp.40℃~+85℃
Explosion ProofExia II CT6 Ga(Optional)
IP RatingIP67
Cable Length1000mm or by as required
