Capacitive Level Sensor

The high accuracy capacitive level meter adopts a fully digital capacitance measurement method and uses multi-parameter compensation technology. It can automatically adapt to various media without re-calibration. It has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and can work under harsh conditions such as high temperature, strong corrosion, severe toxicity, explosion and strong vibration. It is not affected by factors such as dielectric constant changes, temperature changes, steam interference and hanging materials. It is a great option for truck tank fuel level sensor.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

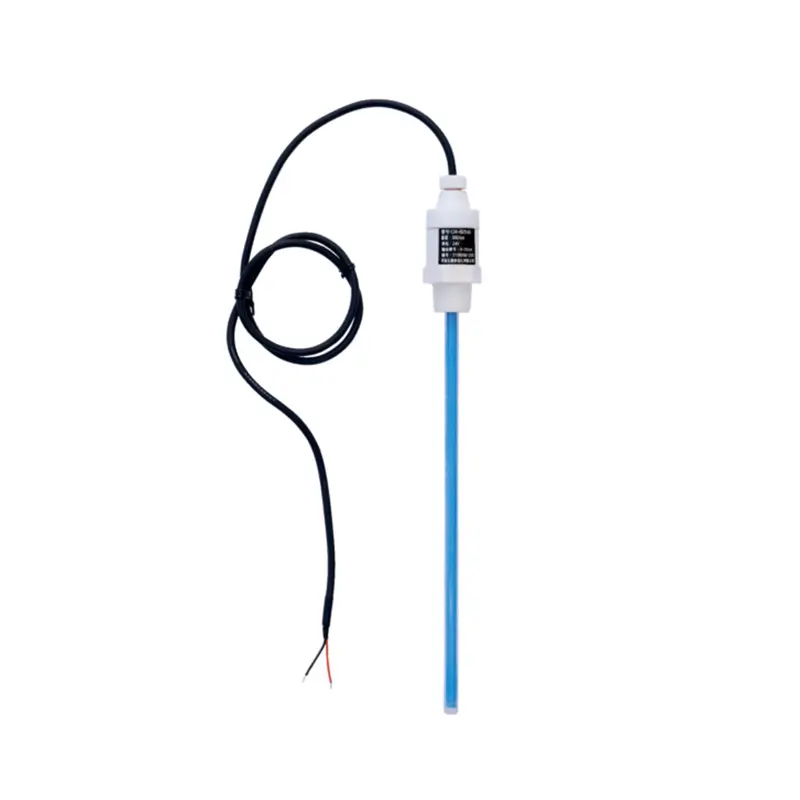

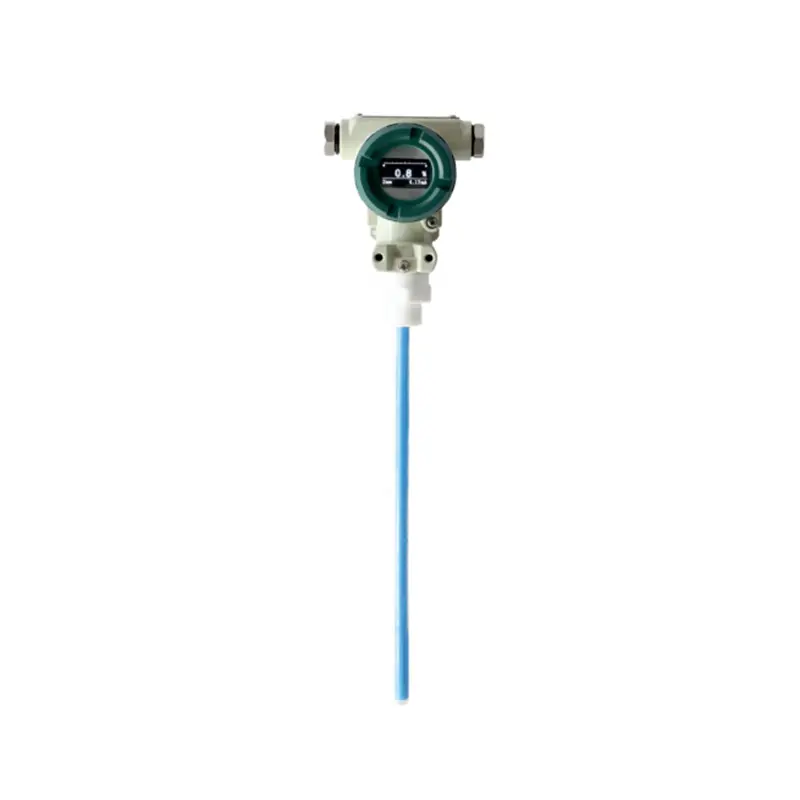

PWL-CP Corrosion Resistant Capacitive Level Transmitter

Features

Capacitive Level Sensor
PFA electrode material, PTFE junction box and screws
Φ10mm probe diameter
Support local ZERO and SPAN calibration

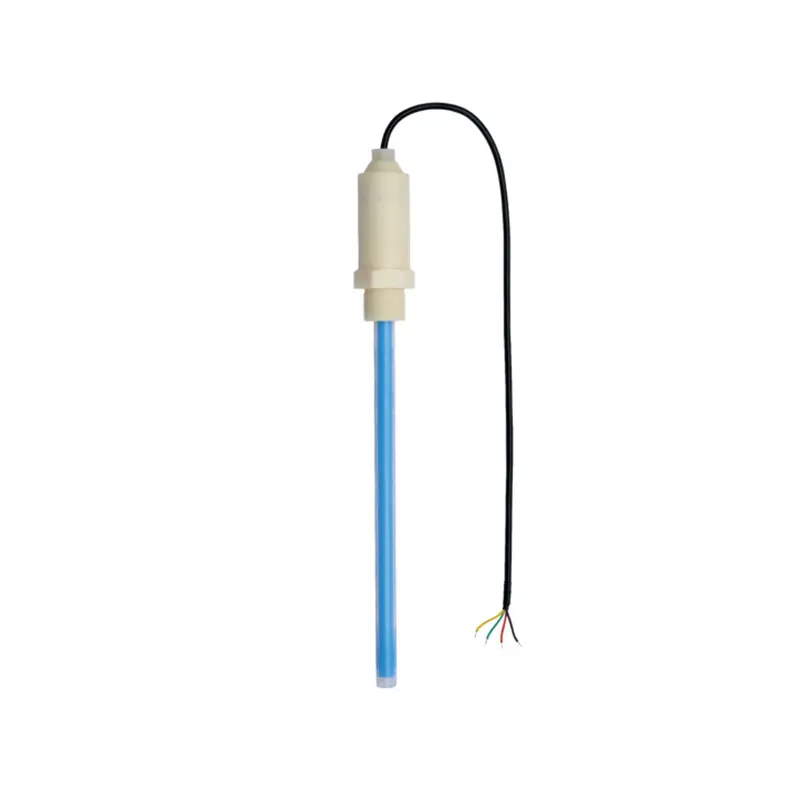

PWL-CP Corrosion Resistant Capacitive Level Transmitter

Applications

Chemical liquid tanks
Acid or alkaline liquid tanks
High temperature and corrosive liquid tanks
Agricultural mixing system tanks

Request Price PDF Download

Advantages

Excellent in vibration environment
Easy to install no need any settings
Resistance to high Temp. and corrosion
Anti-adhesion, anti-hanging, anti-foam

This compact capacitive level sensor for chemical tanks with 10mm dia. probe in PFA material makes it ideally a liquid level sensor for chemical tanks. The no moving parts structure realize it robust and durable in harsh environment, whenever looks for a small tank level sensor for corrosive liquids it is the best choice.

Resources

Datasheet

File Name	Time	Type	Download
PWL-CP Corrosion Resistant Capacitive Level Transmitter	Nov 20, 2025	PDF

Technical Parameters

Model	PWL-CP
Probe Diameter	Φ10mm
Order Length	50-2000mm
Working Pressure	-0.1MPa~0.6MPa
Accuracy	±3mm (L ≤ 300mm) 1.0%FS (300 < L ≤ 700mm) 0.5%FS (700 < L ≤ 2000mm)
Working Temp.	-40℃~+120℃
Temp. Resistance of Electrode	-60℃~+150℃
Storage Temp.	-40℃~+85℃
Working Current	5-10mA (Exclude 4-20mA)
Electrical Connection	Directly cable outlet
IP Rating	IP67
Cable Length	1000mm or by customized
Signal Output & Power Supply	4-20mA(2 wires); 0-5V(3 wires); RS485 Modbus; CAN 12-28VDC; 12-28VDC; 4.5-36VDC; 4.5-36VDC
Pressure Connection	M27*2.0 male
Long-term Stability (%FS/year)	≤0.1
Temp Drift ( %FS/℃ )	≤0.02 (-40~80℃)
Electrode Material	PFA
Junction Box Material	PTFE
Screw Material	PTFE
Tolerance of Dimension	±3mm
