Capacitive Level Sensor

The high accuracy capacitive level meter adopts a fully digital capacitance measurement method and uses multi-parameter compensation technology. It can automatically adapt to various media without re-calibration. It has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and can work under harsh conditions such as high temperature, strong corrosion, severe toxicity, explosion and strong vibration. It is not affected by factors such as dielectric constant changes, temperature changes, steam interference and hanging materials. It is a great option for truck tank fuel level sensor.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

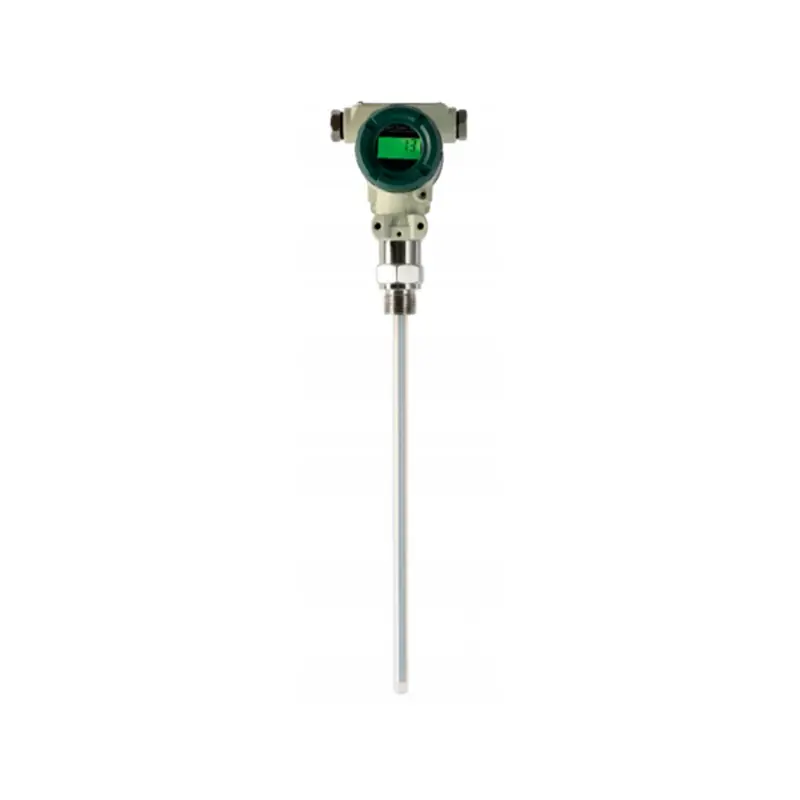

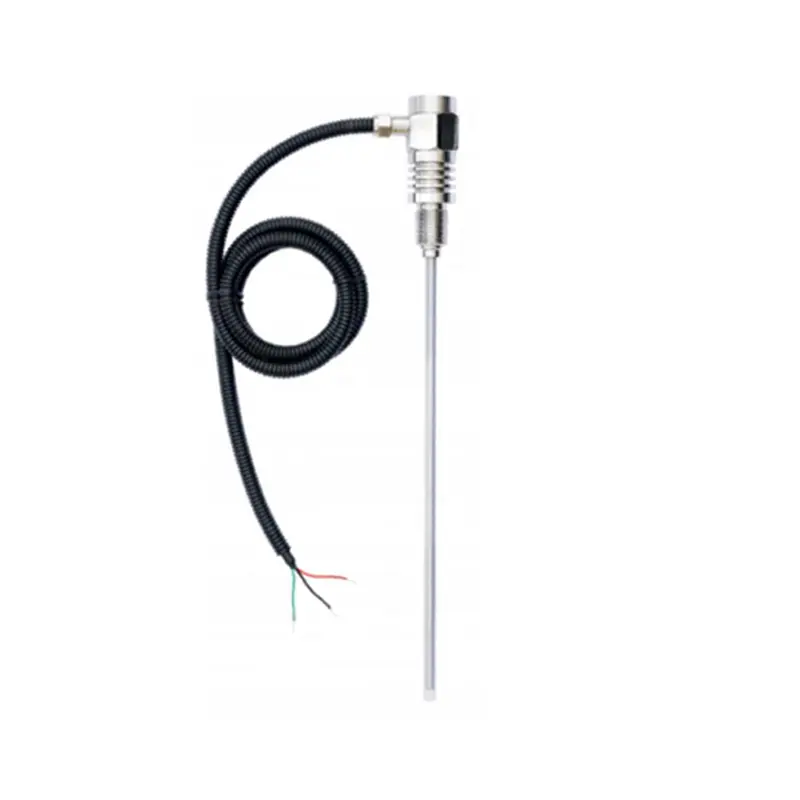

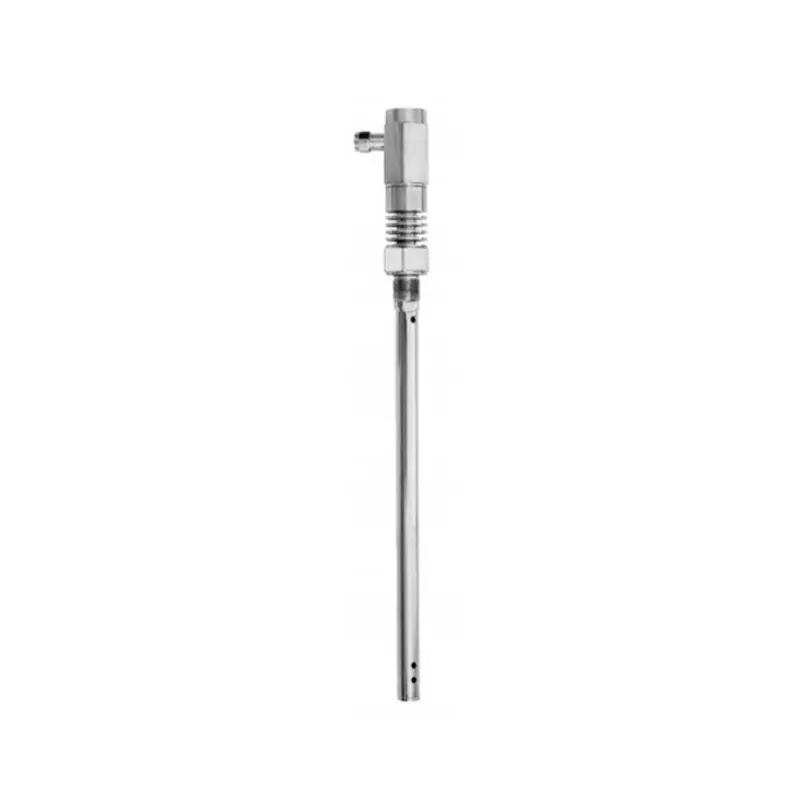

PWL-CX Single Electrode Capacitance Level Sensor

Features

stainless steel liquid level sensor 316L
Imported PTFE material electrode
Extreme condition: -200~250℃, max 32MPa
4-20mA signal output

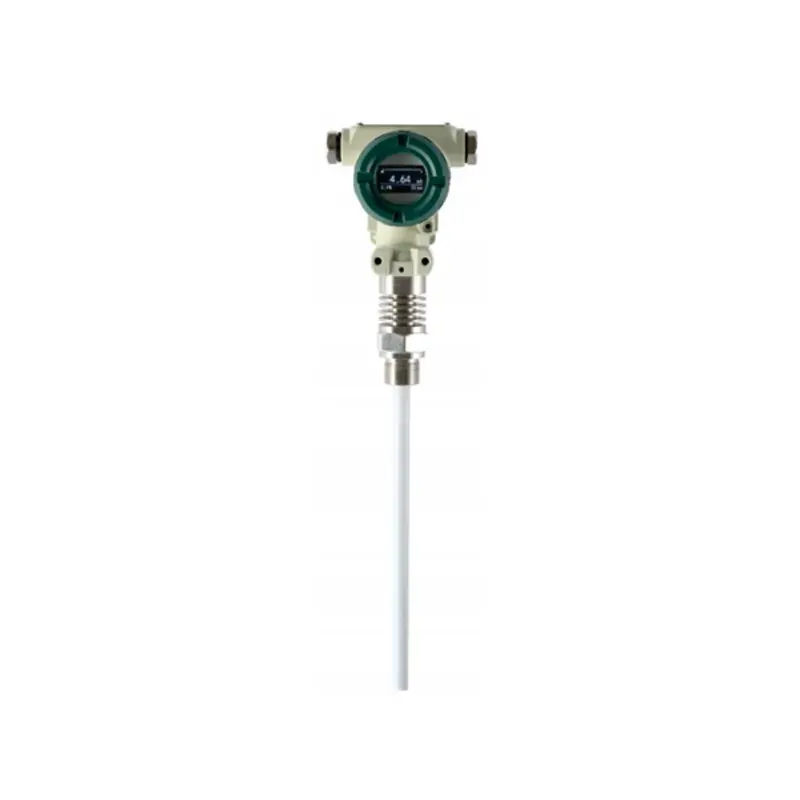

PWL-CX Single Electrode Capacitance Level Sensor

Applications

High-pressure equipment
High-pressure vessels
High-temperature containers
Cryogenic tanks
Liquid gases: Liquid CO2, liquid nitrogen, LNG
Sealed pressure tanks and vessels

Request Price PDF Download

Advantages

Capable for cryogenic applications
Long term working in 250℃
No elastic or movable parts, impact of resistance
Automatic sealing structure prevents media leakage

The IP65/IP67 waterproof capacitive level sensor forms with one single electrode which is imported high quality PTFE material, is a suitable water level sensor for high temperature applications. An automatic sealing structure prevents media leakage. Max 32MPa pressure rating tank level sensor with 4-20mA output is an important level monitoring device in various industrial equipment and containers.

Resources

Datasheet

File Name	Time	Type	Download
PWL-CX Single Electrode Capacitance Level Sensor	Nov 20, 2025	PDF

Technical Parameters

Model	PWL-CX
Probe Diameter	Φ8, Φ12, Φ14,Φ16, Φ19
Order Length	50-10000mm
Working Pressure	≤0.6MPa, ≤32MPa (in normal temperature)
Accuracy	±1.0%FS(Typical), ±2.5%FS for Cryogenic
Environmental Temp.	-40℃~+85℃
Temp. Resistance of Electrode	-60℃~+120℃,-200℃~+200℃, -200℃~+250℃
Electrical Connection	Fixed cable by stainless steel cap or industrial wire interface
IP Rating	IP67, IP65
Cable Length	1000mm or by customized
Signal Output & Power Supply	4-20mA 2 wires; RS485 Modbus 18-28VDC; 12-28VDC
Pressure Connection	M201.5, M272 Flange connection by customization
Long-term Stability (%FS/year)	≤0.1
Temp Drift ( %FS/℃ )	≤0.02
Probe Material	SUS304, PTFE covered SUS304
Explosion Proof	Exia II CT6 Ga
