Ultrasonic Level Sensor

Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

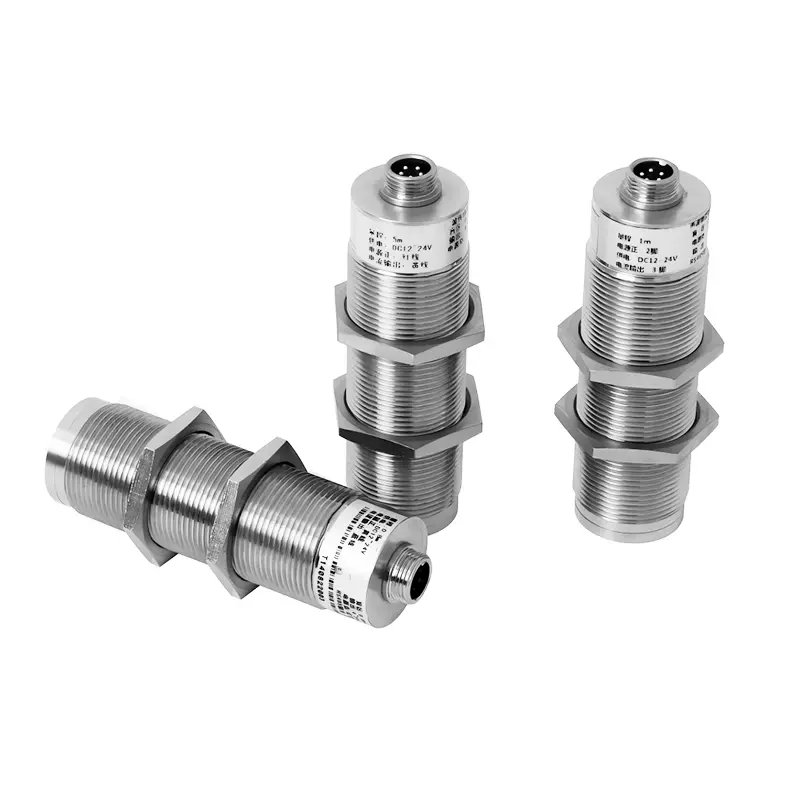

PWL-U202 Small Blind Spot Ultrasonic Level Transmitter

Features

Less than 0.06m~0.15m minimum blind area
1m, 2m, 3m measuring range
Emission Angle <3~6°
Support NPN switch output

PWL-U202 Small Blind Spot Ultrasonic Level Transmitter

Applications

Liquid level measure
Beverage level monitoring
Chemical tanks
Soap bins
Solid level measurement

Request Price PDF Download

Advantages

Digital filtering and echo recognition functions
Built-in anti-condensation function
Internal built-in auto compensation for temperature
Low-power acquisition method

The ultrasonic level sensor for tanks in small sizes, developed with extreme small blind spot less than 0.06~0.15m and high precision ±1mm or ±1.5mm. The ultrasonic water level sensor 4-20mA is the typical output, but also can do 0-5V/0-10V, RS485 Modbus and NPN switch output. Can customize for waterproof water level ultrasonic sensor IP67 and IP68.

Resources

Datasheet

File Name	Time	Type	Download
PWL-U202 Small Blind Spot Ultrasonic Level Transmitter	Nov 20, 2025	PDF

Technical Parameters

Model	PWL-U202
Measuring Range	1m, 2m, 3m
Blind Zone	<0.06~0.15m (according to range)
Emission Angle	<3~6° (according to sensor and environment)
Accuracy	±1mm, ±1.5mm (according to the range)
Resolution	1mm
Temperature Compensation	Automatic temperature compensation
Indicator	None
Signal Output	Analog: 4-20mA, 0-20mA, 0-5V, 0-10V Digital: RS485-Modbus RTU/TCP, HART Switch: 3 channels of NPN Wireless: NB-IoT, LoRa, 4G
Power Supply	12~28VDC, 18~32VDC(2 wires)
Installation Method	M30*1.5, Clamp
Electrical Interface	M20*1.5-2
Material of Housing	SUS304 stainless steel
Working Temperature Range	-20~65℃, -0.07~0.1MPa
Working Humility	≤80%RH, no condensation
Protection Level	IP65( other can be customized)
Explosion Proof	ExiaII CT4Ga, Ex db mb IICT6 Gb
