Ultrasonic Level Sensor

Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWL-U501 Ultrasonic Liquid Level Sensor

Features

  • Wide measuring range: 5m, 7m, 10m, 15m
  • 0-50℃ temperature compensation, accurate measurement
  • One-touch factory reset function
  • Intelligent recognition function for anti-interference
  • Multi-level adjustment of ultrasonic emission intensity
  • Multiple output signals: analog, digital and switch

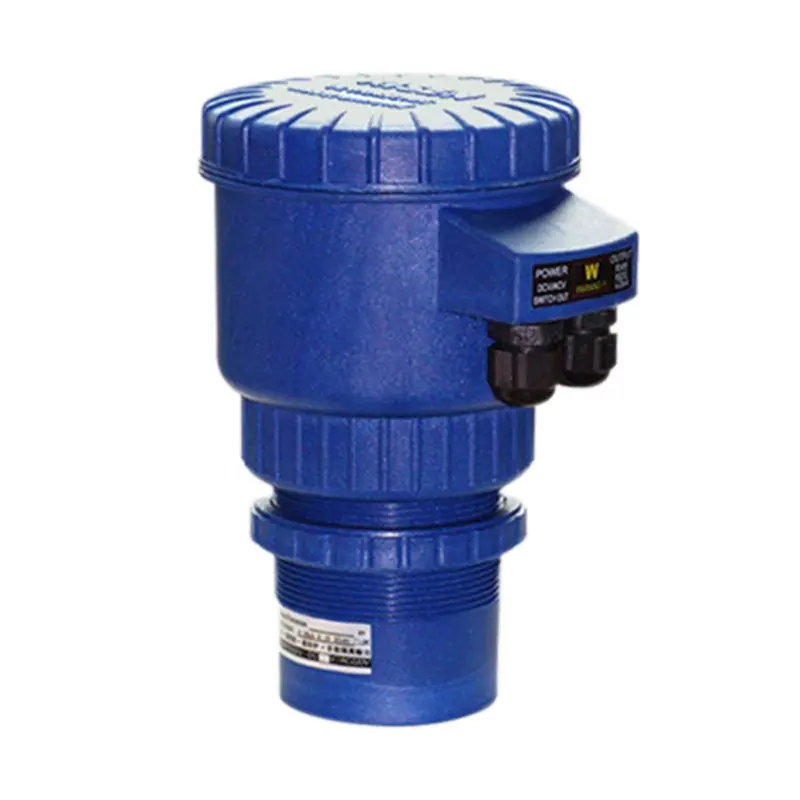

PWL-U501 Ultrasonic Liquid Level Sensor

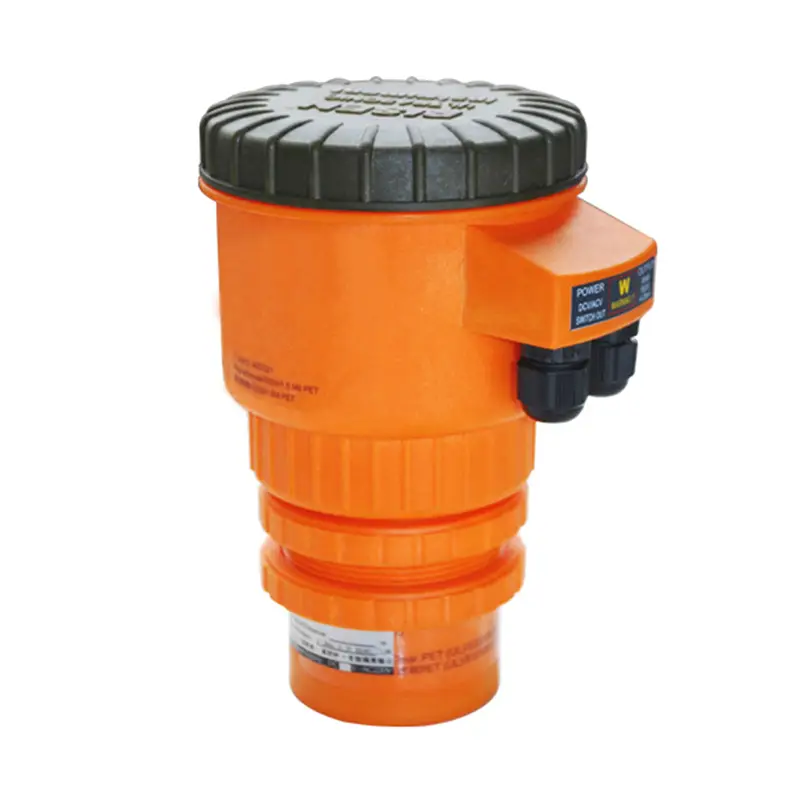

PWL-U501 Ultrasonic Liquid Level Sensor

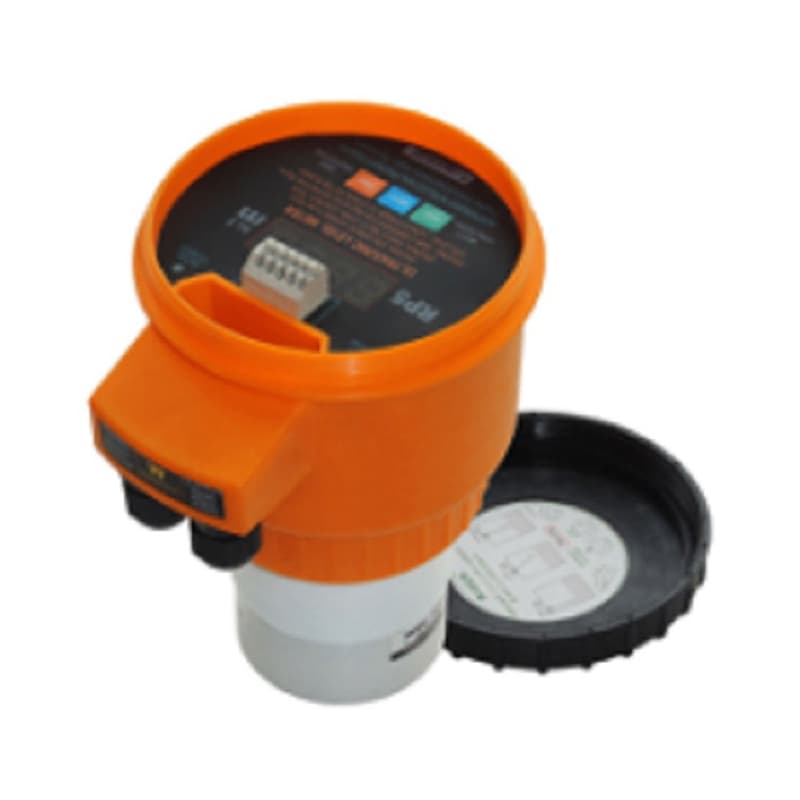

PWL-U501 Ultrasonic Liquid Level Sensor

Applications

  • Hydrological flood control
  • Oil level supervision
  • Sewage treatment
  • Dyeing pool
  • Water tanks
Request Price PDF Download

Advantages

  • Non-Contact Measurement
  • Available for variety of medias
  • Support distance measurement mode or level measurement mode
  • Support calibration online for distance measurement accuracy in different environment
  • Support screw-in and roller clamp installation method

Ultrasonic liquid level sensor with display has all gold-plated circuit board and is tested under 48 hours high and low temperature aging. It promises higher and long term reliability. Check more about this liquid level sensor with LED display.

Resources

Datasheet

File NameTimeTypeDownload
PWL-U501 Ultrasonic Liquid Level SensorSep 24, 2025PDF

Technical Parameters

ModelPWL-U501
Measuring Range5m, 7m, 10m, 15m
Blind Area≤300mm for ≤5m range;
≤500mm for ≤7m range;
≤500mm for ≤10m range;
≤800mm for ≤15m range.
Beam Angle15° for ≤5m range;
12° for ≤7m range;
12° for ≤10m range;
9° for ≤15m range;
Accuracy±0.5%FS(Typical), ±0.25%FS by customized
Signal Output4~20mA/0-5V/1-5V/0-10V/1-10V/RS485/RS232/Relay
Power Supply24VDC/12VDC
Consumption＜1.5W
Resolution1mm
Working Temp.-20℃~70℃
Protection LevelIP66; IP68 by customization
Housing MaterialNLEPF synthetic material
Installation MethodScrew-in type: thread dimension M68x2.0mm
Roller clamp type: hole opening size Φ70mm
Explosion ProofEx ia II AT3 (optional)
Display4 bits LED display(LCD optional)
