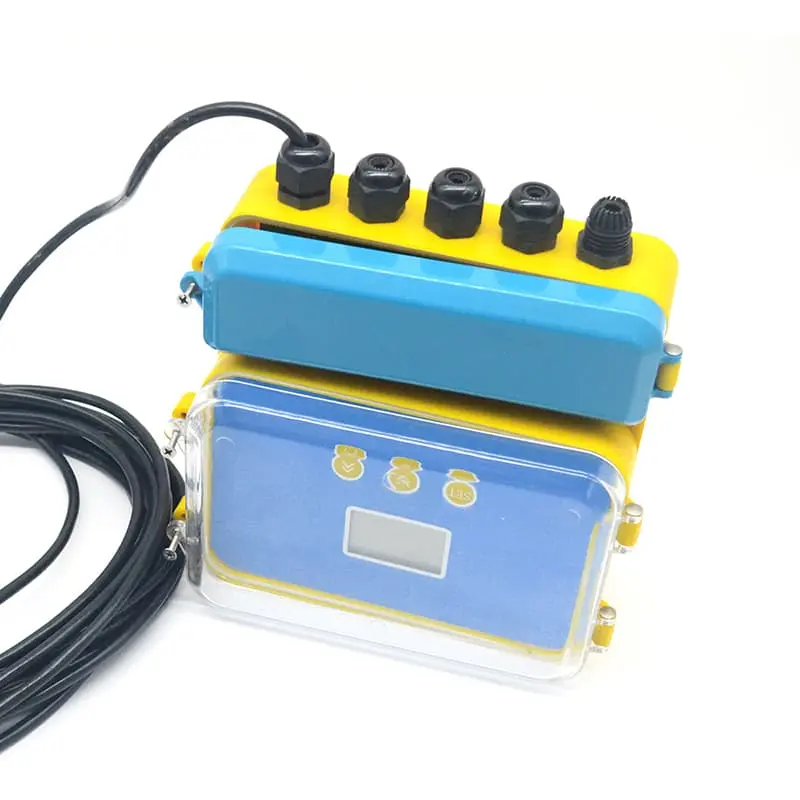

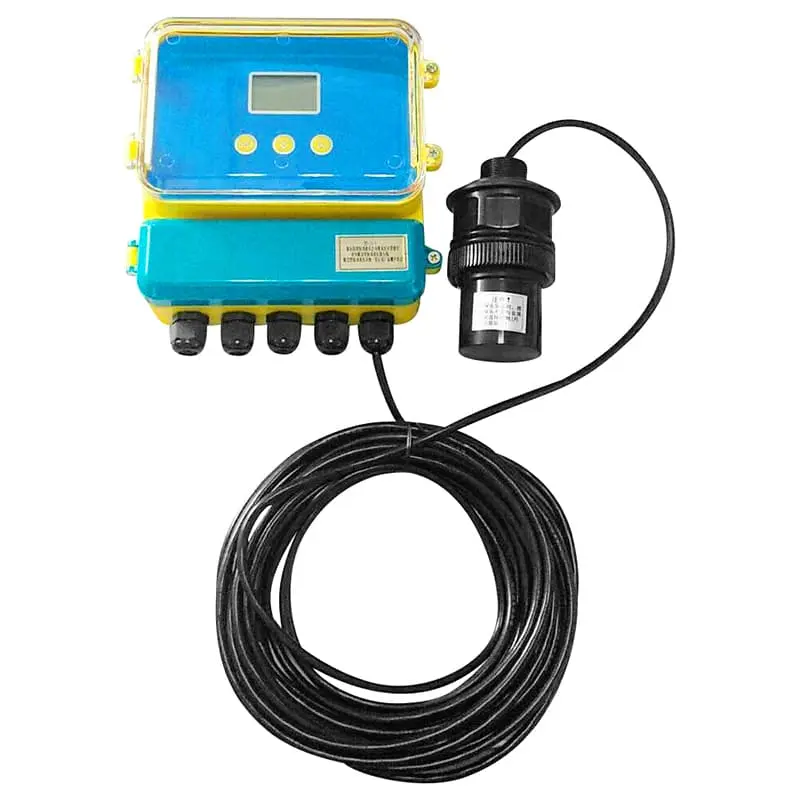

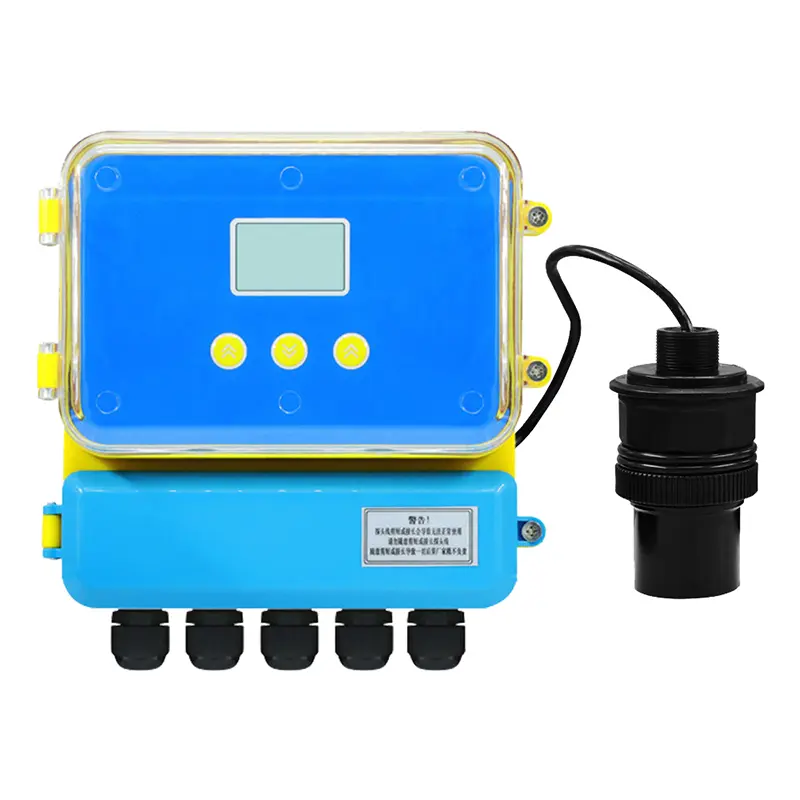

PWL-U707 Ultrasonic Level Transmitter – Remote Type
Features
- Ultrasonic working principle, non-contact measurement method
- Sun protection cover design, IP65 protection grade
- Over voltage and over current protection
- Measuring Range: 5m, 10m, 15m, 20m...60m
- Both level and distance is shown
- Optional relay output
Applications
- Fuel level monitoring
- Liquid level measurement
- Water tanks
- River, lake and pool
- Solid particle level measurement
Advantages
- Split type for convenient remote monitoring
- Intelligent filtering algorithm design, more accurate
- Simple installation with no calibration necessary
- Less than 9°beam angle design, less than 200ms responding time
- NLEPF engineering composite materials, durable and corrosion-resistant
- Corrosive-resistant
This non-contact ultrasonic level transmitter is a liquid level sensor with remote monitoring. The intelligent filtering algorithm design is adopted to effectively eliminate false echoes in actual measurements, improve the signal-to-noise ratio, and make the measurement more accurate.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWL-U707 Ultrasonic Level Transmitter – Remote Type | Sep 24, 2025 |
Technical Parameters
| Model | PWL-U707 |
| Measuring Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Blind Zone | 0.25-1.2m (According to the range) |
| Accuracy | ±0.5%FS(Typical), ±0.25%FS by customized |
| Signal Output | 4-20mA/0-5V/1-5V/0-10V/RS485/RS232/Relay |
| Power Supply | 24VDC/12VDC/220VAC |
| Display | With |
| Resolution | 3mm or 0.1% (Which one is max) |
| Working Temp. | -20℃~60℃ |
| Working Pressure | 2 bar |
| Working Humility | ≤80%RH, no condensation |
| Protection Level | Sensor IP68, Indicator IP65 |
| Cable Length | 10m as standard, max 100m |
| Housing Material | NLEPF synthetic material |
| Installation Method | Threaded |
| Corrosive Application | Yes available to customize PVFD or PTFE sensor probe |
