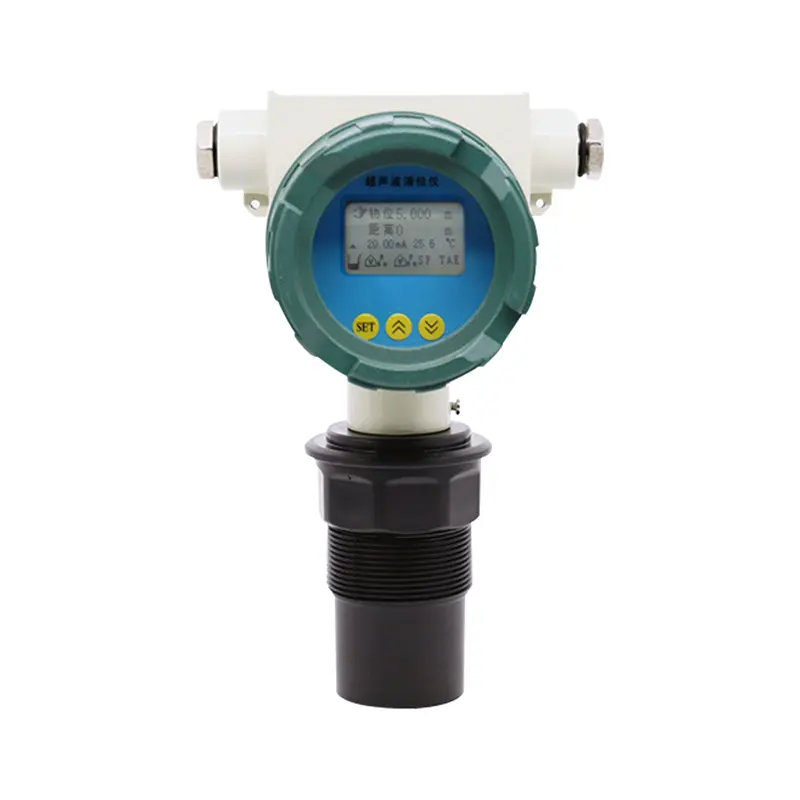

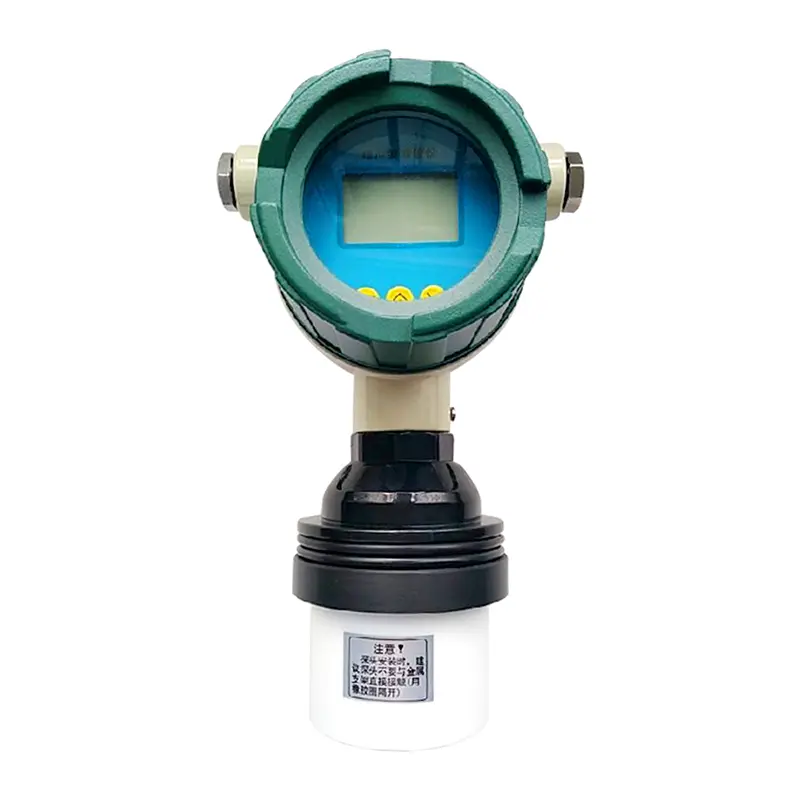

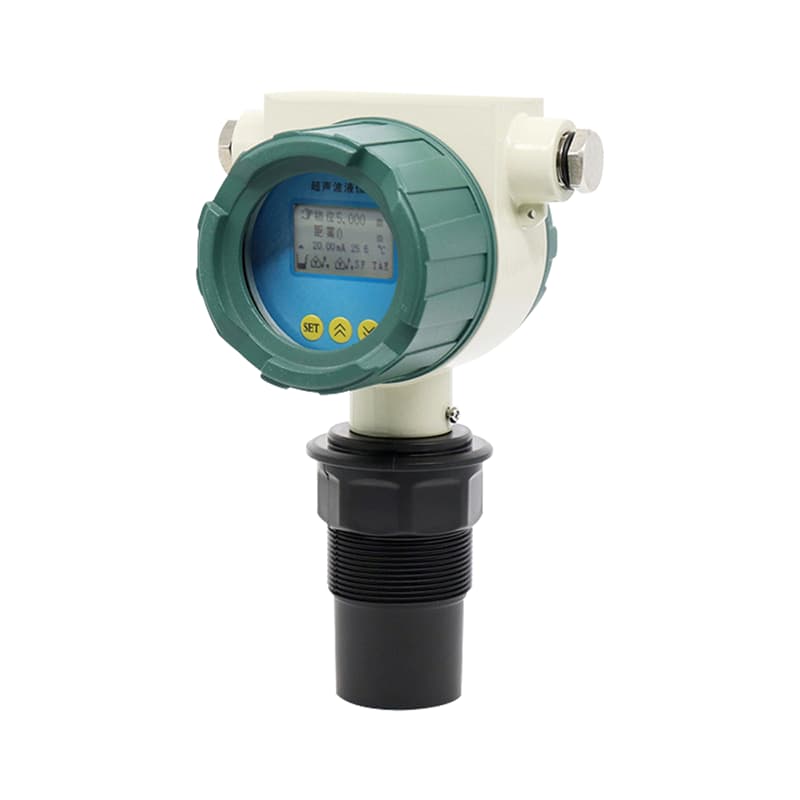

PWL-U709 Explosion-proof Ultrasonic Fuel Level Sensor
Features
- Ultrasonic working principle, non-contact measurement method
- Less than 9°beam angle design, less than 200ms responding time
- NLEPF engineering composite materials, durable and corrosion-resistant
- Sun protection cover design, IP65/IP66 waterproof
- Over voltage and over current protection
- Explosion-proof for hazardous area
Applications
- Crude oil storage tank
- Diesel tank
- Gasoline tank
- Asphalt tank
- Fuel level measurement
- Food grade level monitoring
Advantages
- Intelligent filtering algorithm design, more accurate
- Simple installation with no calibration necessary
- Optional relay output better process control
- Built-in temperature sensor and display temperature simultaneously
- ATEX certification
Ultrasonic fuel level sensor is specially designed for hazardous area fuel and flammable liquid level measurement. It can be aluminum enclosure explosion-proof or intrinsically safe type. It is an perfect choice for non-contacting ATEX fuel level sensor.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWL-U709 Explosion-proof Ultrasonic Fuel Level Sensor | Sep 24, 2025 |
Technical Parameters
| Model | PWL-U709 |
| Measuring Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Blind Zone | 0.25-1.2m (According to the range) |
| Accuracy | ±0.5%FS(Typical), ±0.25%FS by customized |
| Signal Output | 4-20mA/0-5V/1-5V/0-10V/RS485/RS232/HART/Relay |
| Power Supply | 24VDC/12VDC/220VAC |
| Display | With |
| Resolution | 3mm or 0.1% (Which one is max) |
| Working Temp. | -20℃~60℃ |
| Working Pressure | 2 bar |
| Working Humility | ≤80%RH, no condensation |
| Protection Level | IP66 |
| Cable Length | None |
| Housing Material | NLEPF synthetic material |
| Installation Method | Threaded |
| Corrosive Application | Available with PVFD or PTFE sensor probe |
| Explosion Proof Class | Intrinsically Safe; Explosion-proof |
