Level Datalogger

Data logging water level sensors or levellogger is a submersible level sensor with data logger are ideal for observing flow patterns, testing pumps, and monitoring groundwater, well, streams, lakes, wetlands, tanks and tidal levels long-term or short-term. It is a research-grade data logger for continuous monitoring of water level, temperature and conductivity a depths of up to 300mH2O. The data that they collect and store can be downloaded to a portable computer in the field. Features 0.05% measurement accuracy, a SS316L or Titanium housing for use in both freshwater and saltwater. Pokcenser provides vented design and non-vented design for the convenience deployment of different applications.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

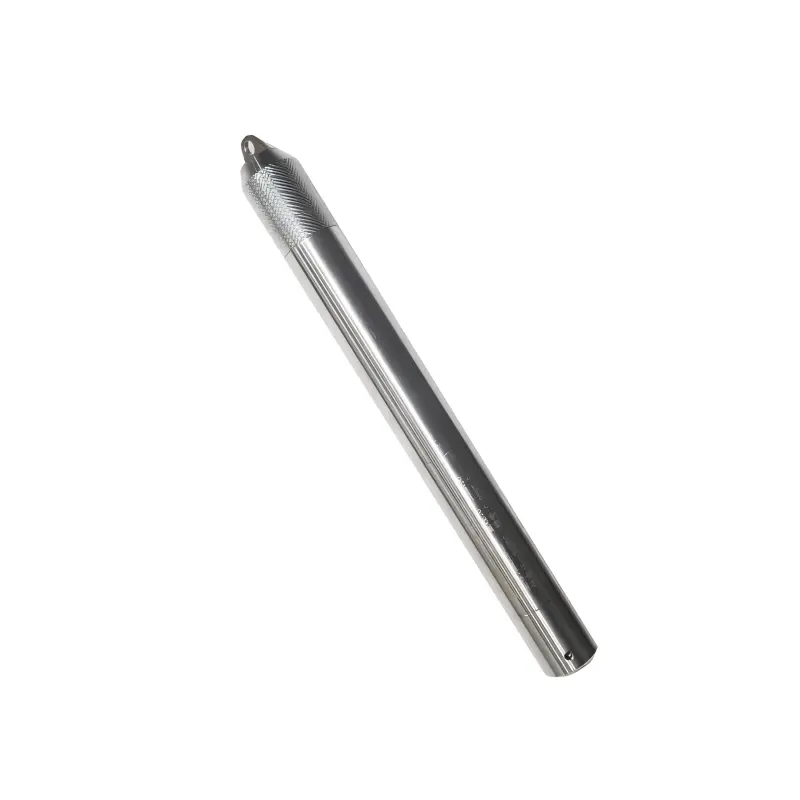

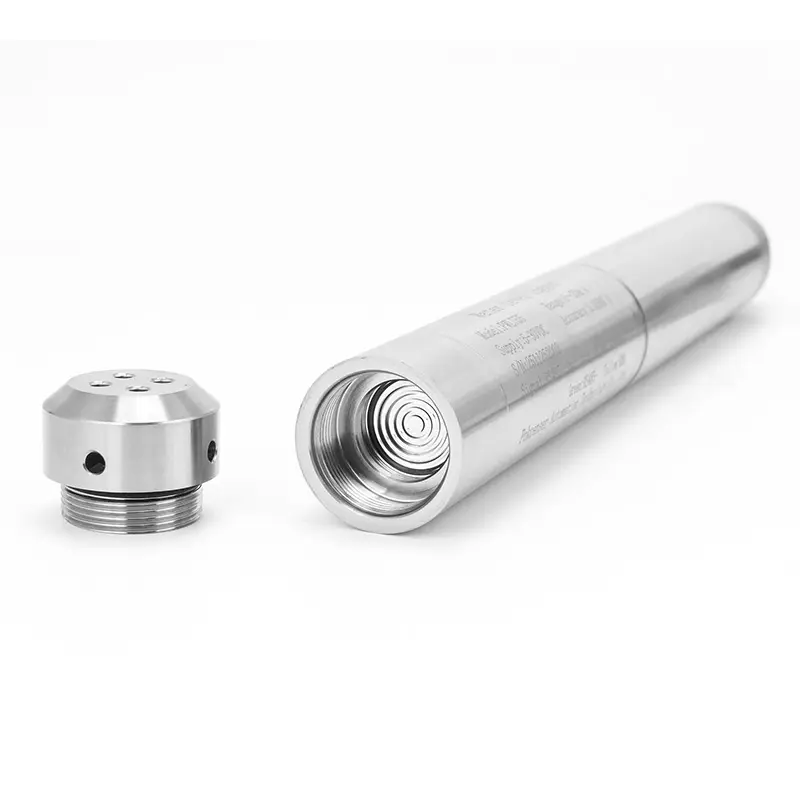

PWL755 Self-contained Water Level Datalogger

Features

  • Built-in Level&Temperature sensor
  • Stainless steel SS316L or titanium alloy housing for freshwater or saltwater
  • All 316L stainless steel robust construction for durability
  • Built-in large-capacity FLASH memory
  • High-capacity long-life lithium battery.
  • RS485 Modbus RTU, download data to PC by a reader
PWL755 Self-contained Water Level Datalogger

Applications

  • Groundwater level and temperature monitoring
  • Flood control level monitoring in coastal cities
  • Reservoir and dam water level
  • Lake and surface runoff water water level monitoring
  • Unmanned hydrological monitoring stations
  • Real-time monitoring of liquid level in tanks
  • On-site liquid level monitoring of industrial control systems
Request Price PDF Download

Advantages

  • Self-contained: no cable lead-out, strong underwater sealing
  • High-quality and high-stability sensing elements
  • High accuracy: Level 0.05%F.S., temperature ±0.5℃
  • Low consumption: Energy-saving design, standby power consumption <5µA, acquisition power consumption 3mA
  • Multi-parameters at one time: Water depth, water temperature, water pressure, battery leftover, time...
  • Anti-surge and anti-electromagnetic interference circuit board
  • Internal intelligent linear correction and temperature compensation

The Self-contained Water Level Datalogger is a groundwater monitoring instrument powered by an internal battery. It can be used to record water depth (pressure) and temperature for a long time. The housing material is made of stainless steel or titanium alloy. The water level recorder includes water level and temperature sensors, built-in large-capacity FLASH memory and high-capacity long-life lithium battery. All functions are integrated in the instrument with a diameter of 26mm. It is suitable for water level and water temperature measurement in surface water, groundwater and marine environment.

Resources

Datasheet

File NameTimeTypeDownload
PWL755 Self-contained Water Level DataloggerSep 25, 2025PDF

Technical Parameters

Main Characteristics----
Level Range0~10mH2O...0~200mH2O
Water level accuracy±0.05%F.S. (0~50℃)
Resolution1mm
Pressure TypeAbsolute Pressure
Long stability<0.05%F.S/year
Temperature Accuracy±0.5℃
Temperature Resolution0.1℃
Built-in Battery Life10 years ( Record once/60 minutes)
Storage Capacity>40000 pieces readings
Electrical Characteristics----
Compensation Temperature0~50℃
Operating Temperature-10~80℃
Power SupplyExternal voltage: DC5~30V (Typical 24V)
Internal battery: 2.7~3.6VDC
Power ProtectionReverse polarity protection and over-voltage protection, Anti surge 2KV
CommunicationRS485 Modbus RTU
Structure Characteristics----
Measurable MediumCompatible with 316L stainless steel and Viton
Housing Material316L stainless steel or titanium(optional)
Lifting WireSUS304 stainless steel or 316L(optional)
Environmental Characteristics----
IP RatingIP68
WeightAbout 300g (excluding cable)
