Submersible Level Transmitter
Pokcenser high accuracy submersible Level Sensor also called hydrostatic pressure level sensor with an enclosure of 27mm, 19mm and 16mm in diameter makes it ideal for level monitoring instruments in well, borehole and tanks applications. Constructed for years of trouble free service, it applies imported 316L stainless steel isolation diaphragm diffusion silicon pressure sensor core and 316L SS body&nose cap as robust. Precision ±0.10%, ±0.25% or ±0.50% of full scale accuracy output. Lightning and surge protection is included to stand up in harsh applications. Special cable for air-venting conduit with a maintenance-free filter preventing particulate or water droplets from entering the transmitter, ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

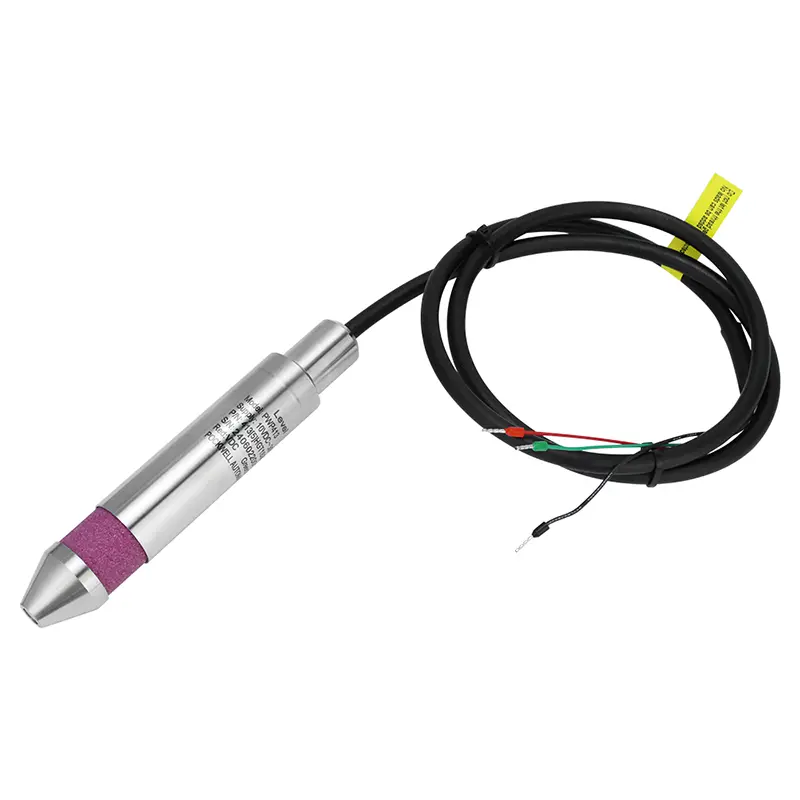

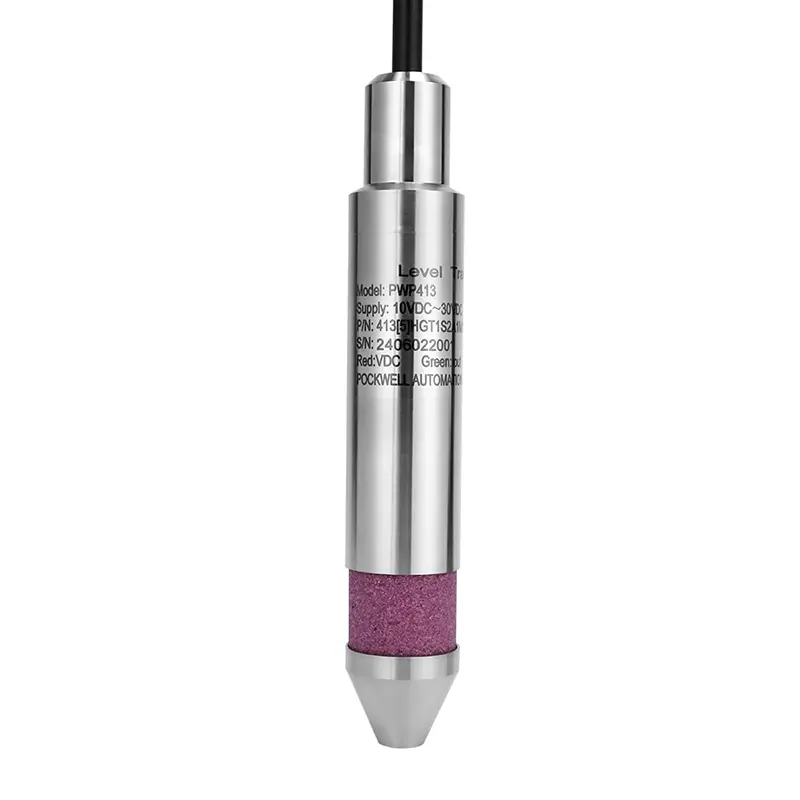

PWP413 Flood and River Submersible Level Transmitter
Features
- Range 0~1m...200mH2O
- Accuracy ±0.25%FS, ±0.5%FS
- IP68 water-proof
- With sediment filter
- 316L diaphragm and body: Anti-corrosive
Applications
- Flood level monitoring and alarm
- Muddy liquid level measurement
- Wastewater and sewage treatment
- Water channels, canals, dams monitor
- Reservoir level measurement
- Irrigation and agricultural systems
- Hydraulic monitoring
Advantages
- Can be used in sediment-containing water
- Robust and cost-effective
- Lightning & surge & reverse protection

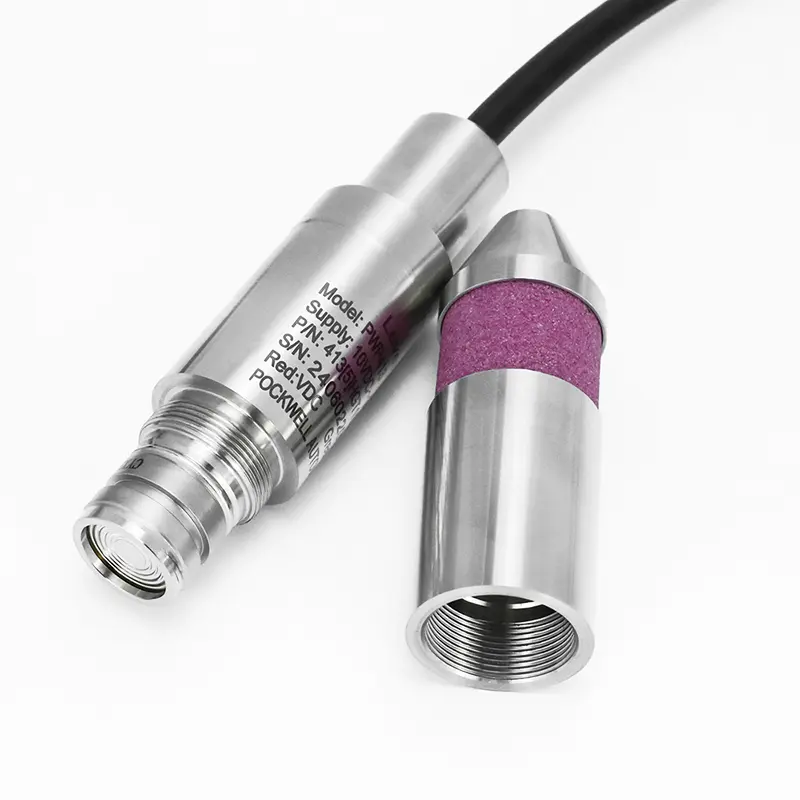

- Detachable ceramic filter nose design: Easy to clean, anti-clogging
Flood and river submersible level transmitter with special structure, it’s special sediment filter to prevent from the tiny impurities clogging issue. Submersible level sensor for river monitoring has excellent performance. 316L stainless steel diaphragm and welded 316L body construction make it robust from shock and erosion. A probe with cable makes it easy installation, commissioning and operation. A ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the water, to assure the measurement accuracy.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWP413 Flood and River Submersible Level Transmitter | Sep 24, 2025 |
Technical Parameters
| Model | PWP413 |
| Pressure Level Range | 0m~0.5m...200m H2O/0-0.05 bar...20bar |
| Electrical Connection | Directly cable outlet |
| Accuracy | ±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional |
| Signal Output | 4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART |
| Power Supply | 3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC |
| Response Time | ≤3ms |
| Medium Compatible | Liquid compatible with SS316L or ceramic material |
| Long-term Stability | ≤0.5%FS/year (for 0.5%FS accuracy) |
| Zero Temp. Drift | ≤0.05%FS/℃(for 0.5%FS accuracy) |
| Compensation Temp. | 0℃~+50℃(typical), -10℃~+60℃(optional) |
| Working Temp. | Media -30℃~+65℃, environmental -40℃~+70℃ |
| Storage Temp. | -40℃~+70℃ |
| IP Rating | IP68 |
| Cable Material | PE, PU or FEP |
