Submersible Level Transmitter

Pokcenser high accuracy submersible Level Sensor also called hydrostatic pressure level sensor with an enclosure of 27mm, 19mm and 16mm in diameter makes it ideal for level monitoring instruments in well, borehole and tanks applications. Constructed for years of trouble free service, it applies imported 316L stainless steel isolation diaphragm diffusion silicon pressure sensor core and 316L SS body&nose cap as robust. Precision ±0.10%, ±0.25% or ±0.50% of full scale accuracy output. Lightning and surge protection is included to stand up in harsh applications. Special cable for air-venting conduit with a maintenance-free filter preventing particulate or water droplets from entering the transmitter, ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

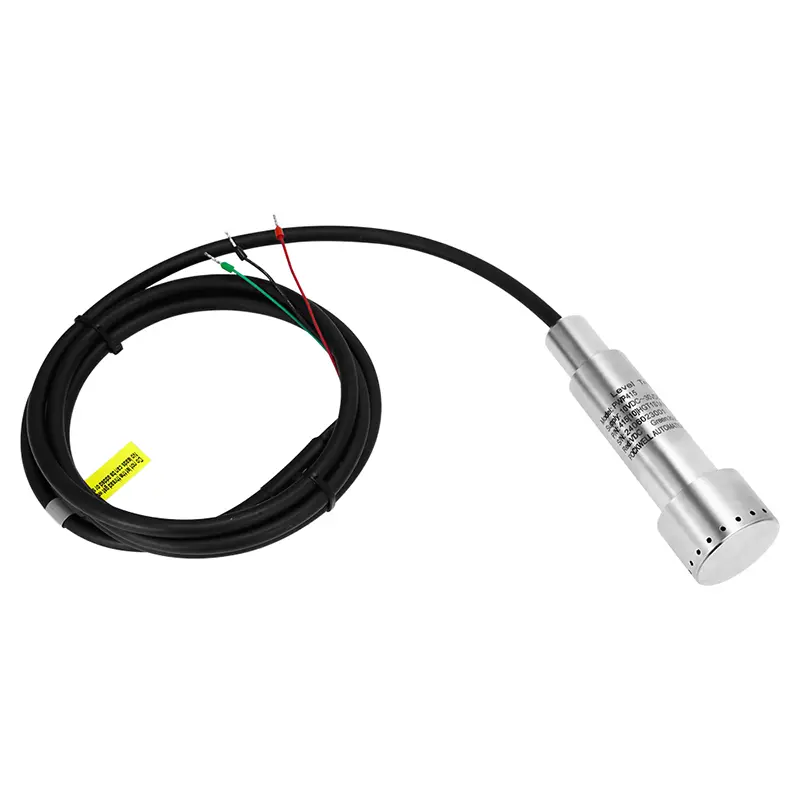

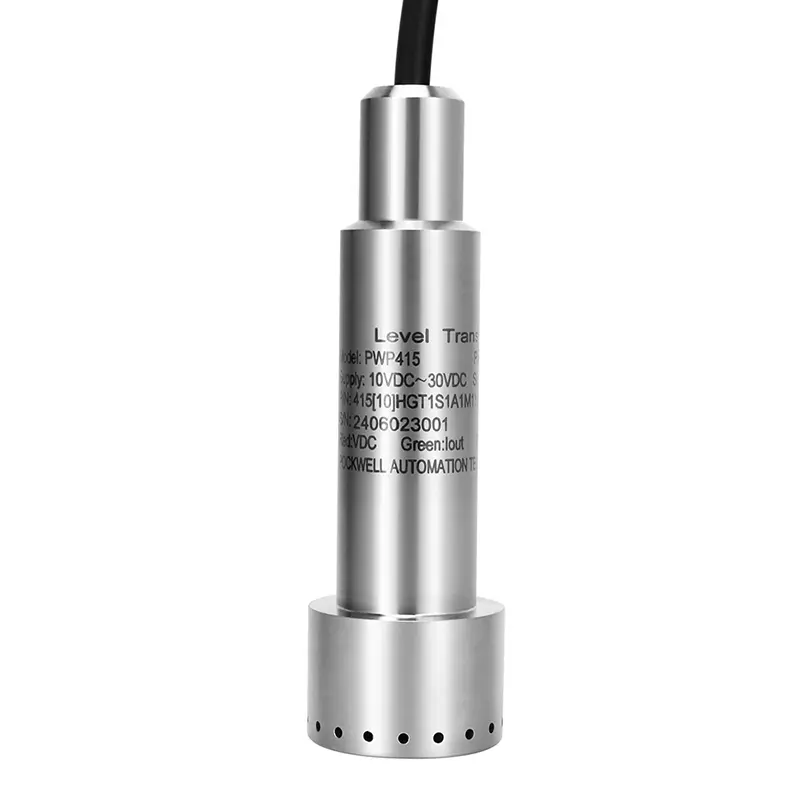

PWP415 Submersible Sewage Water Level Transducer

Features

Range 0~1m...200mH2O
Accuracy ±0.25%FS, ±0.5%FS
Surge & Reverse polarity protection
IP68 water-proof
Detachable 38mm filter nose with small pressure holes design

PWP415 Submersible Sewage Water Level Transducer

Applications

Wastewater and sewage treatment
Water channels, canals, dams monitor
Reservoir level measurement
Irrigation and agricultural systems
Hydraulic monitoring
Lift station and pumping stations monitoring
Turbid water level measurement

Request Price PDF Download

Advantages

Anti-clogging from unclean liquids measurement
Constructed for years of trouble free service with welded 316 SS body and 316 SS cap
Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection

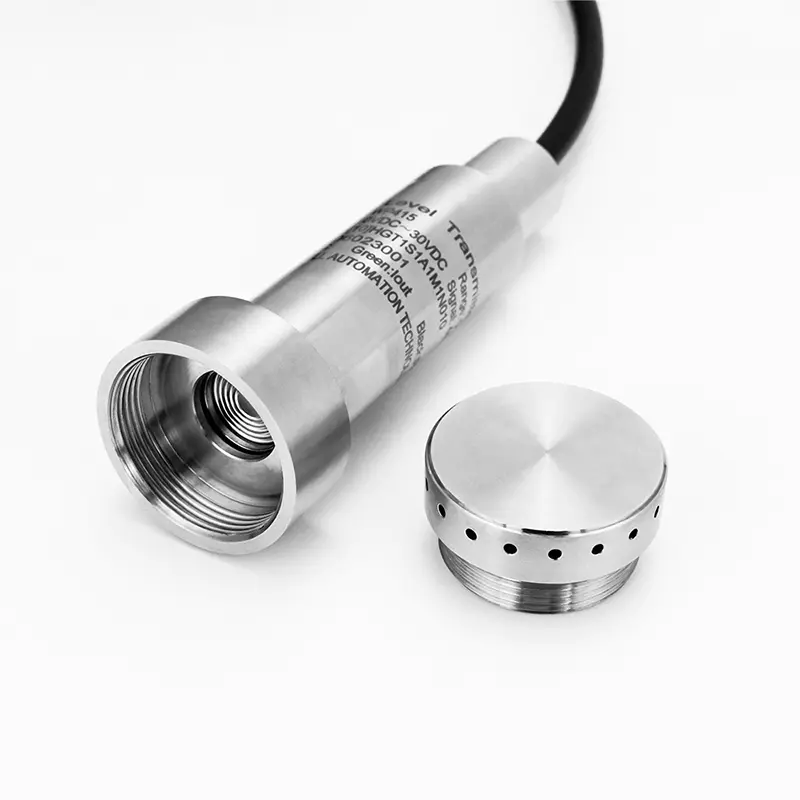

A removable large diameter 38mm filter nose for easy cleaning

The submersible sewage water level transducer with special filter nose construction to prevent from the clogging issue, can be used in sewage and waste water applications. A probe with cable makes it easy installation, commissioning and operation. A ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the water, to assure the measurement accuracy. It is a perfect submersible level sensor for sewage monitoring.

Resources

Datasheet

File Name	Time	Type	Download
PWP415 Submersible Sewage Water Level Transducer	Sep 24, 2025	PDF

Technical Parameters

Model	PWP415
Pressure Level Range	0m~0.5m...200m H2O/0-0.05 bar...20bar
Electrical Connection	Directly cable outlet
Accuracy	±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output	4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART
Power Supply	3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time	≤3ms
Medium Compatible	Liquid compatible with SS316L
Long-term Stability	≤0.5%FS/year (for 0.5%FS accuracy)
Zero Temp. Drift	≤0.05%FS/℃(for 0.5%FS accuracy)
Compensation Temp.	0℃~+50℃(typical), -10℃~+60℃(optional)
Working Temp.	Media -30℃~+65℃, environmental -40℃~+70℃
Storage Temp.	-40℃~+70℃
IP Rating	IP68
Cable Material	PE, PU or FEP
