Data Logger and Module

Pokcenser also provides separate wireless monitoring solutions with data logger and wireless modules. Data loggers and modules are efficient and compact. They have signal input interfaces to connect the sensors(level, pressure, temperature, and flow), and utilize a wireless network to connect data logger and module to either a computer or to a cloud based system. Are convenient solutions for accessing the data anywhere at any time, and receiving real-time alerts and notifications 24/7. Especially helpful when want to view the recordings remotely.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

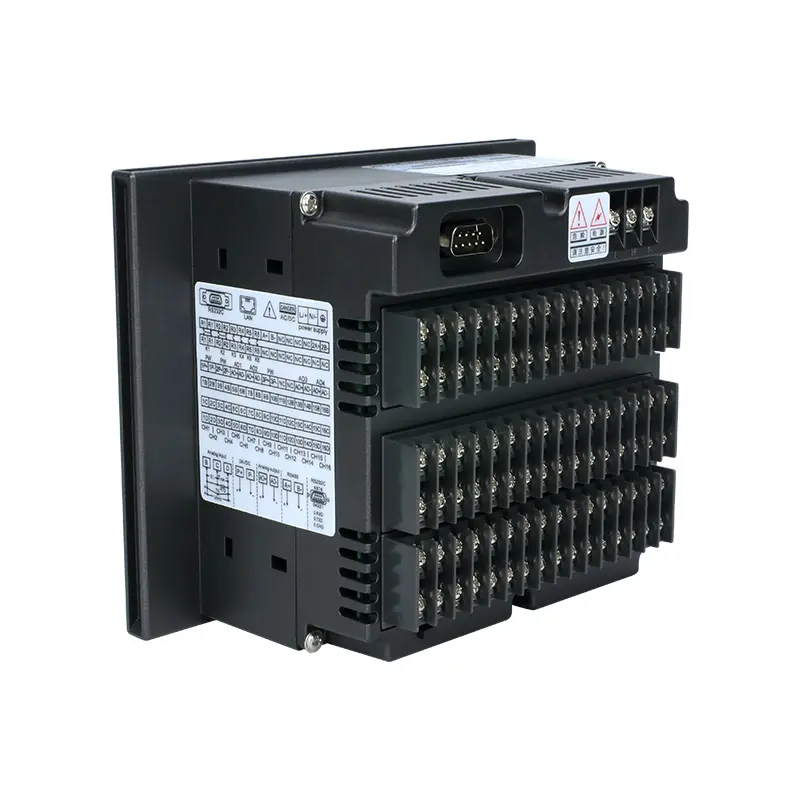

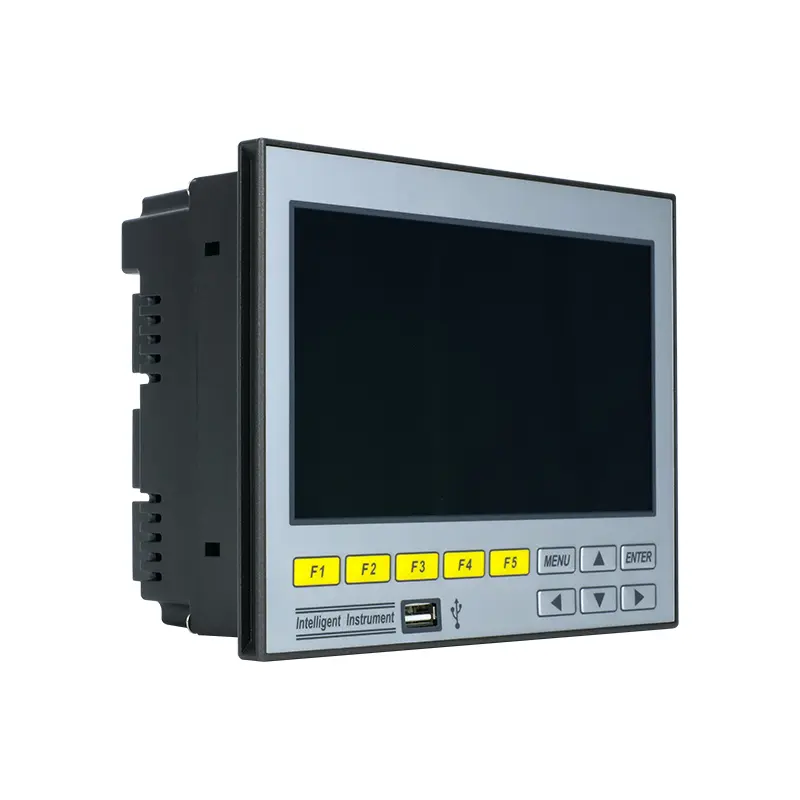

R7100 LCD Paperless Recorder

Features

R7100 LCD Paperless Recorder
±0.2%FS accuracy
Can connect with max 16 sensors
Record Capacity 64 / 128 / 1922 / 248MB

Applications

Water tanks
Fuel tanks
Oil tanks
Liquid tanks
Bulk solids silo
Signal from all kinds of sensors

Request Price PDF Download

Advantages

Simple and easy to operate
Graphics display
Large Data storage capacity

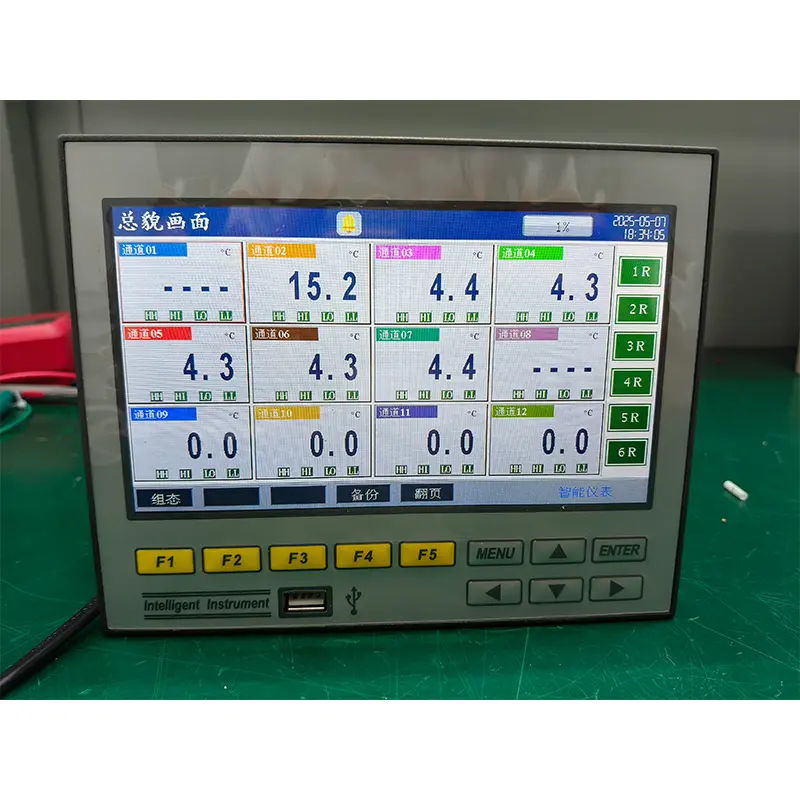

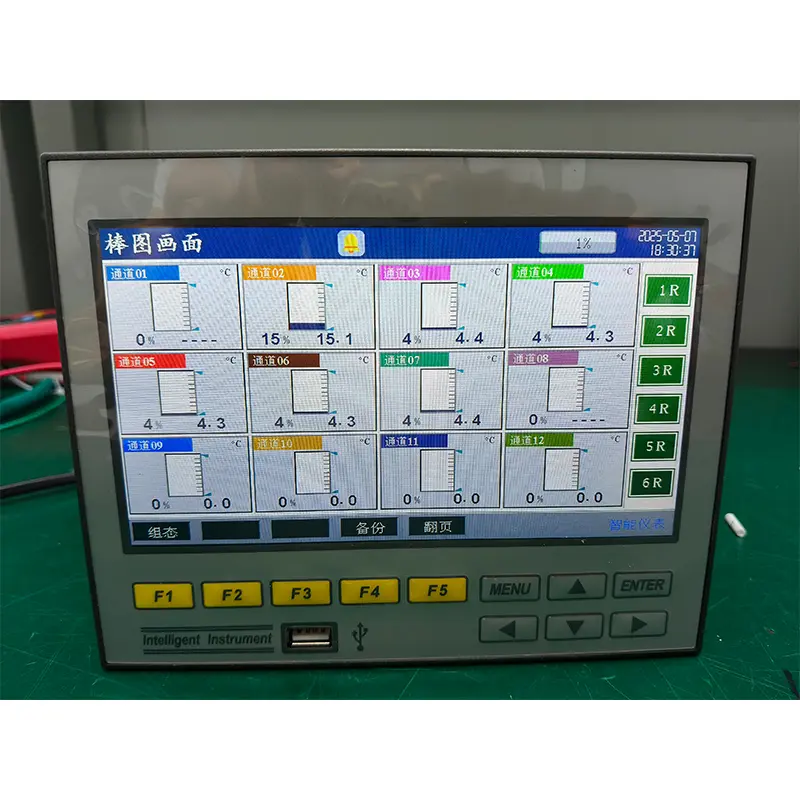

This LCD Paperless Recorder is a graphic paperless electronic data recorder that max can collect data from 16 sensors. 7-inch true-color TFT LCD makes it clearly display all data on data logging screen.

Resources

Datasheet

File Name	Time	Type	Download
R7100 LCD Paperless Recorder	Nov 20, 2025	PDF

Technical Parameters

Model	R7100
Screen	7-inch true-color TFT LCD
Accuracy	± 0.2% F.S
Processor	To collect, record, display and alarm multiple signals
Input	Max 16 analog input of: voltage, current, resistor, thermal resistance, thermocouples, radiation pyrometer, tungsten rhenium.
Output	4 x 4-20mA, 6 x Relay output
Communication	RS232C, RS485 Modbus
Report Backup	Support USB 1.1 and 2.0 protocols, 1GB-32GB USB drives
Record Capacity	64 / 128 / 1922 / 248MB (flash capacity optional)
Record Interval	1 to 24 seconds(11 levels)
Power Supply	220VAC/50HZ or 9-18VDC or 18-36VDC
Power Feed	3 set of 24VDC sensor power supply
Working Temp.	0-50℃ ℃ (avoid direct sunlight)
Working Humidity	0-85% R.H (no condensation)
Net Weight	≤1.5 KG
Mounting Accessories	With
Dimension	18014487mm Horizontal
