Submersible Level Transmitters: Key Specs to Check First
In today’s world, precise water level monitoring is no longer optional—it’s a necessity. From municipal wastewater treatment plants to groundwater wells and chemical tanks, industries depend on submersible level transmitters(also called submersible level sensors or submersible pressure transducers) to deliver reliable, real-time liquid level measurements.
But choosing the best submersible level transmitter for water tanks, wells, or wastewater isn’t as simple as picking one off the shelf. To achieve long service life, accuracy, and seamless integration with your monitoring system, you need to evaluate several technical specifications first.
In this article, we’ll walk through the key specs you should check before buying a submersible level transmitter, explore real-world applications, and provide practical tips for selecting the right device.
Why Choose a Submersible Level Transmitter?
A submersible level transmitter is a type of submersible pressure sensor designed to measure the hydrostatic pressure of liquid above it, which is then converted into a liquid level reading. By immersing the transmitter at the bottom of a tank, well, or reservoir, you gain continuous, accurate monitoring of fluid depth.
Advantages over other level measurement technologies:
- Simple Installation: Drop it into the liquid—no need for complex mounting or float switches.
- Low Maintenance: No moving parts, reducing wear and tear.
- Versatility: Works in clean water, wastewater, chemicals, seawater, and irrigation canals.
- Reliability: Built to withstand harsh conditions with IP68-rated submersible level sensors.

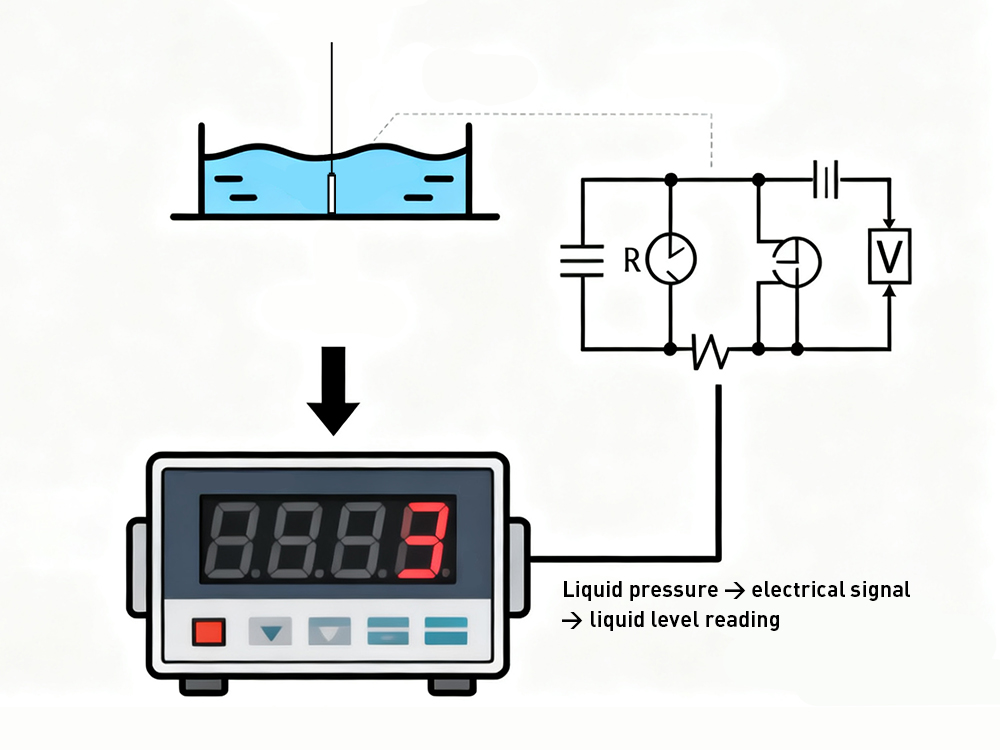

Working principle of a submersible level transmitter — liquid pressure is converted into an electrical signal to display the level reading.
Key Specs to Check Before Purchasing
When selecting a submersible level transmitter, these specifications determine whether your device will perform reliably in your unique application.
Measurement Range
The measurement range defines how deep the transmitter can measure. Choose a range that comfortably covers your maximum liquid depth:
- Domestic water tanks: 0–5 meters
- Deep wells: 0–50 meters
- Industrial reservoirs: 0–200 meters
Over-sizing may reduce resolution, while under-sizing risks damaging the sensor.
Accuracy and Resolution
Accuracy is often specified as a percentage of full scale (%FS). For groundwater monitoring or drinking water systems, ±0.1%FS may be required, while ±0.5%FS might suffice for agricultural irrigation. Resolution should also be high enough to detect small changes in water level.
If you need precision, look for submersible level transmitter accuracy in product specifications.
Output Signal
The transmitter must communicate effectively with your monitoring system. Common outputs include:
- 4–20mA output: The most widely used signal for submersible water level sensors, immune to electrical noise and ideal for long cable runs.
- 0–10V: Suitable for short distances but more sensitive to noise.
- RS485 Modbus: Digital communication, allowing advanced data integration into SCADA systems.
Always check compatibility with your existing system before purchase.

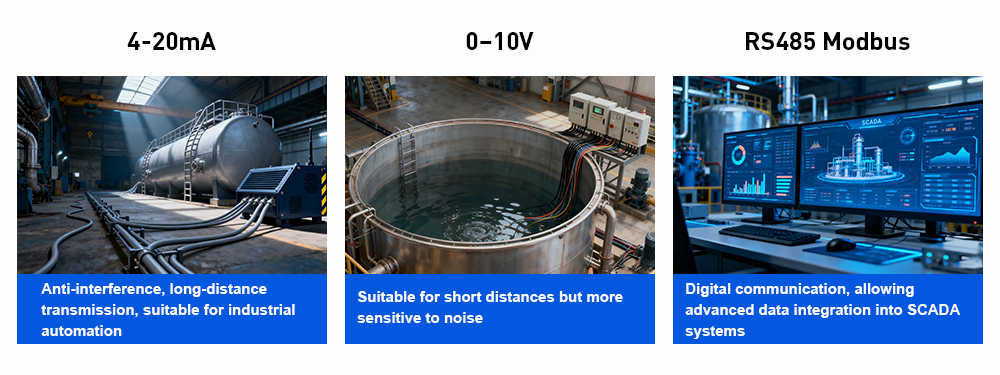

Comparison of output signal types — 4–20mA for long-distance transmission, 0–10V for short ranges, and RS485 Modbus for digital data integration.
Cable Length and Material
Cable length must be sufficient to reach from the monitoring point to your control panel. The cable jacket material should resist moisture, chemicals, and abrasion. For wastewater or seawater, polyurethane or Teflon cables are preferred over PVC.
Housing Material & Protection Rating
The housing must withstand immersion and resist corrosion. Common options include:
- Stainless Steel 316L: Suitable for freshwater and mild chemicals.
- Titanium Housing: Best choice for seawater, aggressive chemicals, or long-term applications.
Always select IP68 submersible level sensors for full waterproof protection.

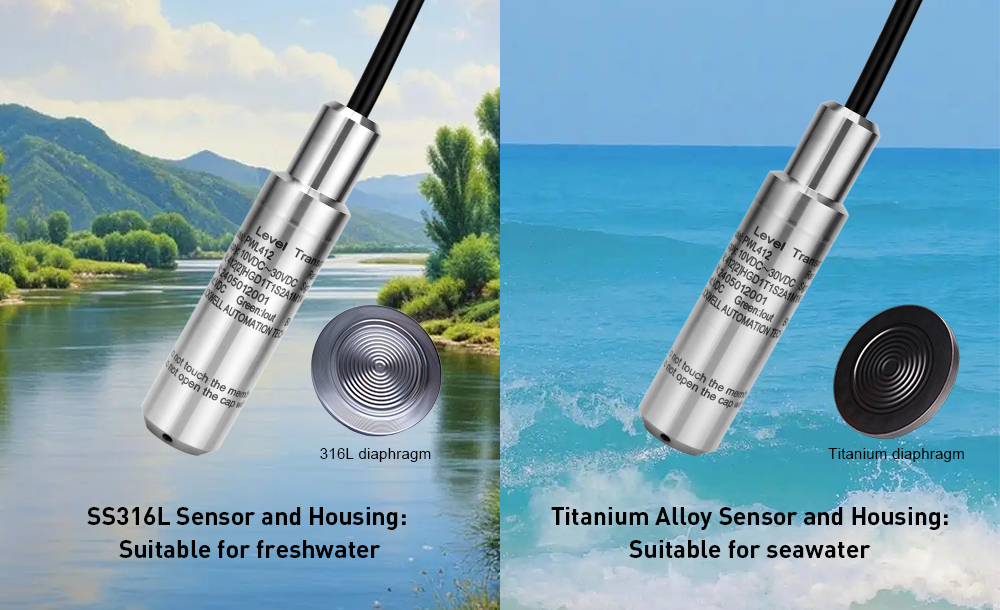

Material comparison — Stainless steel 316L is ideal for freshwater, while titanium housing offers superior corrosion resistance in seawater.
Temperature Range
If your transmitter operates in extreme environments—such as hot spring water monitoring, industrial wastewater, or freezing outdoor climates—ensure its specified operating temperature range matches conditions. Some specialized transmitters handle up to 80°C or more.
Long-Term Stability and Drift
Over time, sensors can drift, leading to inaccurate readings. High-quality submersible pressure transducers are designed with low long-term drift, ensuring stable performance for years. Look for specs like “<±0.1%FS/year drift.”
Real-World Applications
Water and Wastewater Treatment
Utilities use submersible level transmitters for wastewater in pumping stations, clarifiers, and storage tanks, where continuous monitoring is critical for efficiency.
Groundwater and Well Monitoring
Submersible pressure sensors for deep wells provide reliable, long-term data for hydrologists and environmental monitoring agencies.
Oil and Chemical Tanks
Chemical plants rely on corrosion-resistant submersible level transmitters with titanium housings to handle aggressive fluids.
Irrigation and Agriculture
Farmers deploy submersible level sensors for water tanks and irrigation canals, ensuring efficient water distribution and avoiding pump failures.

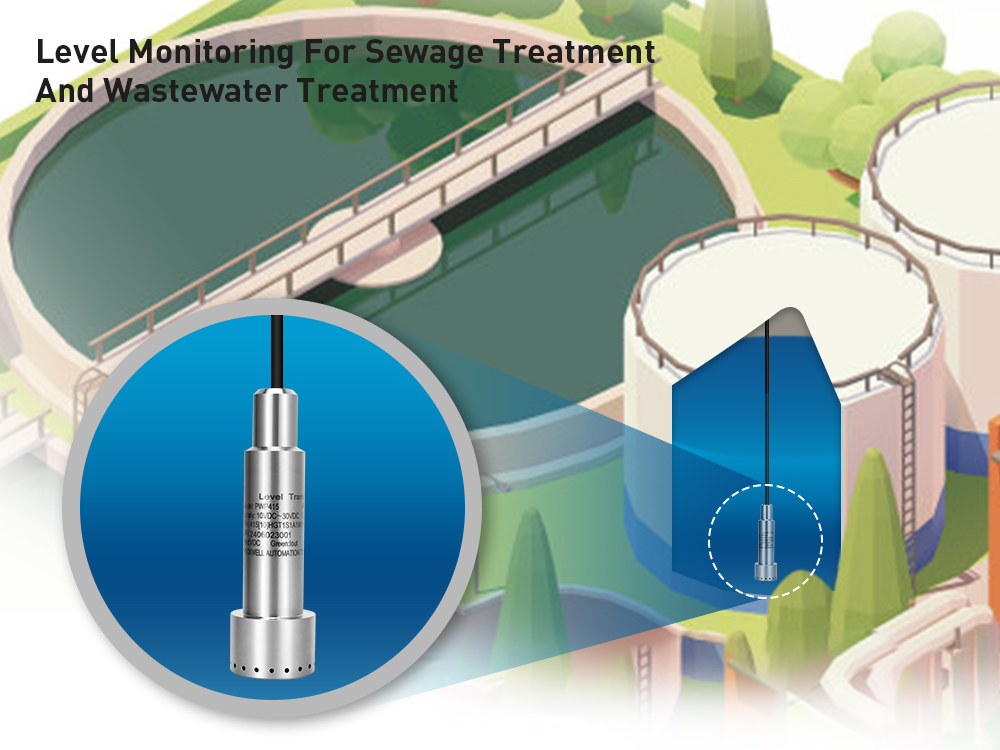

Application example — Submersible level transmitter used for level monitoring in sewage and wastewater treatment systems.
Practical Selection Tips
When evaluating options, keep these points in mind:
- Match housing material to the medium. Stainless steel for clean water, titanium for seawater.
- Check compatibility. If your system needs 4–20mA signals, make sure the transmitter supports it.
- Consider long-term calibration needs. Low-drift devices reduce maintenance costs.
- Don’t just buy the cheapest model. Investing in the best submersible level sensor for your application saves money in the long run.
About Pokcenser
Pokcenser Automation is a sensor manufacturer and solution provider for industrial process control automation for 10+ years, approved with CE, ATEX, ISO, RoHS certificates… The main products are flow meters, level sensors, pressure transmitters, temperature sensors and water analysis instruments. Pokcenser’s products are widely used in oil & gas, water & wastewater, chemical & petrochemical, food and other fields. Support OEM&ODM. We are proud that 150,000+ solutions are provided to our clients in 100+ countries. Equips with 6-person pre-sales and after-sales team, from evaluating whole application to recommend suitable solutions to after-sales, one-stop worry-free services. Only seek for long term cooperation and aim to create value for clients, to contribute ourselves in the field of industrial automation worldwide!
Conclusion
Choosing the right submersible level transmitter involves more than checking the price. By reviewing key specs such as measurement range, output type, accuracy, housing, and cable material, you’ll ensure long-term reliability and accuracy..
