Ultrasonic Underwater Distance Sensor: High-Precision Water Depth Measurement Solution

In modern industrial measurement applications, accurate and reliable underwater distance measurement is essential for industries such as environmental monitoring, marine engineering, and infrastructure inspection. The ultrasonic underwater distance sensor has become a preferred solution due to its long-range, high precision, and adaptability to harsh environments.

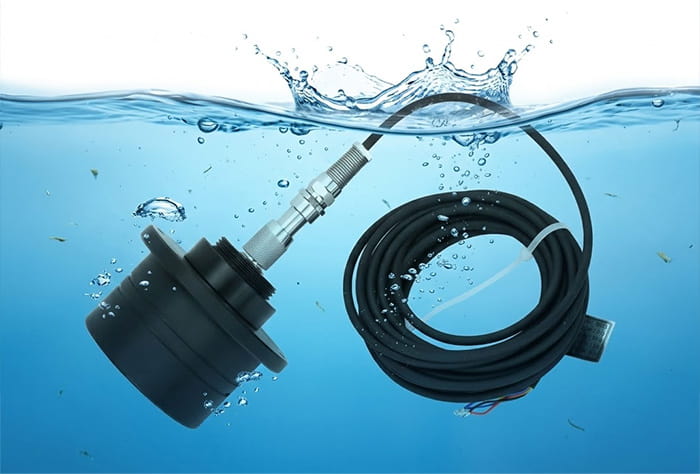

The PWL-U80 Ultrasonic Underwater Distance Sensor is designed to deliver stable and accurate distance measurement in liquids and underwater environments, making it ideal for a wide range of freshwater, seawater applications.

How Ultrasonic Underwater Distance Sensors Work

Ultrasonic underwater sensors operate based on the time-of-flight principle. The sensor emits ultrasonic waves, which travel through the medium (usually water), reflect off an object or boundary, and return to the sensor.

The distance is calculated using the formula:

Distance = (Sound Velocity × Time) / 2

Since the speed of sound varies with temperature, advanced sensors like the PWL-U80 include temperature compensation to ensure accurate measurement results in different environments.

Key Features of the PWL-U80 Ultrasonic Underwater Distance Sensor

1. Wide Measurement Range

• Available ranges: 50m, 100m, 200m, and 300m
• Suitable for both shallow and deep-water applications

2. High Accuracy and Stability

• Repeatability: ±0.25%
• Field accuracy: ±(2cm + 0.5% of distance)
• Reliable performance even in dynamic environments

3. Robust Industrial Design

• Protection level: IP68 (up to 100m depth)
• Housing materials: ABS, SUS304, SUS316 stainless steel
• Resistanceto corrosion and harsh environments

4. Advanced Communication Interface

• RS485 output with Modbus-RTU protocol
• Easy integration with PLC, DCS, and industrial control systems

5. Fast Response Time

• Response as fast as 250 ms
• Real-time monitoring capability

Application Scenarios

The ultrasonic underwater distance sensor is widely used across industries:

1. Water Depth Measurement

• Buoy-based water level monitoring
• River, lake, and reservoir depth detection

2. Unmanned Surface Vehicles (USV)

• Real-time depth sounding
• Navigation safety and obstacle avoidance

3. Offshore Engineering

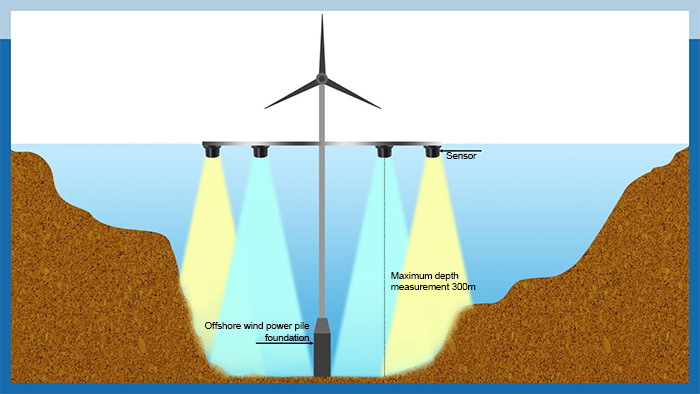

• Offshore wind turbine foundation scour detection
• Seabed erosion monitoring

4. Bridge and Infrastructure Monitoring

• Bridge pier scour detection
• Riverbed erosion analysis

5. Industrial Tank Level Measurement

• Liquid level detection through steel plates
• Crude oil tank bottom water level monitoring

6. Marine and Ship Applications

• Ship draft measurement
• Port and harbor monitoring

7. Harsh Environment Monitoring

• High mud-content water measurement
• Power plant water intake blockage detection

Installation Considerations

To ensure optimal performance of an ultrasonic underwater sensor:

• Install the sensor perpendicular to the liquid surface
• Avoid areas with air bubbles, turbulence, or suspended solids
• Ensure no obstacles within the ultrasonic beam angle
• Use proper cable shielding in high electromagnetic interference environments
• Secure the sensor firmly to prevent vibration or movement

Advantages of Ultrasonic Underwater Sensors

Compared to traditional measurement methods, ultrasonic underwater distance sensors offer:

• High precision and repeatability
• Strong environmental adaptability
• Low power consumption
• Easy installation and integration

Why Choose the PWL-U80 Ultrasonic Underwater Distance Sensor?

The PWL-U80 stands out due to its:

• Long-range measurement capability (up to 300 meters)
• Industrial-grade durability (IP68 protection)
• High accuracy with temperature compensation
• Flexible installation options
• Compatibility with industrial communication protocols

It is an ideal solution for engineers and system integrators seeking reliable underwater measurement technology.

The ultrasonic underwater distance sensor is a critical tool for modern industrial measurement systems. With its high precision, durability, and versatility, the PWL-U80 provides a dependable solution for underwater distance and level measurement across multiple industries.

If you are looking for a high-performance ultrasonic depth sensor, the PWL-U80 is a proven choice for accurate and efficient measurement in demanding environments.
