Ultrasonic Versus Pressure Level Sensor Technologies Explained
Picking the right level sensing technology can make or break an industrial process. Get it wrong, and you’re looking at constant maintenance headaches, unreliable data, and wasted resources. This comparison breaks down how ultrasonic and pressure level sensors actually work, where each performs best, and what factors should drive your decision.
How Ultrasonic Level Sensors Work
Ultrasonic level sensors measure without touching the target material. The transducer fires high-frequency sound waves toward the surface, whether liquid or solid, inside a vessel. Those waves bounce back, and the sensor clocks the round trip. That time of flight measurement, combined with the speed of sound through air, gives you the distance to the surface. Subtract that from the tank height, and you have your level reading.
The transducer itself does the heavy lifting, converting electrical signals to sound and back again. Temperature, pressure, and whatever gases are floating above your material all affect how fast sound travels. Most modern units handle this with built-in temperature compensation. Pokcenser Automation’s PWL-U201 and PWL-U202 models, for example, pack extremely small blind zones and integrated temperature compensation for tight accuracy in compact tanks. They also give you flexibility on outputs: analog, digital (RS485 Modbus RTU/TCP), switch, and wireless options cover most integration scenarios.
How Pressure Based Level Measurement Works
Pressure sensors take a different approach. A submersible pressure transmitter sits in the liquid and reads the hydrostatic pressure pushing down on it. That pressure relates directly to the liquid column height above the sensor, the liquid’s density, and gravity. The relationship is straightforward: P = ρgh.
Temperature throws a wrench into things because it changes liquid density. A warmer liquid is less dense, so the same level produces a different pressure reading. Good pressure sensors compensate for this internally. Pokcenser Automation’s PWP412-T3 submersible hydrostatic pressure transmitter handles deep well water level applications with IP68 waterproof protection and all-stainless-steel construction that resists corrosion over the long haul. It outputs SDI-12 directly, which environmental monitoring setups often require.
Comparing Performance and Fit
The right choice depends on what you’re actually measuring and where. Accuracy matters, obviously. Ultrasonic sensors like the PWL-U201 hit ±1 mm accuracy in clean conditions. But foam, heavy vapor, or a choppy surface can throw them off. Pressure sensors like the PWP412-T3 deliver ±0.5% FS accuracy, with optional ±0.05% FS at 25°C for applications that demand tighter tolerances.
Response time differs too. Ultrasonic sensors react quickly since they’re just timing sound waves. Pressure sensors respond instantly to hydrostatic changes. Range is another consideration: ultrasonic works well from a few centimeters to several meters, while submersible pressure transmitters can handle depths up to 200 meters. Your process automation requirements and the physical properties of what you’re measuring should guide the decision.

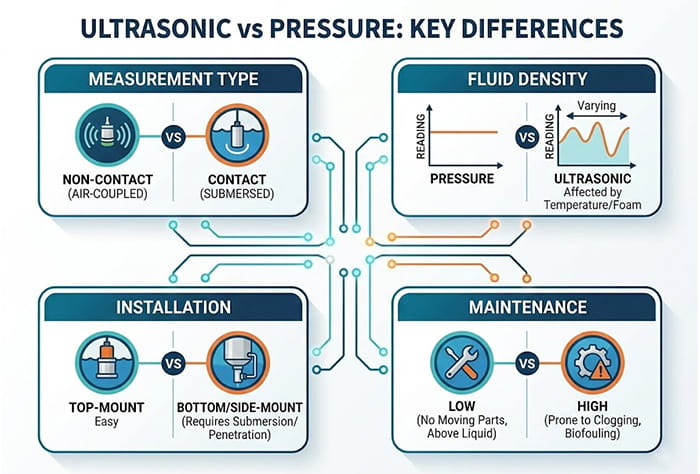

| Feature | Ultrasonic Level Sensor | Pressure Level Sensor |
|---|---|---|
| Measurement Principle | Time of flight of sound waves | Hydrostatic pressure of liquid column |
| Contact with Medium | Non-contact | Contact (submerged) |
| Accuracy (Typical) | ±1 mm to ±1.5 mm (e.g., PWL-U201) | ±0.5% FS (e.g., PWP412-T3) |
| Medium Compatibility | Liquids, solids; affected by foam, vapor, turbulence | Liquids; affected by density changes, suitable for harsh |
| Installation | Top-mounted | Submerged or side-mounted |
| Maintenance | Minimal (no contact), but sensor face must be clean | Requires periodic cleaning in fouling applications |
Environmental Factors That Affect Performance
Real industrial environments rarely cooperate. Extreme temperatures, corrosive chemicals, and physical disturbances all take their toll. Ultrasonic sensors avoid direct contact with nasty media, which helps. But their sound waves struggle with foam, dense vapor, or big temperature swings in the air gap. Foam absorbs the signal. Vapor changes sound speed. Either one leads to bad readings.
Pressure sensors sit right in the liquid, so they need materials that can handle the environment. SUS316L stainless steel construction works well for corrosive applications. Temperature still affects them, both through density changes in the liquid and thermal effects on the sensor’s internals. Regular calibration keeps readings accurate when conditions fluctuate.
When Ultrasonic Sensors Make More Sense
Non-contact measurement matters most when you’re dealing with highly corrosive media, sticky substances, or sanitary applications where any contact risks contamination or sensor damage. Ultrasonic sensors also handle frequent density changes better since they don’t rely on that variable for measurement.
Installation and Maintenance Realities
Ultrasonic sensors need clear sightlines. Mount them perpendicular to the liquid surface and keep obstructions out of the sound path. Every ultrasonic sensor has a blind zone near the transducer face, so factor that into your tank geometry. The PWL-U201 and PWL-U202 minimize this issue with their compact blind zone designs.
Pressure sensors go into the liquid or mount at the tank bottom. Cable routing and protection matter for submersible units. The vent tube in the cable compensates for atmospheric pressure changes, which prevents barometric errors from creeping into your readings. Both sensor types benefit from regular cleaning and calibration. Pressure sensors in fouling environments need diaphragm inspections. Ultrasonic sensors need clean transducer faces.
Where Ultrasonic Sensors Fall Short
Foam, heavy vapor, and turbulent surfaces scatter or absorb sound waves, degrading accuracy. The dead zone near the sensor face also limits how close to the top you can measure. These constraints narrow the application range in certain industrial settings.
Cost Considerations Beyond the Purchase Price
Upfront costs vary. Ultrasonic sensors sometimes cost more due to their signal processing complexity. Basic hydrostatic pressure sensors can be cheaper initially. But the purchase price tells only part of the story. Installation costs differ based on mounting requirements and wiring. Long-term maintenance and reliability drive the real economics.
Non-contact ultrasonic sensors often need less maintenance in corrosive environments, which can offset higher initial costs. Robust submersible pressure transmitters like the PWP412-T3 deliver exceptional longevity in demanding liquid applications. Match the technology to your specific conditions, weigh both initial investment and ongoing costs, and the better value usually becomes clear.
Temperature Effects on Pressure Sensors
Temperature changes affect both the liquid density and the sensor’s internal components. Density shifts alter the hydrostatic pressure for a given level. Thermal expansion or contraction of the diaphragm can cause drift. Effective temperature compensation mechanisms keep readings accurate across varying process temperatures.
Partner with Pokcenser Automation for Your Level Sensing Needs
For over a decade, Pokcenser Automation Technology Company Limited has been at the forefront of industrial process control, delivering robust and reliable sensor solutions. Our expertise in flow meters, level sensors, pressure transmitters, and more, backed by CE, ATEX, ISO, and RoHS certifications, ensures optimal performance in the most demanding environments. With 150,000+ solutions provided across 100+ countries and dedicated pre-sales and after-sales support, we partner with you to select the precise level sensing technology for your unique application. Contact Pokcenser Automation today for a tailored solution that drives efficiency and value for your operations. Phone: +86 181 7515 5326 | Email: in**@*******er.com
Frequently Asked Questions
What is the primary advantage of an ultrasonic level sensor over a pressure level sensor?
The primary advantage of an ultrasonic level sensor is its non-contact measurement capability, making it ideal for corrosive, abrasive, or sticky media where direct contact could damage the sensor or contaminate the process. It also avoids issues related to media density changes, unlike pressure level sensors.
In which industrial applications are pressure level sensors typically more reliable?
Pressure level sensors are typically more reliable in applications involving high pressures, vacuum, or when a stilling well is available. They are also preferred for highly turbulent liquids, foamy surfaces, or when heavy vapors interfere with ultrasonic signals, offering consistent liquid level monitoring regardless of surface conditions.
Can both ultrasonic and pressure level sensors be used for hazardous environments?
Yes, both ultrasonic and pressure level sensors can be designed for hazardous environments. Pokcenser Automation offers sensors with ATEX certifications, ensuring safe operation in potentially explosive atmospheres. Specific models are engineered to meet stringent safety standards for various industrial process control applications.
