Wastewater Tank Level Sensor Selection: An Expert Guide

Wastewater tank level measurement sits at the intersection of chemistry, physics, and operational reality. Get it wrong, and you’re looking at overflows, compliance violations, or worse. Get it right, and the data flows quietly into your control systems, doing its job without drama. The challenge isn’t just picking a sensor—it’s understanding why certain technologies fail in specific conditions and which ones hold up when foam, sludge, and corrosive gases conspire against your instrumentation.

Why Wastewater Tanks Break Level Sensors

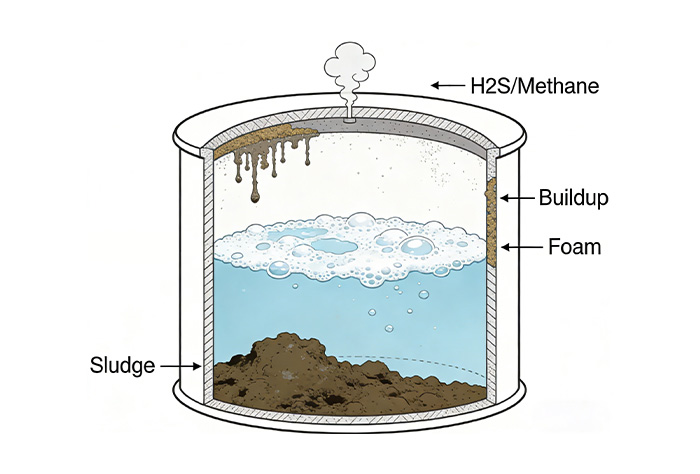

Wastewater doesn’t play nice with measurement equipment. Foam absorbs ultrasonic signals and scatters them into noise. Sludge accumulates on sensor surfaces, creating false readings and gradually shifting your baseline. Corrosive media—acids, caustics, hydrogen sulfide—eat through standard materials within months. Then there’s the gas problem: methane and H2S don’t just smell bad, they create explosion risks that demand ATEX-rated equipment.

Temperature swings compound everything. A sensor calibrated at 20°C behaves differently at 45°C, and wastewater temperatures fluctuate with influent loads and biological activity. Turbulence from mixers and aerators creates surface disturbances that confuse non-contact sensors. These aren’t theoretical concerns. They’re the reasons maintenance crews replace sensors far more often than manufacturers suggest.

Addressing these conditions requires understanding the failure modes specific to each technology. A sensor that performs beautifully in a clean water tank may last six months in a primary clarifier.

Sensor Technologies That Actually Work in Wastewater

Different measurement principles handle wastewater conditions with varying degrees of success. The right choice depends on which challenges dominate your specific application.

Ultrasonic Level Sensors send sound waves toward the liquid surface and time the return echo. Because they mount above the tank without touching the media, fouling from sludge and corrosive attack become non-issues. The catch is foam. Ultrasonic signals get absorbed by foam layers, returning weak or no echoes. In applications with minimal foam—equalization tanks, clear well storage—ultrasonic sensors deliver reliable performance at reasonable cost. The PWL-U201 and PWL-U202 ultrasonic level transmitters feature small blind zones and automatic temperature compensation, handling the thermal variations common in wastewater environments.

Radar Level Sensors use microwave pulses instead of sound waves. Microwaves punch through foam, vapor, and temperature gradients that defeat ultrasonic technology. Higher frequency radar (26 GHz and above) provides better resolution and handles thin foam layers effectively. For tanks where surface conditions change unpredictably—digesters, aeration basins, chemical storage—radar offers the reliability that ultrasonic can’t match.

Hydrostatic Level Sensors measure the pressure exerted by the liquid column above them. They’re simple, robust, and provide continuous measurement. The tradeoff is density sensitivity. Wastewater density changes with sludge concentration, temperature, and dissolved solids content. A sensor calibrated for 1.02 specific gravity reads incorrectly when sludge thickens to 1.05. For applications requiring precise water level and temperature monitoring, the PWP412-T3 SDI-12 Hydrostatic Water Level and Temperature Transmitter combines IP68 protection with all-stainless-steel construction for extended service life.

Guided Wave Radar sends microwave pulses along a probe that extends into the liquid. The probe guides the signal, making GWR largely immune to foam, vapor, and density variations. This technology excels in thick, viscous liquids and tanks with heavy sludge content. The guided wave penetrates challenging media that defeat other technologies.

Which Technologies Handle Varying Sludge Levels Best?

High-frequency radar and guided wave radar consistently outperform other technologies in tanks where sludge levels fluctuate. High-frequency radar penetrates foam and thin sludge layers to find the true liquid surface. Guided wave radar goes further—the probe extends through the media, providing accurate readings even when sludge accumulates around the sensor. Both technologies maintain accuracy when conditions change, which is precisely when other sensors start drifting.

Selection Factors Beyond the Measurement Principle

Choosing the right wastewater level sensor involves more than matching technology to media. Several factors determine whether a sensor performs reliably over its expected service life.

Environmental Conditions set the baseline requirements. Wastewater temperatures can range from near-freezing to 50°C or higher in digesters. Pressure varies with tank depth and process conditions. Humidity and condensation affect electronics. Sensors must be rated for the actual conditions they’ll encounter, not just typical conditions.

Media Characteristics dictate material compatibility. Analyze the chemical composition, viscosity, density, and solid content. Corrosive liquids require chemically resistant materials—PTFE, Hastelloy, or specialized polymers. Standard stainless steel fails quickly in high-chloride or acidic environments.

Tank Characteristics influence sensor placement and technology choice. Deep tanks favor hydrostatic sensors. Tanks with agitators or aerators create turbulence that affects non-contact measurements. Narrow tanks may have interference from sidewall reflections.

Measurement Range and Accuracy Requirements vary by application. Overflow prevention may tolerate ±50mm accuracy. Chemical dosing control might need ±5mm precision. Define the actual requirements before selecting technology.

Regulatory Compliance isn’t optional. ATEX certification is mandatory for hazardous area level measurement where explosive atmospheres exist. CE marking demonstrates European conformity. ISO certifications indicate quality management standards. RoHS compliance addresses material restrictions. These certifications affect both safety and legal operation.

Output and Integration Needs determine how sensor data reaches your control systems. Standard options include 4-20mA analog, RS485 Modbus, and HART digital communication. Verify compatibility with existing SCADA or DCS infrastructure before purchasing.

Installation and Maintenance considerations affect total cost of ownership. Sensors that require frequent cleaning or difficult calibration procedures consume maintenance resources. Easy-access mounting locations reduce service time.

Getting Installation, Calibration, and Maintenance Right

Proper installation prevents problems that no amount of maintenance can fix. Regular calibration maintains accuracy. Diligent maintenance extends service life. Skipping any of these steps leads to unreliable data and premature sensor failure.

Installation Fundamentals

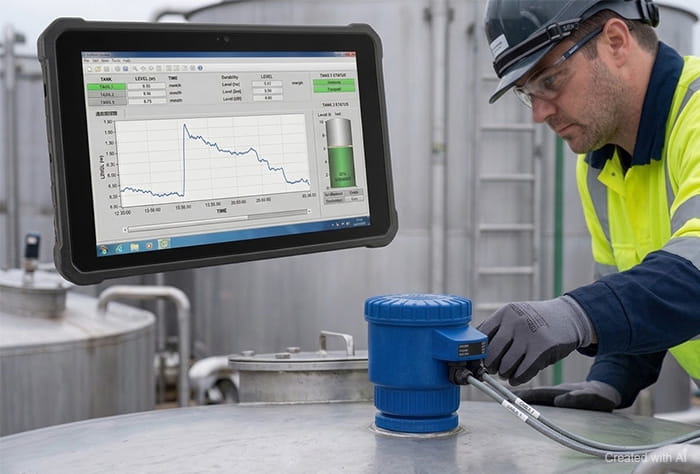

Start with a site survey. Identify agitators, pipes, structural elements, and anything else that could create false echoes or obstruct sensor signals. Mount non-contact sensors away from tank walls and inlets—turbulence and sidewall reflections cause measurement errors. For submersible sensors, secure cables properly and protect them from abrasion.

Orientation matters. Incorrect mounting angles cause signal loss or inaccurate readings. Follow manufacturer specifications precisely. Ensure housing and electrical connections are rated for environmental conditions. IP65 protects against water jets; IP68 allows continuous submersion. In hazardous environments, all components—wiring, barriers, enclosures—must comply with hazardous area sensors certifications.

Calibration Practices

Perform initial calibration using known liquid levels at empty and full conditions. This establishes baseline accuracy. Schedule regular recalibration because environmental factors and media changes cause drift over time. Verify temperature compensation settings, particularly for hydrostatic sensors where density varies with temperature. For technologies susceptible to sludge or foam, configure advanced signal processing algorithms correctly.

Maintenance Routines

Clean sensor surfaces regularly. Contact sensors and non-contact sensors exposed to splashing accumulate sludge and scale that degrade performance. Inspect cables, connections, and housings for corrosion, damage, or wear. Keep firmware updated—manufacturers release performance enhancements and bug fixes. Establish troubleshooting procedures for common issues like signal loss or erratic readings.

Preventative maintenance catches problems before they cause failures. A sensor showing gradual drift indicates fouling or calibration shift. Addressing it proactively prevents process upsets and unscheduled downtime.

Turning Level Data Into Process Intelligence

Raw level measurements become valuable when integrated into broader control systems. This integration transforms sensor readings into actionable intelligence for real-time monitoring, predictive maintenance, and automated process control.

Ultrasonic level sensors and radar level sensors provide continuous data streams that feed directly into SCADA or DCS platforms. Operators visualize tank levels, flow rates, and critical parameters from central control rooms. Real-time data access enables immediate responses to anomalies—preventing overflows, dry runs, and process upsets before they escalate.

Historical level data supports trend analysis. Patterns emerge that predict future conditions. This capability enables predictive maintenance—scheduling sensor cleaning or replacement before failures occur rather than reacting to breakdowns. Consistent deviations in level readings often indicate sludge buildup or sensor fouling that maintenance can address proactively.

Automated process adjustments based on integrated level data optimize pump cycles, chemical dosing, and aeration rates. The results include reduced energy consumption, optimized chemical usage, and improved treatment efficacy. Maintaining optimal levels in biological reactors enhances microbial activity and treatment performance.

Integrating level data with water quality parameters provides a holistic process view. Combining level measurements with pH data from sensors like the PCS1753CD Plastic pH Sensor or dissolved oxygen readings from the PCS4760PD Digital Dissolved Oxygen Sensor enables sophisticated control strategies. This comprehensive approach ensures regulatory compliance while maximizing operational efficiency.
