What is Turbine Flow Meter Working Principle?

Accurate flow measurement is fundamental to maintaining control, optimizing efficiency, and ensuring accountability across industrial processes and municipal utilities. It provides the essential data that dictates pump performance, valve control, and chemical dosing. Among the available technologies, the turbine flow meter working principle offers a robust and highly reliable method for measuring the flow rate of clean liquids and gases.

We rely on this technology within our integrated systems, such as the Integrated Intelligent Pumping House and Frequency-Controlled Constant Pressure Water Supply solutions, because it delivers the real-time, precision data necessary for effective process automation. Understanding the mechanics is key to its proper application and reliable operation.

How does Turbine Flow Meter Work?

The underlying concept of the turbine flow meter working principle is elegant: it converts the kinetic energy of the flowing fluid into a measurable rotational speed. A turbine flow meter consists of a freely spinning rotor mounted along the centerline of the pipe. When the fluid passes through the meter body, it impacts the rotor blades, causing the rotor to spin.

The speed of this rotation is directly proportional to the volumetric flow rate of the fluid. Double the flow rate, and the rotor speed approximately doubles. This linear relationship is the foundation of the meter’s accuracy. However, achieving this proportionality requires precise mechanical design and manufacturing, focusing on minimizing friction and ensuring laminar flow conditions within the meter.

The main challenge in design is ensuring that the blades capture the flow efficiently across the meter’s specified range. Our engineering specifications focus on maintaining tight tolerances in the bearing system to reduce drag, particularly at low flow rates where viscous forces can disproportionately affect the rotor’s movement.

Figure 1. Working principle of a turbine flow meter — fluid flow drives the rotor, and the rotation speed corresponds to volumetric flow rate.

What’s Key Components of Turbine Flow Meter?

The accuracy of the turbine meter depends on a synchronized effort between several key components. Each part plays a critical role in translating fluid movement into a usable electronic signal.

Rotor, Housing, and Bearings

The rotor is the heart of the meter. It is a magnetic, finely balanced structure typically made of stainless steel or other wear-resistant materials. The number and angle of the blades are crucial, as they determine the rotational speed per unit volume of fluid. The rotor is supported by low-friction bearings, often made from materials like tungsten carbide or ceramic, to ensure long service life and minimal resistance.

The flow meter housing is responsible for conditioning the flow. It often includes flow straighteners, which are vanes placed upstream of the rotor. These straighteners mitigate any swirl or turbulence in the incoming fluid that could otherwise cause the rotor to spin erratically or inaccurately, ensuring the fluid velocity profile is as stable as possible when it reaches the turbine blades.

Magnetic Pickup Sensor

The real magic in the turbine flow meter working principle lies in converting the mechanical rotation into an electrical signal. This is achieved using a magnetic pickup in flow meters.

The pickup is a small magnetic coil installed externally on the meter body, positioned near the rotor tips. The rotor blades, or small inserts embedded in them, are made of a ferrous or magnetic material. As each blade tip passes the pickup, it momentarily disturbs the magnetic field, generating a small voltage pulse in the coil.

• Each full revolution of the rotor generates a specific number of electrical pulses.
• The frequency of these pulses (pulses per second) is directly proportional to the rotational speed.
• This frequency, in turn, directly corresponds to the fluid’s velocity and volumetric flow rate.

This pulse signal is then sent to a flow totalizer or a programmable logic controller (PLC), allowing for real-time monitoring and control. This clean, digital output makes the turbine meter highly compatible with modern digital control systems, including the VFDs used in our high-efficiency pumping solutions.

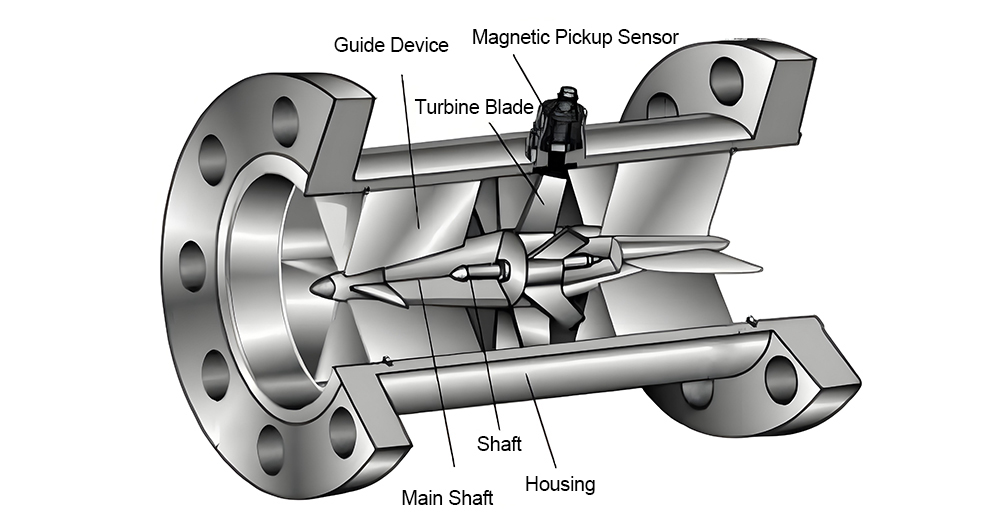

Figure 2. Main components of a turbine flow meter — rotor, bearings, housing, and magnetic pickup sensor ensure precise conversion of flow to digital signal.

The relationship between the output pulse frequency and the flow rate is defined by the meter’s K-factor. This factor is the most critical parameter for any turbine flow meter.

Defining the K-Factor of Turbine Flow Meter

The flow meter K-factor is the number of pulses generated per unit volume of fluid. It is typically expressed in units such as Pulses/Gallon or Pulses/Liter. This is not a theoretical value; it is a parameter determined through rigorous testing and calibration.

For example, a K-factor of  means that for every liter of fluid that passes through the meter,  electrical pulses are generated by the magnetic pickup.

The Necessity of Calibration for Turbine Flow Meter

Due to manufacturing tolerances, bearing friction, and slight variations in the magnetic pickup position, every flow meter has a unique K-factor. Therefore, every turbine meter must be individually calibrated by the manufacturer or a certified lab against a primary standard (e.g., a traceable volume standard).

The calibration process involves running water or a specified fluid through the meter at various flow rates and precisely measuring the volume against the number of pulses generated. The resulting calibration curve often shows that the K-factor is not perfectly constant but varies slightly across the meter’s operating range, especially at very low flow rates. Reliable suppliers provide a detailed calibration certificate that lists the K-factor for different flow points, ensuring the greatest possible accuracy in the field.

Integrating Flow Measurement into Smart Water Systems

The primary benefit of the turbine flow meter’s digital output is its seamless integration into automated control systems. In modern municipal and industrial applications, the flow measurement from these meters is not just for accounting; it is a critical input for dynamic system control.

Role in Constant Pressure Water Supply

In a Frequency-Controlled Constant Pressure Water Supply system, the target is to maintain a set discharge pressure regardless of fluctuating demand. This is achieved by using a Variable Frequency Drive (VFD) to adjust the speed of the pump motor. The flow meter plays a direct role:

1. Demand Assessment: While pressure is the primary control variable, accurate flow data is vital for assessing system-wide performance and identifying leaks or abnormal consumption patterns.
2. Optimizing Pump Scheduling: In multi-pump stations, the flow reading helps the PLC determine exactly how many pumps need to be running and at what speed to meet the current demand most economically.
3. Real-Time Efficiency Monitoring: By correlating the measured flow rate (Volume/Time) with the measured power consumption (kW), the control system can calculate the real-time energy performance of the pump unit. This allows operators to quickly spot and address inefficiencies, such as degraded pump performance or clogged pipelines.

We design our packaged systems, including the Integrated Prefabricated Pumping Station, to accept these precise digital inputs. This approach ensures that our customers gain an accurate, holistic view of their water network, moving beyond simple pressure maintenance to true energy and resource management.

While robust, the reliability of a turbine flow meter is heavily dependent on proper installation and routine maintenance. Ignoring these practices can lead to significant measurement errors and premature component failure.

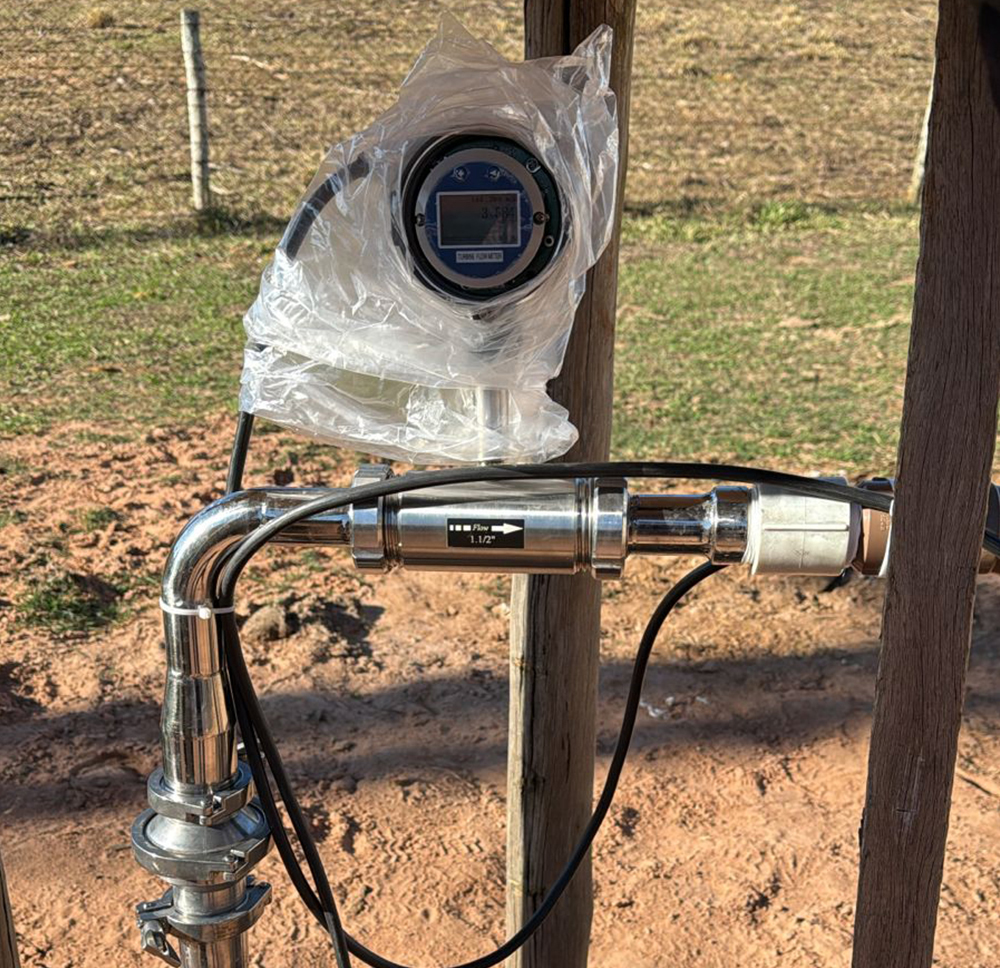

Figure 3. Turbine flow meter calibration — defining K-factor through controlled testing to ensure accurate flow measurement.

Installation Requirements of Turbine Flow Meter

For the turbine flow meter working principle to function accurately, the flow profile must be stable and fully developed. This requires:

• Upstream/Downstream Piping: A minimum of 10-20 pipe diameters of straight, unobstructed piping must be installed upstream and 5-10 diameters downstream of the meter. This is crucial for eliminating swirl and turbulence caused by elbows, valves, or pumps.
• Strainers: If the fluid contains suspended solids or debris—a common occurrence in non-potable water or certain industrial fluids—a strainer should be installed upstream to protect the rotor blades and the delicate bearings from damage.
• Airtight Systems: Air pockets or slugs of gas passing through the meter can cause the rotor to over-speed and provide erroneous readings, potentially damaging the bearings. In closed-loop systems, the meter must be installed at a point where it remains fully flooded.

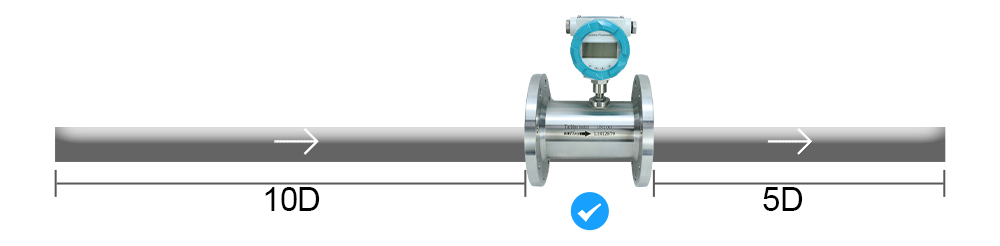

Figure 4. Proper installation of a turbine flow meter — maintaining 10D upstream and 5D downstream straight pipe length to ensure stable and accurate readings.

Maintenance and Troubleshooting of Turbine Flow Meter

The primary component subject to wear is the bearing system. Over time, especially in abrasive fluids, bearing friction increases, leading to under-registration of the flow rate. Routine maintenance should include:

• Bearing Inspection: Periodic inspection and, if necessary, replacement of the bearings according to the manufacturer’s specified service intervals.
• Re-calibration: The K-factor may drift over time due to wear or changes in fluid characteristics. Re-calibration every 1-3 years is a common best practice to maintain documented accuracy.
• Checking the Pickup Signal: A weak or intermittent magnetic pickup signal usually indicates a fault with the sensor, or excessive mechanical damage to the rotor, which requires immediate attention.
