13 Reasons Why High-Accuracy Gas Measurement with Thermal Mass Flow Meters Matters in Modern Industry
Accurate gas flow measurement is essential in industries ranging from oil & gas, chemical processing, and power generation to environmental monitoring. Whether it’s ensuring regulatory compliance, optimizing production efficiency, or minimizing energy waste, the ability to measure gas flow precisely can significantly impact safety, performance, and profitability.
One of the most trusted technologies in this field is the thermal mass flow meter—a device designed to deliver highly accurate, repeatable measurements even under challenging operating conditions. As industries move toward sustainability and digitalization, thermal dispersion flow meters are becoming a vital tool for industrial gas monitoring.
What Are Thermal Mass Flow Meters and How Do They Work in Gas Flow Measurement?
A thermal mass flow meter (sometimes called a thermal dispersion flow meter) measures the mass flow rate of gases using the principle of heat transfer. The device introduces heat into the gas stream, and the rate at which the gas carries away this heat is directly proportional to the gas mass flow.
This design makes it particularly effective for direct gas measurement without the need for additional temperature or pressure compensation, unlike many other flow measurement methods.

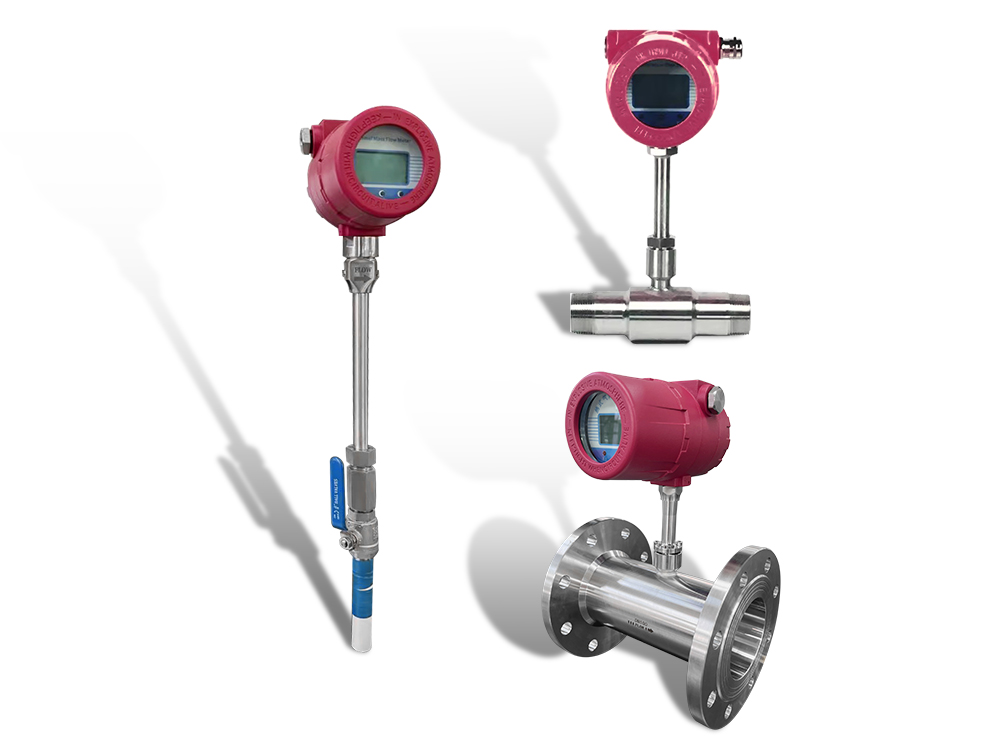

Figure 1. Various configurations of PokcenserTech thermal mass flow meters for flexible installation in pipelines and process systems.
Key Advantages of Thermal Mass Flow Meters for High-Accuracy Gas Monitoring
When compared to traditional technologies, thermal mass flow meters provide several unique benefits for industrial gas measurement:
High Accuracy & Repeatability – Capable of achieving accuracy within ±1% of reading, ensuring consistency in critical processes such as emissions monitoring, fuel usage, and gas blending.
Wide Turndown Ratio – Suitable for both very low and very high flow rates, making them versatile for facilities with fluctuating gas demands.
Direct Mass Flow Measurement – No additional compensation is needed for temperature and pressure variations, reducing complexity and improving reliability.
Low Maintenance & Durability – With no moving parts, thermal dispersion flow meters are long-lasting, cost-effective, and ideal for continuous operation.
Industrial Applications of Thermal Mass Flow Meters in Gas Flow Measurement
Thermal mass flow meters are widely adopted in industries where gas monitoring and accuracy are mission-critical:
- Oil & Gas – flare gas monitoring, leak detection, fuel gas measurement, and gas recovery optimization.
- Chemical Industry – precise dosing of process gases, ensuring consistent chemical reactions.
- Power Generation – monitoring combustion air and fuel gases to optimize efficiency and reduce emissions.
- Environmental Monitoring – measuring greenhouse gases such as CO₂, CH₄, and N₂O for compliance.
- Food & Beverage – managing CO₂ and nitrogen dosing for packaging.
- Semiconductor Industry – monitoring specialty gases during chip fabrication.

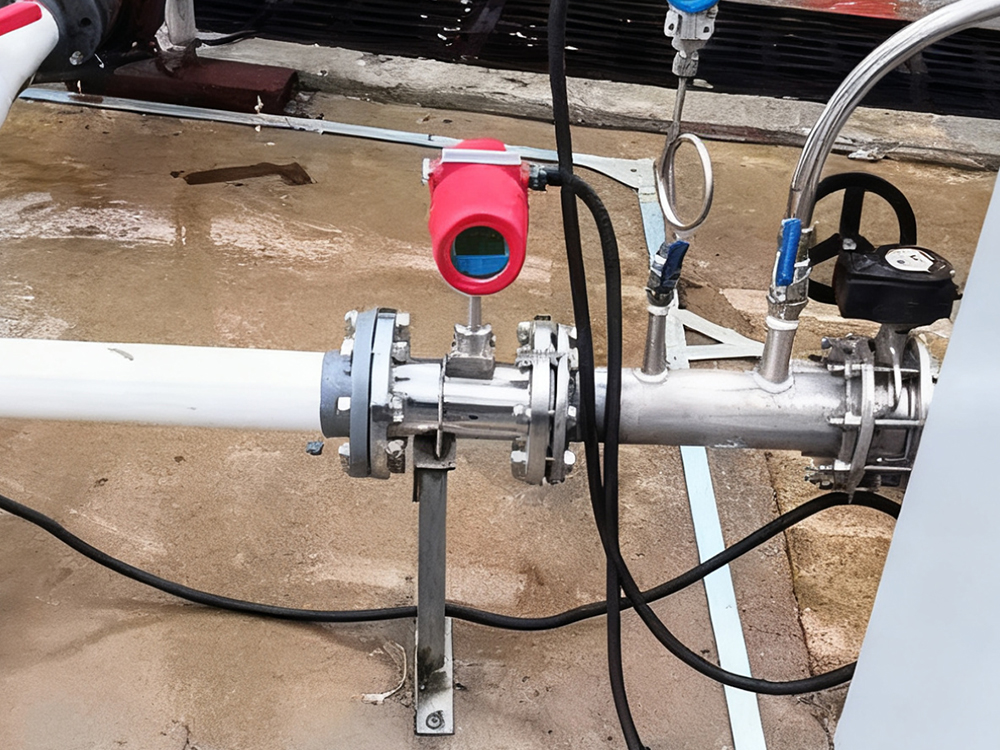

Figure 2. Field installation of a PokcenserTech thermal mass flow meter demonstrating its stability and precision in actual industrial conditions.
Comparing Thermal Mass Flow Meters with Other Gas Flow Measurement Technologies
Different flow meter technologies offer different strengths. Here’s how thermal mass flow meters compare:
- Differential Pressure Meters: Require density correction, while thermal meters directly measure mass flow.
- Coriolis Meters: Both measure mass flow, but Coriolis meters are bulkier and more expensive—thermal meters are more cost-effective for gas-only applications.
- Ultrasonic Flow Meters: Better for very large pipelines, but less accurate at low flow rates where thermal meters excel.

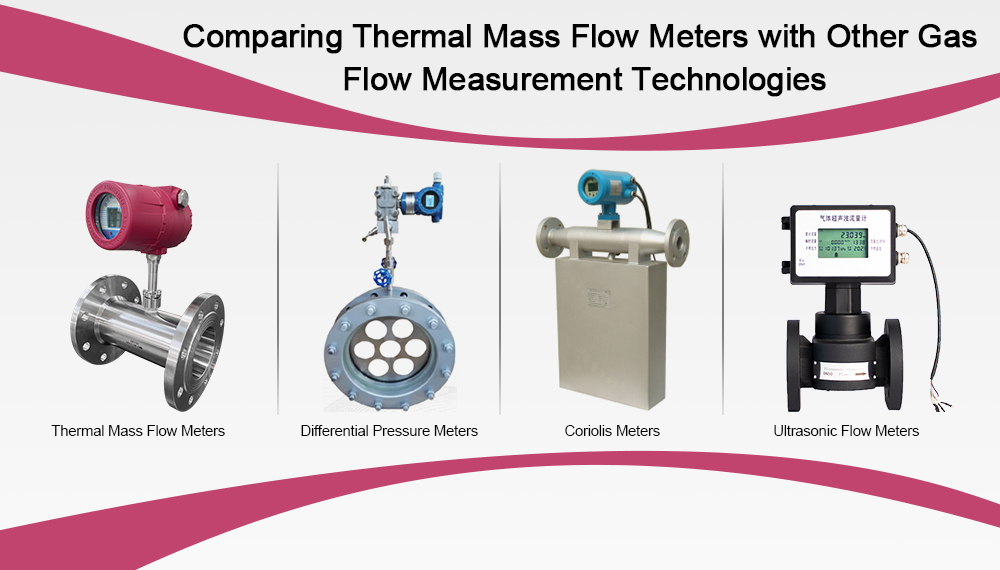

Figure 3. Comparison between thermal mass flow meters and other gas flow technologies, highlighting accuracy and cost-effectiveness advantages.
Factors Influencing the Accuracy of Thermal Mass Flow Meters in Gas Monitoring
Several variables can affect the accuracy of thermal dispersion flow meters. Gas composition plays a critical role, as multi-gas mixtures require specific calibration to maintain precision. While thermal mass flow meters are less sensitive to temperature and pressure variations compared to volumetric devices, extreme conditions can still impact their performance. Calibration quality is equally important—whether through factory calibration against NIST-traceable standards or periodic field calibration—to ensure ongoing accuracy. Additionally, installation effects such as improper placement or the presence of turbulence in the flow stream may reduce measurement stability and compromise overall system performance.
Best Practices for Installing and Maintaining Thermal Dispersion Flow Meters
To ensure your industrial gas flow meters operate at peak accuracy:
- Correct Placement – Install in a straight pipe section to minimize turbulence (typically 10 diameters upstream, 5 downstream).
- Regular Calibration – Annual verification is recommended for regulatory compliance and reliable data.
- Avoid Sensor Contamination – Particulates, oil mist, or dirt can coat sensors, reducing performance.
- Use Built-In Diagnostics – Many modern thermal mass flow sensors provide real-time status alerts.

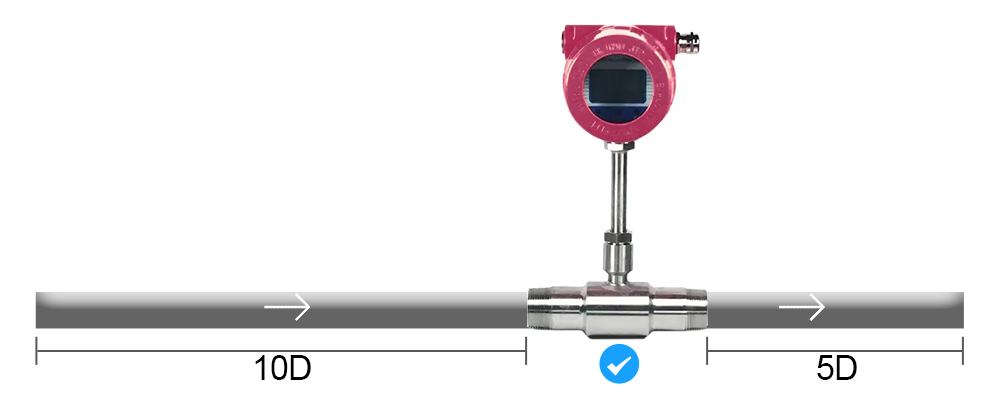

Figure 4. Installation guideline for optimal accuracy — maintain 10D upstream and 5D downstream straight pipe distance for stable gas flow measurement.
Cost Benefits of Thermal Mass Flow Meters for Industrial Gas Measurement
Beyond technical advantages, thermal mass flow meters provide measurable economic benefits that impact the bottom line. These devices significantly reduce operating costs through lower maintenance requirements and the absence of moving parts, which translates to fewer replacements and extended service life. Precise gas monitoring capabilities enable substantial energy savings by preventing over-consumption and waste, while accurate emissions reporting helps companies avoid regulatory fines and penalties. The combination of these financial advantages means that in many industries, the investment in thermal dispersion flow meters typically pays back in under two years, delivering fast return on investment and ongoing operational savings throughout the device’s lifespan.
Regulatory Compliance and Environmental Impact of High-Accuracy Gas Monitoring
In today’s regulatory environment, accurate gas monitoring is not optional—it’s a necessity:
- Compliance with Environmental Standards – Meets requirements such as EPA regulations, EU-ETS, and ISO 14001.
- Carbon Emission Reporting – Provides reliable data for carbon trading and sustainability audits.
- Corporate ESG Goals – Accurate flow data supports environmental, social, and governance (ESG) reporting, improving brand reputation.
Case Studies: Applications of Thermal Mass Flow Meters
Power Plant Efficiency – A natural gas power plant used thermal mass flow meters to measure combustion gas more accurately, reducing fuel usage by 5% annually.
Petrochemical Plant Emissions – A refinery integrated flow meters into flare stacks, ensuring compliance with emissions regulations and avoiding heavy penalties.
Food Industry – A beverage producer controlled nitrogen dosing with thermal dispersion meters, extending product shelf life and reducing waste.
How Digital Integration Enhances Industrial Gas Flow Monitoring Systems
Modern thermal mass flow meters are no longer stand-alone devices. Integration with digital platforms adds value:
- SCADA and DCS Integration – Seamless compatibility with existing control systems.
- IoT and Cloud Connectivity – Remote access to data for centralized monitoring.
- AI-Driven Predictive Maintenance – Prevents costly downtime by analyzing sensor trends.
- Digital Twin Models – Real-time gas flow data supports simulation and optimization.
Common Misconceptions About Thermal Mass Flow Meters
Despite their popularity, a few misconceptions exist:
- “They can only measure single gases.” – Modern models can measure multiple gases with calibration tables.
- “They require frequent maintenance.” – In reality, they are low-maintenance with long lifespans.
- “They are not suitable for harsh environments.” – Many models are designed for high-pressure and high-temperature gas monitoring.
Future Trends in Gas Flow Measurement with Smart Thermal Mass Flow Sensors
The future of gas flow monitoring is shifting toward smarter, more connected systems:
- IoT-Enabled Monitoring – Wireless data access, cloud integration, and predictive analytics.
- Smart Sensors with AI – Self-calibration and diagnostic features that reduce manual intervention.
- Energy Efficiency & Decarbonization – Supporting industries in reaching net-zero targets through precise emissions monitoring.
- Integration into Digital Twins – Flow meters feeding data into digital process models for optimization.
Improve Your Industrial Gas Flow Measurement Accuracy
Looking to improve your gas flow measurement accuracy?
Contact our team today for a consultation or request a demo of our advanced thermal mass flow meters to see how they can enhance efficiency, compliance, and cost savings in your operations.
About Pokcenser Automation Technology Company Limited
With CE, ATEX, ISO, and RoHS certifications, Pokcenser Automation has been a trusted sensor manufacturer and industrial process control automation solution provider for over ten years.
Our products include flow meters, level sensors, temperature sensors, pressure transmitters, and water analysis tools—extensively used in industries such as food, petrochemicals, water and wastewater, and oil and gas.
We support OEM and ODM services, having delivered over 150,000 solutions to clients in more than 100 countries. Our dedicated pre-sales and post-sales team ensures a worry-free, one-stop service, from application assessment to after-sales support.
Pokcenser is committed to building long-term partnerships and adding value for our clients to contribute to the global industrial automation sector.
FAQs: Thermal Mass Flow Meters and High-Accuracy Gas Measurement
What gases can thermal mass flow meters measure?
They can measure a wide range of gases, including natural gas, air, nitrogen, oxygen, carbon dioxide, argon, and specialty gases.
How often should thermal mass flow meters be calibrated?
For most industrial applications, annual calibration is sufficient. High-purity or regulated industries may require more frequent verification.
Are thermal mass flow meters suitable for high-pressure gas applications?
Yes, with the right configuration, they can be used in high-pressure pipelines safely and accurately.
How do thermal mass flow meters handle varying gas mixtures?
Advanced models include multi-gas calibration tables or can be programmed for specific gas blends.
Which industries benefit most from thermal dispersion flow meters?
Industries such as oil & gas, chemical, power generation, semiconductor, environmental monitoring, and food & beverage rely heavily on their accuracy and durability.
