Air Pressure vs. Differential Pressure Sensors: A Comprehensive Selection Guide

Choosing the correct pressure sensor is critical for optimal system performance and operational safety. This guide provides a detailed comparison between air pressure sensors and differential pressure sensors, helping you make an informed decision for your specific application. Understanding their distinct measurement principles and applications ensures efficient and accurate monitoring in industrial settings.

Understanding Air Pressure Sensors

Air pressure sensors measure the force exerted by air or gas relative to a reference point. These sensors are fundamental in applications where absolute or gauge pressure of a single point is required. They convert pressure into an electrical signal, which can then be processed for monitoring or control.

How Air Pressure Sensors Work

Air pressure sensors typically operate by detecting the deformation of a diaphragm or other sensing element caused by pressure changes. This deformation is then converted into an electrical signal. For example, a piezoresistive sensor uses strain gauges integrated into a diaphragm. As pressure changes, the diaphragm flexes, altering the resistance of the strain gauges. This change in resistance is measured and correlated to the applied pressure. Other common technologies include capacitive, electromagnetic, and resonant sensors, each employing different physical principles to achieve the same goal: accurate pressure measurement. The choice of technology often depends on the required accuracy, environmental conditions, and cost.

Common Applications of Air Pressure Sensors

Air pressure sensors find widespread use across various industries due to their ability to provide precise single-point pressure readings. In HVAC systems, they monitor duct pressure to ensure efficient airflow and system operation. In the automotive industry, these sensors are essential for engine management, tire pressure monitoring, and airbag deployment systems. For medical devices, they regulate oxygen flow and monitor patient vital signs. Industrial automation relies on air pressure sensors for pneumatic control systems, ensuring precise movement and operation of machinery. Additionally, weather stations use them to measure atmospheric pressure, aiding in forecasting.

Understanding Differential Pressure Sensors

Differential pressure sensors measure the difference between two applied pressures. This capability makes them indispensable in applications requiring the measurement of flow rates, liquid levels, or filter conditions. They are designed to withstand varying pressure levels on both sides of the sensing element.

How Differential Pressure Sensors Work

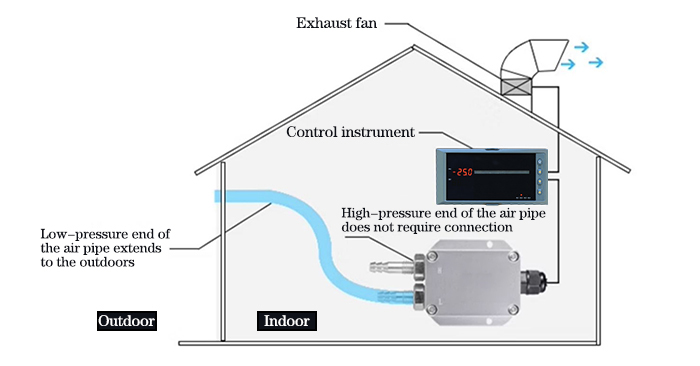

Differential pressure sensors feature two pressure ports, each connected to a different point in a system. The sensor then measures the pressure at each port and calculates the difference between them. This difference is converted into an electrical output signal. For instance, a common design involves a diaphragm positioned between two pressure chambers. When pressure is applied unequally to these chambers, the diaphragm deflects. This deflection is measured by various means, such as changes in capacitance or resistance, similar to how air pressure sensors operate. The output signal directly corresponds to the pressure differential. This allows for precise monitoring of flow rates across an orifice plate or the level of liquid in a tank.

Common Applications of Differential Pressure Sensors

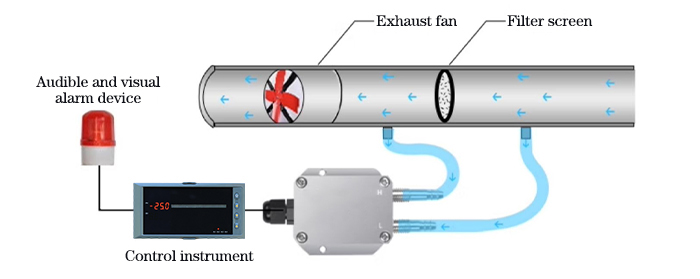

Differential pressure sensors are essential in many industrial processes. They are frequently used for flow measurement by monitoring the pressure drop across an orifice plate, venturi tube, or flow_meter_selection_turbine_vs_electromagnetic_vs_ultrasonic_flow_meters in pipelines. In level measurement, they determine the height of a liquid in a tank by measuring the pressure difference between the bottom of the tank and the atmosphere, or between two points within the liquid. For example, in chemical tanks, Chemical Tanks require precise level monitoring. They also play a crucial role in filter monitoring, indicating when a filter needs replacement by detecting an increased pressure drop across it. In HVAC systems, differential pressure sensors ensure proper ventilation and air quality by monitoring pressure across fans and filters.
Recommended reading: 《8 Things You Should Know About Diffused Piezoresistive Silicon Sensors》

Key Differences Between Air Pressure and Differential Pressure Sensors

The fundamental distinction between air pressure and differential pressure sensors lies in their measurement reference and output. Air pressure sensors provide a single value relative to a fixed reference (vacuum or ambient pressure), while differential pressure sensors quantify the variance between two distinct pressure points. This difference dictates their suitability for various applications.

Measurement Principle and Output

Air pressure sensors measure absolute, gauge, or vacuum pressure. Absolute pressure is measured relative to a perfect vacuum (0 PSI absolute), while gauge pressure is measured relative to the surrounding atmospheric pressure. Vacuum pressure measures pressure below atmospheric. The output is a direct representation of this single pressure value. In contrast, differential pressure sensors measure the pressure difference between two points, P1 and P2. The output signal reflects this delta (P1-P2). This capability is crucial for applications where the relative pressure between two locations is more important than their absolute values. For example, monitoring pressure drop across a filter or calculating flow rate through a pipe.

Design and Construction Variations

Air pressure sensors typically feature a single port for pressure input. Their construction focuses on robustness and accuracy for specific pressure ranges. Materials often include stainless steel or ceramic, chosen for compatibility with the measured medium and environmental conditions. For instance, a Piezoresistive Pressure Sensors might use a silicon diaphragm for high sensitivity.

Differential pressure sensors, however, require two pressure ports. The design must accommodate two separate pressure inputs and often includes internal channels or diaphragms to isolate and compare these pressures. Materials are selected for their ability to withstand potentially corrosive media and high-pressure differentials. For example, in demanding industrial applications, diffused piezoresistive silicon sensors are often utilized for their stability and precision.

Performance Characteristics and Specifications

Key performance specifications differentiate these sensor types. Air pressure sensors are characterized by their measurement range (e.g., 0-100 psi), accuracy (e.g., ±0.5% FS), and response time. They often need to compensate for temperature changes to maintain accuracy. Differential pressure sensors also have these specifications but add a critical parameter: the maximum overpressure rating, which indicates the highest pressure differential they can safely withstand without damage. Their accuracy is often expressed as a percentage of the full-scale differential range. For instance, a differential pressure sensor might have a range of 0-10 inches of water column with an accuracy of ±0.25% FS.
Recommended reading: 《Piezoresistive Pressure Sensors vs. Ceramic Pressure Sensors: A Comprehensive Comparison》

Factors to Consider for Sensor Selection

Selecting the appropriate pressure sensor involves evaluating several critical factors. Each application presents unique demands, and a thorough assessment ensures optimal performance and longevity.

Application Requirements and Environmental Conditions

The first step involves clearly defining the application. Is the measurement for absolute pressure in a sealed vacuum chamber, or is it for monitoring airflow in an HVAC duct? The medium being measured (air, gas, liquid), its temperature, and chemical compatibility are crucial. For instance, high-temperature applications require sensors built with specialized materials. Environmental factors such as humidity, vibration, and potential exposure to hazardous substances also influence material selection and sensor housing design. For example, hazardous area sensors are specifically designed for explosive environments.

Accuracy, Range, and Sensitivity Needs

Accuracy specifies how close the measured value is to the true value, typically expressed as a percentage of the full-scale output. For critical processes, an accuracy of ±0.1% FS might be necessary, while less demanding applications might tolerate ±1% FS. The measurement range must encompass the expected operating pressures, with sufficient headroom for transient spikes. Sensitivity refers to the smallest change in pressure the sensor can detect. A sensor with high sensitivity is ideal for detecting subtle pressure variations, such as those indicating a clogged filter.

Cost, Installation, and Maintenance Considerations

The total cost of ownership includes the initial purchase price, installation expenses, and ongoing maintenance. Some sensors offer easier installation, reducing labor costs. For example, non-invasive Ultrasonic Flow Meters can be clamped onto existing pipes. Calibration requirements and frequency also impact maintenance costs. Sensors requiring frequent, complex calibration can increase operational expenses. Additionally, the availability of spare parts and technical support should be considered for long-term reliability.

Making the Right Choice: A Practical Selection Framework

A structured approach simplifies the sensor selection process. By systematically evaluating your needs against sensor capabilities, you can confidently choose the best device.

Step-by-Step Decision Process

1. Define the Measurement Type: Determine whether you need to measure absolute, gauge, vacuum, or differential pressure. This is the foundational step.
2. Identify the Medium and Environment: Specify the gas or liquid, its temperature range, and any corrosive properties. Consider ambient conditions like humidity, vibration, and potential hazards.
3. Determine Required Performance: Establish the necessary accuracy, measurement range, and sensitivity. For instance, a 0-100 PSI air pressure sensor with ±0.5% accuracy.
4. Evaluate Output and Communication: Decide on the required output signal (e.g., 4-20 mA, RS485 Modbus RTU) and communication protocols for integration into your control system.
5. Consider Physical Constraints: Account for mounting options, size limitations, and connection types (e.g., NPT 3/4” thread).
6. Assess Cost and Maintenance: Compare initial costs, installation complexity, and long-term maintenance requirements.
7. Consult Experts: If uncertainties remain, seek advice from sensor manufacturers or application specialists. Our team offers one-stop worry-free services from evaluation to after-sales support.

Best Practices for Optimal Sensor Integration

Proper integration is vital for maximizing sensor performance. Ensure correct sensor placement, avoiding areas with excessive turbulence or vibration that could affect readings. Use appropriate wiring and shielding to prevent electromagnetic interference. Regular calibration and maintenance are essential for sustaining accuracy and extending sensor lifespan. Documenting installation details and calibration records facilitates troubleshooting and ensures compliance with industry standards. For example, in water and wastewater treatment, reliable sensor data is crucial for process control and regulatory compliance.
Recommended reading: 《Deep Well Monitoring with Submersible Pressure Transmitters》

Partner with Us for Your Pressure Sensor Needs

Selecting the right air pressure or differential pressure sensor is a critical decision that impacts the efficiency and reliability of your operations. Our team possesses over a decade of experience in providing high-quality industrial process control automation solutions. We offer a diverse range of sensors, including silicon pressure sensors, designed to meet the rigorous demands of various industries. Our expertise ensures that you receive not only a product but a comprehensive solution tailored to your specific application. Contact us today to discuss how our advanced sensor technologies can optimize your processes and contribute to your success.

FAQs

What is the primary difference between an air pressure sensor and a differential pressure sensor?

An air pressure sensor measures the pressure at a single point relative to a reference, such as a vacuum (absolute pressure) or ambient air (gauge pressure). A differential pressure sensor, conversely, measures the difference between two distinct pressure inputs. This makes differential sensors ideal for monitoring flow rates, liquid levels, or pressure drops across components.

In which applications is an air pressure sensor typically preferred?

Air pressure sensors are preferred in applications where the absolute or gauge pressure of a gas or air needs to be monitored at a single point. Common uses include tire pressure monitoring, atmospheric pressure measurement in weather systems, and monitoring pressure in pneumatic control systems within industrial machinery.

When should I choose a differential pressure sensor over an air pressure sensor?

You should choose a differential pressure sensor when the critical parameter is the pressure difference between two points. This is essential for applications like measuring fluid flow rates through a pipe using an orifice plate, monitoring liquid levels in sealed tanks, or detecting blockages in filters by observing pressure drops.

What are the critical parameters to consider when selecting either type of sensor?

Critical parameters for both air pressure and differential pressure sensors include accuracy (e.g., ±0.25% FS), measurement range (e.g., 0-100 PSI), media compatibility, operating temperature, and environmental conditions. Additionally, consider the required output signal (e.g., 4-20 mA, RS485 Modbus RTU) and ease of installation and maintenance.
