Armored vs. Standard Thermocouples: A Comprehensive Performance Comparison Guide

Temperature measurement is critical across various industrial processes. Choosing the correct thermocouple ensures accurate data and operational efficiency. This guide compares armored and standard thermocouples, highlighting their performance differences, to assist in optimal selection for specific applications.

Understanding Thermocouples: Armored and Standard Types

Thermocouples are temperature sensors consisting of two dissimilar metal wires joined at one end. When this junction is heated, a voltage is produced, which correlates to temperature. This principle, known as the Seebeck effect, forms the basis of their operation.

What is a Standard Thermocouple?

A standard thermocouple, often referred to as an exposed or bare-wire thermocouple, typically features uninsulated or lightly insulated thermocouple wires. These wires are directly exposed to the process environment or protected by a simple ceramic insulator. Their design prioritizes rapid response time due to minimal thermal mass. Standard thermocouples are generally cost-effective and suitable for environments where mechanical protection or chemical resistance is not a primary concern.

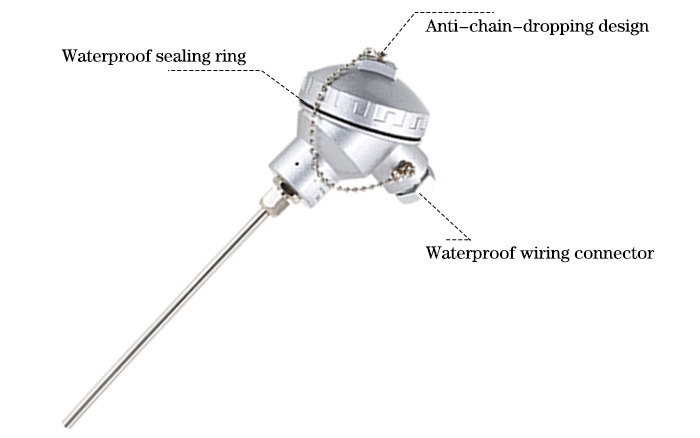

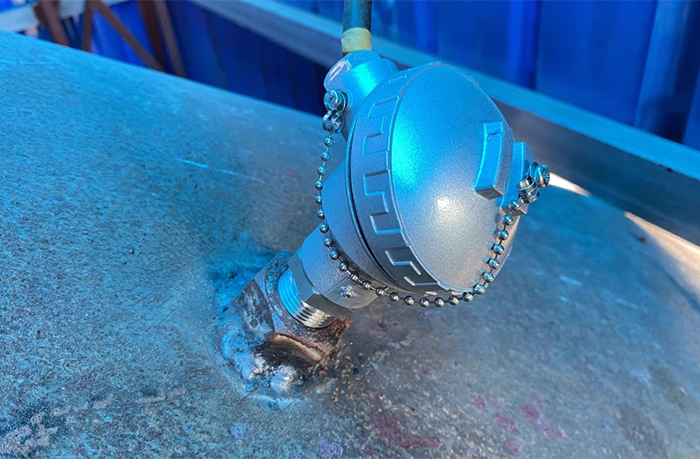

What is an Armored Thermocouple?

An armored thermocouple, also known as a mineral insulated (MI) thermocouple, encases the thermocouple wires within a compact, metal sheath. The wires are insulated from each other and from the sheath by highly compressed magnesium oxide (MgO) powder. This construction provides robust mechanical protection, chemical resistance, and electrical insulation. Armored thermocouples are designed for harsh industrial environments where durability and long-term stability are paramount.

Key Differences in Construction and Design

The fundamental difference between armored and standard thermocouples lies in their construction.

• Standard Thermocouples:
  • Exposed or ceramic-insulated wires.
  • Minimal protection against physical damage or corrosive elements.
  • Direct contact with the measured medium is common.
  • Simpler design, often with lower manufacturing costs.
• Armored Thermocouples:
  • Metal sheath (e.g., stainless steel, Inconel) encasing wires.
  • Wires insulated with compacted mineral powder (MgO).
  • Provides superior protection against abrasion, high pressure, and chemical attack.
  • More complex manufacturing process, leading to higher costs.

These structural variations directly influence their performance characteristics, making each type suitable for distinct applications.

Performance Evaluation Criteria for Thermocouples

When selecting a thermocouple, several performance criteria must be carefully evaluated. These criteria ensure the chosen sensor meets the specific demands of the application, providing reliable and accurate temperature data.

Accuracy and Measurement Precision

Accuracy refers to how closely the thermocouple’s reading matches the actual temperature. Precision indicates the repeatability of measurements under the same conditions. Both are crucial for process control and quality assurance. Factors influencing accuracy include:

• Thermocouple Type: Different thermocouple types (e.g., Type K, J, T) have varying accuracy limits.
• Material Homogeneity: Inconsistencies in wire composition can lead to measurement errors.
• Reference Junction Compensation: Proper compensation is essential for accurate readings.

Response Time and Speed

Response time is the speed at which a thermocouple reacts to a temperature change. A faster response is critical in dynamic processes requiring immediate feedback. This characteristic is primarily influenced by:

• Thermal Mass: Lower thermal mass generally results in faster response times.
• Junction Type: Exposed junctions react quicker than grounded or ungrounded junctions within a sheath.
• Sheath Material and Thickness: Thinner sheaths and materials with high thermal conductivity improve response.

Durability and Mechanical Strength

Durability is the ability of a thermocouple to withstand physical stress, vibration, and impact without degradation. Mechanical strength is vital in industrial environments where sensors may be subjected to harsh conditions. Key aspects include:

• Sheath Material: Materials like stainless steel or Inconel offer high resistance to mechanical damage.
• Construction: Armored designs inherently provide greater strength.
• Vibration Resistance: The compacted mineral insulation in armored types helps prevent wire breakage from vibration.

Temperature Range and Environmental Resistance

Thermocouples must operate reliably within the expected temperature range of the application. Environmental resistance includes tolerance to corrosive chemicals, moisture, and high pressure.

• Maximum Operating Temperature: Each thermocouple type has a specific upper temperature limit.
• Corrosion Resistance: The sheath material protects against chemical degradation.
• Pressure Rating: Armored thermocouples can withstand higher pressures due to their robust construction.

Cost-Effectiveness and Lifespan

Cost-effectiveness involves balancing initial purchase price with long-term operational costs, including replacement and maintenance. Lifespan refers to how long a thermocouple can maintain its performance under specific operating conditions.

• Initial Cost: Standard thermocouples are typically less expensive.
• Replacement Frequency: Thermocouples in harsh environments may require more frequent replacement.
• Maintenance: Armored types often require less maintenance due to their protective design.

Armored vs. Standard Thermocouples: A Detailed Performance Comparison

Understanding the specific performance differences between armored and standard thermocouples is essential for making informed decisions. Each type offers distinct advantages and disadvantages depending on the application’s requirements.

Accuracy and Signal Stability in Challenging Conditions

Standard thermocouples, with their exposed or minimally protected junctions, often provide slightly higher intrinsic accuracy and faster response times in ideal laboratory conditions. This is because the sensing junction is in direct or near-direct contact with the medium, minimizing thermal lag. However, in real-world industrial environments, these advantages can be negated.

Armored thermocouples, while having a slightly slower response due to the metal sheath and mineral insulation, offer superior signal stability. The robust construction protects the thermocouple wires from:
* Electrical Noise: The metal sheath provides shielding against electromagnetic interference (EMI), which can distort signals in standard thermocouples.
* Contamination: The hermetically sealed sheath prevents corrosive gases or liquids from reaching the thermocouple wires, maintaining the integrity of the junction and its thermoelectric properties.
* Mechanical Stress: Vibration and physical impact, common in industrial settings, can cause micro-fractures in bare wires, leading to drift in readings. Armored designs mitigate this risk.

Therefore, for challenging conditions, the enhanced signal stability and protection of armored thermocouples often translate into more reliable and consistent accuracy over time, despite a marginally slower initial response.
Recommendation: 《Piezoresistive Pressure Sensors vs. Ceramic Pressure Sensors: A Comprehensive Comparison》.

Speed of Response in Dynamic Processes

The speed of response is a critical factor in applications where temperature changes rapidly and requires immediate measurement.

• Standard Thermocouples: These typically have a faster response time. Their low thermal mass and direct exposure allow for quick heat transfer to the sensing junction. This makes them suitable for monitoring fast-changing temperatures, such as in laboratory experiments or certain batch processes where precise timing is essential.
• Armored Thermocouples: The metal sheath and compacted mineral insulation add thermal mass, which inherently slows down the heat transfer to the thermocouple junction. This results in a longer response time compared to standard thermocouples. However, advancements in manufacturing have led to smaller diameter armored thermocouples, which can offer improved response times while retaining much of their durability.

For applications demanding sub-second response times, a standard, exposed junction thermocouple might be preferred. Conversely, if the process involves slower temperature changes but requires long-term reliability in harsh conditions, an armored type is generally the better choice.

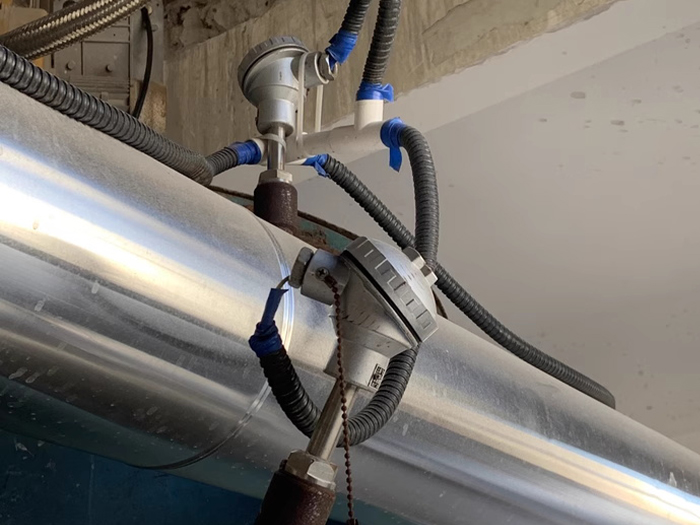

Withstanding Harsh Environments: Vibration, Corrosion, and Pressure

The primary advantage of armored thermocouples lies in their ability to withstand harsh environments.

• Vibration: In machinery or pipelines subject to constant vibration, standard thermocouples with brittle ceramic insulation or exposed wires are prone to breakage. The compacted mineral insulation in armored types provides excellent support for the wires, preventing fatigue and extending the sensor’s life.
• Corrosion: Many industrial processes involve corrosive chemicals, acids, or alkalis. The metal sheath of an armored thermocouple (e.g., 316L stainless steel, Inconel) can be selected to resist specific corrosive media, protecting the internal wires. Standard thermocouples offer little to no protection against chemical attack, leading to rapid degradation and failure.
• Pressure: High-pressure environments can easily damage the delicate wires of a standard thermocouple. The solid, metal-sheathed construction of an armored thermocouple allows it to withstand significant external pressures, making it suitable for pressurized vessels and pipelines.

For applications in the chemical sector or where hazardous area sensors are required, armored thermocouples are the industry standard due to their enhanced protection.

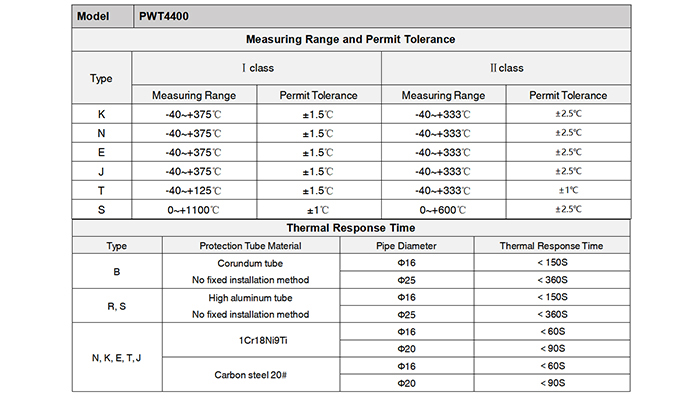

Operational Temperature Limits and Thermal Shock Resistance

Both types of thermocouples are capable of measuring a wide range of temperatures, but their resistance to thermal shock differs significantly.

• Operational Temperature Limits: The maximum operating temperature for both types is primarily determined by the thermocouple wire type (e.g., Type K up to 1260°C, Type J up to 760°C). Armored thermocouples can sometimes operate at higher temperatures due to the protective sheath preventing oxidation of the wires.
• Thermal Shock Resistance: Thermal shock occurs when a sensor experiences a rapid change in temperature, causing stress due to uneven thermal expansion. Standard thermocouples are more susceptible to damage from thermal shock due to the direct exposure of their wires. The metal sheath and mineral insulation of armored thermocouples provide a buffer, distributing thermal stress more evenly and offering greater resistance to thermal shock. This makes them ideal for processes involving sudden temperature fluctuations.

Installation Considerations and Maintenance Requirements

Installation and maintenance are practical considerations that impact the overall cost and operational efficiency.

• Installation:
  • Standard Thermocouples: These are generally easier to install due to their simpler design and flexibility. They can be inserted directly into thermowells or process streams where protection is less critical.
  • Armored Thermocouples: While robust, they can be more rigid, requiring specific mounting hardware or bending tools for installation. However, their compact design allows them to be used in tight spaces.
• Maintenance:
  • Standard Thermocouples: Due to their vulnerability to environmental factors, standard thermocouples may require more frequent inspection and replacement, especially in harsh conditions.
  • Armored Thermocouples: Their durable construction reduces the need for frequent maintenance and replacement, leading to lower long-term ownership costs. This is particularly beneficial in critical applications where downtime is costly.

Selecting the Right Thermocouple for Your Application

Choosing between armored and standard thermocouples depends heavily on the specific demands of your application. Careful consideration of several factors will ensure optimal performance and longevity.

Factors to Consider for Optimal Performance

1. Environmental Conditions: Assess the presence of corrosive agents, high pressure, vibration, or abrasive materials. Armored thermocouples are generally preferred in such harsh environments.
2. Temperature Range and Dynamics: Determine the expected temperature range and the speed of temperature changes. Standard thermocouples offer faster response for dynamic processes, while armored types provide stability in extreme temperatures.
3. Accuracy Requirements: Evaluate the required level of measurement precision. While standard thermocouples can offer high initial accuracy, armored types maintain accuracy better in challenging conditions due to protection from external factors.
4. Budget and Lifespan: Consider the initial cost versus the long-term cost of ownership, including replacement and maintenance. Armored thermocouples often have a higher upfront cost but a longer lifespan in demanding applications.
5. Installation Constraints: Factor in available space and ease of installation. Standard thermocouples are more flexible, while armored types offer greater rigidity and protection.

Applications Where Armored Thermocouples Excel

Armored thermocouples are the preferred choice for applications demanding ruggedness and reliability.
* Petrochemical Industry: Resistance to corrosive chemicals and high pressures in reactors and pipelines.
* Power Generation: Durability in high-temperature, high-vibration environments like boilers and turbines.
* Metallurgical Processes: Withstanding extreme temperatures and abrasive conditions in furnaces and foundries.
* Food and Pharmaceutical Industries: Ensuring hygiene and resistance to cleaning agents, often requiring specific sheath materials. For pharmaceutical applications, precise temperature control is vital.
* Heavy Machinery: Protection against mechanical damage and vibration.

Scenarios Best Suited for Standard Thermocouples

Standard thermocouples remain valuable in less demanding environments where their characteristics are advantageous.
* Laboratory Testing: Where precise, rapid temperature measurements are needed in controlled settings.
* HVAC Systems: Monitoring air temperatures in relatively benign environments.
* Light Industrial Processes: Applications with moderate temperatures and minimal mechanical stress.
* Research and Development: Prototyping and testing where flexibility and cost are key considerations.

Enhancing Measurement Systems with Pokcenser Automation Technology

At Pokcenser Automation Technology Company Limited, we understand the critical role of accurate and reliable temperature measurement in industrial processes. Our expertise extends beyond individual sensors to integrated solutions that optimize your entire measurement system. We offer a range of products designed to complement and enhance the performance of both armored and standard thermocouples.

Integrating Advanced Temperature Measurement with Pokcenser Controllers

Our controllers are designed for seamless integration with various temperature sensors, including both armored and standard thermocouples. For example, our PT6500 Online TDS Meter Controller, while primarily focused on TDS, features automatic or manual temperature compensation, ensuring that temperature fluctuations do not compromise the accuracy of your overall process measurements. This integration capability allows for a more holistic approach to process control, where temperature data from thermocouples can be precisely managed and correlated with other critical parameters.

Ensuring Reliable Data with High-Precision Sensors

We prioritize high-precision sensors that deliver consistent and trustworthy data. Our product offerings, such as the PWT4100 RTD or Resistance Temperature Detector and the PWT4200 Compact Type Temperature Sensor, are engineered for accuracy and durability. When paired with the appropriate thermocouple, these devices contribute to a robust measurement infrastructure. Our commitment to quality ensures that whether you choose an armored or standard thermocouple, our supporting technology will maximize its performance and lifespan, even in demanding industrial environments.

Recommendation: 《13 Reasons Why High-Accuracy Gas Measurement with Thermal Mass Flow Meters Matters in Modern Industry》.

Optimize Your Temperature Measurement Solutions

Selecting the right thermocouple is a strategic decision that impacts the efficiency, safety, and cost-effectiveness of your operations. Whether your application demands the ruggedness of armored thermocouples or the rapid response of standard types, understanding their comparative performance is key. Our team of experts is ready to assist you in evaluating your specific needs and recommending the optimal temperature measurement solutions. Contact us today to discuss your industrial automation requirements and discover how our advanced sensor technology can enhance your processes.

FAQs

What are the main advantages of armored thermocouples over standard ones?

Armored thermocouples offer superior durability, mechanical strength, and resistance to corrosion and vibration. This makes them ideal for harsh industrial environments where standard thermocouples would quickly fail. Their robust construction ensures longer lifespan and more stable readings in challenging conditions.

When should I choose a standard thermocouple instead of an armored one?

Choose a standard thermocouple when rapid response time is critical and the operating environment is relatively benign, free from significant mechanical stress, vibration, or corrosive elements. They are often more cost-effective for laboratory settings or light industrial applications.

How does the response time differ between armored and standard thermocouples?

Standard thermocouples generally have a faster response time because their sensing junction is more directly exposed to the temperature changes. Armored thermocouples have a slower response due to the thermal mass of their metal sheath and mineral insulation, which delays heat transfer.

Can armored thermocouples be used in corrosive environments?

Yes, armored thermocouples are specifically designed for corrosive environments. Their metal sheath, often made from materials like 316L stainless steel or Inconel, protects the internal thermocouple wires from chemical attack, ensuring reliable and long-lasting performance.

What impact does thermocouple type have on overall system accuracy?

The choice of thermocouple significantly impacts overall system accuracy. While standard thermocouples might offer high intrinsic accuracy in controlled settings, armored thermocouples often provide better long-term accuracy and signal stability in industrial environments by protecting against external factors that cause measurement drift.
