Continuous Level Measurement for Pharmaceutical Manufacturing

Continuous level measurement is crucial in pharmaceutical manufacturing. It ensures product quality, process consistency, and regulatory compliance. Accurate level monitoring helps prevent costly errors and maintains operational efficiency.

The Critical Need for Precise Level Measurement in Pharma

The pharmaceutical industry demands exceptional precision and reliability in all processes. Continuous level measurement plays a pivotal role. It directly impacts product quality, operational safety, and regulatory adherence.

Ensuring Product Quality and Process Consistency

Maintaining consistent ingredient levels is fundamental for pharmaceutical product quality. Deviations can lead to batch failures, requiring costly reprocessing or disposal. Continuous level monitoring provides real-time data, enabling immediate adjustments. This ensures each batch meets stringent quality specifications.

Addressing Regulatory Compliance and Safety Standards

Pharmaceutical production operates under strict regulatory frameworks, such as GMP (Good Manufacturing Practices). Accurate and documented level measurements are essential for compliance. Furthermore, precise level control prevents overfilling or underfilling, mitigating safety risks like spills or hazardous reactions.

Understanding Continuous Level Measurement Technologies

Various technologies offer continuous level measurement, each suited for specific pharmaceutical applications. Selecting the appropriate method depends on the material, vessel characteristics, and environmental conditions.

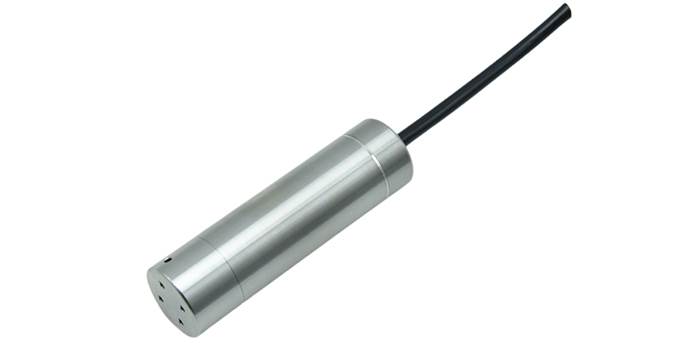

Hydrostatic Level Measurement for Pharmaceutical Liquids

Hydrostatic level measurement uses pressure sensors to determine liquid height based on the pressure exerted by the liquid column. This method is highly reliable for homogeneous liquids in tanks. Our PWP412-T3 SDI-12 Hydrostatic Water Level and Temperature Transmitter provides accurate, long-term stable measurement. It features an IP68 waterproof rating and all-stainless-steel construction, ideal for corrosive environments.

Ultrasonic Level Measurement for Tanks and Containers

Ultrasonic technology measures level by emitting sound waves and calculating the time it takes for the echo to return. This non-contact method is suitable for various liquids and solids. Our PWL-U201 Small Range Ultrasonic Level Transmitter and PWL-U202 Small Blind Spot Ultrasonic Level Transmitter offer high precision with minimal blind zones. They are perfect for small tanks and challenging environments. If you’re interested, check 《Radar vs. Ultrasonic Level Sensors: A Selection Guide》.

Other Relevant Level Measurement Principles

While hydrostatic and ultrasonic methods are common, other principles exist. Radar level sensors, for instance, use electromagnetic waves for highly accurate, non-contact measurement in demanding conditions. Guided wave radar offers similar benefits, particularly for turbulent liquids or those with foam. For specific applications, capacitive level sensors or Float Sensors might also be considered.

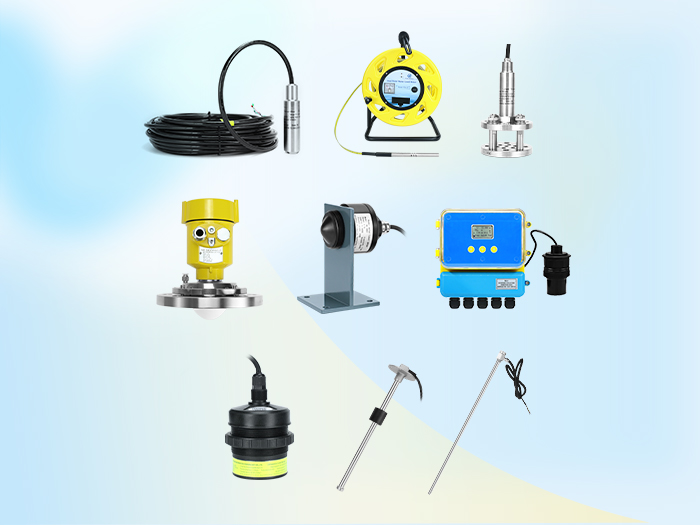

Key Benefits of Advanced Level Measurement Systems

Implementing advanced continuous level measurement systems offers significant advantages. These benefits extend from operational efficiency to enhanced safety and improved decision-making.

Enhancing Operational Efficiency and Automation

Automated level monitoring reduces manual intervention, freeing up personnel for other critical tasks. Real-time data integration with control systems enables automated dosing, mixing, and transfer processes. This streamlines operations, minimizes human error, and boosts overall productivity.

Minimizing Risk of Contamination and Product Loss

Precise level control prevents overfilling, which can lead to spills and potential contamination. It also ensures optimal use of expensive raw materials, reducing waste and product loss. In the pharmaceutical sector, preventing contamination is paramount for patient safety and regulatory compliance.

Facilitating Data-Driven Decision Making

Continuous data collection provides valuable insights into process trends and anomalies. This data supports proactive maintenance, process optimization, and troubleshooting. Informed decisions can improve efficiency, reduce downtime, and enhance product quality.

Selecting the Right Level Measurement Solution

Choosing the optimal level measurement solution requires careful consideration of several factors specific to pharmaceutical applications.

Factors to Consider for Pharmaceutical Applications

1. Material Properties: Consider liquid viscosity, density, corrosiveness, and presence of foam or vapor.
2. Vessel Geometry: Tank size, shape, and internal obstructions influence sensor selection.
3. Accuracy Requirements: Pharmaceutical processes often demand high precision, sometimes down to millimeters.
4. Temperature and Pressure: Extreme conditions necessitate robust sensors capable of operating reliably.
5. Hygiene and Sterilization: Sensors must withstand CIP/SIP (Clean-in-Place/Sterilize-in-Place) procedures.
6. Hazardous Area Classification: Many pharmaceutical environments require explosion-proof sensors.
7. Integration with Control Systems: Compatibility with existing PLC/SCADA systems is crucial for automation.

Pokcenser Automation Technology’s Level Measurement Products

We offer a range of solutions tailored for Pharmaceutical Industries. Our PWP412-T3 SDI-12 Hydrostatic Water Level and Temperature Transmitter is ideal for precise liquid level and temperature monitoring. It boasts an IP68 rating and robust stainless steel construction. For smaller tanks or challenging media, our PWL-U201 and PWL-U202 Ultrasonic Level Transmitters provide accurate, non-contact measurements with minimal blind zones. These products exemplify our commitment to reliable and precise measurement in critical applications. For more details on our offerings, explore our main products.

Discover Your Ideal Level Measurement Solution

Enhance your pharmaceutical manufacturing processes with precise and reliable continuous level measurement. Contact Pokcenser Automation Technology today for expert consultation and customized solutions. Our team is ready to help you optimize your operations and ensure compliance.

FAQs

What is continuous level measurement in the pharmaceutical industry?

Continuous level measurement in the pharmaceutical industry involves constantly monitoring the fill level of liquids or solids in tanks and vessels. This ensures precise control over critical processes, maintaining product quality, consistency, and adherence to strict regulatory standards. It is vital for preventing errors and optimizing production.

Why is accuracy important for level measurement in pharma?

Accuracy is paramount in pharmaceutical level measurement because even minor deviations can compromise product integrity and patient safety. Inaccurate measurements can lead to incorrect ingredient ratios, batch contamination, or non-compliance with regulatory guidelines. High accuracy ensures consistent product quality and reduces waste.

What types of level sensors are suitable for pharmaceutical applications?

Suitable level sensors for pharmaceutical applications include hydrostatic, ultrasonic, and radar technologies. Hydrostatic sensors are excellent for liquids, while ultrasonic and radar sensors offer non-contact solutions for various media. These sensors must be hygienic, corrosion-resistant, and often explosion-proof for hazardous environments.

How do level measurement systems contribute to regulatory compliance?

Level measurement systems contribute to regulatory compliance by providing verifiable, continuous data on process parameters. This data is essential for audit trails and demonstrating adherence to Good Manufacturing Practices (GMP). Automated systems reduce human error, ensuring processes meet required specifications consistently.

Can level sensors be integrated with existing automation systems?

Yes, modern level sensors are designed for seamless integration with existing automation systems like SCADA and PLCs. They typically offer standard output signals (e.g., 4-20mA, RS485 Modbus RTU) and communication protocols. This allows for centralized monitoring, control, and data logging, enhancing overall plant automation.
