Coriolis Mass Flow Meters: Achieving High Accuracy in Industrial Measurement

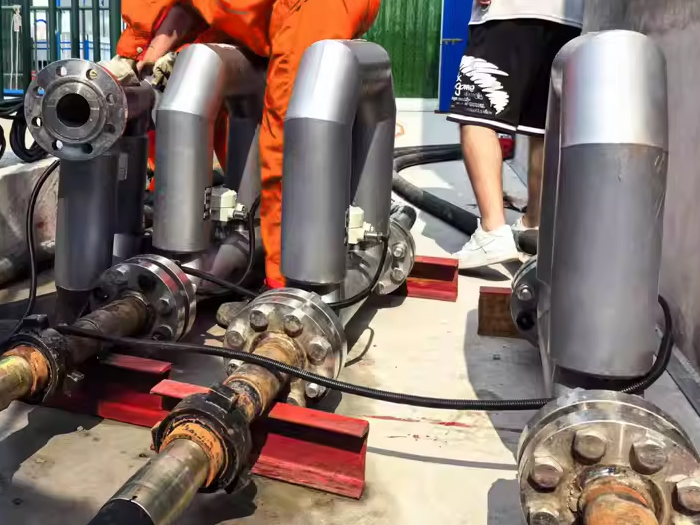

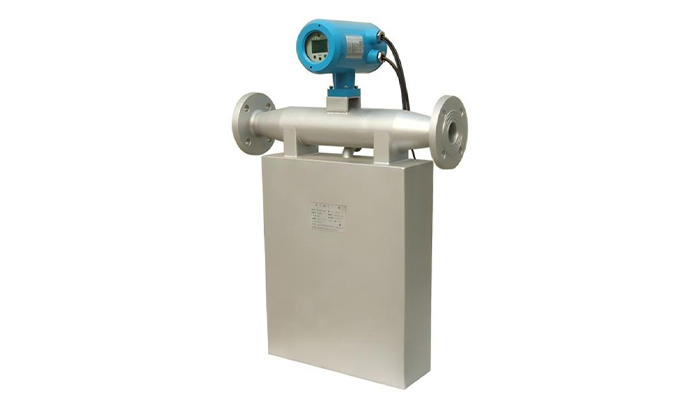

Coriolis mass flow meters are essential for precise industrial measurement. They offer unparalleled accuracy by directly measuring mass flow, a critical parameter in many processes. This technology addresses the limitations of traditional volumetric flow measurement, providing reliable data for critical operations.

Understanding the Core Principle of Coriolis Mass Flow Measurement

Coriolis mass flow meters operate on fundamental physical principles to deliver direct mass flow readings. This method is inherently more accurate than volumetric measurements, which are affected by changes in fluid density, temperature, and pressure. The core of this technology lies in the Coriolis effect, a phenomenon observed in rotating reference frames.

1. How the Coriolis Effect Enables Direct Mass Flow Measurement

The Coriolis effect is central to the operation of these meters.
1. Fluid flows through a vibrating tube.
2. The tube is continuously oscillated by an exciter.
3. As fluid accelerates into the tube and decelerates out of it, the Coriolis forces cause the tube to twist.
4. Sensors detect this twisting motion.
5. The degree of twist is directly proportional to the mass flow rate.
This direct measurement eliminates the need for additional sensors or calculations to compensate for varying fluid properties. This ensures consistent accuracy across diverse operating conditions.

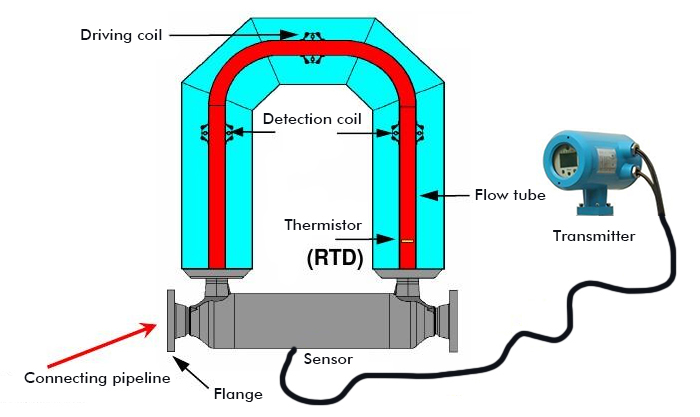

2. Key Components and Their Roles in Coriolis Flow Meters

Coriolis flow meters consist of several critical components working in concert.
1. Flow Tubes: These are the primary conduits through which the fluid passes. They are typically U-shaped or straight tubes, designed to vibrate at a specific frequency.
2. Exciter Coil: An electromagnetic coil induces and maintains the vibration of the flow tubes. This consistent vibration is crucial for generating the Coriolis effect.
3. Sensor Coils (Pick-off Sensors): Positioned at different points along the vibrating tubes, these sensors detect the phase shift or twisting motion. This motion directly correlates to the mass flow rate.
4. Temperature Sensor: This component measures the fluid temperature, which is used to compensate for any temperature-induced changes in the tube’s stiffness. This ensures measurement accuracy.
5. Transmitter: The transmitter processes the signals from the sensors. It converts them into a usable mass flow rate output, often displaying it and transmitting it to control systems.
These components work together to provide a robust and highly accurate mass flow measurement system.

Unpacking the Unrivaled Accuracy and Benefits of Coriolis Technology

Coriolis technology stands out in the field of flow measurement due to its exceptional accuracy and versatility. Its ability to measure mass directly offers significant advantages over other methods. This makes it indispensable in applications where precision is paramount.

1. Why Coriolis Meters Offer Superior Precision Over Other Flow Technologies

Coriolis meters provide superior precision for several reasons.
1. They measure mass flow directly, eliminating errors associated with density variations. Volumetric meters, in contrast, require density compensation, which can introduce inaccuracies.
2. The measurement is independent of fluid properties like viscosity, temperature, and pressure. This ensures consistent accuracy even with changing process conditions.
3. Coriolis meters offer high turndown ratios, allowing accurate measurement across a wide range of flow rates. This flexibility is critical for dynamic industrial processes.
4. They deliver exceptional repeatability, ensuring that identical flow conditions yield identical measurement results. This consistency is vital for process control and quality assurance.
5. The technology is inherently linear, meaning the output signal is directly proportional to the mass flow rate. This simplifies calibration and reduces measurement uncertainty.

2. Advantages of Using Coriolis Meters in Demanding Industrial Applications

The benefits of Coriolis meters extend beyond mere accuracy, offering substantial operational advantages.
1. High Accuracy and Repeatability: They provide precise and consistent measurements, crucial for critical processes.
2. Direct Mass Flow Measurement: This eliminates the need for density compensation, simplifying calculations and reducing potential errors.
3. Versatility: They can measure various fluids, including liquids, gases, slurries, and even highly viscous materials.
4. Immunity to Fluid Property Changes: Variations in temperature, pressure, or viscosity do not significantly impact measurement accuracy.
5. No Moving Parts: The absence of moving parts reduces wear and tear, leading to lower maintenance costs and longer operational life.
6. Multivariable Output: Many Coriolis meters can simultaneously measure mass flow, density, temperature, and even volumetric flow.
7. Bi-directional Flow Measurement: They can accurately measure flow in both forward and reverse directions.
These advantages make Coriolis meters a preferred choice for demanding industrial environments.

3. Addressing Common Challenges with Traditional Volume Flow Measurement

Traditional volumetric flow meters face several inherent limitations. These limitations can compromise accuracy and operational efficiency.
1. Density Variations: Volumetric meters are highly susceptible to changes in fluid density. Temperature and pressure fluctuations directly impact fluid volume, leading to inaccurate readings if not properly compensated.
2. Temperature and Pressure Effects: These meters often require external temperature and pressure sensors, along with complex compensation algorithms, to estimate mass flow. Each additional sensor and calculation introduces potential error.
3. Viscosity Sensitivity: Some volumetric technologies, such as turbine or positive displacement meters, are sensitive to fluid viscosity changes. This can affect their accuracy, particularly with non-Newtonian fluids.
4. Installation Requirements: Many volumetric meters require specific upstream and downstream straight pipe runs for accurate operation. This can limit installation flexibility and increase system complexity.
5. Maintenance Needs: Meters with moving parts are prone to wear, requiring frequent maintenance and calibration. This increases operational costs and downtime.
Coriolis meters overcome these challenges by directly measuring mass, making them a more robust and reliable solution for many applications.

Exploring Diverse Applications of High-Accuracy Coriolis Flow Meters

Coriolis mass flow meters are indispensable across numerous industries due to their precision and reliability. Their ability to handle a wide range of fluids and conditions makes them highly versatile. This section details their critical applications.

1. Critical Uses in the Oil and Gas Industry for Custody Transfer

In the oil and gas industry, accurate measurement is paramount, especially for custody transfer. Custody transfer refers to the point where a fluid is transferred from one party to another, and accurate measurement ensures fair billing and regulatory compliance.
1. Crude Oil and Refined Products: Coriolis meters precisely measure the mass of crude oil, gasoline, diesel, and other refined products. This accuracy is vital for inventory management and transaction verification.
2. Natural Gas Measurement: They provide accurate mass flow measurement of natural gas, which is crucial for pipeline operations, billing, and allocation. The variable density of natural gas makes direct mass measurement highly advantageous.
3. Liquefied Natural Gas (LNG) and Liquefied Petroleum Gas (LPG): Measuring these cryogenic and volatile liquids requires extreme precision. Coriolis meters excel in these challenging conditions, ensuring safe and accurate transfer.
4. Offshore Platforms: The compact design and robust construction of Coriolis meters make them suitable for the confined and harsh environments of offshore oil and gas platforms.
5. Allocation and Blending: In blending operations, precise mass flow measurement ensures the correct proportions of different components. This optimizes product quality and minimizes waste.
Coriolis meters are the preferred choice for these high-value applications where even small errors can result in significant financial losses.

2. Enhancing Precision in Chemical and Petrochemical Processing

The chemical and petrochemical industries rely heavily on precise flow measurement for process control, safety, and product quality. Coriolis meters offer significant advantages in these complex environments.
1. Reactant Dosing: Accurate dosing of reactants is essential for chemical reactions to proceed efficiently and safely. Coriolis meters ensure precise control over ingredient quantities.
2. Batch Control: In batch processes, exact measurement of each component is critical for product consistency. Coriolis meters provide the necessary accuracy for repeatable batch production.
3. Corrosive and Hazardous Fluids: Many chemicals are corrosive or hazardous, requiring meters made from specialized materials. Coriolis meters are available in various materials to handle aggressive substances.
4. High Viscosity Fluids: Fluids with high viscosity, such as polymers or resins, can be challenging for other flow technologies. Coriolis meters measure these fluids accurately without being affected by viscosity changes.
5. Density Measurement for Quality Control: Beyond mass flow, Coriolis meters provide real-time density measurements. This is valuable for monitoring product concentration and quality.
The reliability and accuracy of Coriolis Meters contribute to improved process efficiency and enhanced safety in the chemical sector.

3. Ensuring Quality Control in Food and Beverage Production

In the food and beverage industry, quality control and consistency are paramount. Coriolis meters play a vital role in ensuring these standards are met.
1. Ingredient Blending: Precise measurement of ingredients like syrups, flavorings, and dairy products ensures consistent product taste and quality.
2. Filling and Packaging: Accurate filling of bottles, cans, and other containers minimizes product giveaway and ensures compliance with labeling regulations.
3. Viscous Products: Products such as chocolate, honey, and sauces can be accurately measured by Coriolis meters, regardless of their viscosity.
4. Hygienic Applications: Many Coriolis meters are designed with sanitary connections and materials, meeting the strict hygiene standards of the food and beverage industry.
5. Real-time Density and Concentration Monitoring: Monitoring density can indicate sugar content in beverages or fat content in dairy products, directly impacting quality.
The precision offered by Coriolis technology helps maintain brand reputation and reduces waste in food and beverage production.

4. Other Industrial Sectors Benefiting from Coriolis Technology

Beyond the primary industries, Coriolis meters find application in various other sectors requiring high-accuracy flow measurement.
1. Pharmaceutical Industries: In pharmaceutical manufacturing, strict regulatory compliance demands highly accurate and repeatable measurements for active pharmaceutical ingredients (APIs) and other components.
2. Power Generation: Accurate measurement of fuel oils, lubricants, and cooling water is crucial for optimizing efficiency and maintaining equipment in power plants.
3. Wastewater Treatment: Measuring sludge, chemicals, and effluent in wastewater treatment plants helps optimize processes and ensure environmental compliance.
4. Textile Industry: Dosing dyes and chemicals accurately is essential for consistent product quality and efficient resource utilization.
5. Marine Applications: Measuring fuel consumption and cargo transfer on ships benefits from the high accuracy and reliability of Coriolis meters.
The versatility and robust performance of Coriolis meters make them a valuable asset in diverse industrial landscapes.

Selecting the Right Coriolis Mass Flow Meter for Optimal Performance

Choosing the appropriate Coriolis mass flow meter involves careful consideration of several factors. The selection process must align the meter’s capabilities with the specific requirements of the application. This ensures optimal performance and long-term reliability.

1. Key Factors to Consider When Choosing a Coriolis Flow Meter

Several critical parameters guide the selection of a Coriolis flow meter.
1. Fluid Properties: Consider the fluid type (liquid, gas, slurry), its density, viscosity, temperature, and pressure range. Some meters are better suited for specific fluid characteristics.
2. Flow Rate Range: Determine the minimum and maximum flow rates expected in the application. The meter’s turndown ratio must accommodate this range accurately.
3. Accuracy Requirements: Evaluate the required measurement accuracy for the application. Critical applications like custody transfer demand higher precision.
4. Process Connections: Ensure compatibility with existing piping and connection types (e.g., flange, thread, sanitary).
5. Operating Environment: Account for ambient temperature, vibration, and potential hazardous conditions. Meters with appropriate IP ratings and explosion-proof certifications are necessary for harsh environments.
6. Material Compatibility: Select wetted parts materials that are compatible with the fluid to prevent corrosion or contamination.
7. Output Signals and Communication: Verify that the meter’s output signals (e.g., 4-20 mA, Modbus) integrate seamlessly with the existing control system.
8. Cost and Maintenance: Consider the initial purchase cost, installation expenses, and long-term maintenance requirements.
Careful consideration of these factors ensures the selection of a meter that meets both technical and economic requirements.

2. Importance of Calibration and Maintenance for Sustained Accuracy

Even highly accurate Coriolis meters require regular calibration and maintenance to ensure their performance over time.
1. Calibration: Regular calibration verifies the meter’s accuracy against a known standard. This compensates for any drift or wear that might occur during operation.
2. Preventive Maintenance: Scheduled checks and inspections can identify potential issues before they lead to significant problems. This includes checking for external damage, sensor integrity, and electrical connections.
3. Sensor Cleaning: Depending on the fluid, deposits can accumulate on the flow tubes, affecting accuracy. Regular cleaning, if applicable, is crucial.
4. Software Updates: Keeping the meter’s firmware updated ensures optimal performance and access to the latest features and improvements.
5. Documentation: Maintaining detailed records of calibration dates, maintenance activities, and any repairs helps track performance and troubleshoot issues efficiently.
Proper calibration and maintenance are essential for maximizing the lifespan and maintaining the high accuracy of Coriolis Meters.

3. Integrating Coriolis Meters into Existing Industrial Automation Systems

Integrating Coriolis meters into existing industrial automation systems is crucial for leveraging their full potential.
1. Signal Compatibility: Ensure the meter’s output signals (e.g., 4-20 mA, HART, Modbus, Foundation Fieldbus) are compatible with the plant’s Distributed Control System (DCS) or Programmable Logic Controller (PLC).
2. Communication Protocols: Establish reliable communication links using standard industrial protocols. This enables real-time data exchange and remote control.
3. Data Mapping: Map the meter’s output parameters (mass flow, density, temperature) to the corresponding tags in the automation system. This ensures data is correctly interpreted and utilized.
4. Control Logic Development: Implement control logic within the DCS/PLC to utilize the accurate mass flow data for process optimization, batch control, and safety interlocks.
5. Human-Machine Interface (HMI) Integration: Display critical flow data on the HMI for operators to monitor and respond to process conditions effectively.
6. Alarm Configuration: Configure alarms based on predefined flow rate or density limits to alert operators to abnormal conditions.
Successful integration enhances overall plant efficiency, improves process control, and enables data-driven decision-making.

Contact Us for Advanced Flow Measurement Solutions

For over a decade, Pokcenser Automation has been a trusted provider of industrial process control automation solutions. We specialize in high-precision sensors, including flow meters, level sensors, pressure transmitters, and temperature sensors. Our expertise ensures that we deliver reliable and accurate measurement solutions tailored to your specific industrial needs. Contact us today to discuss your requirements and discover how our advanced technology can optimize your operations.

Phone: +86 181 7515 5326
Email: info@pokcenser.com

About the Author

Li Chengxuan is a senior industrial automation expert at Pokcenser Automation, specializing in the research and application of flow, level, pressure and temperature sensors and industrial process control solutions.

FAQs

1. What is the primary advantage of a Coriolis mass flow meter?

The primary advantage of a Coriolis mass flow meter is its ability to directly measure the mass flow rate of a fluid. This eliminates the need for external compensation for changes in temperature, pressure, or density, which often affect volumetric flow meters. This results in superior accuracy and reliability across a wide range of operating conditions.

2. How does a Coriolis flow meter measure mass flow directly?

A Coriolis flow meter measures mass flow by inducing vibration in a flow tube through which the fluid passes. As the fluid flows, it experiences Coriolis forces that cause the tube to twist. Sensors detect this twisting motion, and the degree of twist is directly proportional to the mass flow rate of the fluid.

3. Can Coriolis flow meters measure both liquids and gases?

Yes, Coriolis flow meters are highly versatile and can accurately measure the mass flow of both liquids and gases. They are also effective with slurries, viscous fluids, and multi-phase flows. Their measurement principle is independent of the fluid’s physical properties, making them suitable for diverse applications.

4. Are there any limitations to using Coriolis mass flow meters?

While highly accurate, Coriolis meters have some limitations. They can be more expensive than other flow meter types and may have larger footprints. They can also be sensitive to external vibrations and require a stable mounting. Additionally, pressure drop across the meter can be a consideration in some applications.

5. How often should a Coriolis flow meter be calibrated?

The calibration frequency for a Coriolis flow meter depends on the application’s accuracy requirements, the fluid’s characteristics, and regulatory standards. Critical applications may require annual or bi-annual calibration. Less critical applications might extend this period. Regular calibration ensures sustained accuracy and compliance.
