In industrial production, electromagnetic flow meters are widely used in industries such as water treatment, chemicals, metallurgy, pharmaceuticals, and food processing. However, long-term operation can lead to issues like no display, unstable readings, or inaccurate measurements, which directly impact production efficiency and process control.

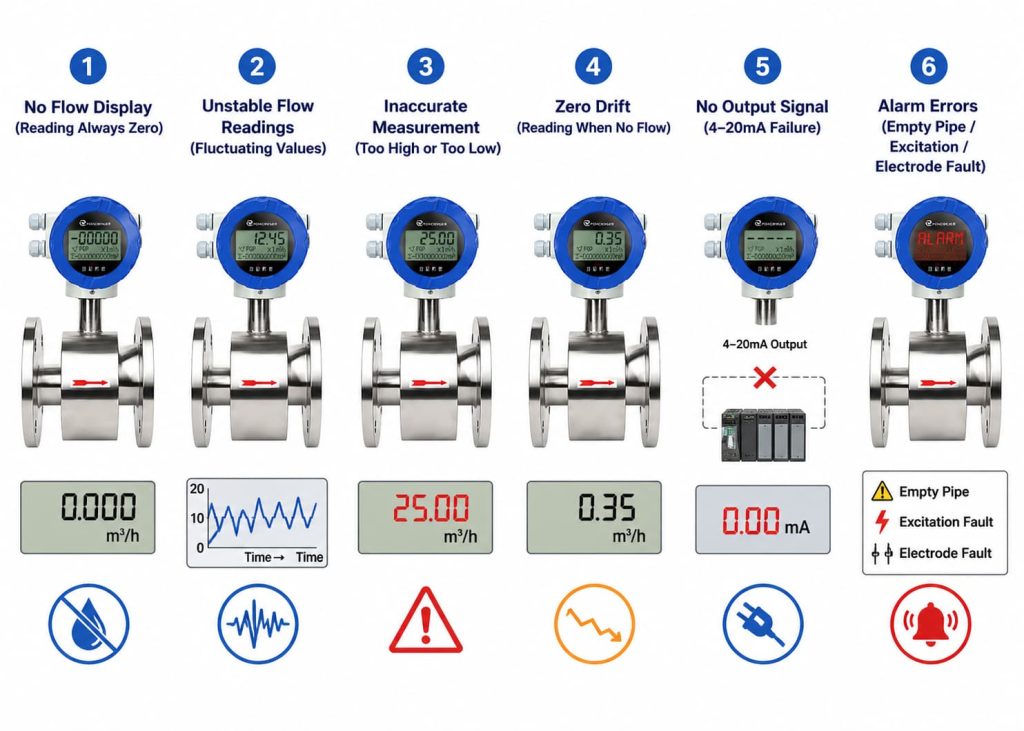

This Pokcenser ultimate troubleshooting guide helps you quickly identify and fix the 6 most common electromagnetic flow meter problems—without needing a professional technician.

1. No Flow Display (Reading Always Zero)

Possible Causes:

• Power supply failure or loose wiring
• Pipe not full (air inside pipeline)
• Electrode scaling or contamination
• Incorrect wiring or poor grounding

Quick Solutions:

• Check 24V DC power supply, fuses, and terminals
• Ensure pipe is completely filled; release trapped air
• Clean electrodes with a soft cloth and proper cleaner
• Ensure proper grounding (≤10Ω), avoid interference sources

2. Unstable Flow Readings (Fluctuating Values)

Possible Causes:

• Air bubbles or mixed-phase flow
• Electromagnetic interference (e.g., VFDs)
• Poor installation (valves, bends too close)
• Moisture or loose wiring

Solutions:

• Install air release valves or filters
• Improve grounding and shielding
• Ensure straight pipe length (≥5D upstream, ≥3D downstream)
• Keep junction box dry and sealed

3. Inaccurate Measurement (Too High or Too Low)

Possible Causes:

• Incorrect parameter settings (range, pipe size)
• Electrode scaling
• Improper installation position
• Medium temperature/pressure out of range

Solutions:

• Verify and recalibrate transmitter settings
• Clean electrodes regularly
• Reinstall sensor in proper position
• Ensure process conditions match specifications

4. Zero Drift (Reading When No Flow)

Possible Causes:

• Residual liquid or bubbles
• Poor grounding
• Electrode insulation failure
• Low conductivity (<5 μS/cm)

Solutions:

• Fully empty pipe and recalibrate zero
• Improve grounding system
• Clean or replace electrodes
• Use alternative meters (e.g., ultrasonic) if conductivity is too low

5. No Output Signal (4–20mA Failure)

Possible Causes:

• Wiring errors or loose terminals
• Damaged output module
• Incorrect range settings
• Unstable power supply

Solutions:

• Recheck wiring (2-wire/4-wire system)
• Test output with multimeter
• Adjust range settings
• Stabilize power supply

6. Alarm Errors (Empty Pipe / Excitation / Electrode Fault)

Common Alarms & Fixes:

1. Empty Pipe Alarm (NO LIQUID)

• Ensure full pipe and proper air venting
• Adjust detection threshold

2. Excitation Fault

• Check coil resistance
• Inspect wiring and voltage

3. Electrode Fault

• Clean electrodes
• Replace if insulation fails

Recommended Product: Pokcenser PWF-E1200 Electromagnetic Flow Meter

The PWF-E1200 by Pokcenser is designed for reliability, accuracy, and harsh industrial environments.

✅ Key Features:

• Backlit LCD display (clear in sunlight & darkness)
• Multiple outputs: 4–20mA, pulse, frequency, RS485, HART, PROFIBUS
• Built-in self-diagnosis and alarm functions
• Multiple liner & electrode options

Applications:

• Water & wastewater treatment
• Breweries & dairy processing
• Chemical plants
• Slurry & pulp industries
• Oil refineries

Advantages:

• No moving parts → maintenance-free
• No pressure loss
• Bi-directional measurement
• Explosion-proof options
• IP65 waterproof
• Compact & remote installation

Electromagnetic flow meters are ideal for conductive liquids such as water, chemicals, acids, slurry, and pulp—making them one of the most cost-effective and durable flow measurement solutions.

Maintenance Tips (Improve Lifespan & Accuracy)

• Clean electrodes every 1–3 months
• Check grounding and wiring regularly
• Calibrate at least once per year
• Keep backup meters for emergency replacement

FAQ

1. What is the most common failure of electromagnetic flow meters?

The most common issue is no signal or zero reading, usually caused by empty pipes, poor wiring, or electrode contamination.

2. Why is my flow meter fluctuating?

This is often due to air bubbles, unstable flow, or electromagnetic interference.

3. Can electromagnetic flow meters measure all liquids?

No. They only work with conductive liquids (≥5 μS/cm).

4. How often should I calibrate a magmeter?

At least once per year for industrial accuracy compliance.

5. Why choose Pokcenser flow meters?

Pokcenser offers high accuracy, durability, and cost-effective solutions, with strong adaptability across industries.
