Flow Meter Selection: Turbine vs. Electromagnetic vs. Ultrasonic Flow Meters

Flow measurement plays a crucial role in industrial process control, ensuring the accuracy of material balances, optimizing energy management, and reducing costs. Reliable flow monitoring also supports safety and compliance, particularly in regulated industries such as pharmaceuticals, water treatment, and petrochemicals. Additionally, it underpins environmental monitoring and emission control, where precise data is essential for sustainability goals.

What is Flow Meter Technologies?

Flow measurement technologies have evolved from mechanical devices to modern digital and smart flow meters. Two key distinctions exist: contact vs. non-contact measurement methods, and volumetric vs. mass flow measurement. With rising demands for accuracy, reliability, and connectivity, industries are increasingly turning to advanced instruments such as the turbine flow meter, electromagnetic flow meter, and ultrasonic flow meter.

Working Principle of Turbine Flow Meter

A turbine flow meter operates on a mechanical principle. As fluid flows through the meter, it rotates a turbine wheel. The speed of the turbine is proportional to the volumetric flow rate. Sensors detect the blade movement and convert it into an electrical signal. Typical designs include a rotor, shaft, bearings, and housing, often made from stainless steel or alloys to handle clean liquids and gases.

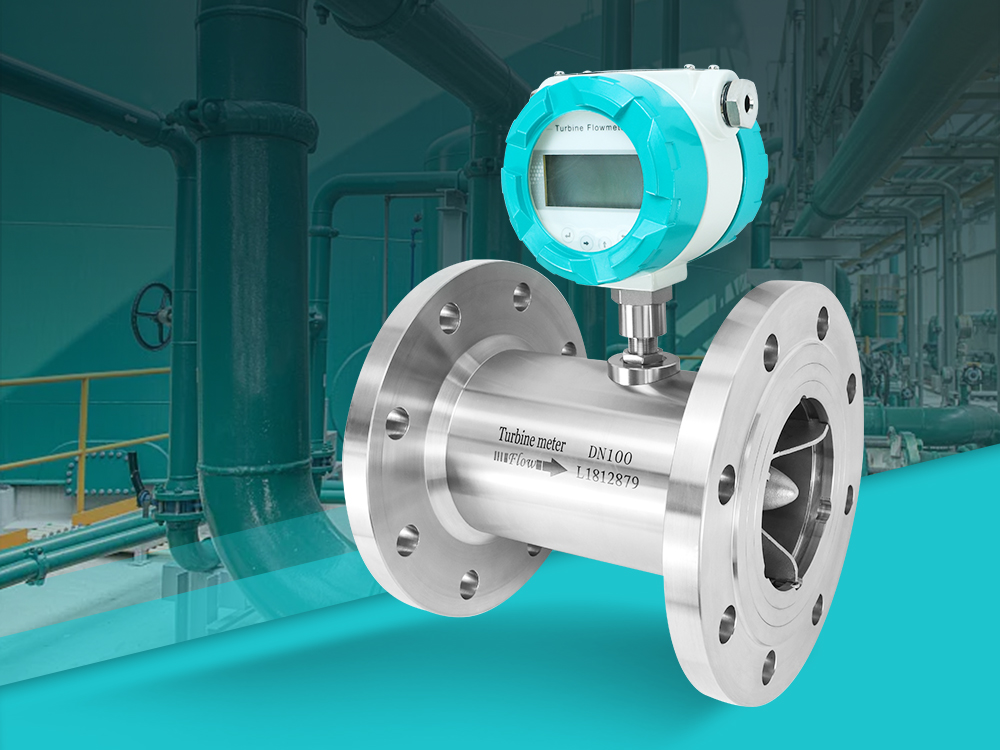

A picture of turbine flow meter

What are Characteristics of Turbine Flow Meter?

A turbine flow meter is a mechanical instrument widely used for liquid and gas measurement, known for its high accuracy (±0.5% to ±1%), broad turndown ratio (10:1 to 20:1), and fast response time, making it suitable for dynamic processes. It is a mature and reliable technology that offers an economical solution compared to advanced non-contact meters. However, turbine flow meters also have limitations: they require clean, particle-free fluids, are sensitive to viscosity changes, and their moving parts are subject to wear and tear. Accurate performance depends on proper installation, including sufficient straight pipe runs upstream and downstream, and users should also account for the higher pressure drop compared to non-mechanical devices. In terms of specifications, turbine flow meters deliver ±0.5% to ±1% accuracy, cover a wide flow range depending on size and fluid properties, and operate within pressure and temperature limits defined by construction materials. They are best suited for clean, low-viscosity liquids or gases, and provide flexible output options including pulse, analog, or digital signals.

Working Principle of Electromagnetic Flow Meter

An electromagnetic flow meter (magmeter) applies Faraday’s law of electromagnetic induction. When a conductive liquid flows through a magnetic field, a voltage proportional to the flow velocity is induced. Electrodes placed inside the pipe wall capture this voltage, and electronics convert it to a flow rate.

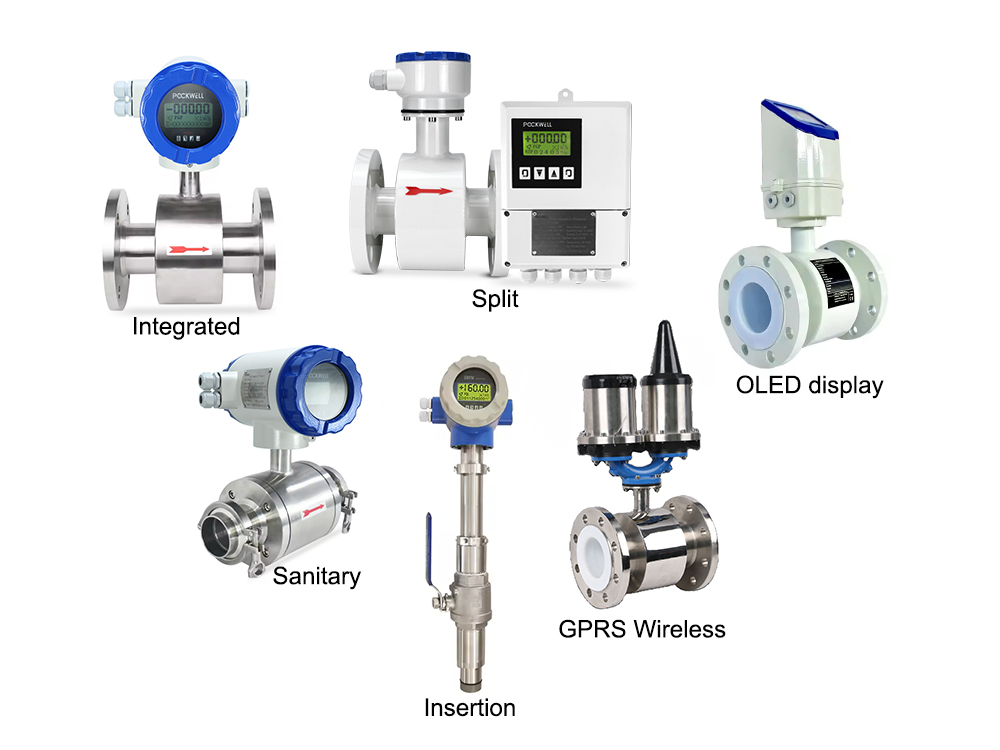

Various types of electromagnetic flow meters — integrated, split, sanitary, insertion, OLED display, and GPRS wireless versions.

What’s Technical Characteristics of Electromagnetic Flow Meter?

An electromagnetic flow meter is a highly reliable device with distinct advantages, including no moving parts and minimal maintenance, suitability for virtually all conductive fluids (even slurries), and independence from fluid properties such as density, viscosity, or pressure. It supports bidirectional flow measurement, causes no pressure loss due to its open-bore design, and delivers high accuracy in the range of ±0.2% to ±0.5%. However, it also has limitations: electromagnetic flow meters only work with conductive media (≥5 μS/cm), are sensitive to installation conditions and grounding, and typically come with a higher upfront cost compared to mechanical meters. They may also be affected by electromagnetic interference, and the pipe must remain completely full to ensure accurate readings. In terms of specifications, electromagnetic flow meters operate within a conductivity requirement of ≥5 μS/cm, offer an accuracy of ±0.2% to ±0.5%, and typically handle flow velocities from 0.1 to 15 m/s. Common liner materials include PTFE, rubber, and ceramics, while electrodes may be made from stainless steel, platinum, or Hastelloy. For proper application, users should ensure effective grounding and shielding, verify liner and electrode compatibility with the process fluid, and maintain full-pipe conditions to avoid signal distortion.

The Operating Principles of Ultrasonic Flow Meter

Transit-Time Ultrasonic Flow Meter

Measures the difference in travel time between ultrasonic signals sent upstream and downstream. Multiple paths improve accuracy.

Doppler Ultrasonic Flow Meter

Uses frequency shift caused by reflections from suspended particles or bubbles. Ideal for dirty or aerated fluids.

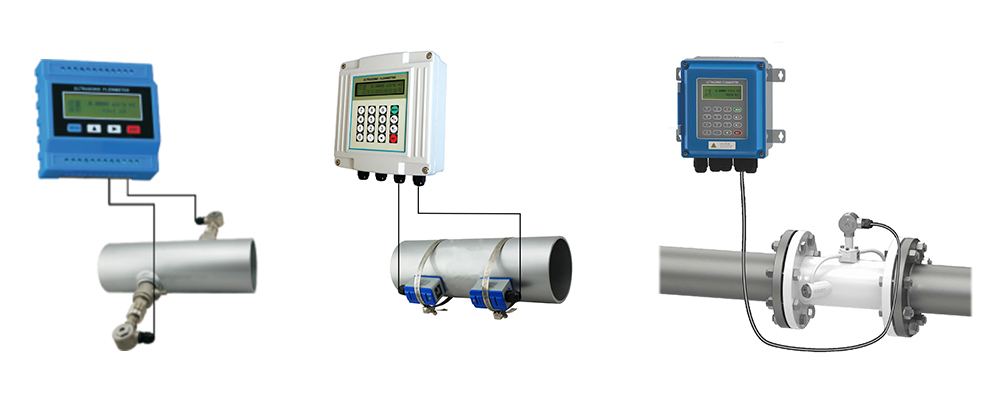

Figure: Various ultrasonic flow meter configurations

Installation Types of  Ultrasonic Flow Meter

• Clamp-on ultrasonic flow meter: Non-invasive, sensors attached outside the pipe.
• Insertion type: Probes inserted into the pipe wall.
• In-line (spool piece): Pre-calibrated pipe section for highest accuracy.

Technical Characteristics of Ultrasonic Flow Meter

An ultrasonic flow meter offers several advantages, including non-contact or minimally invasive measurement, no pressure loss in clamp-on models, compatibility with a wide variety of fluids, and highly flexible installation that makes it ideal for both new projects and retrofits. It is also well-suited for very large pipe diameters, where other technologies may not be practical. Despite these strengths, ultrasonic flow meters have some limitations: their accuracy depends heavily on pipe condition and flow profile, they are sensitive to air bubbles or solid deposits in the fluid, and they require careful installation and precise transducer alignment to ensure reliable results. In addition, they are generally more costly than traditional mechanical meters. From a specification standpoint, ultrasonic flow meters typically achieve an accuracy of ±0.5% to ±2% depending on design, can accommodate pipe sizes ranging from small diameters to several meters, use different transducer frequencies depending on fluid type and pipe material, and are available in single, dual, or multi-path configurations to meet different performance requirements.

Comparative Analysis of Turbine vs. Electromagnetic vs. Ultrasonic Flow Meters

1. Accuracy and Repeatability Comparison

2. Installation and Maintenance Comparison

3. Economic Considerations Comparison

4. Application Recommendation of Flow Meters

5. Technical Parameters Quick Comparison

Application Scenarios and Industry Choices

• Petrochemical: Turbine meters for crude oil, electromagnetic meters for chemical processes, ultrasonic for corrosive or large pipelines.
• Water and Wastewater: Electromagnetic flow meter for potable water and sewage; ultrasonic for large-diameter pipelines.
• Food and Beverage: Electromagnetic for hygienic processes; turbine for clean liquid batching.
• Pharmaceutical: Electromagnetic for compliance with GMP, ultrasonic for sterile or high-purity applications.
• Energy and Utilities: Turbine for natural gas, electromagnetic for cooling water, ultrasonic for heat energy balance.
• Environmental Monitoring: Ultrasonic for river discharge and open channels, electromagnetic for wastewater monitoring.

Selecting the right flow meter requires balancing accuracy, media properties, installation conditions, and economics. No single technology fits all applications, but with a structured approach, engineers can achieve optimal measurement performance. Don’t let uncertainty cost you time and money. Our flow measurement experts are here to help you navigate the selection process based on your specific requirements. Contact us Now!
