How does Turbine Flow Meter Optimize Fluid Management?

In today’s competitive industrial landscape, precise fluid management directly impacts operational efficiency, product quality, and profitability. When a leading chemical processing facility faced persistent challenges with inaccurate flow measurement and inconsistent process control, they turned to turbine flow meter technology as a solution. This flow meter case study demonstrates how implementing the right flow measurement solution transformed their operations, delivering measurable improvements in accuracy, reliability, and cost-effectiveness.

A mid-sized chemical manufacturing plant specializing in specialty polymers encountered significant difficulties with their existing flow measurement infrastructure. The facility processes multiple fluid streams daily, including various solvents, raw chemical feedstocks, and finished liquid products, all requiring precise volumetric flow measurement for quality control and regulatory compliance.

The plant’s legacy flow measurement system, consisting of outdated mechanical meters and inconsistent monitoring equipment, created multiple operational challenges:

• Accuracy deficiencies: Measurement errors ranging from 3-5% resulted in formulation inconsistencies and product quality variations
• Maintenance burden: Frequent mechanical failures caused unplanned downtime averaging 8-12 hours monthly
• Regulatory concerns: Insufficient measurement precision raised compliance questions during audits
• Cost overruns: Inaccurate metering led to raw material waste estimated at $75,000 annually
• Data integration issues: Incompatibility with modern control systems prevented real-time monitoring and optimization

The facility management recognized that upgrading their flow monitoring system was essential not just for improving current operations but for remaining competitive in an increasingly regulated industry.

Legacy mechanical flow meter installed on an industrial pipeline before system upgrade.

What’s Turbine Flow Meter Technology?

Before implementing the solution, the engineering team evaluated various flow measurement technologies. The turbine flowmeter emerged as the optimal choice based on its proven performance characteristics and suitability for the application requirements.

Working Principle of Turbine Flow Meter

A turbine flow meter operates on a straightforward mechanical principle. As fluid flows through the meter body, it encounters a multi-blade rotor mounted on precision bearings. The fluid’s kinetic energy rotates the turbine at a speed directly proportional to the volumetric flow rate. A magnetic pickup or optical sensor detects each rotor blade passage, generating electrical pulses that electronics convert into flow rate and totalized volume measurements.

This turbine flow meter working principle provides several inherent advantages: linear response across wide flow ranges, excellent repeatability, minimal pressure drop, and the ability to handle various liquid viscosities with proper calibration.

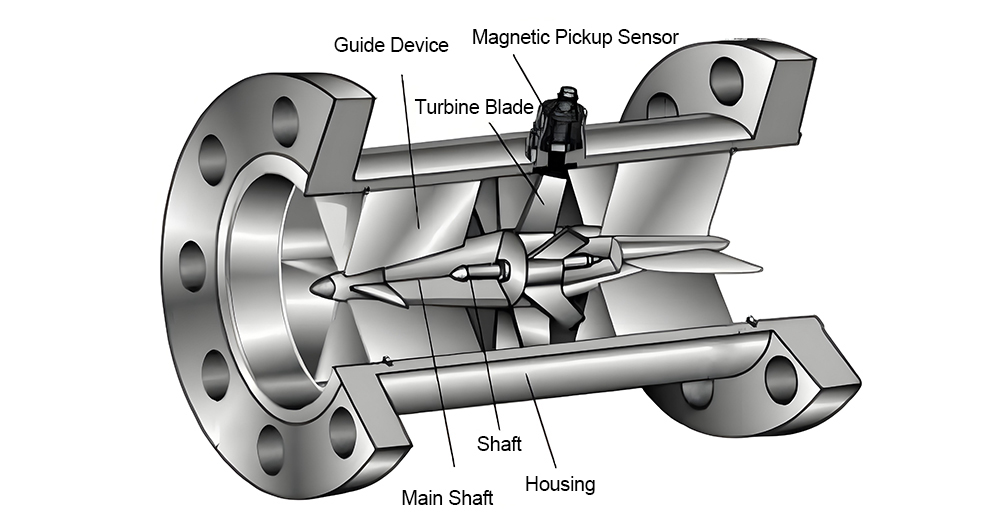

Internal structure diagram illustrating how the turbine rotor and magnetic sensor measure fluid flow.

Key Components and Design Features of Turbine Flow Meter

Modern industrial flow meters incorporate sophisticated engineering to maximize performance:

• Precision-machined rotor: Balanced turbine with optimized blade geometry for low friction and high accuracy
• High-quality bearings: Tungsten carbide or ceramic bearings ensure longevity and consistent performance
• Corrosion-resistant housing: Stainless steel or exotic alloy construction compatible with aggressive chemicals
• Advanced electronics: Microprocessor-based signal processing for enhanced accuracy and diagnostics
• Multiple output options: Pulse, analog (4-20mA), and digital communication protocols

The selected turbine flow sensor models offered accuracy specifications of ±0.5% of reading across a 10:1 turndown ratio, representing a significant improvement over the existing equipment.

Solution Implementation of Turbine Flow Meter

The project team approached the turbine meter implementation systematically to ensure minimal disruption to ongoing operations.

Assessment and Selection Phase of Turbine Flow Meter

Flow meter selection criteria focused on matching device capabilities to specific application requirements:

• Fluid characteristics: Viscosity range, temperature extremes, chemical compatibility
• Flow conditions: Expected flow rates, pressure ratings, pipe sizes
• Accuracy requirements: Process control needs and regulatory standards
• Environmental factors: Installation location conditions, ambient temperature, vibration levels
• Integration needs: Compatibility with existing control systems and data management platforms

After comprehensive evaluation, the team specified precision flow measurement instruments for 12 critical measurement points throughout the facility, selecting models optimized for each specific application.

Looking to optimize your fluid management systems? [Discover how our turbine flow meter solutions can transform your operations with precision and reliability.]

Installation and Commissioning of Turbine Flow Meter

The flow meter installation followed industry best practices to ensure optimal performance:

• Proper piping configuration: Maintained manufacturer-recommended straight run requirements (10 diameters upstream, 5 diameters downstream)
• Flow conditioning: Installed flow straighteners where necessary to eliminate swirl and turbulence
• Professional calibration: Factory-calibrated meters received on-site verification for each specific fluid
• System integration: Connected meters to distributed control system (DCS) via 4-20mA signals and HART protocol
• Training: Conducted comprehensive operator and maintenance personnel training

The phased installation approach allowed the facility to continue operations while upgrading critical measurement points over a six-week implementation period.

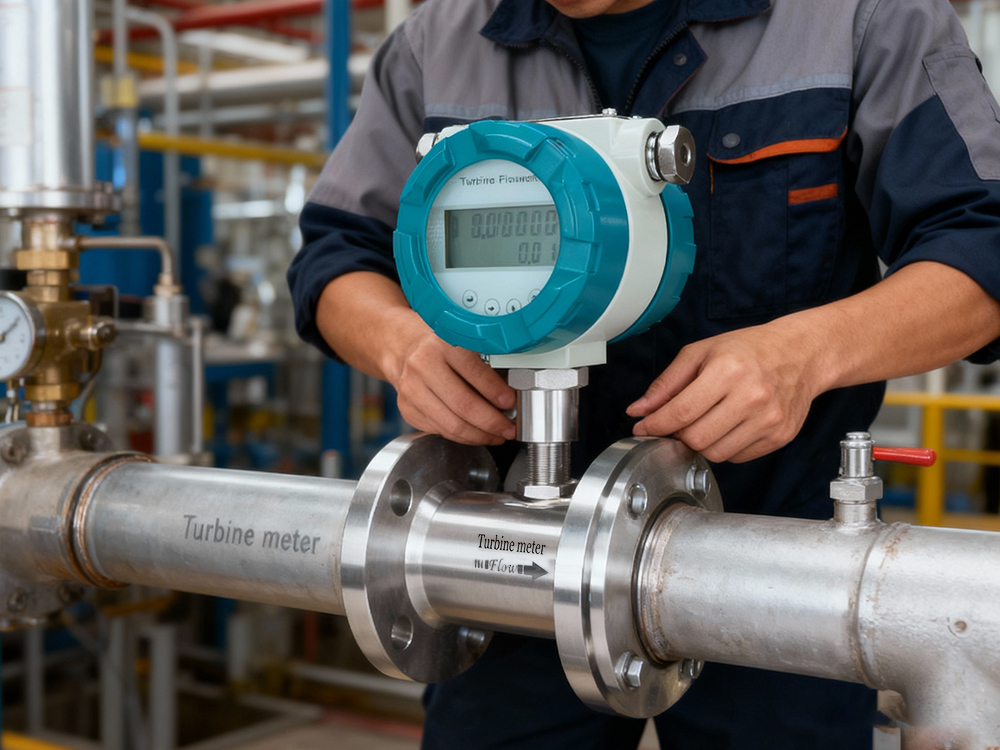

A technician performs professional installation of a turbine flow meter on a chemical process pipeline.

Results and Performance Metrics of Turbine Flow Meter

The turbine flow meter applications delivered substantial, measurable improvements across multiple performance dimensions.

Accuracy and Process Control

Measurement precision improved dramatically from the baseline ±3-5% error to consistent ±0.5% accuracy. This enhancement enabled:

• Tighter process control: Reduced formulation variations by 85%
• Improved product quality: Decreased out-of-specification batches from 8% to less than 1%
• Enhanced consistency: Achieved batch-to-batch variation reduction of 92%

Financial Impact

The flow measurement solution generated significant cost savings and return on investment:

• Raw material savings: Annual reduction in material waste totaling $68,000
• Reduced downtime: Maintenance-related interruptions decreased by 75%, saving approximately 90 production hours annually
• Energy optimization: Improved process efficiency reduced utility costs by 12%
• ROI achievement: Complete capital investment recovery within 14 months

Operational Efficiency

Beyond financial metrics, the volumetric flow meter system enhanced overall operational capabilities:

• Real-time monitoring: Integration with control systems enabled immediate visibility into all fluid streams
• Predictive maintenance: Built-in diagnostics provided early warning of potential issues
• Regulatory compliance: Enhanced measurement accuracy and documentation satisfied audit requirements
• Data-driven optimization: Historical flow data analysis identified additional improvement opportunities

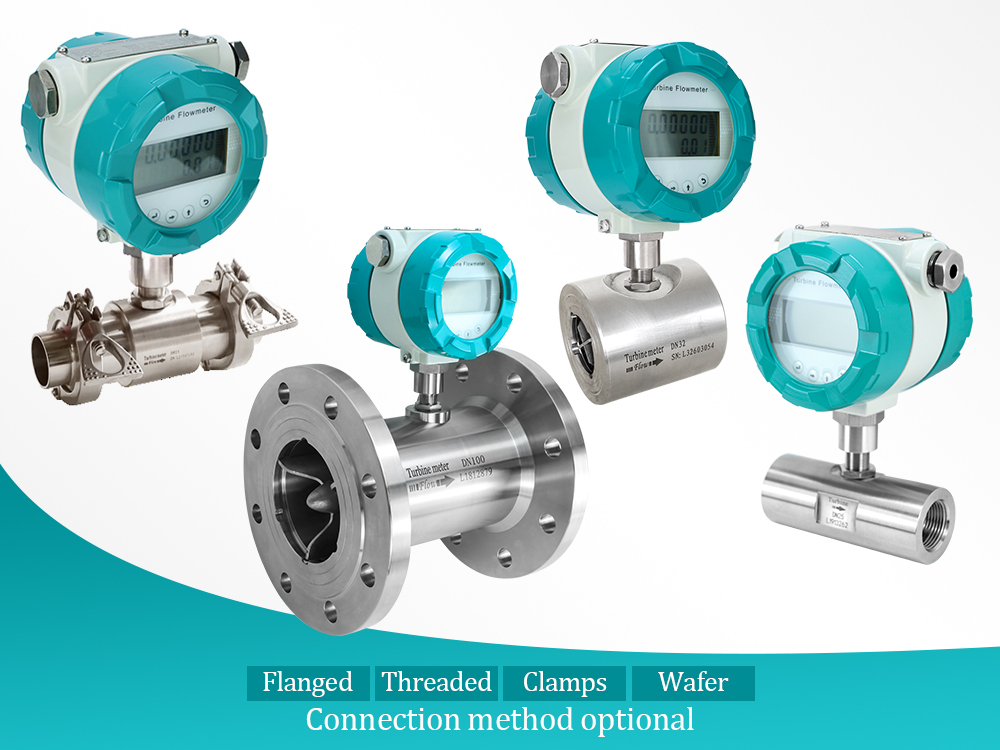

Various turbine flow meter models featuring different connection types for diverse industrial applications.

Technical Insights and Best Practices about Turbine Flow Meter

The successful implementation revealed several critical factors for maximizing turbine meter performance:

Calibration and Maintenance

Establishing rigorous protocols ensured sustained accuracy:

• Regular verification: Quarterly performance checks against reference standards
• Fluid-specific calibration: Recognition that viscosity changes affect meter factors
• Bearing inspection: Annual examination of rotor bearings for wear
• Electronics testing: Periodic verification of signal processing accuracy

System Integration Optimization

Leveraging advanced capabilities enhanced value:

• HART communication: Utilized digital protocol for remote configuration and diagnostics
• Alarm configuration: Set up intelligent alerts for flow anomalies or device issues
• Data logging: Implemented comprehensive flow data recording for analysis and optimization
• Redundancy planning: Installed backup measurement at critical points for business continuity

Lessons Learned and Recommendations

This process flow meter project generated valuable insights applicable to similar implementations:

Success Factors:

• Thorough upfront assessment of application requirements
• Proper device selection matching specific fluid characteristics
• Professional installation following manufacturer specifications
• Comprehensive training for all personnel
• Ongoing performance monitoring and optimization

Challenges Overcome:

• Initial resistance to change from operations staff resolved through demonstration of benefits
• Integration complexity managed through staged implementation
• Budget constraints addressed by phasing investment across fiscal quarters

Ready to achieve similar results in your facility? [Contact our flow measurement experts for a customized assessment of your fluid management needs.]

Industry Applications Beyond This Case

While this flow meter case study focuses on chemical processing, turbine flow meter applications span numerous industries:

• Oil and gas: Custody transfer, pipeline monitoring, refinery operations
• Water and wastewater: Municipal distribution, treatment plant monitoring
• Food and beverage: Ingredient dosing, CIP system monitoring, packaging line control
• Pharmaceuticals: Batch processing, sterile fluid handling, regulatory compliance
• Aerospace: Fuel flow measurement, hydraulic system monitoring
• Power generation: Cooling water flow, fuel metering, steam condensate measurement

The versatility of modern turbine flow sensors makes them adaptable to virtually any liquid flow measurement application where accuracy, reliability, and cost-effectiveness are priorities.

This comprehensive case study demonstrates how implementing precision turbine flow meter technology can transform fluid management operations. The chemical processing facility achieved remarkable improvements in measurement accuracy, operational efficiency, regulatory compliance, and financial performance through careful planning, proper implementation, and ongoing optimization.

The 14-month ROI, combined with sustained operational benefits, validates the investment in quality flow measurement infrastructure. As industries face increasing pressure for efficiency, sustainability, and compliance, reliable flow monitoring systems become not just advantageous but essential for competitive success.

Whether you’re addressing measurement accuracy challenges, reducing operational costs, or upgrading aging infrastructure, turbine flow meters offer proven technology backed by decades of successful applications across diverse industries.

Frequently Asked Questions (FAQ)

Q: What accuracy can I expect from a turbine flow meter?

A: Quality turbine flow meters typically provide accuracy of ±0.5% to ±1% of reading over their specified flow range. High-precision models can achieve ±0.25% accuracy when properly selected, installed, and maintained. Accuracy depends on factors including fluid viscosity, flow rate, and installation conditions.

Q: How long do turbine flow meters last?

A: With proper maintenance, turbine flow meters can provide 10-15 years of reliable service or longer. Bearing quality, fluid cleanliness, and operating conditions significantly impact lifespan. Clean fluids and operation within specified flow ranges maximize longevity.

Q: Can turbine flow meters handle viscous fluids?

A: Yes, but performance varies with viscosity. Low-viscosity fluids (water-like) provide optimal performance. Higher viscosity fluids may require larger meter sizes, special bearing designs, or viscosity compensation. Consult manufacturer specifications for your specific fluid characteristics.

Q: What maintenance do turbine flow meters require?

A: Routine maintenance includes periodic bearing inspection, rotor condition assessment, calibration verification, and electronics testing. Maintenance frequency depends on fluid cleanliness and operating conditions but typically ranges from quarterly to annual intervals.

Q: How do I select the right turbine flow meter size?

A: Select based on your normal operating flow rate, which should fall in the middle 50-80% of the meter’s range for optimal accuracy and longevity. Consider maximum and minimum flow requirements, pressure drop constraints, and installation space availability.

Q: Can turbine meters integrate with modern control systems?

A: Yes, contemporary turbine flow meters offer multiple output options including pulse, 4-20mA analog, and digital protocols (HART, Modbus, Profibus). This flexibility enables seamless integration with virtually any control system or data acquisition platform.
