Mass Flow Meter: What It Measures, Accuracy, and How to Select the Best Coriolis Flow Meter

In modern industrial environments where precision, consistency, and process reliability are critical to operational success, the accurate measurement of fluid flow is no longer optional but essential. Industries such as chemical processing, oil & gas, pharmaceuticals, and food manufacturing all rely heavily on flow measurement data to ensure product quality, optimize energy consumption, and maintain safety standards.

Traditional volumetric flow meters, while widely used, are inherently limited because their measurements are affected by fluctuations in temperature, pressure, and fluid density, which can lead to significant deviations in real-world applications. In contrast, mass flow meters, particularly those based on the Coriolis principle, provide a fundamentally more reliable solution by directly measuring mass flow, thereby eliminating the need for compensation and ensuring consistently accurate results.

As a professional manufacturer, Pokcenser delivers advanced Coriolis mass flow meter solutions that are engineered to perform reliably even in the most demanding industrial conditions.

What Does a Mass Flow Meter Measure? A Comprehensive Multi-Parameter Solution

One of the most significant advantages of a mass flow meter lies in its ability to directly measure mass flow while simultaneously providing multiple process variables, allowing it to function as a highly integrated measurement solution across a wide range of industries and applications.

1. Direct Mass Flow Measurement for Maximum Accuracy

Unlike traditional flow meters that require indirect calculations, a mass flow meter directly outputs mass flow rate (e.g., kg/h or g/s), which is particularly important in processes where even small deviations can result in product inconsistency or material waste.

For example, in the chemical industry, maintaining the precise ratio of reactants is essential for ensuring stable reactions and preventing costly errors, while in pharmaceutical and food applications, strict regulatory requirements demand highly accurate and repeatable measurement of liquids such as syrups, oils, and medicinal fluids.

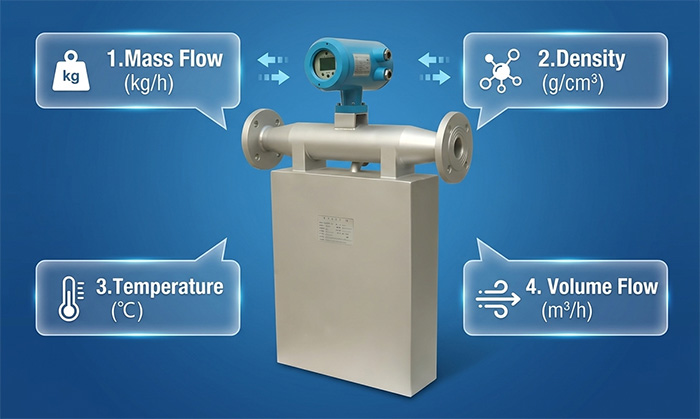

2. Simultaneous Measurement of Multiple Critical Parameters

In addition to mass flow, modern Coriolis flow meters are capable of measuring several other key parameters in real time, which significantly reduces the need for additional instrumentation and simplifies system design:

• Volume Flow Rate, automatically calculated using real-time density data
• Fluid Density, enabling monitoring of composition, purity, or process changes
• Temperature, measured via integrated sensors to eliminate external devices

This “multi-variable measurement capability” not only improves operational efficiency but also reduces overall system cost and maintenance complexity.

3. Exceptional Performance in Complex and Challenging Media

Mass flow meters are particularly well-suited for applications involving difficult or unconventional media that often cause issues for traditional measurement technologies.

These include:

• High-viscosity fluids such as lubricants, resins, and coatings
• Slurries and media containing solid particles, such as pulp or mining slurry
• Corrosive chemicals, including acids, alkalis, and industrial solvents

By using advanced materials and robust structural designs, Coriolis mass flow meters ensure stable and reliable measurement even under harsh operating conditions.

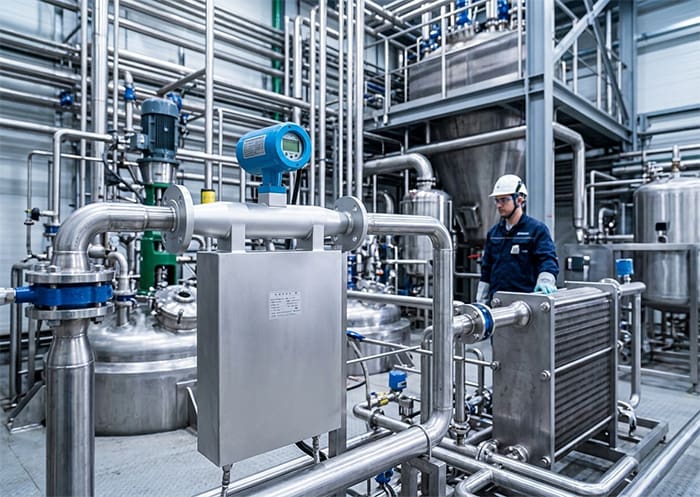

Recommended Solution: Pokcenser PWF-CMF Coriolis Mass Flow Meter

For industries that require high precision, durability, and flexibility, the PWF-CMF Coriolis Mass Flow Meter from Pokcenser is specifically designed to meet these demands while delivering consistent performance across a wide range of applications.

Technical Features

• Accuracy: ±0.2%FS, with high-end options up to ±0.1%FS
• Nominal Diameter: DN1 to DN200, covering both small and large flow rates
• Measurement Parameters: Mass flow, volume flow, density, and temperature
• Installation Type: Integrated or remote configurations available
• Operating Temperature Range: -60°C to +300°C, suitable for extreme conditions

 Key Advantages

The PWF-CMF series offers a combination of performance and reliability that makes it stand out in industrial environments:

• Capability to measure liquids, gases, slurries, and food-grade media
• No moving parts, reducing wear and extending service life
• Flexible installation with minimal straight pipe requirements
• Excellent corrosion resistance through stainless steel or Hastelloy options
• Stable operation even in environments with vibration, humidity, or dust

Typical Industry Applications

This solution is widely used across multiple sectors, including:

• Chemical processing
• Oil and gas production
• Food and beverage manufacturing
• Pharmaceutical industry
• Water and wastewater treatment
• Energy and petroleum refining
• Research laboratories

How Accurate is a Mass Flow Meter? Understanding Industry-Leading Precision

Accuracy is widely recognized as the defining advantage of Coriolis mass flow meters, and it is one of the main reasons why they are increasingly replacing traditional flow measurement technologies.

Mass Flow Accuracy

Under stable operating conditions, typical accuracy ranges from ±0.1% to ±0.5% of full scale (FS), while high-end models can achieve even higher precision levels, making them suitable for applications such as custody transfer and high-precision process control.

Density Measurement Accuracy

Mass flow meters also provide highly accurate density measurements, typically within ±0.001 to ±0.005 g/cm³, which enables real-time monitoring of fluid composition and process conditions.

Factors That Influence Accuracy in Practice

Although mass flow meters are highly precise, their performance can still be influenced by external factors, including:

• Mechanical vibration during installation
• Presence of air bubbles in liquids or dust in gases
• Improper selection of measurement range

For optimal performance, it is recommended that the operating flow rate be maintained within 30% to 80% of the meter’s full scale range.

Why Choose Pokcenser as Your Mass Flow Meter Supplier?

Choosing the right supplier is just as important as selecting the right product, especially when dealing with critical measurement applications.

With years of experience in flow measurement technology, Pokcenser provides not only high-quality instruments but also complete solutions tailored to specific industrial requirements.

1. Advanced Technology and Proven Accuracy

By leveraging Coriolis measurement principles and high-quality components, Pokcenser ensures consistent accuracy and long-term stability.

2. Strong Adaptability to Industrial Conditions

From corrosive chemicals to high-viscosity fluids, Pokcenser products are designed to handle a wide range of challenging environments.

3. Long-Term Reliability and Low Maintenance

With no moving parts and robust construction, these flow meters offer extended service life and reduced maintenance costs.

FAQ

Q1: What is the main advantage of a mass flow meter?

A: The primary advantage is its ability to measure mass flow directly, eliminating errors caused by changes in temperature, pressure, or density.

Q2: Can Coriolis mass flow meters be used for gases?

A: Yes, they are suitable for both liquids and gases and provide high accuracy in both cases.

Q3: How do I select the right mass flow meter model?

A: Selection should be based on factors such as fluid type, flow range, operating conditions, and required accuracy.

Q4: Are mass flow meters suitable for corrosive media?

A: Yes, especially when constructed with materials such as Hastelloy or stainless steel, making them ideal for chemical applications.

Contact Pokcenser for Expert Support

If you are looking for a high-precision, reliable, and cost-effective mass flow meter solution, Pokcenser offers professional support from product selection to installation and after-sales service.

Contact us today for a customized solution and competitive quotation, and take your process measurement accuracy to the next level.
