Piezoresistive Pressure Sensors vs. Ceramic Pressure Sensors: A Comprehensive Comparison

Pressure measurement plays a critical role across many industries. From monitoring blood pressure in healthcare devices to ensuring accurate oil and fuel management in automotive systems, pressure sensors are indispensable for safety, efficiency, and performance.

Among the wide range of pressure sensor technologies available today, two stand out for their popularity and reliability: Piezoresistive Pressure Sensors and Ceramic Pressure Sensors. Each has unique characteristics, advantages, and trade-offs that make them better suited for specific applications.

This article provides an in-depth comparison between Piezoresistive and Ceramic pressure sensor technologies. We will explore how they work, evaluate their strengths and weaknesses, and discuss their applications across different industries. By the end, you will have a clear understanding of which type of sensor best fits your needs.

How Do These Piezoresistive Pressure Sensors Work?

Piezoresistive Pressure Sensors operate on the principle of the piezoresistive effect, where the electrical resistance of a material changes when mechanical stress is applied. Typically, these sensors use semiconductor materials such as silicon. When pressure is applied to a diaphragm, the resulting strain alters the resistance of embedded resistors. The change in resistance is then converted into an electrical signal that can be processed and measured.

Key features of Piezoresistive Pressure Sensors include:

• High sensitivity: Ideal for detecting very small pressure variations.
• Compact size: Suitable for miniaturized medical and consumer applications.
• Low cost: Economical for mass-market devices.
• Temperature sensitivity: Requires compensation circuits to ensure accuracy.

Because of their ability to detect minute changes in pressure, Piezoresistive Pressure Sensors are widely used in healthcare equipment such as blood pressure monitors and respiratory devices.

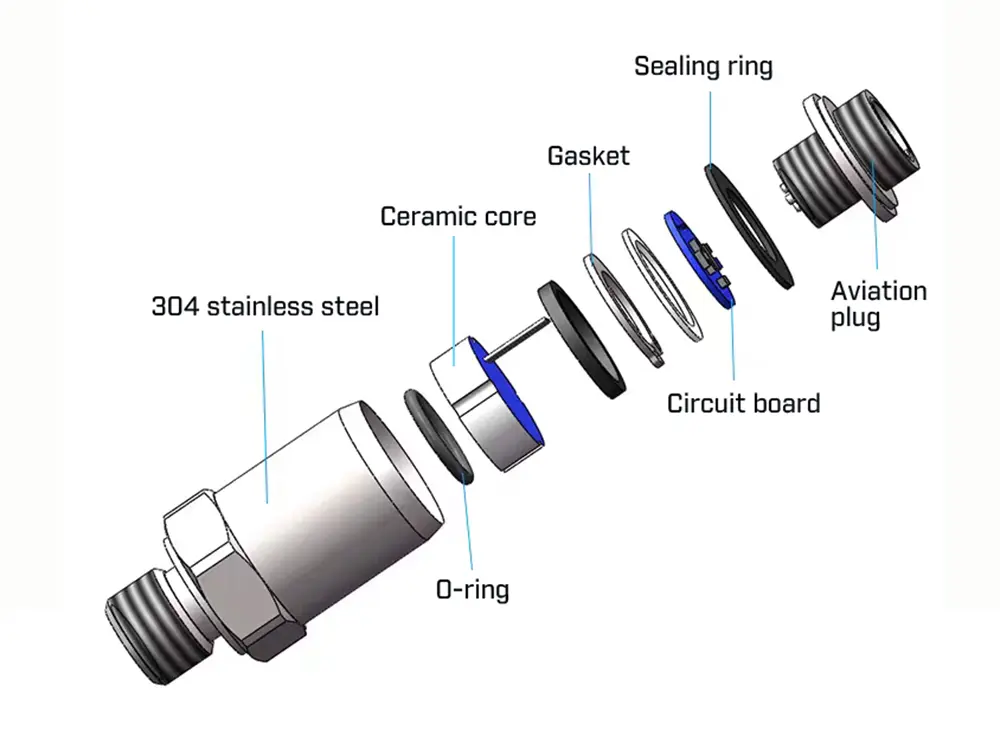

How Do Ceramic Pressure Sensors  Work?

Ceramic Pressure Sensors use a robust ceramic diaphragm as the sensing element. When pressure is applied, the diaphragm deforms slightly, and this deformation is translated into either resistive or capacitive changes. The use of ceramic material provides exceptional mechanical stability, making these sensors durable and reliable even under harsh conditions.

Key features of Ceramic Pressure Sensors include:

• High stability over time: Minimal signal drift.
• Corrosion resistance: Excellent for aggressive or humid environments.
• Wide temperature range: Performs well in both high and low temperatures.
• Mechanical strength: Resistant to shock and vibration.

These qualities make Ceramic Pressure Sensors a preferred choice in industries such as automotive, aerospace, and industrial automation, where reliability and durability are crucial.

Performance Comparison

Sensitivity and Accuracy

• Piezoresistive Pressure Sensors: Known for their high sensitivity and ability to detect micro-pressure changes. They deliver very precise readings, which is why they are widely adopted in medical and laboratory environments where accuracy is critical.
• Ceramic Pressure Sensors: While slightly less sensitive, they offer excellent long-term stability and consistent accuracy even under fluctuating environmental conditions.

The Temperature Characteristics of Piezoresistive&Ceramic Pressure Sensors

• Piezoresistive Pressure Sensors: Tend to exhibit temperature drift, which means their readings can be influenced by changes in temperature. Manufacturers often add temperature compensation circuits to correct this.
• Ceramic Pressure Sensors: Have superior temperature performance. Ceramic materials naturally resist thermal effects, allowing the sensors to deliver stable and accurate readings across a wide temperature range.

Environmental Resistance of Piezoresistive&Ceramic Pressure Sensors

• Piezoresistive Pressure Sensors: These sensors are less resistant to harsh conditions. They can be vulnerable to moisture, corrosive substances, and high vibration.
• Ceramic Pressure Sensors: Extremely robust against corrosion, shock, and vibration. They are well-suited for aggressive environments such as chemical plants or automotive engines.

Cost and Reliability of Piezoresistive&Ceramic Pressure Sensors

• Piezoresistive Pressure Sensors: Generally cost-effective and easier to manufacture at scale. However, they may require additional compensation circuits, which can increase overall system cost in some applications.
• Ceramic Pressure Sensors: More expensive to produce, but their long lifespan and high reliability often justify the higher initial investment in industrial or safety-critical systems.

Applications of Piezoresistive and Ceramic Pressure Sensors

Piezoresistive Pressure Sensors Applications

1. Medical Equipment: Blood pressure monitors, ventilators, and infusion pumps rely heavily on Piezoresistive Pressure Sensors for precise readings.
2. Consumer Electronics: Smartphones, wearables, and IoT devices use these sensors for altitude detection and environmental monitoring.
3. Low-Pressure Environments: Suitable for applications where even the smallest pressure changes need to be captured accurately.

Ceramic Pressure Sensors Applications

1. Industrial Automation: Used in hydraulic and pneumatic systems due to their durability and resistance to harsh chemicals.
2. Automotive Systems: Essential for monitoring oil pressure, coolant pressure, and fuel systems.
3. Aerospace and Defense: Ceramic Pressure Sensors thrive in high-stress environments, where reliability is a top priority.
4. Harsh Environments: Perfect for marine, chemical, or high-temperature applications where metal or semiconductor-based sensors might fail.

Advantages and Disadvantages of Piezoresistive & Ceramic Pressure Transducer

Conclusion

Both Piezoresistive Pressure Sensors and Ceramic Pressure Sensors have earned their place in modern industry.

• Piezoresistive Pressure Sensors are the go-to option when high sensitivity, compact size, and cost-effectiveness are the main requirements. They shine in healthcare, consumer electronics, and precision applications where even the smallest variations in pressure must be detected.
• Ceramic Pressure Sensors, on the other hand, dominate in environments where reliability, durability, and resistance to harsh conditions are more important than extreme sensitivity. They excel in industrial, automotive, and aerospace systems where long-term stability is essential.

Ultimately, the choice between these two technologies depends on your application’s specific requirements. If cost and sensitivity are key, Piezoresistive Pressure Sensors are the better choice. If reliability, environmental resistance, and longevity are critical, Ceramic Pressure Sensors are the superior option.

By understanding the strengths and weaknesses of each sensor type, engineers and decision-makers can ensure they select the right solution to optimize performance, safety, and efficiency in their systems.

Looking for the right pressure sensor solution? Whether you need the high sensitivity of Piezoresistive Pressure Sensors or the durability of Ceramic Pressure Sensors, our experts can guide you. Contact us today to find the best fit for your application.

FAQ:

1. What are Piezoresistive Pressure Sensors?

Piezoresistive Pressure Sensors use the piezoresistive effect, where the resistance of a material changes under pressure or stress. They are highly sensitive and often used in medical devices, consumer electronics, and low-pressure measurement applications.

2. What are Ceramic Pressure Sensors?

Ceramic Pressure Sensors use a ceramic diaphragm to detect pressure changes. They are durable, resistant to corrosion, and perform well in harsh environments, making them suitable for industrial, automotive, and aerospace applications.

3. Which is more accurate: Piezoresistive or Ceramic Pressure Sensors?

Piezoresistive Pressure Sensors generally provide higher sensitivity and precision for detecting small pressure variations. Ceramic Pressure Sensors offer stable and reliable accuracy over time, especially in challenging environments.

4. How do temperature changes affect these sensors?

• Piezoresistive Pressure Sensors: Can be affected by temperature drift and usually require compensation circuits.
• Ceramic Pressure Sensors: Naturally resistant to thermal effects and maintain stability across a wide temperature range.

5. Which type of sensor is more durable?

Ceramic Pressure Sensors are more durable. Their ceramic construction provides excellent resistance to corrosion, shock, and vibration. Piezoresistive Pressure Sensors are less robust in harsh or humid conditions.

6. What industries commonly use Piezoresistive Pressure Sensors?

They are widely used in healthcare (blood pressure monitors, ventilators), consumer electronics (wearables, smartphones), and scientific instruments requiring high sensitivity.

7. What industries commonly use Ceramic Pressure Sensors?

Ceramic Pressure Sensors are found in automotive systems (oil, fuel, and coolant pressure monitoring), industrial automation, aerospace, and other applications requiring long-term reliability in harsh environments.

8. Are Piezoresistive Pressure Sensors cheaper than Ceramic Pressure Sensors?

Yes. Piezoresistive Pressure Sensors are typically less expensive to manufacture and are cost-effective for large-scale applications. Ceramic Pressure Sensors are more costly upfront but often provide better long-term value due to their reliability and lifespan.

9. How do I choose between Piezoresistive and Ceramic Pressure Sensors?

If your application requires high sensitivity, compact size, and low cost, choose Piezoresistive Pressure Sensors. If you need durability, resistance to harsh environments, and long-term stability, opt for Ceramic Pressure Sensors.
