Dissolved Oxygen Sensor
Dissolved oxygen (DO) comes from two main sources: the atmosphere and photosynthesis. Most aquatic organisms require DO to survive and it is important for chemical processes in aquatic environments.
Dissolved oxygen probes work by measuring the amount of oxygen that diffuses across a permeable (or semi-permeable) membrane into a probe (sensor). Once oxygen is inside the sensor, a chemical reduction reaction occurs, producing an electrical signal. This signal is read by the DO probe and is displayed on a meter. Pokcenser provide two categories of dissolved oxygen sensors: optical and polarographic. DO sensor for fish farming is so important.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

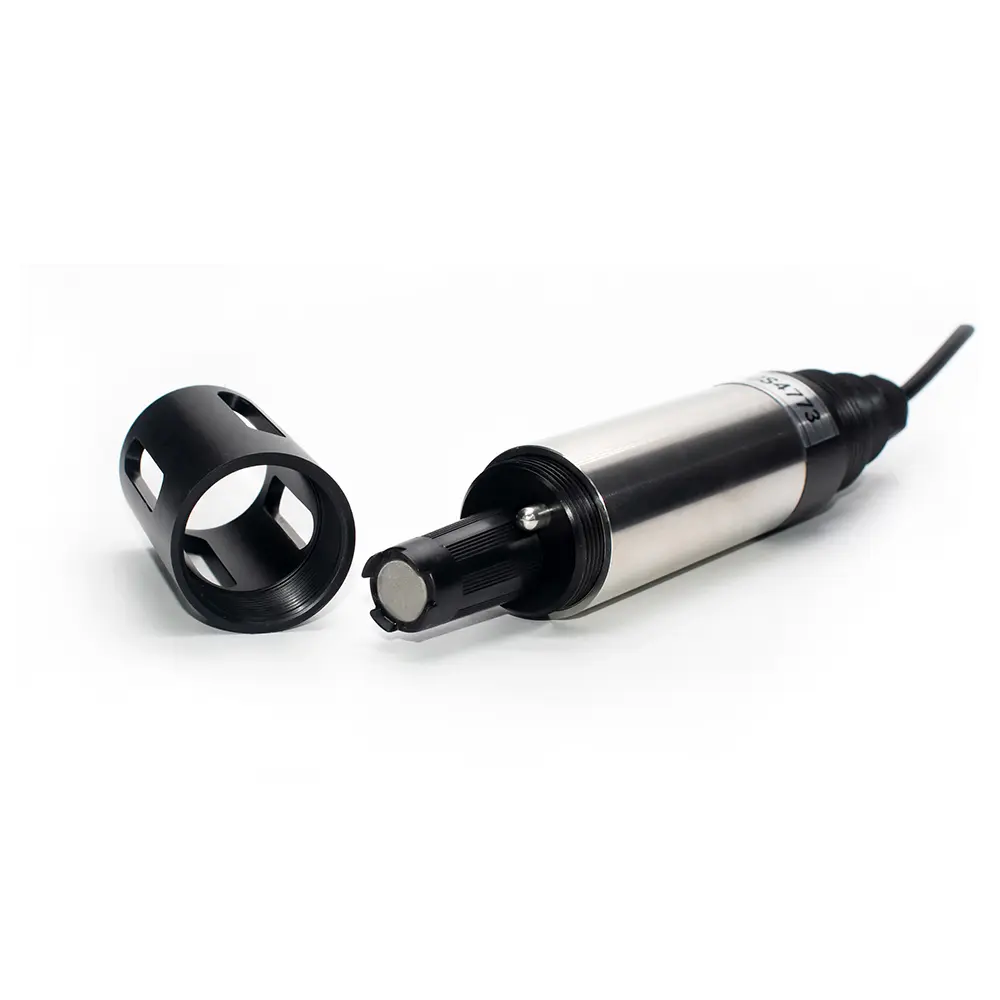

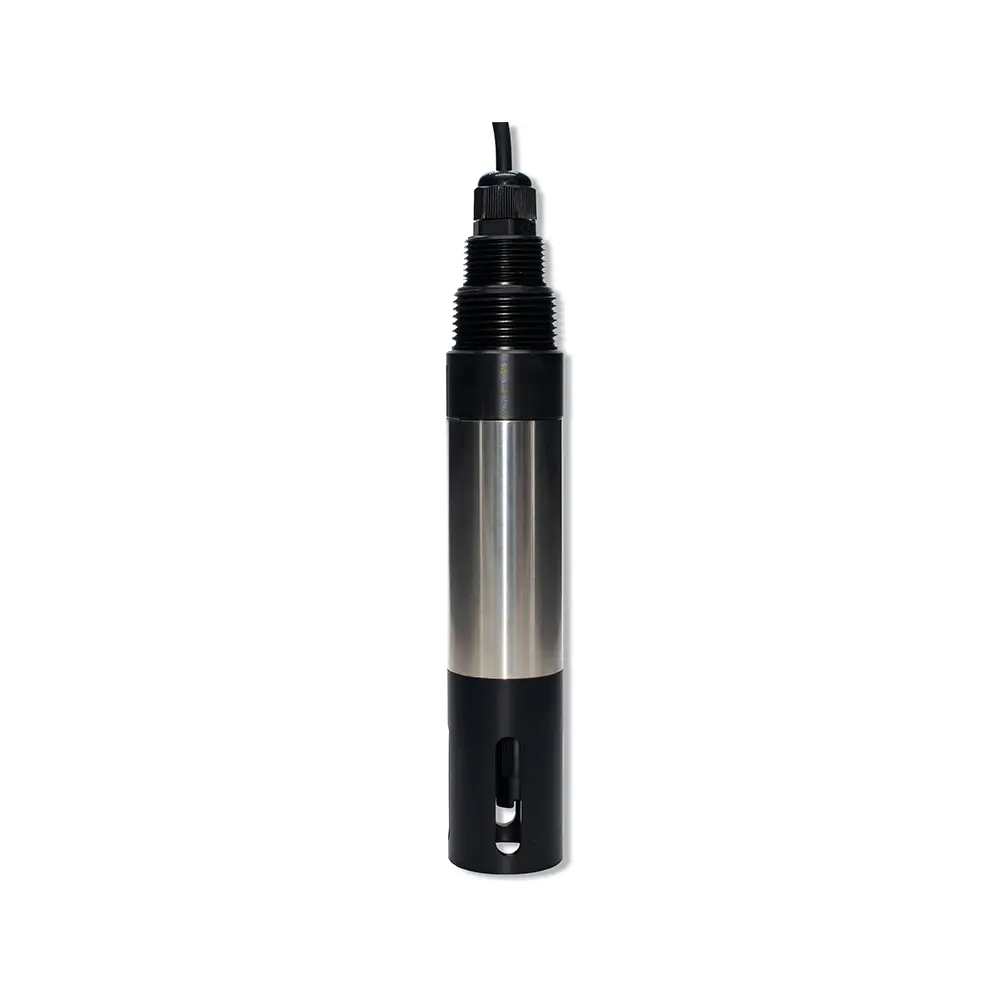

PCS4773D Digital Dissolved Oxygen Sensor(Diaphragm electrode method)
Features
- Polarographic/Diaphragm electrode method
- 0-20mg/L 0-200% measuring range
- With temperature measurement and temperature compensation
- Shell material: POM + 316 stainless steel
Applications
- General application
- Drinking water
- Environmental sewage
- River and lake water quality
Advantages
- High accuracy ±1%F.S.
- IP68 water proof
- Digital sensor, strong anti-interference ability, high stability, long transmission distance.
The diaphragm electrode method DO sensor with temperature compensation is a dissolved oxygen meter with membrane caps. The do sensor with modbus protocol is widely used for remote monitoring.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PCS4773D Digital Dissolved Oxygen Sensor(Diaphragm electrode method) | Sep 28, 2025 |
Technical Parameters
| Model | PCS4773D |
| Power supply | 9~36VDC |
| Output | RS485 MODBUS RTU |
| Measuring method | Polarography(diaphragm electrode method) |
| Shell material | POM + 316 stainless steel |
| Waterproof grade | IP68 |
| Measurement range | 0-20mg/L, 0-200% |
| Measurement accuracy | ±1%F.S |
| Pressure range | ≤0.3Mpa |
| Temperature compensation | NTC10K |
| Temperature range | 0-50℃ |
| Calibration | Oxygen-free water calibration, air calibration |
| Connection method | 4-core cable |
| Cable length | 10m cable as standard (Customizable max 100m) |
| Installation thread | NPT3/4'' + 1” rear thread |
| Scope of application | General application, drinking water, environmental sewage, river and lake water quality |
