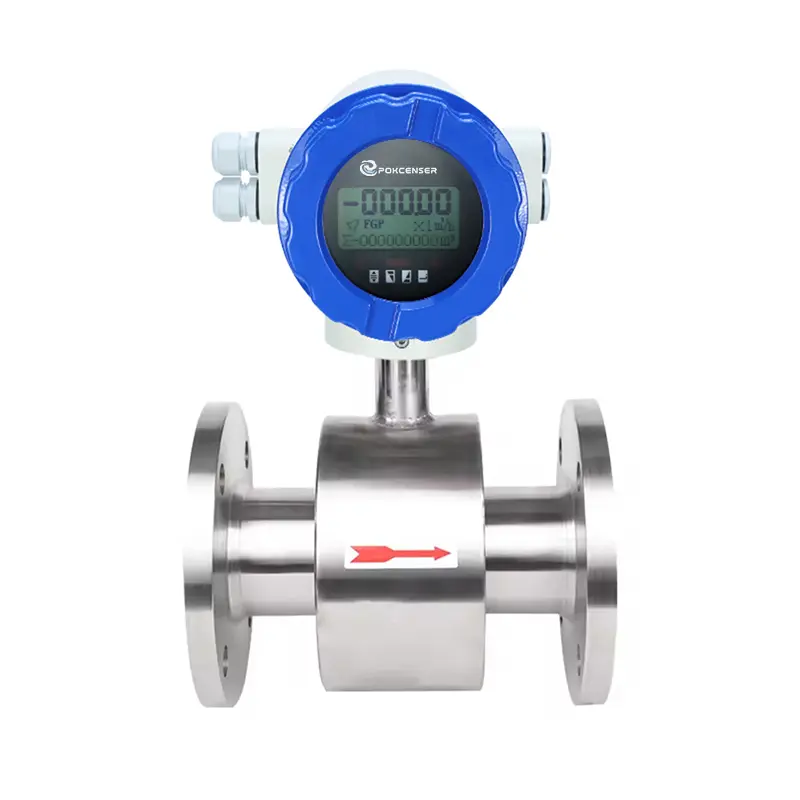

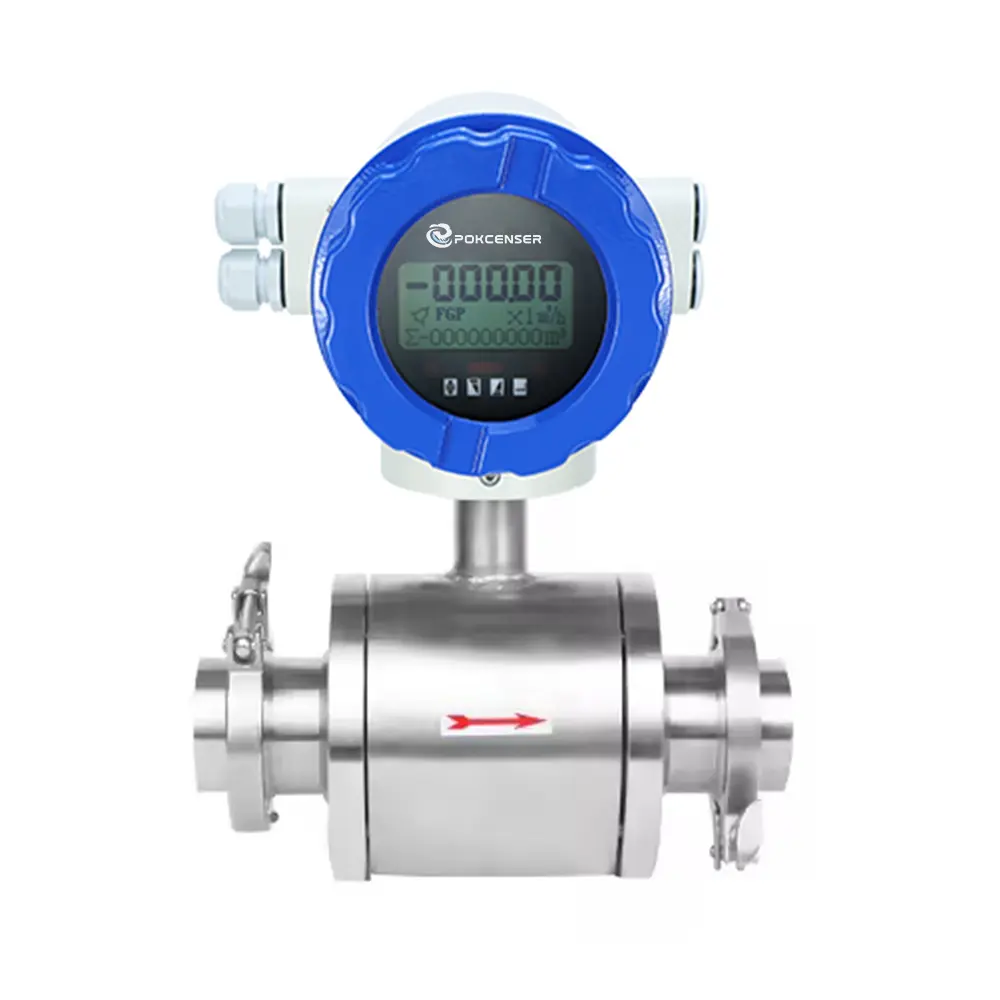

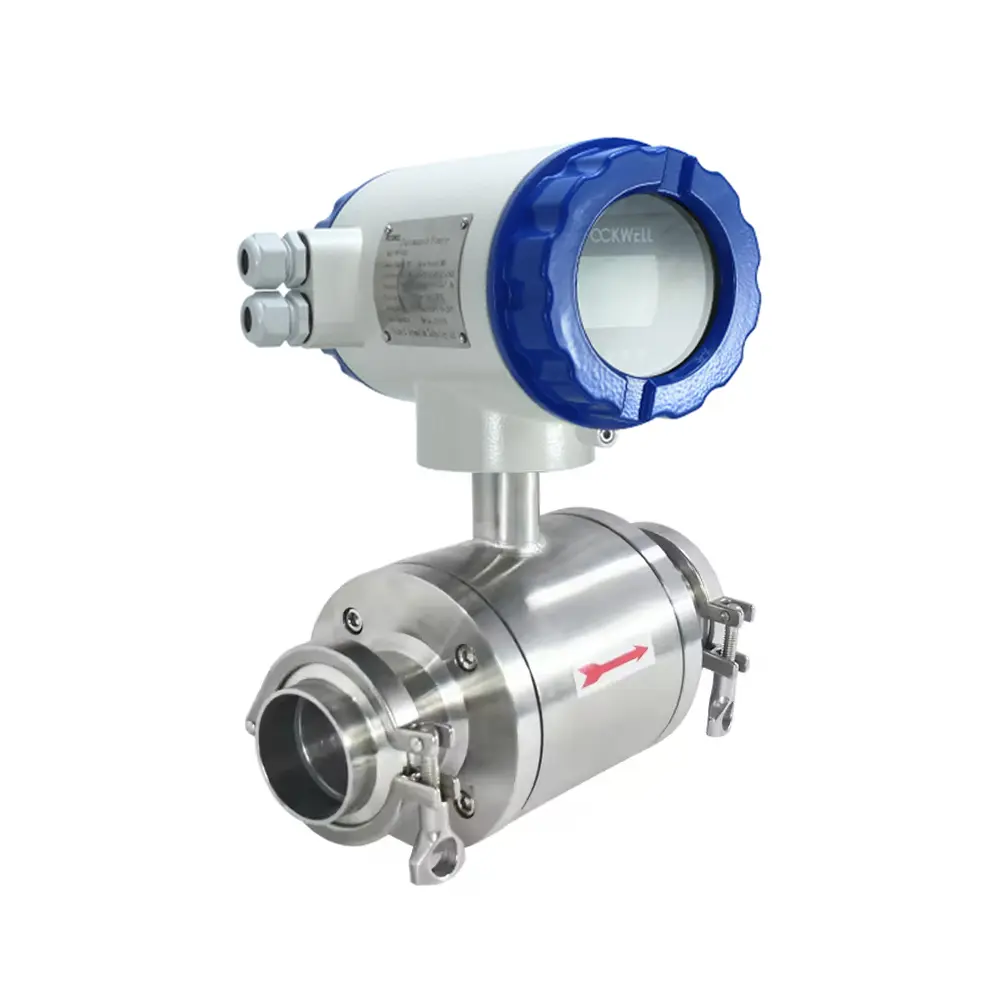

PWF-E1220 Sanitary Electromagnetic Flow Meter

Features

High-definition LCD Backlight Display.
Multi-functional Intelligent Converter
Customized quantitative control
Various outputs: 4-20mA, pulse, frequency, RS485, HART, PROFIBUS.
Process Connection: Clamps, flanged, SMS
0.5%FS and 0.3%FS high measurement accuracy.

PWF-E1220 Sanitary Electromagnetic Flow Meter

Applications

Mineral water
Brewing
Fruit juice
Dairy
Jam
Soy sauce
Other food manufacturing process

Request Price PDF Download

Advantages

Rapid response and high stability, strong anti-interference ability.
No additional pressure drop.
Using the quick connection scheme, the electromagnetic flowmeter is easy to disassemble, maintain and clean
Compact and remote version are available
Housing is made of stainless steel and has a long service life.

The Sanitary Electromagnetic Flow Meter adopts a new hygienic lining material and process, which meets the hygiene requirements of the food industry. Equipped with a stainless steel housing and SUS304 or SS316L stainless steel clamps or flanges connection to enable quick disassembly and cleaning. Tri-clamp sanitary magmeter for a wide range of food, beverage and pharmaceutical applications. According to its application, the types of electromagnetic flowmeter have Magnetic Water Flow Meter, Magnetic Sanitary Flow Meter, Magnetic Stainless Steel Flow Meter, Magnetic Battery Operated Flow Meter...

Resources

Datasheet

File Name	Time	Type	Download
PWF-E1220 Sanitary Electromagnetic Flow Meter	Sep 23, 2025	PDF

Technical Parameters

Model	PWF-E1220: Sanitary Integrated Type Electromagnetic Flow Meter PWF-E1220S: Sanitary Segregate Type Electromagnetic Flow Meter
Meter Diameter	DN6-DN200mm
Measurable Medias	Food and wine industry
Accuracy	±0.5%FS(Typical), ±0.3%FS by customized
Signal Output	4-20mA/Pulse/Frequency/RS485/RS232/HART/Relay/GPRS/Profibus
Power Supply	24VDC/12VDC/85~265VAC/Battery
Display	LCD/OLED
Working Temp.	-25℃~150℃
Working Pressure	0.6MPa-25Mpa
Protection Level	IP65/IP67/IP68
Housing Material	SUS304 and 316L optional
Electrode Material	316L/Titanium/Tantalum/Hastelloy/Platinum etc
Lining Material	PTFE, F46, PFA
Installation Method	Flanged, Clamps, SMS
Grounding Electrode	With
Grounding Rings	Optional
Cable Length	10 meters for segregate type
