Ultrasonic Flow Meter
The clamp on ultrasonic flow meter for water, it is non-contact ultrasonic flow meter BTU meter heat meter and non-invasive flow meter, utilizes the transit-time, or also known as “time of flight” principle to measure the velocity of relatively clean liquids in full pipes. It features clamp on(strap on) designs with transducer arrangements that can detect in-site flow rates from outside of the pipework, without any interruption to flow or process. Clamp on ultrasonic flow meter with logger are specially chosen for water application, such as potable water, wastewater, cooling and heating water, ultrapure water. In this series we provide in-line ultrasonic flow meters as well as portable ultrasonic flow meter.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

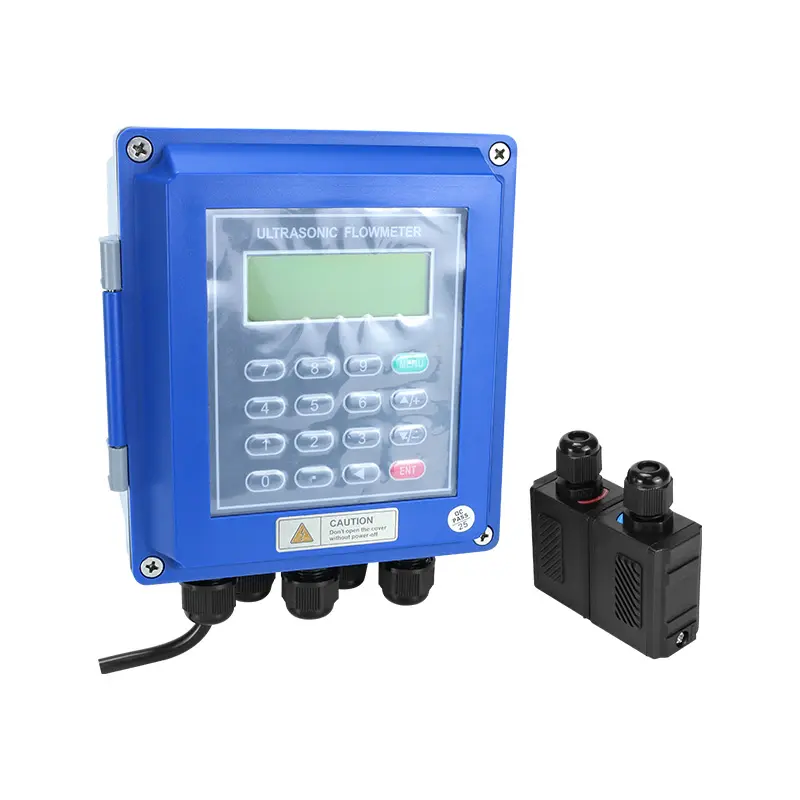

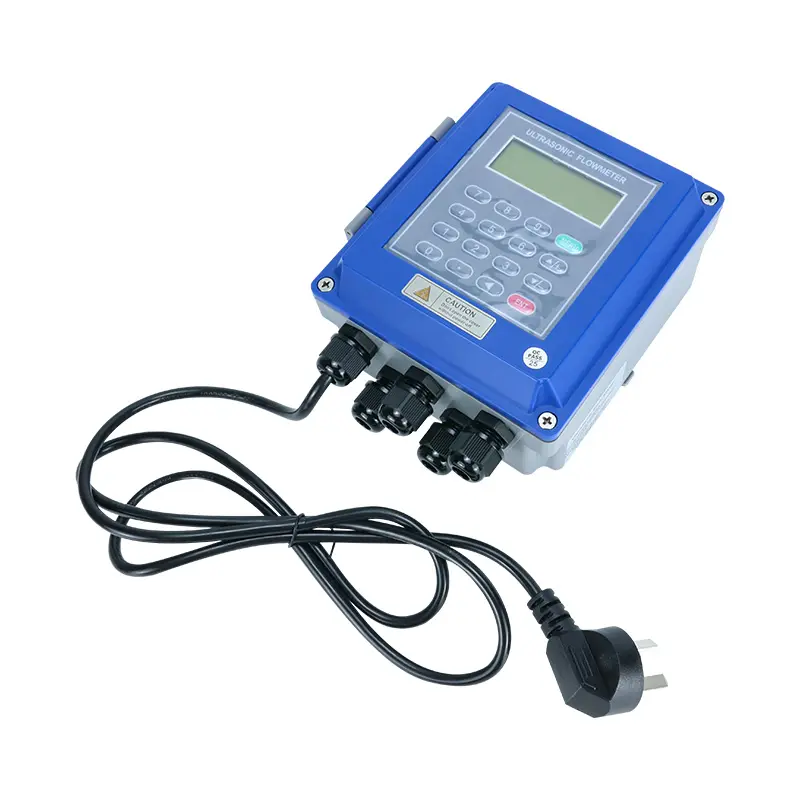

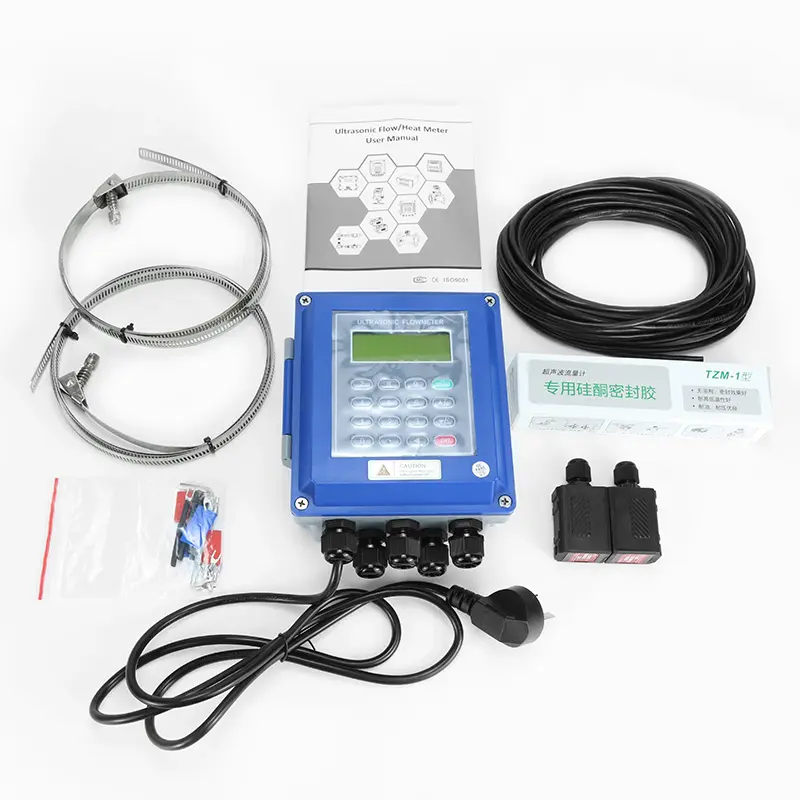

PWF-U2000B Wall mount Ultrasonic Flow Meter
Features
- Measurement accuracy ±1%FS
- Wide range of pipe materials and sizes: DN15 to DN6000
- Process temperature from -40℃ to 160℃
- Powerful recording function, record the totalizer data of the last 64 days/64 months/5 years
- Protection level: Converter IP67, sensor IP65/IP68
Applications
- Water distribution flow metering
- Leak detection
- Wastewater flow-metering
- Building services
- Power/Energy management
- Inspection of fixed installation meters
- Pump inspection
- Light industrial
Advantages
- Non-invasive flow monitoring
- Measurement of non-conductive fluids

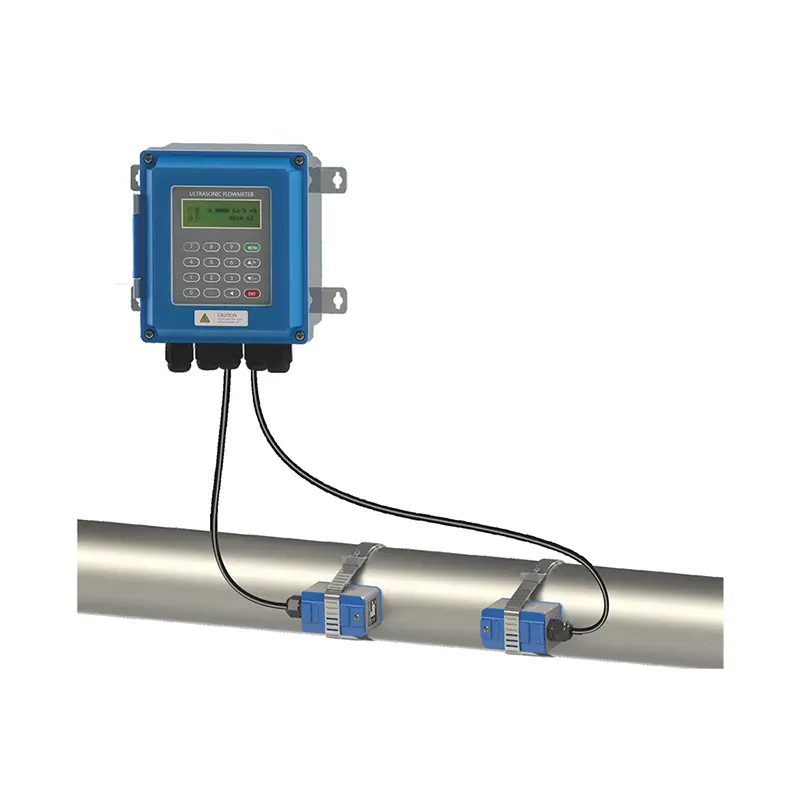

- Easy installed clamp-on sensors with no interruption to flow
- High reliability: Low voltage, multi-pulse transmission circuit, high measuring accuracy, long service life.
- Integrated heat/energy measurement
- Strong anti-interference ability: Adopt dual balanced signal differential transmission and receiving circuit.
Clamp on ultrasonic flowmeter is used for long-term online measurement of various liquid flows. The converter protection level is IP67, sensor is IP65/IP68. The PT100 temperature sensors can be connected to achieve heat measurement. Clamp on ultrasonic flow meter with modbus can be used for production monitoring, water balance debugging, heat network balance debugging, and energy-saving monitoring. Clamp on ultrasonic flow meter for pipelines is an important flow measurement instrument in the production process.
Resources
Technical Parameters
| Model | PWF-U2000B |
| Pipe Diameter | DN15~DN6000mm |
| Accuracy | ±1.0%FS |
| Signal Output | 4-20mA/Pulse/RS485/Relay |
| Power Supply | DC8~36V or AC85~264V |
| Display | LCD |
| Working Temp. | Converter: -20~60℃; Sensor -30~160℃ |
| Protection Level | Transmitter IP67; Sensor IP65/IP68 |
| Housing Material | ABS |
| Liquid Velocity | 0~±10m/s |
| Sensor Installation Method | Clamp on/Insertion type/Pipe section |
| Transmitter Installation | Wall mounted |
| Cable Length | 2*5 meters |
| Heat/Energy measurement | Available to connect 3-wire PT100 platinum resistor |
| Recording Function | Last 64 days/ 64 months/ 5 years |
