Magnetostrictive Probe

Magnetostrictive Liquid Level Meter is an important part for ATG(Automatic Tank Gauging) system. It integrates several parameters for the convenience of tank fuel management system of petrol station/oil depot, with just one probe it can output: fuel level, fuel volume, fuel temperature, water level and water volume, high&low fuel level warning in one tank. So to provide reliable and convenience data for tank gauging system. The excellent accuracy of ±0.3mm and resolution of 0.023mm make it ideal for fuel level measurement and monitoring.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

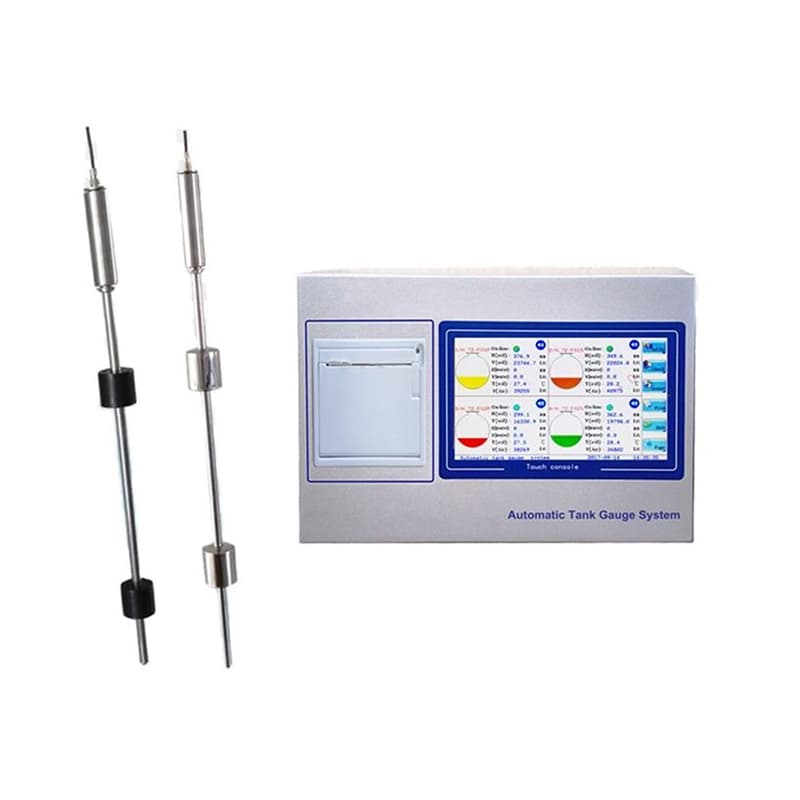

PWL-M200 Magnetostrictive Level Probe

Features

  • Accurate measurement: ±0.3mm, resolution 0.023mm
  • Multi-parameters: Fuel level, water level, fuel volume, Temperature, alarms...
  • Touch console can monitor max 12 tanks and display dynamically the fuel level and water level with colored graphics in proportion
  • Console with an embedded printer(optional) it can print inventory reports, delivery reports, leak reports and shift reports
PWL-M200 Magnetostrictive Level Probe
PWL-M200 Magnetostrictive Level Probe

Applications

  • Aboveground and underground tanks
  • Gasoline
  • Diesel
  • Kerosene
  • Ethanol
  • Water
Request Price PDF Download

Advantages

  • Industrial design, long service life, fast in running
  • Simple installation and maintenance
  • Information is stored in memory for future inquiry
  • After connected with Central Control System through internet, it can provide information for manager to manage the inventory, delivery and the sale of the fuel.

This industrial magnetostrictive level transmitter also called digital magnetostrictive level gauge is an high accuracy and high resolution level sensor for fuel management of gas station/oil depot, with just one probe it can output: fuel level, fuel volume, fuel temperature, water level and water volume, high&low fuel level warning in one tank.

Resources

Datasheet

File NameTimeTypeDownload
PWL-M200 Magnetostrictive Level ProbeSep 25, 2025PDF

Technical Parameters

ModelPWL-M200
PurposeTo measure fuel level, water level, volume and temperature in fuel tanks
MediumsGasoline, diesel, kerosene, ethanol, water
TypeRigid stem
Measuring Range600~2500mm
Accuracy of Level±0.3mm
Accuracy of Temperature±0.2℃
Level Resolution0.023mm
Signal OutputRS485 Modbus RTU
Power Supply24~26VDC
DisplayOptional with external console(controller)
Probe MaterialStainless steel SUS304 or SS316L
Floater Material2.5” stainless steel floater or φ63mm plastic floater
Working Temp.-40~70℃
Working Pressure-0.02MPa~0.6MPa
Blind Area200mm fuel, 25mm water (2.5” floater)
Protection LevelIP67
Inspection Time1s
Installation MethodThreaded or flanged
Explosion-proofExia II BT4 Ga/Exia II AT4
--------
ModelPWD-CM1 Smart Touch Console
PurposeTo display, alarm and store the data from probe
Display ModeEnglish, graphic, LCD
Power SupplyAC220V±10%/50Hz
Working Temperature-40~70℃
Screen7Inch Real-color touch-screen
Connected Tanks1~12 tanks
Sound and Light AlarmAvailable
High/low Fuel Level AlarmAvailable
High Water Level AlarmAvailable
High/low Fuel Temp. AlarmAvailable
Record Storage1 year
Transmission Mode with Magnetostrictive ProbeRS485 Modbus RTU(within 1200m)
Transmission Mode with Central Control System1 interface of RS232 Interface (within 15m)
Analog OutputOptional for 4-20mA, 0-5V or 0.5-4.5V output
Ethernet Port1 port
SD CardOptional
Leakage DetectionOptional
Printer FunctionOptional
Data UploadingOptional
