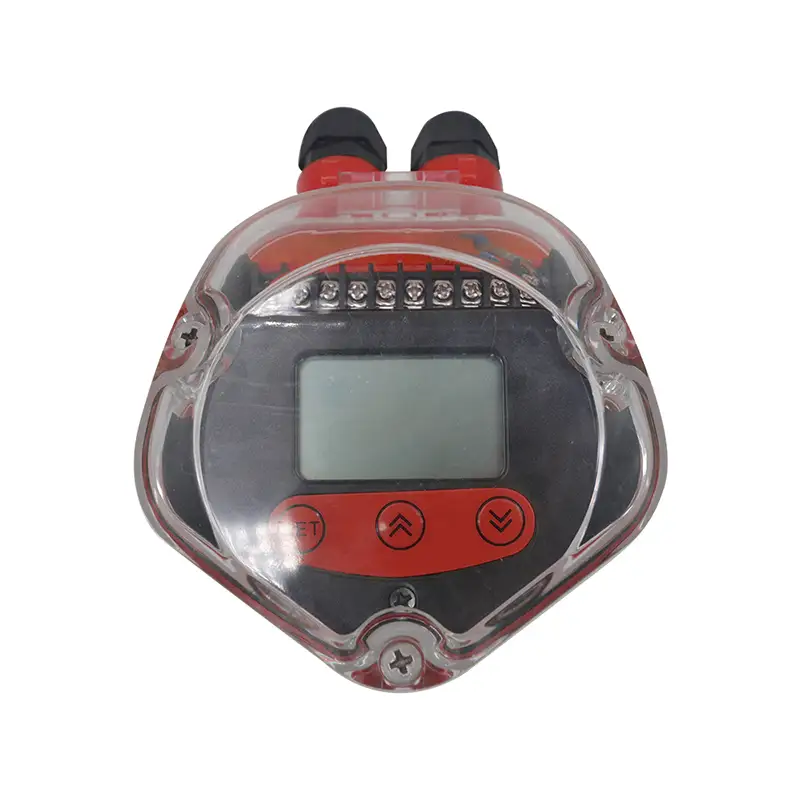

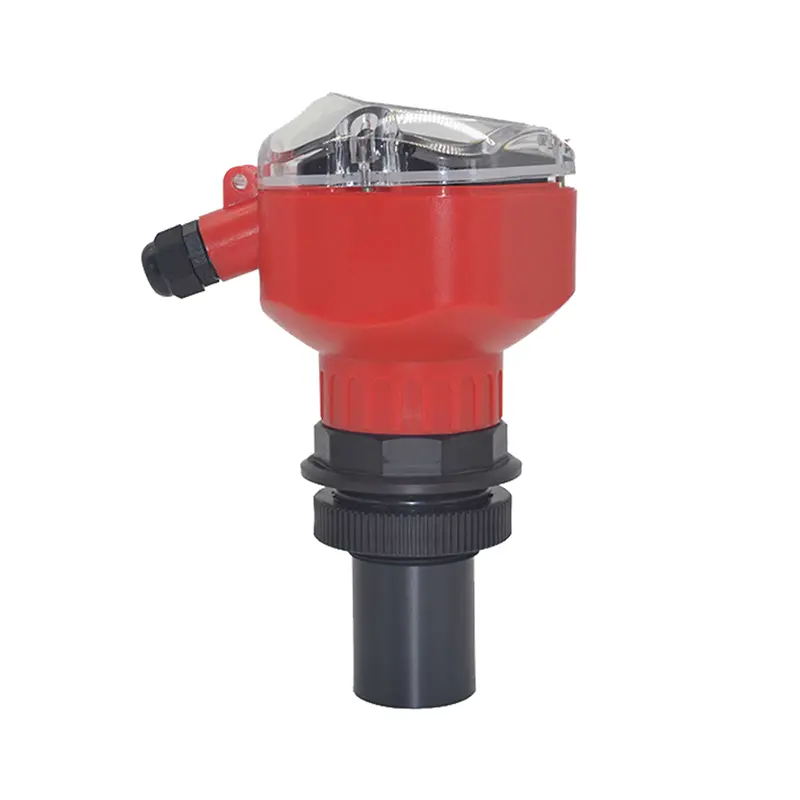

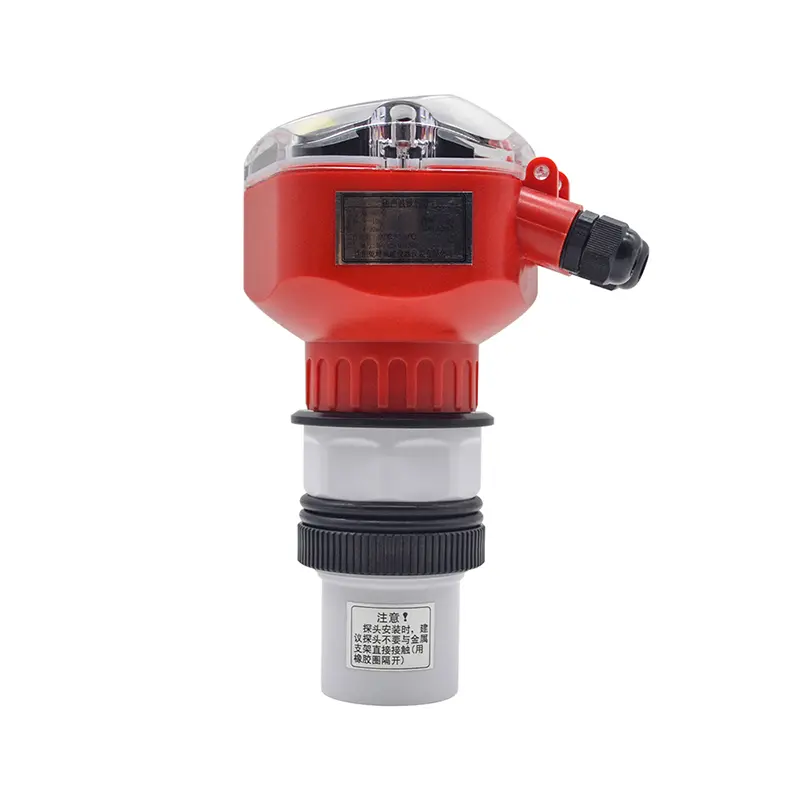

PWL-U700 Ultrasonic Level Transmitter

Features

Ultrasonic working principle, non-contact measurement method
Sun protection cover design, IP66 protection grade
Over voltage and over current protection
Max measuring range 60m
Both level and distance is shown
Optional relay output

Applications

Fuel level monitoring
Liquid level measurement
Water tanks
River, lake and pool
Solid particle level measurement

Request Price PDF Download

Advantages

Intelligent filtering algorithm design, more accurate
Simple installation with no calibration necessary
NLEPF engineering composite materials, durable and corrosion-resistant
Less than 9°beam angle design, less than 200ms responding time
Corrosive-resistant

The industrial ultrasonic level transmitter is a non-contact, highly reliable, cost-effective, easy-to-install and maintain liquid measuring instrument. It can meet most liquid level measurement requirements without contacting the medium. PVFD or PTFE sensor probe material is available when there is a need with liquid level sensor for corrosive liquids.

Resources

Datasheet

File Name	Time	Type	Download
PWL-U700 Ultrasonic Level Transmitter	Sep 24, 2025	PDF

Technical Parameters

Model	PWL-U700
Measuring Range	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Blind Zone	0.25-1.2m (According to the range)
Accuracy	±0.5%FS(Typical), ±0.25%FS by customized
Signal Output	4-20mA/0-5V/1-5V/0-10V/RS485/RS232/HART/Relay
Power Supply	24VDC/12VDC/220VAC
Display	With
Resolution	3mm or 0.1% (Which one is max)
Working Temp.	-20℃~60℃
Working Pressure	2 bar
Working Humility	≤80%RH, no condensation
Protection Level	IP66
Cable Length	None
Housing Material	NLEPF synthetic material
Installation Method	Threaded
Corrosive Application	Yes available to customize PVFD or PTFE sensor probe
