Ultrasonic Level Sensor

Industrial ultrasonic level transmitter uses a non-contact ultrasonic level sensor, continuous level measurement ultrasonic sensor of liquids and materials. With built in technology to compensate temperature. It has anti-interference intelligent identification and error correction function. No moving parts. They are widely used in all kinds of atmospheric storage tanks and water areas. Pokcenser ultrasonic level sensors have different models for small-range, mid-range and long-range applications, explosion proof, IP67 or IP68, including water and waste water, chemical processing, food and beverage, pulp and paper processing, sump and process tanks.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

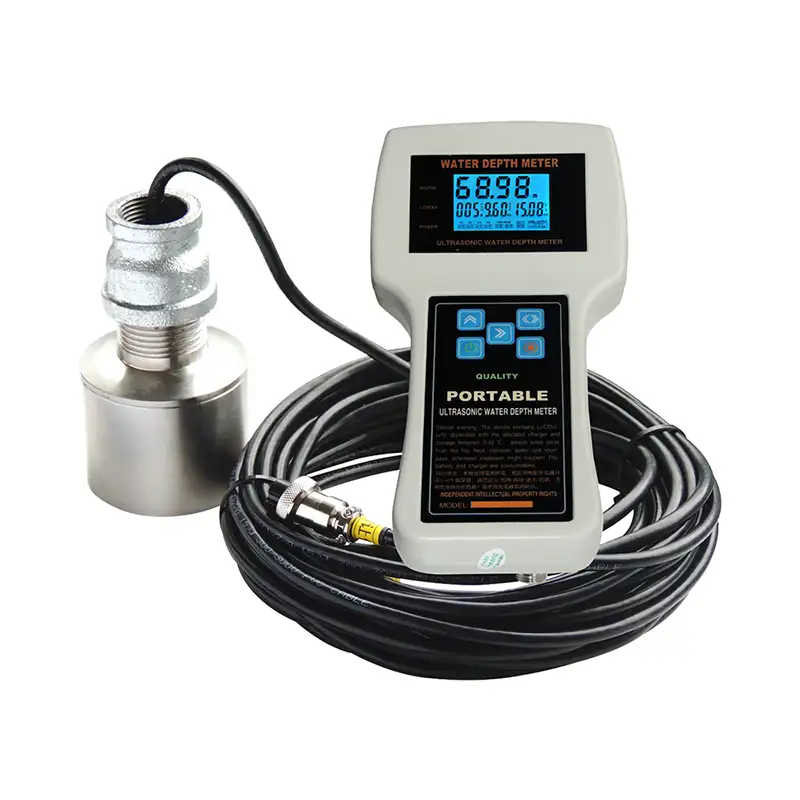

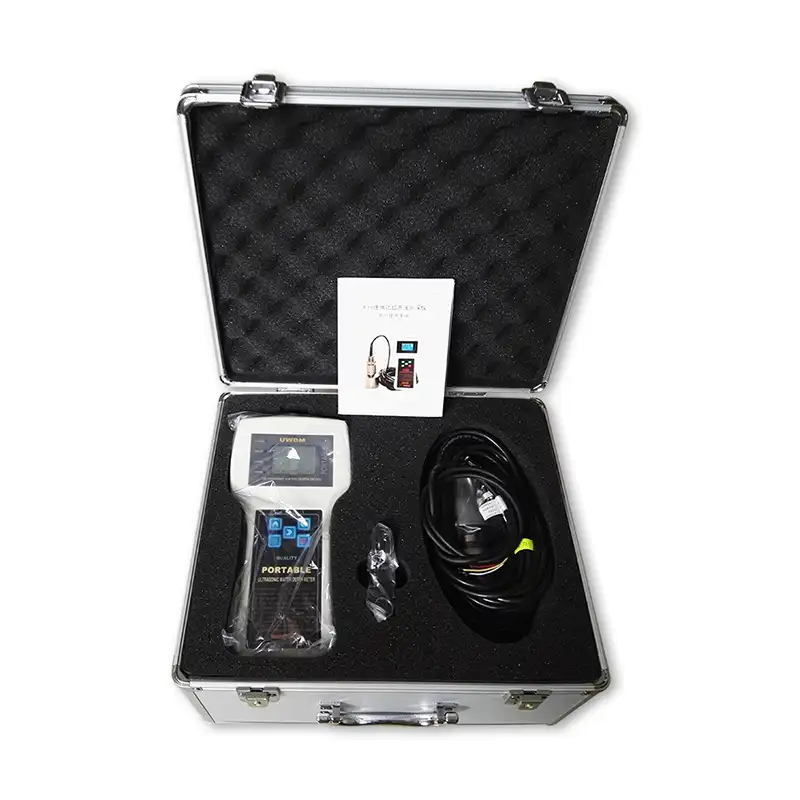

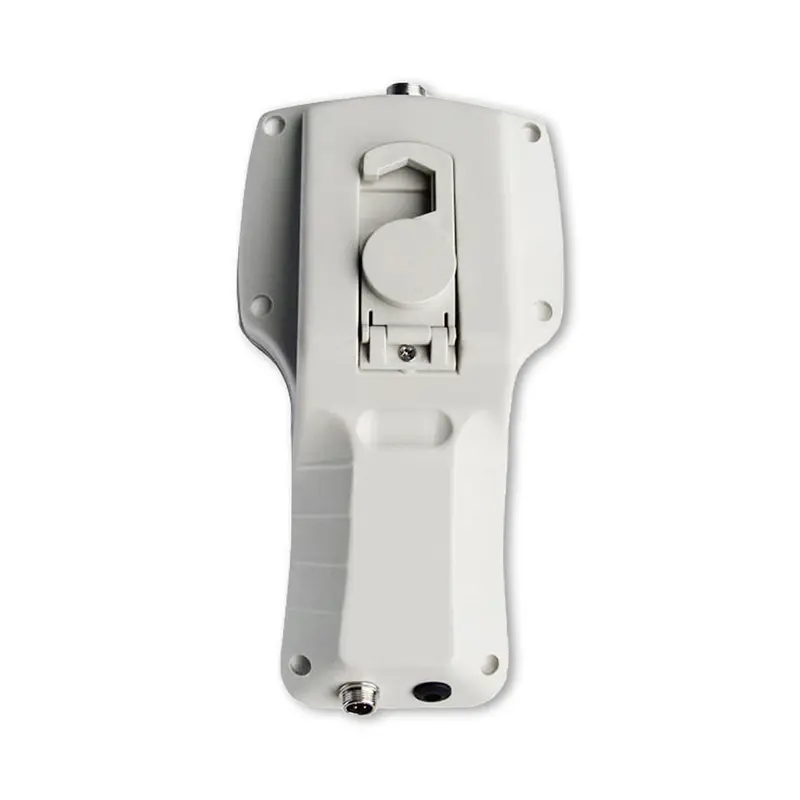

PWL-UH100 Portable Ultrasonic Water Depth Meter

Features

  • 50m, 100m, 200m, 300m depth
  • ±0.5%F.S. accuracy
  • DC12V rechargeable battery, 6 hours intermittent standby time
  • 4-20mA + RS485 Modbus RTU

Applications

  • Hydrographic surveying
  • Hydropower plant
  • Reservoirs
  • Lakes, rivers
  • Shallow seas

Advantages

  • Low maintenance
  • High reliability
  • Long service life
  • Simple operation and easy to use
  • Accurate measurement

Portable Ultrasonic Water Depth Meter is a handheld water depth measuring instrument for measuring reservoirs, lakes, rivers, shallow seas and other waters. To place ultrasonic transducer on the water surface or at a certain position in the water, current water depth will be automatically calculated by the instrument using the propagation principle of ultrasonic waves in the water.

Resources

Datasheet

File NameTimeTypeDownload
PWL-UH100 Portable Ultrasonic Water Depth MeterSep 24, 2025PDF

Technical Parameters

ModelPWL-UH100
MediasFresh water, sea water
Measuring Range50m, 100m, 200m, 300m
Blind Zone≤800~1200mm according to range
Accuracy±0.5%FS
Beam Angle18° ±2°
Signal Output4-20mA + RS485 Modbus RTU
Power SupplyBuilt-in DC12V rechargeable battery
Intermittent standby time is about 6 hours
Display4 bits LCD Backlight display
KeyboardFive-digit touch buttons
Working Temp.0℃~40℃
Storage Temp.-20~70℃
Protection LevelSensor IP68
Cable Length10m typical, can order 20m, 30m, 50m
Installation MethodTransmitter by handheld; Sensor by 1” thread
