Sanitary Type

Front flush diaphragm pressure transducer have been specifically designed for the measurement of viscous, paste-like, crystallizing, or solids-containing media, which could clog the pressure channel of conventional process connections. Use our 316L stainless steel sanitary flush membrane pressure sensor, it does not have dead space and is especially easy to clean. Low-maintenance and trouble-free pressure measurement. With cooling fins can realize it to be a 150℃ high temperature hygienic pressure transmitter.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

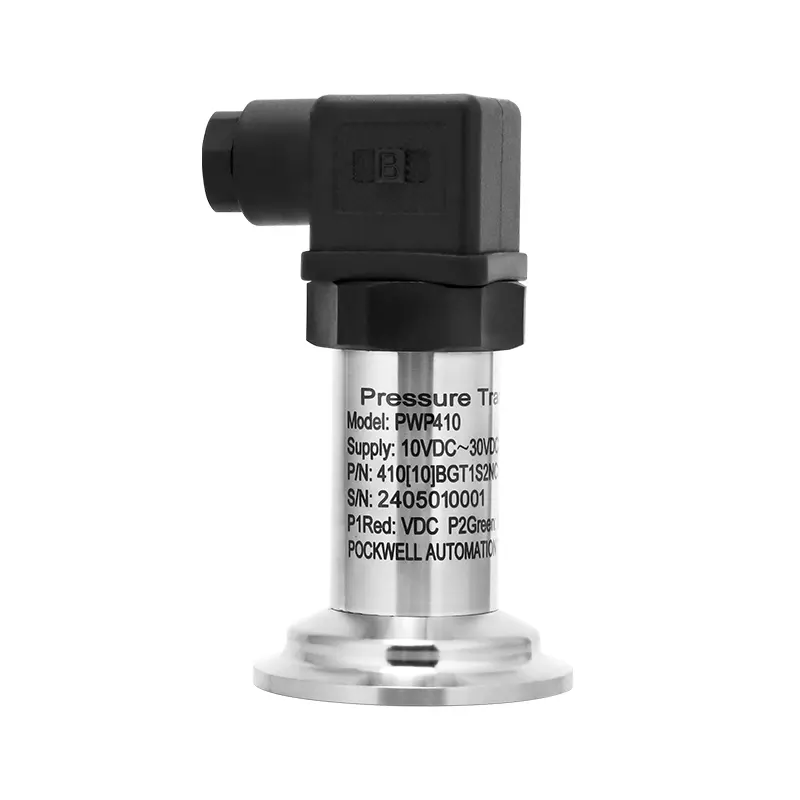

PWP410 Hygienic Pressure Transmitter With Tri-Clamp

Features

Flush design prevents clogging
Sanitary or Clean-in Place applications
Wide temperature range -40...+150℃
Measuring range up to 7MPa(Customizable)
Process connection in high-end stainless steel G1/2” or Tri-clamp 1-1/2”

PWP410 Hygienic Pressure Transmitter With Tri-Clamp

Applications

Food, dairy and beverage processing
Filling and packing machinery
Cleaning systems
Hydraulic fluids
Waste water treatment
Level measurement
Dosing of glues, adhesives, foams and other viscous media

Request Price PDF Download

Advantages

Food graded
Capable in high temperature application
Free of dead space and easy to clean
Media changeable

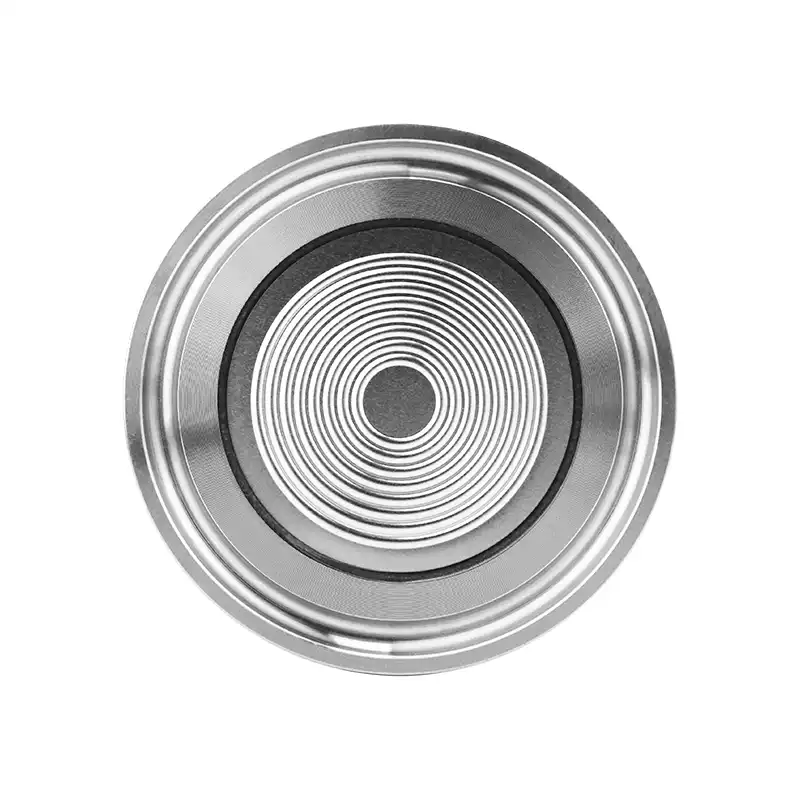

The front flush diaphragm pressure transducer have been specifically designed for the measurement of viscous, paste-like, crystallizing, or solids-containing media. Thanks to the front-flush welded stainless steel membrane, it does not have dead space and is especially easy to clean. This membrane type pressure transmitter is an ideal sanitary piezoresistive pressure sensor for food industry.

Resources

Datasheet

File Name	Time	Type	Download
PWP410 Hygienic Pressure Transmitter With Tri-Clamp	Apr 13, 2026	PDF

Technical Parameters

Model	PWP410
Pressure Type	Relative (gauge) /Absolute pressure/Sealed gauge pressure
Pressure Range	-0.1MPa ... 0kPa~10kPa …7MPa
Safe Overload	≤200%FS
Electrical Connection	DIN43650 Hirschmann Connector/M12*4pins/Directly outlet cable
Accuracy	±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output	4-20mA/0.5-4.5V/0-5V/0-10V/I2C/RS485
Power Supply	3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time	≤3ms
Long-term Stability (%FS/year)	≤0.5 for 0.5%FS accuracy
Compensation Temp.	0℃~+50℃(≤200kPa), -10℃~+60℃(>200kPa)
Working Temp.	-20℃~+85℃(Typical); -20℃~+150℃(With cooling element)
Storage Temp.	-40℃~+85℃
IP Rating	IP65/IP67
Process Connection	Clamp Φ50
