Submersible Level Transmitter

Pokcenser high accuracy submersible Level Sensor also called hydrostatic pressure level sensor with an enclosure of 27mm, 19mm and 16mm in diameter makes it ideal for level monitoring instruments in well, borehole and tanks applications. Constructed for years of trouble free service, it applies imported 316L stainless steel isolation diaphragm diffusion silicon pressure sensor core and 316L SS body&nose cap as robust. Precision ±0.10%, ±0.25% or ±0.50% of full scale accuracy output. Lightning and surge protection is included to stand up in harsh applications. Special cable for air-venting conduit with a maintenance-free filter preventing particulate or water droplets from entering the transmitter, ensures water tightness, and ventilation between inside and outside, so as to acquire accurate and stable measuring data.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWP417 Thread Mount Hydrostatic Pressure Level Sensor

Features

  • Thread connection design: Easy to install and fix on pipes and tanks
  • High water-proof protection grade IP68
  • All 316L stainless steel robust construction for durability
  • PE/PU/PTFE cable: Anti-corrosion/Acid/alkali, suitable for different medias
  • 1.5 times overload protection
  • Good EMC performance

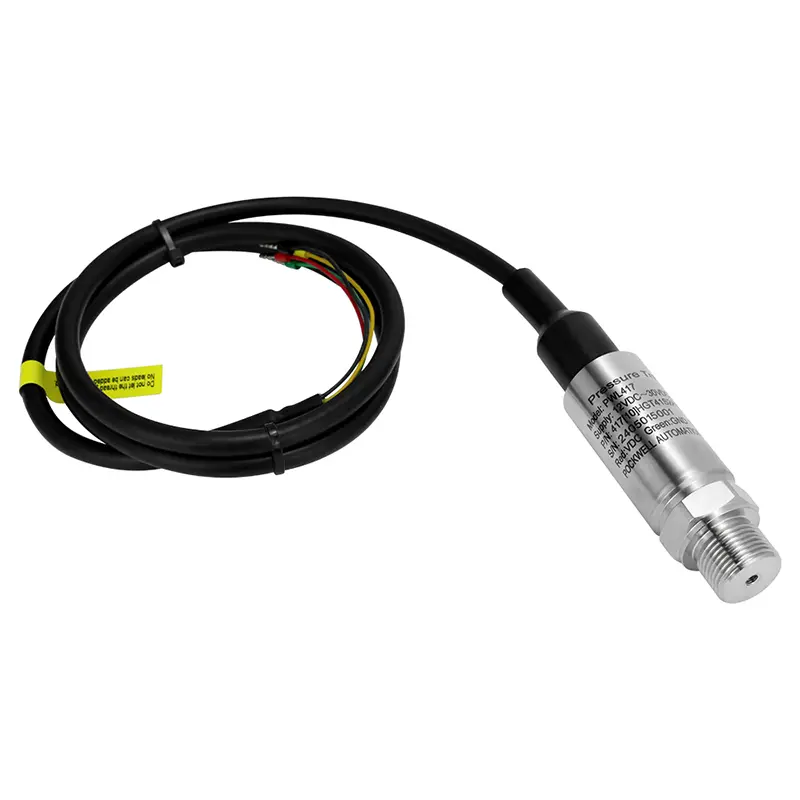

PWP417 Thread Mount Hydrostatic Pressure Level Sensor

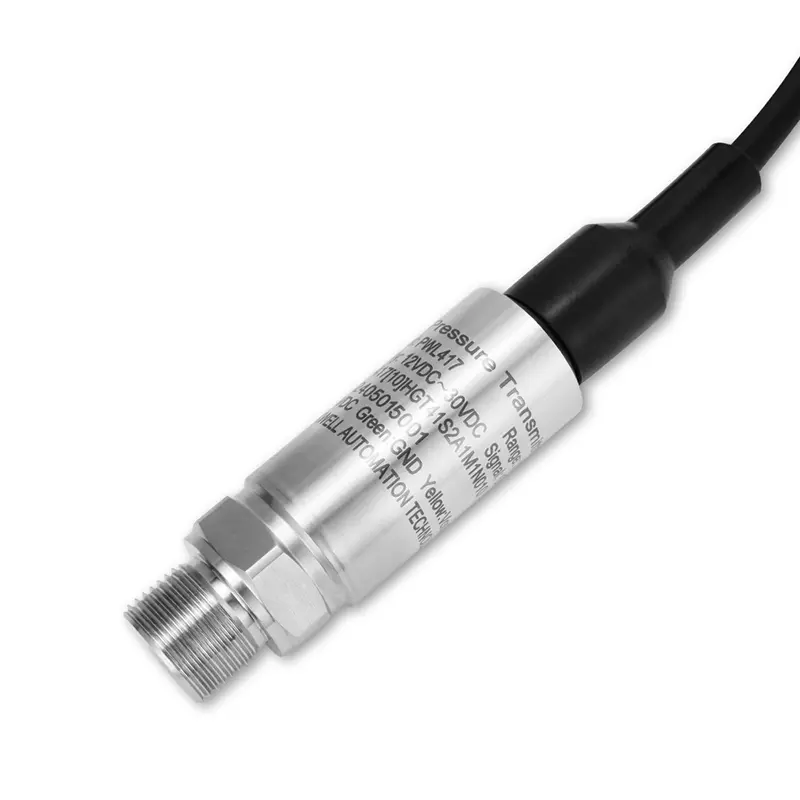

PWP417 Thread Mount Hydrostatic Pressure Level Sensor

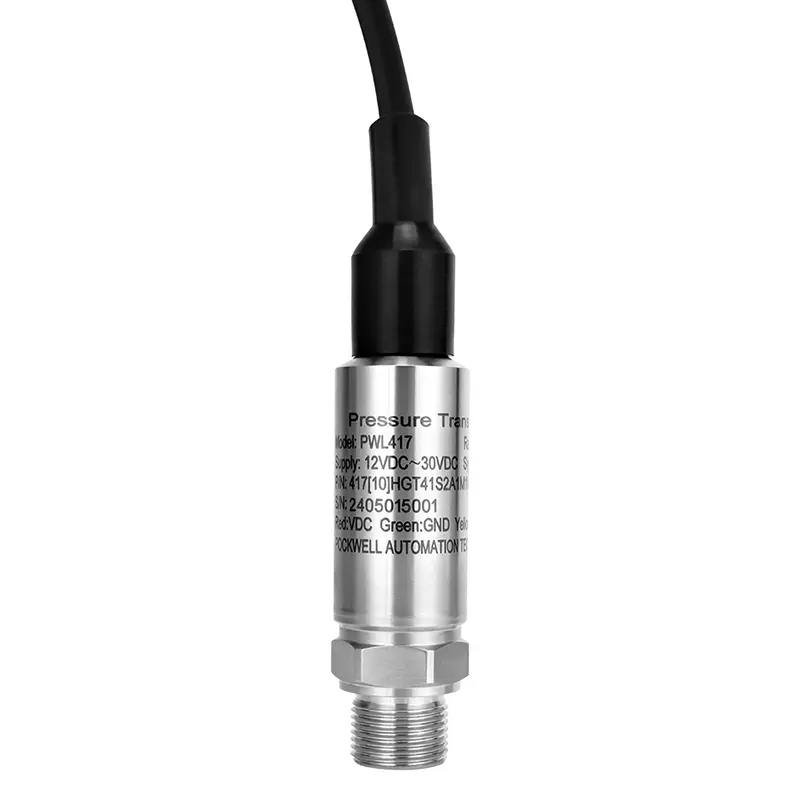

PWP417 Thread Mount Hydrostatic Pressure Level Sensor

Applications

  • Pipes and tanks
  • Deep well and ground water monitoring
  • Liquids measurement in tanks and vessels
  • Industrial process control
  • Calibration instrument
  • Pressure switch and hydraulic system
  • Irrigation equipment
Request Price PDF Download

Advantages

  • Reliable, precise measurement, long-term stability
  • Reliable, precise measurement, long-term stability
  • Independent of liquid dielectric constant
  • Easy to install
  • Wide measuring range
  • Robust and cost-effective

The Thread Mount Hydrostatic Pressure Level Sensor can be externally mounted with thread and have IP68 water-proof, great for pressure and level measurement of tanks and pipes. This digital submersible pressure level transmitter integrates with lightning and surge protection, as well as reverse connection protection, to prevent damage of sensors. High accuracy underwater pressure sensor IP68 with robust construction for durable long-term services. Multiple wetted materials, optional installation methods, meet various applications.

Resources

Datasheet

File NameTimeTypeDownload
PWP417 Thread Mount Hydrostatic Pressure Level SensorSep 24, 2025PDF

Technical Parameters

ModelPWP417
Pressure Level Range0m~0.5m...300m H2O/0-0.05 bar...30bar
Accuracy±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART
Power Supply3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time≤3ms
Medium CompatibleLiquid compatible with SS316L
Long-term Stability≤0.5%FS/year (for 0.5%FS accuracy)
Zero Temp. Drift≤0.05%FS/℃(for 0.5%FS accuracy)
Compensation Temp.0℃~+50℃(typical), -10℃~+60℃(optional)
Working Temp.Media -30℃~+65℃, environmental -40℃~+70℃
Storage Temp.-40℃~+70℃
IP RatingIP68
Cable MaterialPE, PU or FEP
Installation MethodSubmersible or by thread(male & female optional)
