Compact Type Temperature Sensor

Compact type temperature sensor is easy for installation through thread and good for narrow installation point. It provides an analogue or digital input to a system (indicator, controller or other device) that is used to determine the temperature of a specific process or location. Temperature monitoring is critical in many industrial applications, with PT100 pressure sensor or PT1000 temperature sensor.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWT4200 Compact Type Temperature Sensor

Features

  • Digital signal output available
  • Choices for different structures
  • Compatible for most industrial applications
  • Customized within 500℃

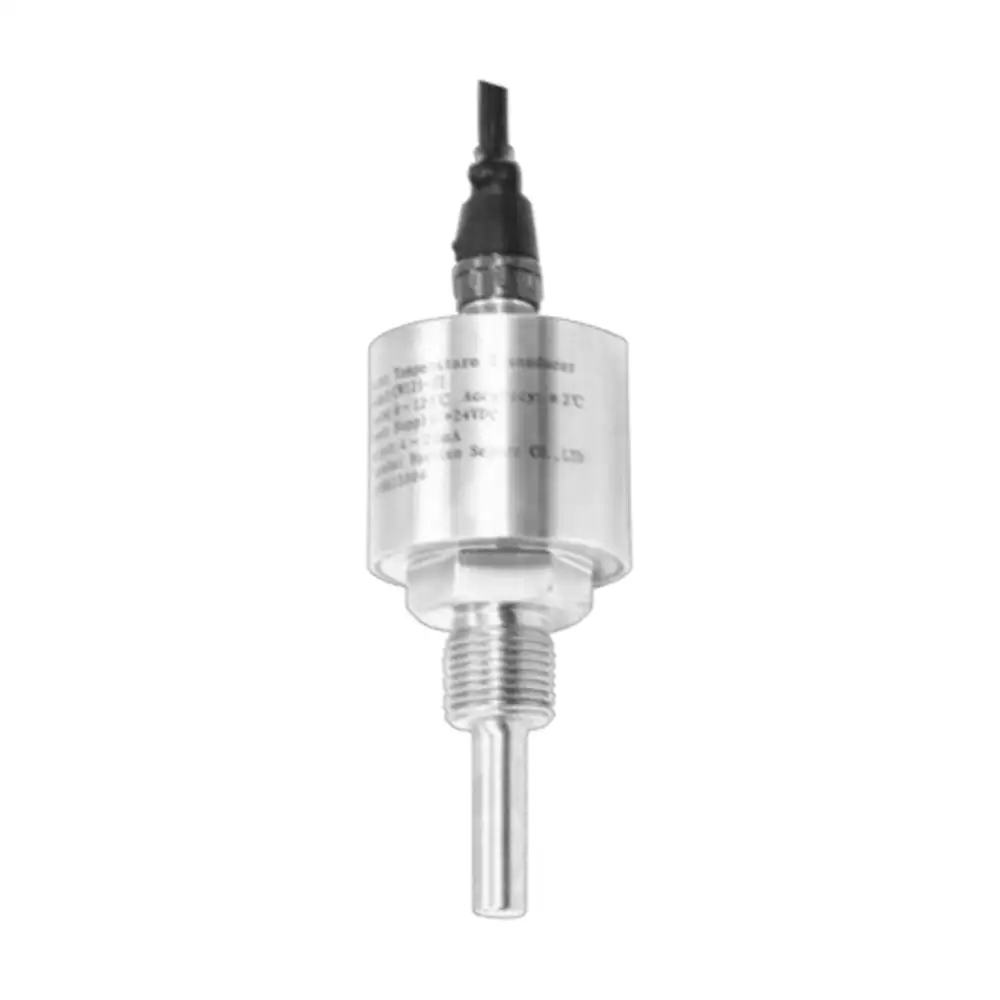

PWT4200 Compact Type Temperature Sensor

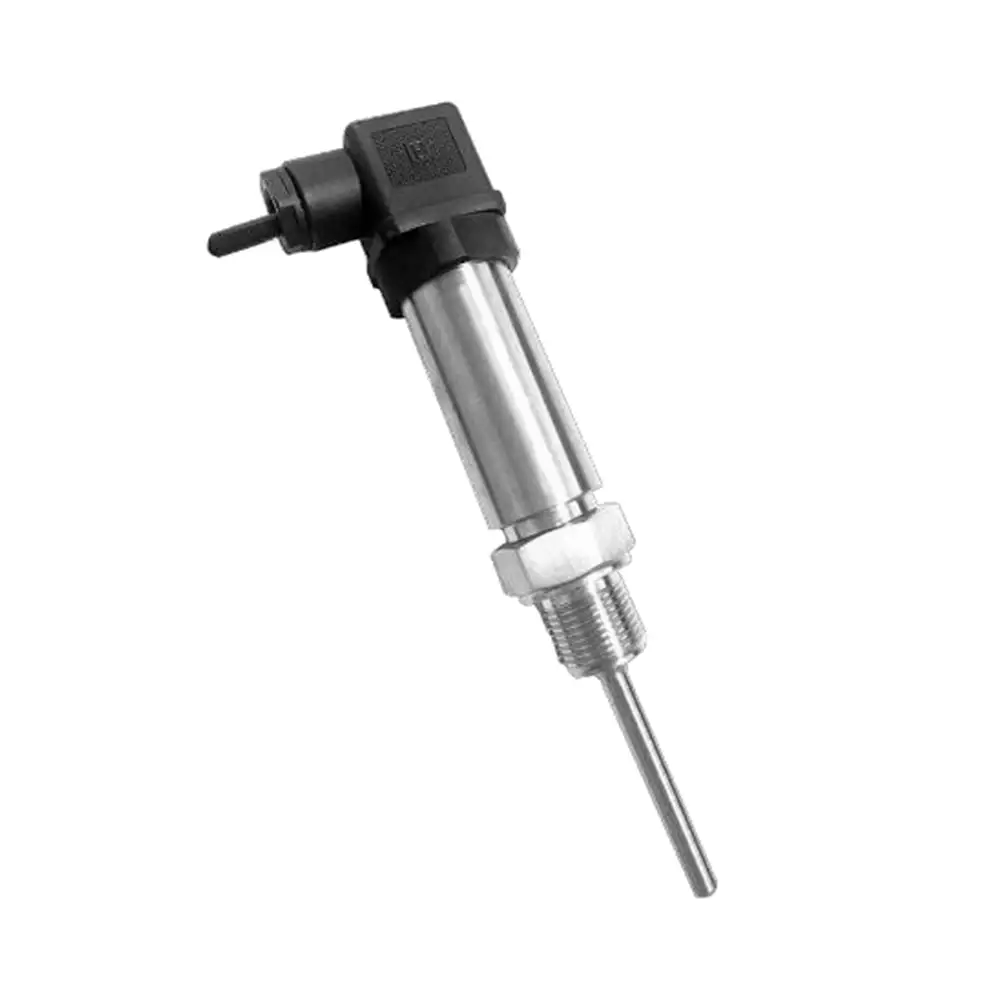

PWT4200 Compact Type Temperature Sensor

Applications

  • Railway locomotives
  • Coal & mine temperature monitoring
  • Large workshop ovens temperature measurement
  • Chemicals and oilfield
  • Pipeline and ventilation system
  • Cooling system and heating system
  • Civil explosive applications
Request Price PDF Download

Advantages

  • Compact and space-saving
  • Easy installation
  • Fast response and high accuracy
  • Intrinsically explosion proof available

This compact type temperature sensors for industrial applications combine all components into a single, non-dismantable assembly, with their small and lightweight design, cost efficiency, optimal space saving. It has PT100 temperature sensor 4 20ma type, or PT1000 sensor type with transmitter, can customize with ±0.25℃ accuracy.

Resources

Datasheet

File NameTimeTypeDownload
PWT4200 Compact Type Temperature SensorSep 25, 2025PDF

Technical Parameters

ModelPWT4200
Sensor TypePT100, PT1000
Range-60℃~+450℃ (optional)
Accuracy(℃)A: ±0.25 (customized)
B: ±0.5
C: ±1.0
Working Voltage15~30VDC (Calibration at 24VDC)
Signal Output4-20mA
0-10V
RS485
IIC
Working Environmental Temperature-30~+60℃
Response Time20s (10%~90%) (typical value)
Medium CompatibleLiquid compatible with stainless steel SUS304 or SS316L
Material of HousingSUS304, SS316L
Probe MaterialSUS304, SS316L
Protection LevelIP65
