Submersible vs. Surface Level Sensors: A Comprehensive Guide to Choosing the Right Solution

Selecting the appropriate level sensor is crucial for accurate and reliable process control in various industries. This decision directly impacts operational efficiency, safety, and cost-effectiveness. We provide a detailed comparison of submersible and surface level sensors, outlining their operational principles, advantages, limitations, and ideal applications. Understanding these differences helps in making an informed choice for specific measurement needs.

Understanding Submersible Level Sensors for Accurate Measurement

Submersible level sensors are designed for direct immersion into the liquid being measured. They typically operate based on hydrostatic pressure, where the pressure exerted by the liquid column above the sensor is converted into an electrical signal. This signal directly correlates to the liquid level. These sensors are particularly effective in applications requiring continuous and precise level monitoring within tanks, wells, or open bodies of water.

How Submersible Sensors Operate in Liquid Environments

Submersible sensors, often referred to as Hydrostatic Sensors or submersible pressure sensor, measure liquid level by detecting the pressure at a specific depth. The sensor’s diaphragm experiences pressure from the liquid above it. This pressure is then converted into an electrical output, typically a 4-20 mA signal. A vented cable connects the sensor to the control system, allowing atmospheric pressure compensation. This ensures that only the hydrostatic pressure of the liquid is measured, providing an accurate representation of the level. For example, our PWP412-T3 model uses a diffused piezoresistive silicon sensor to achieve high accuracy in these demanding environments.

Key Advantages and Limitations of Submersible Designs

Submersible sensors offer several advantages. They provide highly accurate and continuous measurement, unaffected by foam, vapor, or turbulence on the liquid surface. Their robust construction, often with IP68 ratings, allows them to operate reliably in harsh, corrosive, or dirty liquids. Installation is generally straightforward, requiring only the sensor to be lowered into the liquid. However, limitations exist. The sensor is in direct contact with the medium, making it susceptible to fouling or corrosion over time, which can necessitate regular cleaning or maintenance. Cable integrity is also critical; damage can lead to signal loss or sensor failure.

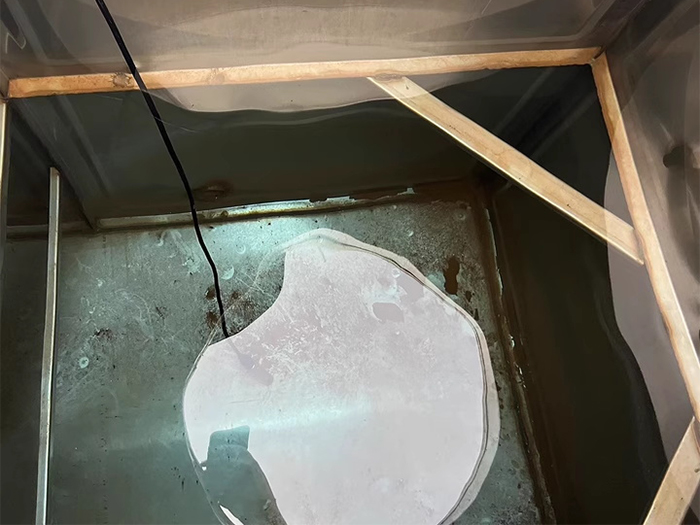

Ideal Applications for Submersible Sensors

Submersible sensors are well-suited for a variety of applications. They excel in monitoring water levels in reservoirs, rivers, and deep well water level transmitter. They are also commonly used in Water and Wastewater Treatment plants, boreholes, and sumps. In industrial settings, they monitor liquid levels in storage tanks, especially when the liquid surface is turbulent or prone to foam. Their ability to withstand harsh conditions makes them valuable for applications involving chemicals or corrosive media, provided the sensor materials are compatible.
Recommended reading: 《Submersible Level Transmitters: Key Specs to Check First》

Exploring Surface Level Sensors and Their Operational Principles

Surface level sensors, also known as non-contact sensors, measure liquid levels from above the medium without direct contact. These sensors utilize various technologies, including ultrasonic, radar, and capacitive methods, each with distinct operational principles and application suitability. They are often preferred in situations where direct contact with the liquid is undesirable due to its corrosive nature, high temperature, or hygiene requirements.

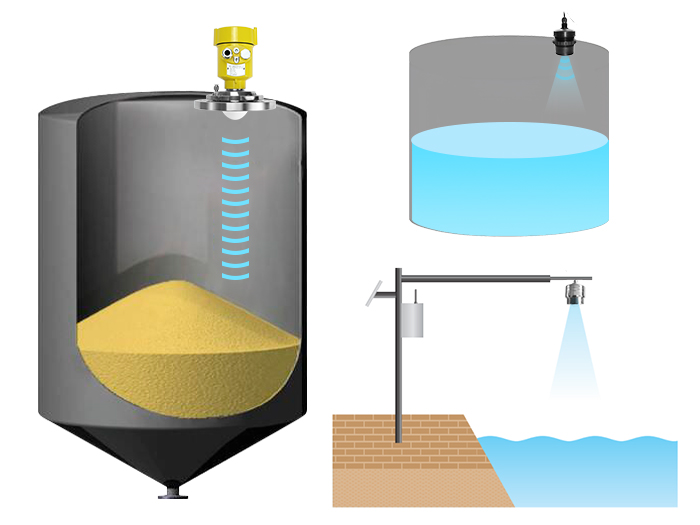

Types of Surface Level Sensors and Their Working Mechanisms

Several types of surface level sensors are available. Ultrasonic sensors emit sound waves that bounce off the liquid surface, with the time-of-flight determining the distance and thus the level. Radar level sensors use electromagnetic waves, offering greater accuracy and reliability in challenging conditions like extreme temperatures or vacuum. Capacitive sensors detect changes in capacitance as the liquid level changes, suitable for non-conductive liquids. Each technology offers specific benefits depending on the application’s unique characteristics. For example, our PWL-U201 and PWL-U202 models are ultrasonic level sensors designed for small tanks with minimal blind zones.
Recommended reading: 《Radar vs. Ultrasonic Level Sensors: A Selection Guide》

Benefits and Drawbacks of Surface Level Measurement

The primary advantage of surface level sensors is their non-contact operation, which minimizes sensor wear, prevents contamination, and simplifies maintenance. They are ideal for corrosive, abrasive, or high-temperature liquids. Installation is often easier, as no tank penetration below the liquid level is required. However, these sensors can be affected by factors such as foam, vapor, or agitators on the liquid surface, which might interfere with signal transmission. Environmental factors like temperature changes can also influence measurement accuracy for some technologies.

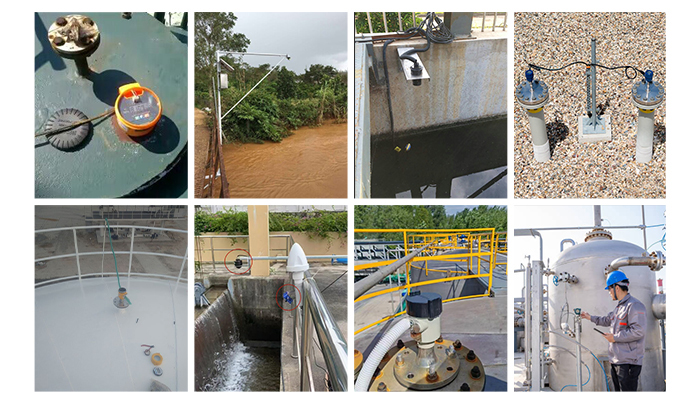

Optimal Use Cases for Surface Level Sensors

Surface level sensors are widely used in industries such as food and beverage, pharmaceuticals, and Chemical Tanks. They are particularly effective in open channels, wastewater treatment facilities, and storage tanks where hygiene or aggressive media are concerns. For example, Radar level sensors are often deployed in large storage tanks for fuels or chemicals, providing reliable measurements even in challenging vapor conditions. Ultrasonic sensors are commonly found in smaller tanks or sumps for water and wastewater applications.

Critical Factors for Choosing Between Sensor Types

Selecting the optimal level sensor requires careful consideration of several factors. These include the properties of the measured medium, environmental conditions, installation and maintenance requirements, and the desired accuracy and cost-effectiveness. A thorough evaluation ensures the chosen sensor performs reliably and efficiently throughout its operational lifespan.

Evaluating Environmental Conditions and Media Characteristics

The nature of the liquid or solid being measured is paramount. For instance, corrosive chemicals necessitate sensors made from resistant materials or non-contact solutions. High temperatures or pressures also influence material selection and sensor technology. Environmental factors such as humidity, dust, or the presence of explosive gases demand sensors with appropriate ingress protection (IP ratings) and certifications, such as hazardous area sensors. For example, a submersible pressure transmitter like our PWP412-T3, made from SS316L stainless steel, is suitable for many corrosive liquids.

Considering Installation Requirements and Maintenance Needs

Installation complexity and maintenance frequency are significant operational costs. Submersible sensors might require periodic removal for cleaning in fouling environments. Surface sensors generally offer easier access for maintenance, as they are not immersed in the medium. The physical constraints of the tank or vessel, such as size, shape, and access points, also dictate the feasibility of each sensor type. Consider whether the process can be shut down for maintenance or if hot-swappable options are necessary.

Assessing Accuracy, Reliability, and Cost-Effectiveness

Accuracy requirements vary by application. Some processes demand high precision, while others tolerate a wider margin of error. Reliability is crucial for continuous operations, minimizing downtime and ensuring consistent data. Initial purchase cost, installation expenses, and long-term maintenance costs all contribute to the overall cost-effectiveness of a sensor solution. For example, while submersible sensors might have a lower initial cost, their maintenance in harsh environments could increase lifetime expenses.
Recommended reading: 《Hydrostatic vs. Float Sensors: A Cost vs. Accuracy Guide》

Pokcenser Automation Technology: Innovative Sensor Solutions

At Pokcenser Automation Technology, we specialize in providing advanced level sensing solutions tailored to diverse industrial needs. Our extensive product portfolio includes both submersible and surface level sensors, engineered for precision, durability, and reliability. We leverage over a decade of experience in industrial process control automation to deliver solutions that meet stringent industry standards.

Submersible Sensor Technologies for Diverse Applications

Our submersible level transmitters are designed for robust performance in challenging liquid environments. For instance, the PWP412-T3 submersible hydrostatic sensors offer high accuracy (±0.05% FS optional) and feature all-stainless-steel construction with an IP68 rating, ensuring long-term stability in Water and Wastewater Treatment and Environmental Monitoring and Rivers. These sensors are ideal for applications requiring precise level measurement in deep wells, tanks, and other submerged conditions. We also offer solutions for deep well water level transmitter applications, ensuring reliable data even in extreme depths.

Surface Level Sensor Offerings for Precision Monitoring

For non-contact measurement, our range includes ultrasonic level sensors and Radar level sensors. Our PWL-U201 and PWL-U202 Ultrasonic sensors provide high precision with minimal blind zones, perfect for small tanks and beverage monitoring. For more complex applications, our Radar level sensors offer superior performance in environments with foam, vapor, or turbulence. These non-contact solutions are particularly beneficial in industries like Chemical processing, where direct contact with the medium is undesirable. We ensure our sensors are versatile, supporting various output options including 4-20mA, RS485 Modbus, and wireless communication for seamless integration into existing systems.
Recommended reading: 《Capacitive Level Sensors: Principles & Best Use Cases》

Partner with Us for Your Level Sensing Needs

Choosing between submersible and surface level sensors involves a detailed analysis of your specific application requirements. Our team of experts is ready to assist you in navigating these complexities. We offer comprehensive support, from initial application evaluation to recommending the most suitable solutions and providing exceptional after-sales service. Contact us today to discuss your level measurement challenges and discover how our innovative sensor technologies can optimize your operations.

FAQs

What is the primary difference between submersible and surface level sensors?

Submersible sensors are immersed directly in the liquid and measure hydrostatic pressure to determine level, while surface level sensors operate from above the liquid, using technologies like ultrasonic or radar to measure distance without direct contact.

In what situations should I prioritize a submersible sensor?

Submersible sensors are best for applications requiring continuous, accurate measurements in stable, non-turbulent liquids, or in deep wells and reservoirs where installation from above is difficult. They are also suitable for liquids with surface foam or vapor.

When is a surface level sensor a better choice for my application?

Surface level sensors are preferred for corrosive, high-temperature, or highly viscous liquids where direct contact with the sensor is problematic. They are also ideal when hygiene is critical, or when the liquid surface is prone to turbulence or rapid changes.

How do environmental factors impact sensor selection?

Environmental factors such as temperature, pressure, humidity, and the presence of corrosive agents or hazardous gases significantly influence sensor material selection, IP rating, and the choice between contact and non-contact technologies.

Can Pokcenser Automation Technology assist with sensor system integration?

Yes, our team provides end-to-end support, from evaluating your specific application needs to recommending suitable sensor solutions and assisting with seamless system integration, ensuring optimal performance and reliability.
