8 Things You Should Know About Diffused Piezoresistive Silicon Sensors

Pressure measurement is fundamental to countless industrial processes, from automotive engine management to medical life support systems. Among the various technologies available today, diffused piezoresistive silicon sensors have emerged as one of the most reliable and versatile solutions. These silicon pressure sensors combine exceptional accuracy, compact size, and cost-effectiveness, making them the preferred choice for applications where precision and durability matter most.

What are Diffused Piezoresistive Silicon Sensors?

A diffused piezoresistive silicon sensor is a pressure measurement device that utilizes the piezoresistive effect in silicon to detect pressure changes. The piezoresistive effect refers to the change in electrical resistance that occurs when mechanical stress is applied to a material. In piezoresistive pressure sensors, this effect is harnessed through specially doped silicon resistors that are diffused directly into a silicon diaphragm.

The core advantage of diffused silicon pressure transducers lies in their manufacturing process. Unlike bonded strain gauges, the resistive elements are created through high-temperature diffusion, making them an integral part of the silicon structure. This results in superior mechanical stability, better temperature characteristics, and enhanced long-term reliability compared to traditional pressure measurement sensors.

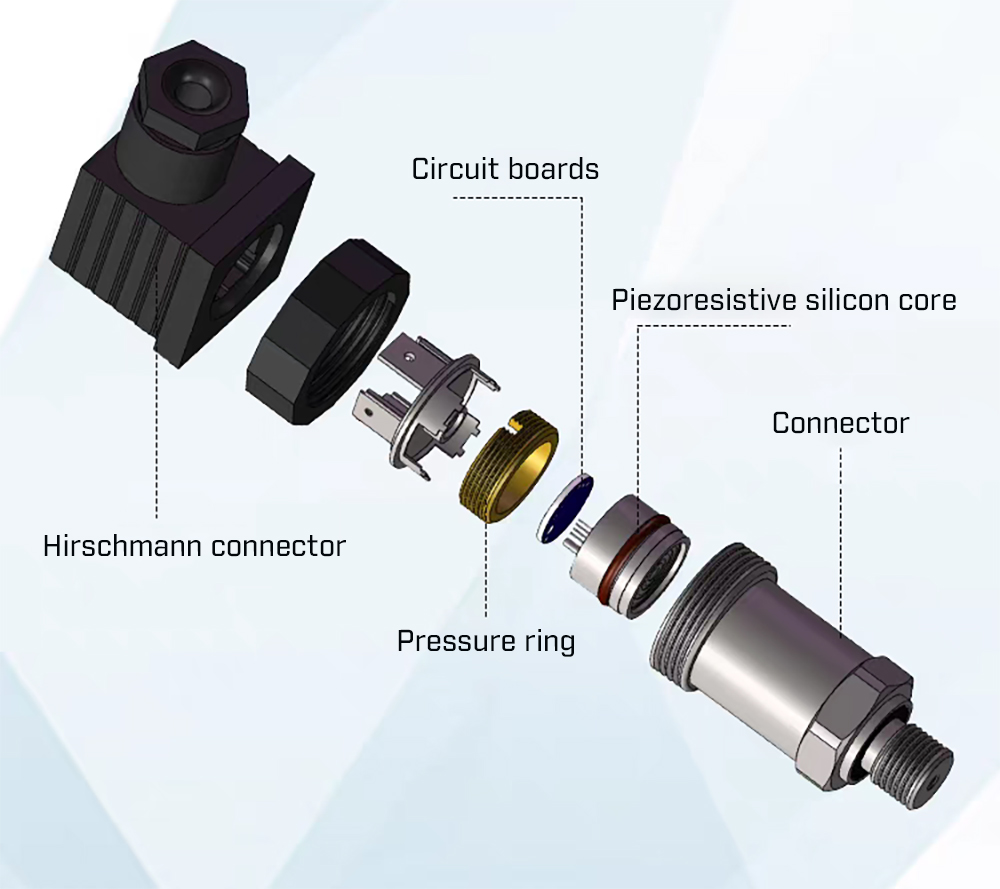

Figure 1. Internal structure of a diffused silicon pressure transducer, illustrating key components and electrical interfaces.

How Piezoresistive Sensor Technology Works?

The working principle of piezoresistive sensor technology centers on a silicon diaphragm with four diffused resistors arranged in a Wheatstone bridge configuration. When pressure is applied to the diaphragm, it deflects slightly, causing mechanical stress in the silicon crystal. This stress changes the resistance values of the diffused piezoresistors—two resistors increase in resistance while the other two decrease.

The Wheatstone bridge sensor configuration converts these resistance changes into a proportional voltage output. Because the resistors are perfectly matched and symmetrically positioned, the bridge provides excellent linearity and temperature compensation. Modern silicon pressure sensors often incorporate additional circuitry for signal amplification, temperature compensation, and digital output, transforming the basic sensing element into a complete pressure transmitter.

The beauty of diffused silicon sensor technology is that the entire sensing structure can be micromachined from a single silicon wafer using semiconductor fabrication techniques. This MEMS pressure sensor approach enables mass production with consistent quality and miniaturization impossible with mechanical sensors.

Key Technical Advantages of Diffused Piezoresistive Silicon Sensors

High accuracy pressure sensors based on diffused piezoresistive technology typically achieve accuracy levels of ±0.1% to ±0.25% of full scale, with some precision models reaching ±0.05%. The silicon strain gauge design provides excellent linearity across the entire pressure range, minimizing the need for complex calibration curves.

Long-term stability is another hallmark of piezoresistive pressure sensors. Because the sensing elements are diffused into the silicon crystal structure rather than bonded on, they exhibit minimal drift over time. Many industrial pressure sensors using this technology maintain their calibration for years without requiring adjustment.

The semiconductor pressure sensor design also offers an extremely wide measurement range. Single sensor designs can measure pressures from a few millibars to several thousand bar, making diffused silicon pressure transducers suitable for applications ranging from differential pressure sensors in HVAC systems to absolute pressure sensors in deep-sea exploration.

Size and integration advantages cannot be overstated. MEMS pressure sensors based on diffused piezoresistive technology can be manufactured in packages smaller than a grain of rice, yet still deliver professional-grade performance. This miniaturization enables their use in portable medical devices, wearable technology, and space-constrained automotive applications.

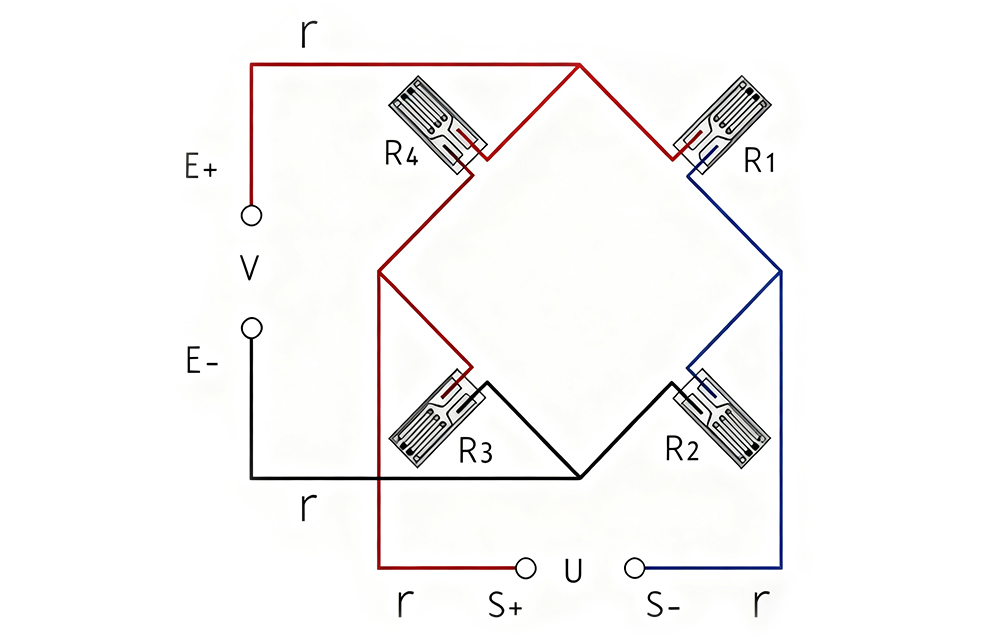

Figure 2. Basic Wheatstone bridge circuit used in piezoresistive silicon sensors to achieve accurate pressure-to-voltage conversion.

Real-World Applications of Piezoresistive Pressure Sensors

In the automotive industry, piezoresistive sensor technology is essential for engine management systems, monitoring manifold pressure, fuel pressure, and brake hydraulics. Silicon pressure sensors help optimize combustion efficiency, reduce emissions, and ensure safety in modern vehicles.

Medical devices rely heavily on high accuracy pressure sensors for critical applications. Blood pressure monitors, respiratory ventilators, infusion pumps, and dialysis machines all depend on the precision and reliability of diffused silicon pressure transducers to ensure patient safety.

Industrial automation systems use piezoresistive pressure sensors extensively for process control, hydraulic system monitoring, and pneumatic equipment. The robust nature of semiconductor pressure sensors makes them ideal for harsh industrial environments where reliability cannot be compromised.

HVAC systems employ differential pressure sensors to monitor air flow, filter condition, and system efficiency. Gauge pressure sensors help maintain optimal operating conditions while minimizing energy consumption.

In aerospace applications, the extreme reliability and wide temperature range of diffused piezoresistive silicon sensors make them suitable for altitude measurement, cabin pressure control, and hydraulic system monitoring in aircraft and spacecraft.

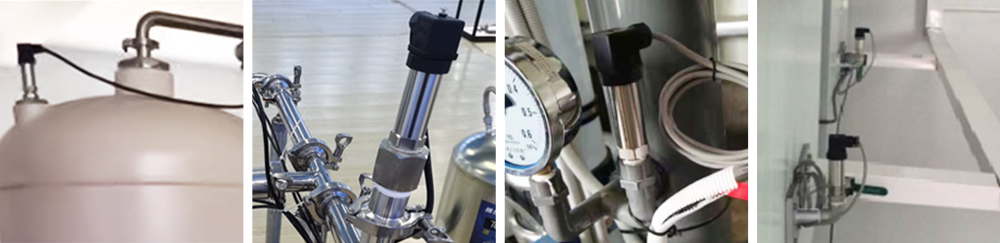

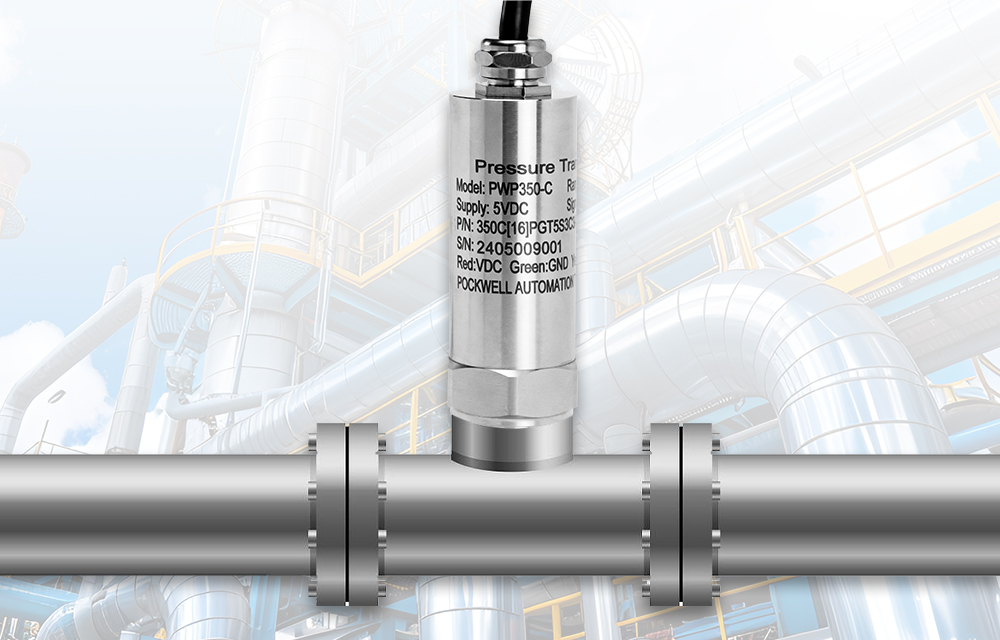

Figure 3. Diffused piezoresistive pressure sensors used in industrial environments, ensuring accurate and stable measurement in liquid and gas pipelines.

Comparing Piezoresistive Sensors with Other Technologies

When comparing piezoresistive pressure sensors with bonded strain gauge sensors, the diffused silicon technology offers superior temperature stability and long-term reliability. Unlike bonded gauges, which can delaminate over time, the diffused resistors are permanently integrated into the silicon structure.

Compared to capacitive sensors, piezoresistive sensor technology provides faster response times and is less susceptible to electromagnetic interference. While capacitive sensors excel in ultra-low pressure applications, silicon pressure sensors offer better performance across a wider pressure range.

Piezoelectric sensors are excellent for dynamic pressure measurement but cannot measure static pressure. Diffused silicon pressure transducers, on the other hand, can measure both static and dynamic pressure, making them more versatile for general industrial applications.

Factors Affecting Sensor Performance

Temperature is the primary environmental factor affecting piezoresistive pressure sensors. While modern temperature compensated pressure sensors incorporate on-chip compensation circuits, extreme temperatures can still impact accuracy. Most industrial pressure sensors are rated for operation between -40°C to +125°C, with specialized versions available for more extreme conditions.

Overpressure protection is critical for silicon pressure sensors. While the silicon diaphragm is remarkably strong, exceeding the maximum rated pressure can cause permanent damage. Quality diffused silicon pressure transducers often include mechanical stops or pressure relief features to prevent overpressure damage.

Media compatibility must be considered when selecting piezoresistive pressure sensors. The sensor’s wetted materials—typically silicon, glass, and metal—are compatible with most gases and liquids, but aggressive chemicals may require special sealing or isolation diaphragms.

Selection and Installation Best Practices

When selecting pressure measurement sensors, first determine whether you need an absolute pressure sensor, gauge pressure sensor, or differential pressure sensor. Absolute sensors measure pressure relative to vacuum, gauge sensors measure relative to atmospheric pressure, and differential sensors measure the difference between two pressure points.

Choose the appropriate pressure range with a safety margin. For high accuracy pressure sensors, select a range where your typical operating pressure falls in the middle 50-80% of the full scale for optimal accuracy.

Consider the output signal type. Piezoresistive pressure sensors are available with analog outputs (mV, 0-5V, 4-20mA) or digital interfaces (I2C, SPI, CAN). Digital outputs simplify integration with microcontrollers and eliminate the need for analog-to-digital conversion.

Proper installation is crucial for silicon pressure sensors. Ensure the mounting surface is flat and clean, use appropriate thread sealant that won’t contaminate the pressure port, and avoid over-tightening which can induce mechanical stress that affects readings.

The Future of Diffused Piezoresistive Silicon Sensors

The evolution of MEMS pressure sensors continues to push boundaries. Next-generation diffused piezoresistive silicon sensors are incorporating advanced MEMS fabrication techniques, enabling even smaller sizes and integration with other sensors to create multi-parameter measurement devices.

Smart sensor technology is transforming piezoresistive sensor technology. Modern semiconductor pressure sensors now include on-chip microprocessors that provide self-calibration, diagnostic capabilities, and wireless communication. These intelligent pressure transmitters can detect sensor drift, warn of potential failures, and transmit data directly to cloud-based monitoring systems.

Wireless sensor networks are enabling new applications for industrial pressure sensors. Battery-powered diffused silicon pressure transducers with ultra-low power consumption can operate for years without maintenance, making them ideal for remote monitoring applications.

Are you looking for reliable, high-precision pressure measurement solutions? Whether you need piezoresistive pressure sensors for automotive, medical, industrial, or aerospace applications, our range of diffused silicon pressure transducers delivers the accuracy and reliability your application demands.

Contact our sensor experts today for technical consultation, custom sensor solutions, or to request samples of our high accuracy pressure sensors.

FAQs About Diffused Piezoresistive Silicon Sensors

What is the difference between piezoresistive and piezoelectric pressure sensors?

Piezoresistive pressure sensors measure both static and dynamic pressure by detecting resistance changes in silicon, while piezoelectric sensors only measure dynamic pressure changes and cannot detect static pressure.

How accurate are diffused silicon pressure sensors?

Diffused piezoresistive silicon sensors typically offer accuracy between ±0.1% to ±0.25% of full scale, with precision models achieving ±0.05% or better.

What pressure ranges can piezoresistive sensors measure?

Silicon pressure sensors can measure from a few millibars up to 10,000 bar (145,000 psi), depending on the sensor design and diaphragm thickness.

Are piezoresistive sensors affected by temperature?

Yes, but modern temperature compensated pressure sensors include on-chip compensation that minimizes temperature effects across their operating range, typically -40°C to +125°C.

What is the typical lifespan of a diffused silicon pressure sensor?

With proper installation and operation within specifications, piezoresistive pressure sensors can operate reliably for 10+ years with minimal drift.

Can these sensors measure vacuum pressure?

Yes, absolute pressure sensors using piezoresistive sensor technology can measure from full vacuum (0 bar absolute) to their maximum rated pressure.
