Choosing the Right Flow Meter: A Comprehensive Guide to Types and Applications

Accurate flow measurement is critical for efficiency, safety, and quality control across diverse industries. Selecting the appropriate flow meter can significantly impact operational performance and cost-effectiveness. This guide provides a comprehensive overview of flow meter types, their applications, and key selection criteria to help you make informed decisions.

Understanding Flow Meters: Principles and Importance

What is a Flow Meter and Why is it Essential?

A flow meter is a device used to measure the linear or non-linear mass or volumetric flow rate of a liquid or a gas. These instruments are indispensable in industrial processes for monitoring, controlling, and optimizing fluid movement. Precise flow measurement ensures proper resource allocation, prevents waste, and maintains product quality. For example, in the chemical industry, accurate flow rates are vital for reaction control and safety.

Key Measurement Principles in Flow Measurement

Flow meters operate on various physical principles. Understanding these principles helps in matching the right meter to specific application requirements. Common principles include:

• Differential Pressure: Measures flow based on the pressure drop across an obstruction.
• Velocity: Determines flow rate by measuring the speed of the fluid.
• Positive Displacement: Traps and counts discrete volumes of fluid.
• Mass Flow: Directly measures the mass of the fluid flowing through the pipe.
• Variable Area: Utilizes a float that rises in a tapered tube in proportion to flow rate.

Types of Flow Meters and Their Applications

Different industrial applications demand specific flow meter technologies. We offer a range of solutions tailored to various needs.

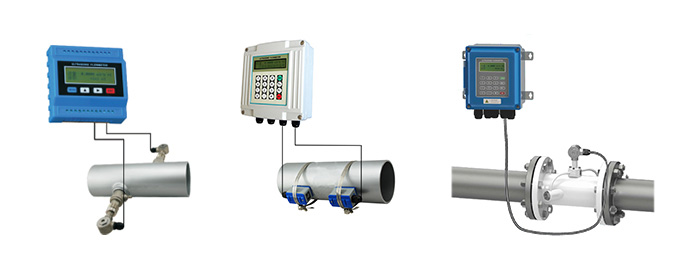

Ultrasonic Flow Meters: Non-Invasive and High-Precision Solutions

Ultrasonic flow meters utilize sound waves to measure fluid velocity. They are ideal for applications requiring non-invasive measurement or where fluid properties make contact sensors unsuitable. Our offerings include advanced models such as the PWF-U2000MCC Multi-channel Clamp-on Ultrasonic Flowmeter and the PWF-U2000MCI Multi-channel Insertion Ultrasonic Flowmeter. These devices provide high accuracy, typically ±0.5% FS for multi-channel units, and support a wide range of pipe diameters from DN50 to DN6000. They are suitable for liquids like water, seawater, sewage, acids, alkalis, alcohol, beer, and oils.

Key advantages of our ultrasonic flow meters:

• Non-invasive installation: Clamp-on types avoid pipe cutting, simplifying setup.
• High precision: Delivers accurate readings for critical processes.
• Versatile: Compatible with various liquid types and pipe materials.
• Integrated sensors: Optional temperature and pressure measurement capabilities enhance utility.

For smaller diameter pipes (DN15–DN40), the PWF-U1000 Small Pipe Clamp-on Ultrasonic Flowmeter offers similar benefits, including non-invasive installation and compatibility with metal, PVC, PP, or PVDF rigid plastic pipes. This makes it a preferred choice for applications in building services and medical fields.

If you are interested in comparing different flow meter technologies, read our article 《Flow Meter Selection: Turbine vs. Electromagnetic vs. Ultrasonic Flow Meters》.

Variable Area Flow Meters: Metal and Plastic Tube Options

Variable area flow meters, also known as rotameters, measure flow by allowing the fluid to lift a float in a tapered tube. The height of the float indicates the flow rate. We provide both metal and plastic tube variants to cater to different process conditions.

LZS Series Plastic Tube Flowmeter

The LZS Series Plastic Tube Flowmeter is designed for easy monitoring of liquids. Its transparent construction allows for direct visual observation of flow, and the permanent reading scale ensures reliable measurements. These meters are lightweight, corrosion-resistant, and suitable for the chemical, pharmaceutical, food, and water treatment industries. The plastic shell float offers excellent resistance to acids, alkalis, and general corrosion.

LZ Metal Tube Flow Meter

For more demanding environments, the LZ Metal Tube Flow Meter provides robust performance. Its all-metal construction makes it ideal for high-temperature, high-pressure, and corrosive applications. It features an optional LCD display for instantaneous and cumulative flow readings, along with thermal insulation for temperature control. This meter is widely used in the petrochemical, iron and steel, power generation, and metallurgical industries.

Other Relevant Measurement Devices: Enhancing Flow Monitoring Systems

Beyond flow meters, comprehensive process monitoring often requires additional sensors. We offer a variety of instruments to complement your flow measurement systems:

• TDS Sensors: The PCS3740PCD Digital Conductivity TDS Salinity Sensor measures conductivity, TDS, and salinity. It features 316L stainless steel or graphite wetted parts, ensuring durability and accuracy in harsh industrial and environmental applications.
• pH Sensors: The PCS1753CD Plastic pH Sensor offers high-accuracy pH measurement with RS485 Modbus RTU output. Its robust PP body and IP68 rating make it suitable for industrial water treatment and environmental monitoring.
• ORP Sensors: The PCS2700CD Digital ORP Sensor provides precise ORP measurement with RS485 Modbus RTU output, ideal for remote monitoring in various water applications.
• Dissolved Oxygen (DO) Sensors: The PCS4760PD Digital Dissolved Oxygen Sensor (Optical) uses an optical/fluorescence method for accurate DO readings, while the PCS4773D Digital Dissolved Oxygen Sensor (Diaphragm Electrode Method) offers reliable measurements using a polarographic method. Both are IP68 rated for submerged use.
• Turbidity Sensors: The PCS7820D Digital Turbidity Sensor utilizes a 90° infrared method for high-accuracy turbidity measurements, suitable for drinking water, wastewater, and industrial applications.
• Level Meters: For precise level measurement, we offer various solutions. For example, the PWL-U201 Small Range Ultrasonic Level Transmitter is ideal for compact tanks with minimal blind zones. You can learn more about level sensor technologies in our article 《Radar vs. Ultrasonic Level Sensors: A Selection Guide》.

Factors to Consider When Selecting a Flow Meter

Choosing the correct flow meter involves evaluating several critical factors. Each application has unique requirements that influence the best choice.

Process Conditions: Temperature, Pressure, and Medium Compatibility

The fluid’s properties and the operating environment significantly impact meter selection.

• Temperature: High-temperature fluids require meters with robust construction, such as the LZ Metal Tube Flow Meter, which can withstand up to 400°C.
• Pressure: High-pressure applications also necessitate durable materials and designs.
• Medium Compatibility: The fluid’s chemical composition (e.g., corrosive liquids, slurries, gases) dictates the wetted parts material. For corrosive liquids, our LZS Series Plastic Tube Flowmeter, with its plastic float and corrosion-resistant materials, is an excellent choice.
• Fluid Type: Whether the fluid is a liquid or a gas, and its viscosity, are crucial considerations. For gas flow measurement, consider a thermal mass flow meter or a vortex flow meter.

Accuracy, Range, and Installation Requirements

Accuracy and measurement range are paramount for process control.

• Accuracy: Our ultrasonic flow meters offer high accuracy, often ±0.5% after calibration, suitable for precise applications.
• Rangeability: Ensure the meter can accurately measure across the expected minimum and maximum flow rates.
• Installation: Non-invasive options like clamp-on ultrasonic flow meters reduce installation time and cost, especially for existing pipelines. Insertion-type ultrasonic flow meters allow installation without interrupting the process.

Communication and Integration Capabilities

Modern industrial environments require seamless data integration.

• Output Signals: Most of our flow meters support standard output signals like 4–20 mA and RS485 Modbus RTU, facilitating integration with control systems.
• Remote Monitoring: Digital communication protocols enable remote monitoring and data logging, improving operational oversight.
• Certifications: Ensuring compliance with industry standards such as CE,ATEX,ISO,and RoHS certifications is vital for safety and regulatory adherence.

Pokcenser Automation Technology’s Flow Meter Solutions

We are a leading sensor manufacturer and solution provider with over 10 years of experience in industrial process control automation. Our commitment to quality and innovation ensures reliable and accurate measurement solutions.

Advanced Ultrasonic Flow Meters for Diverse Needs

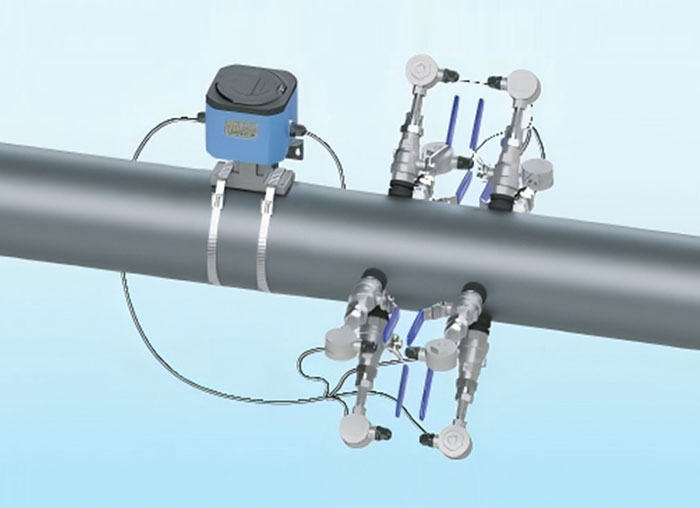

Our ultrasonic flow meter range offers flexibility and precision. The PWF-U2000MCC and PWF-U2000MCI models are designed for various industrial and municipal applications, including water distribution, leak detection, and process control. The PWF-U1000 is specifically tailored for small pipe applications, providing accurate flow measurement where traditional meters may not fit.

Robust Variable Area Flow Meters for Industrial Applications

Our LZS Series Plastic Tube Flowmeter and LZ Metal Tube Flow Meter cater to different operational demands. The plastic tube meters are ideal for less aggressive media and visual inspection, while the metal tube meters excel in harsh conditions involving high temperatures, pressures, or corrosive substances. These meters are utilized in Petrochemical and Water and Wastewater industries.

Integrated Water Quality and Level Monitoring for Comprehensive Systems

For complete process oversight, integrating flow measurement with water quality and level monitoring is essential. Our range of water analysis instruments, including TDS, pH, ORP, and turbidity sensors, along with various level transmitters, provides a holistic solution. For example, our submersible level transmitters are designed for reliable level measurement in challenging environments. Learn more about our main products to find the right combination for your needs.

Contact Us for Tailored Flow Measurement Solutions

Choosing the correct flow meter is a critical decision that impacts operational efficiency and accuracy. We offer a comprehensive range of flow meters and complementary sensors, backed by over a decade of expertise. Our team is ready to assist you in selecting the optimal solution for your specific application.
Contact us today to discuss your requirements and discover how our advanced measurement technologies can enhance your processes.

FAQs

What is the primary difference between clamp-on and insertion ultrasonic flow meters?

Clamp-on ultrasonic flow meters attach to the outside of a pipe, providing non-invasive measurement without interrupting flow or requiring pipe modification. Insertion ultrasonic flow meters are installed through a small opening in the pipe wall, with sensors extending into the fluid stream. They offer higher accuracy in some applications and can be installed without shutting down the pipeline.

How do I choose between a metal tube and a plastic tube flow meter?

The choice depends on the fluid properties and operating conditions. Plastic tube flow meters (e.g., LZS Series) are suitable for non-corrosive liquids, lower pressures, and temperatures, offering visual flow indication. Metal tube flow meters (e.g., LZ Metal Tube Flow Meter) are designed for high-temperature, high-pressure, or corrosive fluids, providing greater durability and resistance to harsh environments.

Can flow meters be used for corrosive liquids or high-temperature environments?

Yes, specialized flow meters are designed for such conditions. For corrosive liquids, meters with chemically resistant wetted parts, such as plastic tube rotameters or electromagnetic flow meters with appropriate liners, are used. For high-temperature environments, metal tube flow meters and certain ultrasonic flow meters are engineered to withstand extreme temperatures, up to 400°C for some metal tube models.

What communication protocols are typically supported by modern flow meters?

Modern flow meters commonly support industry-standard communication protocols for seamless integration with control systems. These include 4–20 mA analog output, which is widely used for process control, and RS485 Modbus RTU digital communication, enabling remote monitoring and data acquisition. Some advanced models may also support HART protocol.

How often should a flow meter be calibrated?

Calibration frequency depends on the application’s accuracy requirements, the meter type, and the operating conditions. Generally, flow meters should be calibrated annually or biannually. However, for critical applications or in harsh environments, more frequent calibration may be necessary to maintain measurement accuracy and reliability.
