Continuous vs. Point Level Sensors: Choosing the Right Solution

Level measurement is critical in various industrial processes, from monitoring tank levels in chemical plants to ensuring proper fluid levels in water treatment facilities. Selecting the appropriate sensor technology is crucial for operational efficiency, safety, and cost-effectiveness. This article provides a comprehensive comparison of continuous and point level sensors to guide informed decision-making.

Understanding Continuous Level Sensors for Industrial Applications

Continuous level sensors provide real-time measurement of the entire level range within a vessel. They output a signal proportional to the level, allowing for precise monitoring and control. This technology is essential when knowing the exact quantity of a substance is necessary for process optimization or inventory management.

What Defines Continuous Level Measurement Technology

Continuous level measurement systems constantly monitor the material level within a vessel. They provide an analog or digital output signal that corresponds directly to the level. This continuous feedback enables operators to track changes, predict trends, and implement proactive control measures. The output can be integrated into a control system for automated adjustments.

Key Operating Principles of Continuous Level Sensors

Various technologies underpin continuous level measurement.
1. Ultrasonic Sensors: These sensors emit sound waves and measure the time it takes for the echo to return. The distance to the liquid surface is calculated based on the speed of sound. They are non-contact and suitable for many liquids and solids. Pokcenser’s PWL-U201 and PWL-U202 are examples of high-precision ultrasonic level sensors with minimal blind spots.
2. Radar Level Sensors: Radar sensors transmit electromagnetic waves towards the material surface. The time-of-flight of the reflected wave determines the distance. Radar is highly accurate and less affected by temperature, pressure, or vapor. If you’re interested, check 《Radar vs. Ultrasonic Level Sensors: A Selection Guide》.

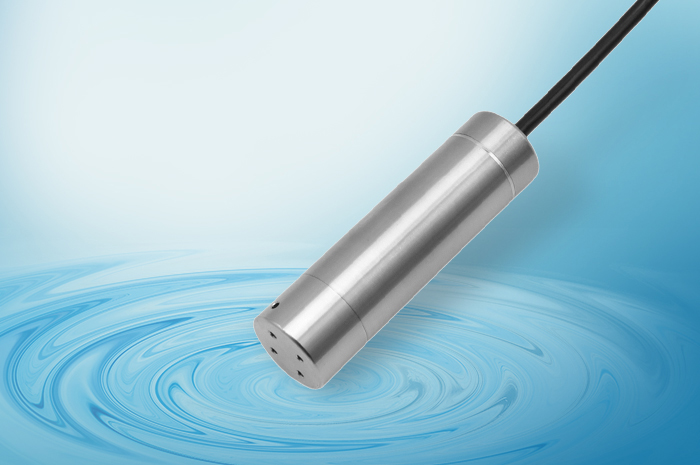

3. Hydrostatic Level Sensors: These sensors measure the pressure exerted by the liquid column above them. The pressure is directly proportional to the liquid level. They are often submersible and highly accurate for liquid level measurement. The PWP412-T3 from Pokcenser is a submersible hydrostatic sensor designed for water level and temperature.
4. Guided Wave Radar (GWR): GWR sensors use a probe to guide microwave pulses. The pulses travel down the probe and reflect off the material surface. This method is highly reliable for various media, including those with turbulent surfaces or foam.
5. Capacitance Sensors: These sensors measure changes in capacitance as the level of a material changes between two electrodes or between an electrode and the tank wall. They are ideal for liquids and some solids, particularly those with stable dielectric constants. For more details, see 《Capacitive Level Sensors: Principles & Best Use Cases》.

Advantages of Implementing Continuous Level Monitoring Systems

Continuous level monitoring offers several significant benefits for industrial operations.
1. Precise Inventory Management: It provides exact quantities, optimizing stock levels and reducing waste.
2. Enhanced Process Control: Real-time data allows for immediate adjustments, improving product quality and consistency.
3. Increased Safety: Operators can prevent overfilling or running dry, mitigating risks of spills, equipment damage, or hazardous conditions.
4. Improved Efficiency: Automation based on continuous data reduces manual intervention and streamlines operations.
5. Data Logging and Analysis: Continuous sensors facilitate historical data collection for trend analysis and predictive maintenance.

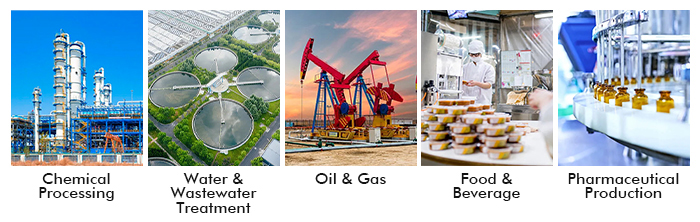

Typical Industrial Applications Benefiting from Continuous Level Sensors

Continuous level sensors are indispensable across diverse industries.
1. Chemical Processing: They monitor levels in reactors, storage tanks, and mixing vessels, ensuring precise ingredient ratios and safe operations in the chemical sector.
2. Water and Wastewater Treatment: These sensors manage levels in clarifiers, filtration basins, and reservoirs, optimizing treatment processes and preventing overflows. Our Water and Wastewater Treatment solutions frequently incorporate these sensors.
3. Oil and Gas: They are crucial for monitoring crude oil, refined products, and drilling mud levels in storage tanks and separators.
4. Food and Beverage: Continuous monitoring ensures consistent product quality and efficient production in blending tanks and storage silos.
5. Pharmaceutical Production: Accurate level control is vital for maintaining sterility and precise dosing in Pharmaceutical manufacturing.

Exploring Point Level Sensors for Specific Detection Needs

Point level sensors detect whether a material has reached a specific, predetermined level within a vessel. They act as switches, indicating the presence or absence of material at that exact point. These sensors are typically used for alarms, pump control, or safety interlocks.

The Fundamental Role of Point Level Detection

Point level detection is fundamental for safety and basic automation. It provides critical information about specific thresholds, such as high-level alarms to prevent overfilling or low-level alarms to protect pumps from running dry. This binary information (material present/absent) simplifies control logic.

Diverse Technologies Behind Point Level Sensors

Point level sensors employ various technologies tailored to different media and operating conditions.
1. Vibrating Fork (Tuning Fork) Sensors: These sensors vibrate at a specific frequency. When the material covers the fork, the vibration frequency changes, triggering a switch. They are highly reliable for liquids and fine-grained solids.

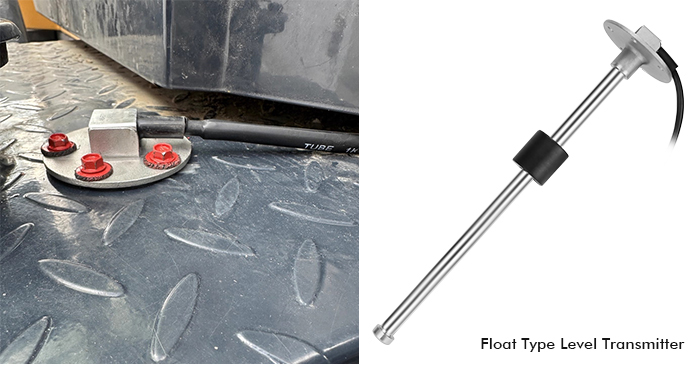

2. Float Switches: A simple and cost-effective solution, float switches use a buoyant element that moves with the liquid level. This movement actuates a switch. These are common Float Sensors in many applications.
3. Conductivity/Capacitance Probes: Conductivity probes detect the presence of conductive liquids by completing an electrical circuit. Capacitance probes detect changes in capacitance when a material contacts the probe.
4. Optical Sensors: These sensors use a light source and detector. When the liquid covers the sensor tip, the light path is interrupted or refracted, triggering the switch. They are ideal for clear liquids.
5. Paddle Switches: Primarily used for bulk solids, a rotating paddle is stopped by the material, signaling a high or low level.
6. Ultrasonic Point Level Sensors: A simplified version of continuous ultrasonic sensors, these emit a pulse and detect its return to determine if a specific point is reached.
7. RF Admittance Sensors: These sensors detect changes in radio frequency (RF) admittance when the probe is covered by material. They are robust and can handle coating buildup.

Benefits of Utilizing Point Level Sensors in Process Control

Point level sensors offer distinct advantages in specific control scenarios.
1. Simplicity and Reliability: Their straightforward operation often translates to high reliability and ease of understanding.
2. Cost-Effectiveness: For simple high/low level detection, point level sensors are generally more economical than continuous sensors.
3. Robustness: Many point level technologies are designed to withstand harsh process conditions, including high temperatures, pressures, and corrosive media.
4. Direct Control Action: They directly trigger alarms or control actions, simplifying safety interlocks and basic automation tasks.
5. Minimal Maintenance: Due to fewer moving parts (in many types), they often require less maintenance.

Common Industrial Scenarios for Point Level Sensor Deployment

Point level sensors are widely deployed in various industrial settings.
1. High/Low Level Alarms: Preventing tank overfilling or ensuring minimum levels for pump protection.
2. Pump Control: Automatically starting or stopping pumps based on liquid levels in sumps or storage tanks.
3. Overflow Prevention: Acting as a safety backup to prevent spills in critical vessels.
4. Dry Run Protection: Protecting pumps and other equipment from damage when liquid levels drop too low.
5. Material Feed Control: Ensuring hoppers or silos maintain sufficient material for downstream processes.

A Detailed Comparison of Continuous and Point Level Sensors

Choosing between continuous and point level sensors depends on specific application requirements. Understanding their differences across key parameters is essential for optimal selection.

Evaluating Measurement Accuracy and Precision

Continuous level sensors offer higher accuracy and precision, providing a proportional output across the entire measurement range. This allows for granular control and detailed data collection. For instance, submersible level transmitters like the PWP412-T3 offer high accuracy for precise water level monitoring. Point level sensors, conversely, provide binary information (on/off) at a specific threshold. Their “accuracy” relates to the repeatability of triggering at that exact point. Continuous sensors are preferred for applications requiring exact volume tracking, while point sensors are sufficient for simple presence/absence detection.

Analyzing Installation Requirements and Complexity

Installation complexity varies significantly. Continuous sensors, especially those requiring calibration across a range, often demand more intricate setup. For example, radar or ultrasonic sensors need proper alignment and consideration of tank geometry. Point level sensors are generally simpler to install, often requiring only mounting at the desired switch point. Some, like the PWP412-T3, are designed for easy submersible installation.

Comparing Maintenance Needs and Operational Lifespan

Maintenance requirements differ based on technology and application. Continuous sensors, particularly those with moving parts or exposed to harsh media, may require more frequent calibration or cleaning. Non-contact continuous sensors like radar often have lower maintenance. Point level sensors, especially solid-state types, typically have long operational lifespans and minimal maintenance. However, mechanical float switches may require periodic inspection for wear or debris.

Assessing Cost Implications and Return on Investment

Initial cost is generally higher for continuous level sensors due to their advanced technology and broader functionality. Point level sensors are usually more economical for basic detection tasks. However, the return on investment (ROI) must consider the value of continuous data. Precise inventory management, reduced waste, and enhanced safety from continuous monitoring can lead to significant long-term savings and improved profitability. For critical processes, the higher initial investment in continuous sensors is often justified by improved efficiency and reduced risks.

Determining Suitability for Different Process Conditions and Media

The choice of sensor is heavily influenced by the process environment and the material being measured.
* Continuous Sensors:
* Ultrasonic level sensors (e.g., PWL-U201, PWL-U202) are excellent for liquids and some solids, but can be affected by foam, heavy vapor, or extreme temperatures.
* Radar level sensors are robust against process variations like temperature, pressure, and vacuum, making them suitable for challenging chemical and oil & gas applications.
* Hydrostatic Sensors (e.g., PWP412-T3) are ideal for liquids, especially in tanks or open channels, but require direct contact with the medium.
* Point Sensors:
* Vibrating forks are versatile for liquids and solids, including sticky or viscous media.
* Float switches are simple and effective for many clean liquids.
* Capacitance sensors can be used for various liquids and solids, but their performance is sensitive to changes in the material’s dielectric constant.
* For specific applications requiring explosion-proof sensors, careful selection of certified devices is paramount.

Selecting the Optimal Level Sensor for Your Specific Needs

The selection process for a level sensor requires a systematic approach, considering various operational and environmental factors. An informed choice ensures reliable performance and maximizes efficiency.

Factors Influencing Sensor Type Selection

Several critical factors influence the choice between continuous and point level sensors.
1. Medium Characteristics: Consider the material’s state (liquid, solid, slurry), density, viscosity, conductivity, dielectric constant, and any corrosive or abrasive properties.
2. Process Conditions: Evaluate temperature, pressure, vacuum, turbulence, foam, and vapor presence within the vessel.
3. Measurement Range: Determine the minimum and maximum levels to be measured.
4. Accuracy Requirements: Define the acceptable tolerance for measurement error.
5. Output Requirements: Specify the desired signal type (analog, digital, switch) for integration with control systems.
6. Environmental Factors: Account for ambient temperature, humidity, vibration, and any hazardous area classifications.
7. Budget and Maintenance: Balance initial cost with long-term maintenance and operational expenses.

How to Match Sensor Capabilities with Application Demands

Matching sensor capabilities to application demands involves a detailed analysis.
1. For Continuous Monitoring: If precise inventory data, continuous process control, or trend analysis is required, opt for continuous sensors. For example, a submersible pressure sensor like the PWP412-T3 is excellent for continuous water level monitoring in open tanks or sumps.
2. For Critical Alarms: For simple high or low-level alarms, overfill prevention, or pump protection, point level sensors are generally more appropriate and cost-effective.
3. Challenging Media: For corrosive liquids or high-temperature applications, radar or specialized vibrating fork sensors might be necessary.
4. Hygiene Requirements: In food or Pharmaceutical industries, sensors must meet strict sanitary standards.
5. Hazardous Environments: In areas with flammable gases or dust, select explosion-proof sensors that comply with relevant safety certifications.

Integrating Pokcenser Automation’s Level Sensor Solutions (e.g., PWP412-T3, PWL-U201, PWL-U202)

Pokcenser Automation offers a diverse range of reliable level sensors designed for various industrial applications.
* PWP412-T3 SDI-12 Hydrostatic Water Level and Temperature Transmitter: This sensor provides high-precision Hydrostatic Sensors measurement for water level and temperature. It features all-stainless-steel construction and an IP68 rating, ensuring long-term stability in harsh environments. The SDI-12 output simplifies integration into data logging systems. It is ideal for Water and Wastewater applications, including groundwater and surface water monitoring.
* PWL-U201 Small Range Ultrasonic Level Transmitter: The PWL-U201 is a high-precision ultrasonic level sensors designed for small tanks and containers. It boasts an extremely small blind zone, making it suitable for accurate liquid and solid level measurement even in compact spaces. Its robust design ensures stable performance in harsh environments.
* PWL-U202 Small Blind Spot Ultrasonic Level Transmitter: Similar to the PWL-U201, the PWL-U202 offers high precision and a minimal blind spot for small tank applications. It provides multiple signal output options, including analog, digital, switch, and wireless, offering flexible integration into various control systems.

Advancements and Future Trends in Level Sensing Technology

The field of level sensing is continuously evolving, driven by the demand for greater efficiency, accuracy, and connectivity in industrial processes. These advancements are shaping the future of industrial automation.

Innovations Enhancing Sensor Performance and Connectivity

Modern innovations focus on improving sensor capabilities and integration.
1. Enhanced Accuracy and Reliability: New materials and advanced signal processing algorithms are leading to more accurate and reliable measurements, even in challenging conditions.
2. Miniaturization: Smaller, more compact sensors are becoming available, allowing for installation in confined spaces.
3. Wireless Communication: Integration of wireless technologies (e.g., LoRa, NB-IoT, 4G) simplifies installation and reduces cabling costs, especially in remote or difficult-to-access locations.
4. Self-Diagnostics and Predictive Maintenance: Sensors are increasingly equipped with self-diagnostic capabilities, providing early warnings of potential issues and enabling predictive maintenance strategies.
5. Multi-parameter Measurement: Some advanced sensors can measure multiple parameters simultaneously, such as level, temperature, and pressure, providing a more comprehensive view of process conditions.

The Role of IIoT and Smart Sensors in Modern Automation

The Industrial Internet of Things (IIoT) is transforming level sensing.
1. Data-Driven Decision Making: Smart sensors with IIoT connectivity provide vast amounts of data to cloud platforms for analysis. This data enables optimized decision-making and improved operational insights.
2. Remote Monitoring and Control: Operators can monitor and control level measurements from anywhere, enhancing responsiveness and reducing the need for on-site inspections. This is particularly valuable for distributed assets or hazardous environments.
3. Integration with AI and Machine Learning: Data from smart sensors can feed into AI and machine learning algorithms to predict process anomalies, optimize resource usage, and automate complex control sequences.
4. Increased Efficiency and Cost Savings: By leveraging IIoT, industries can achieve significant gains in operational efficiency, reduce downtime, and lower overall operating costs.
5. Enhanced Safety: Real-time data and predictive analytics improve safety by identifying potential hazards before they escalate.

Partner with Pokcenser Automation for Your Level Sensing Needs

Choosing the right level sensor is a critical decision that impacts operational efficiency, safety, and cost. At Pokcenser Automation, we offer a comprehensive range of high-quality continuous and point level sensors, backed by over 10 years of expertise in industrial process control automation. Our team of experts is ready to evaluate your specific application and recommend the optimal solution. Contact us today to discuss your requirements and discover how our advanced sensing technologies can enhance your operations.

Phone: +86 181 7515 5326
Email: info@pokcenser.com

About the Author

Li Chengxuan is a senior industrial automation expert at Pokcenser Automation, specializing in the research and application of flow, level, pressure and temperature sensors and industrial process control solutions.

FAQs

1. What is the primary difference between continuous and point level sensors?

Continuous level sensors provide a real-time measurement of the material level across an entire range, offering a proportional output signal. Point level sensors, conversely, only detect whether the material has reached a specific, predetermined high or low level, providing a simple on/off switch signal.

2. When should I choose a continuous level sensor over a point level sensor?

You should choose a continuous level sensor when precise inventory management, continuous process control, or detailed trend analysis is required. This is crucial for applications where knowing the exact volume or level at all times is essential for safety, quality, or efficiency.

3. Can Pokcenser Automation provide customized level sensing solutions?

Yes, Pokcenser Automation specializes in providing tailored solutions. Our 6-person pre-sales and after-sales team works closely with clients to evaluate their specific application needs and recommend or customize suitable level sensor solutions to meet unique industrial requirements.

4. How do environmental factors affect the performance of level sensors?

Environmental factors like extreme temperatures, high pressure, vacuum, turbulence, foam, and corrosive media can significantly impact sensor performance. It is crucial to select sensors designed to withstand these conditions to ensure accuracy and longevity. For instance, radar sensors are generally more robust in harsh environments than some ultrasonic types.

5. What are the typical maintenance requirements for industrial level sensors?

Maintenance varies by sensor type. Mechanical sensors like float switches may require inspection for wear or debris. Non-contact sensors such as radar generally require less maintenance but may need periodic calibration checks. Sensors exposed to fouling or corrosive media might need regular cleaning or material compatibility checks.
